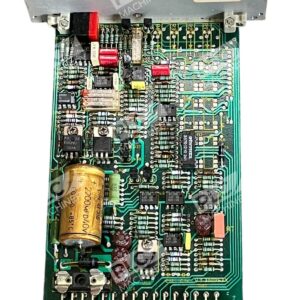

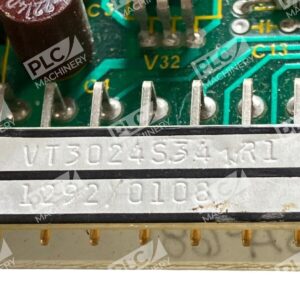

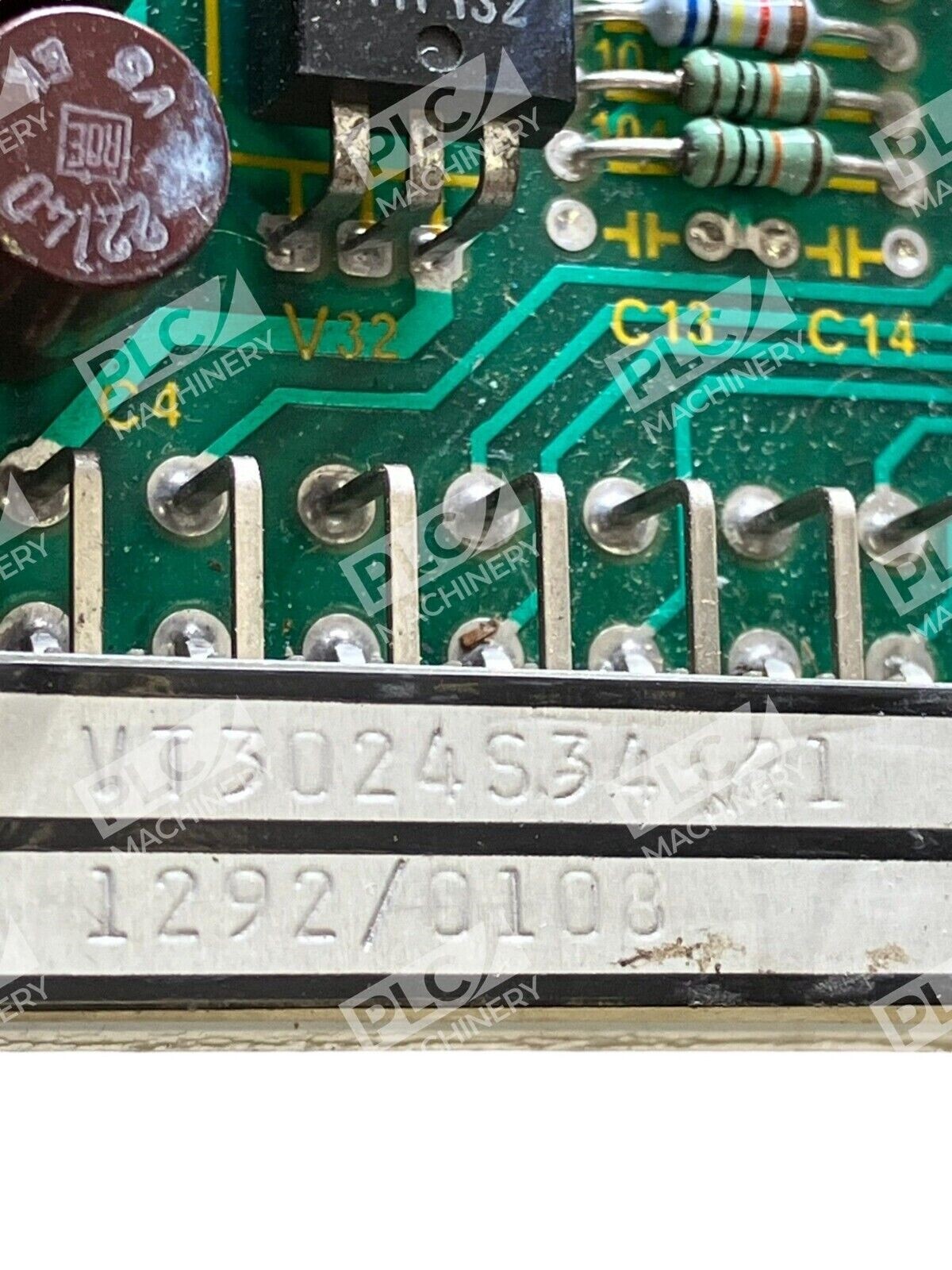

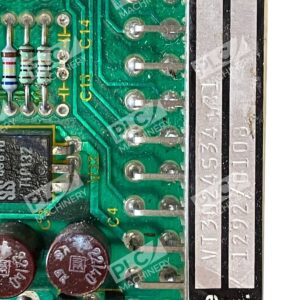

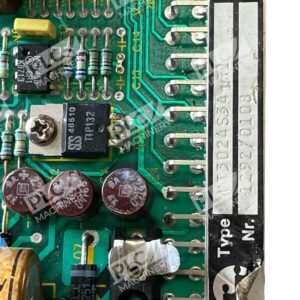

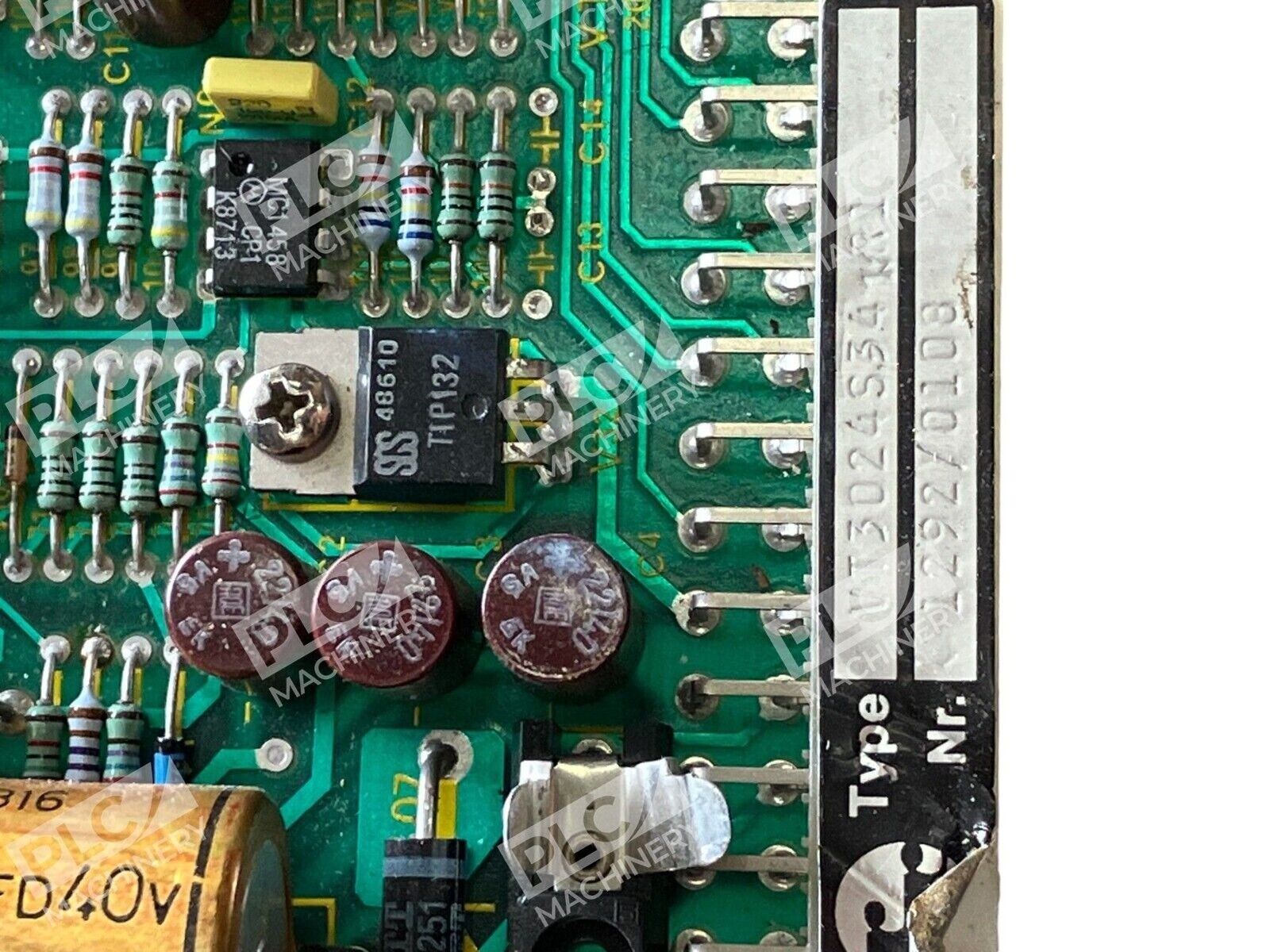

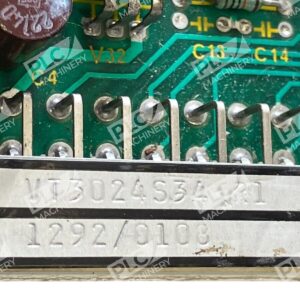

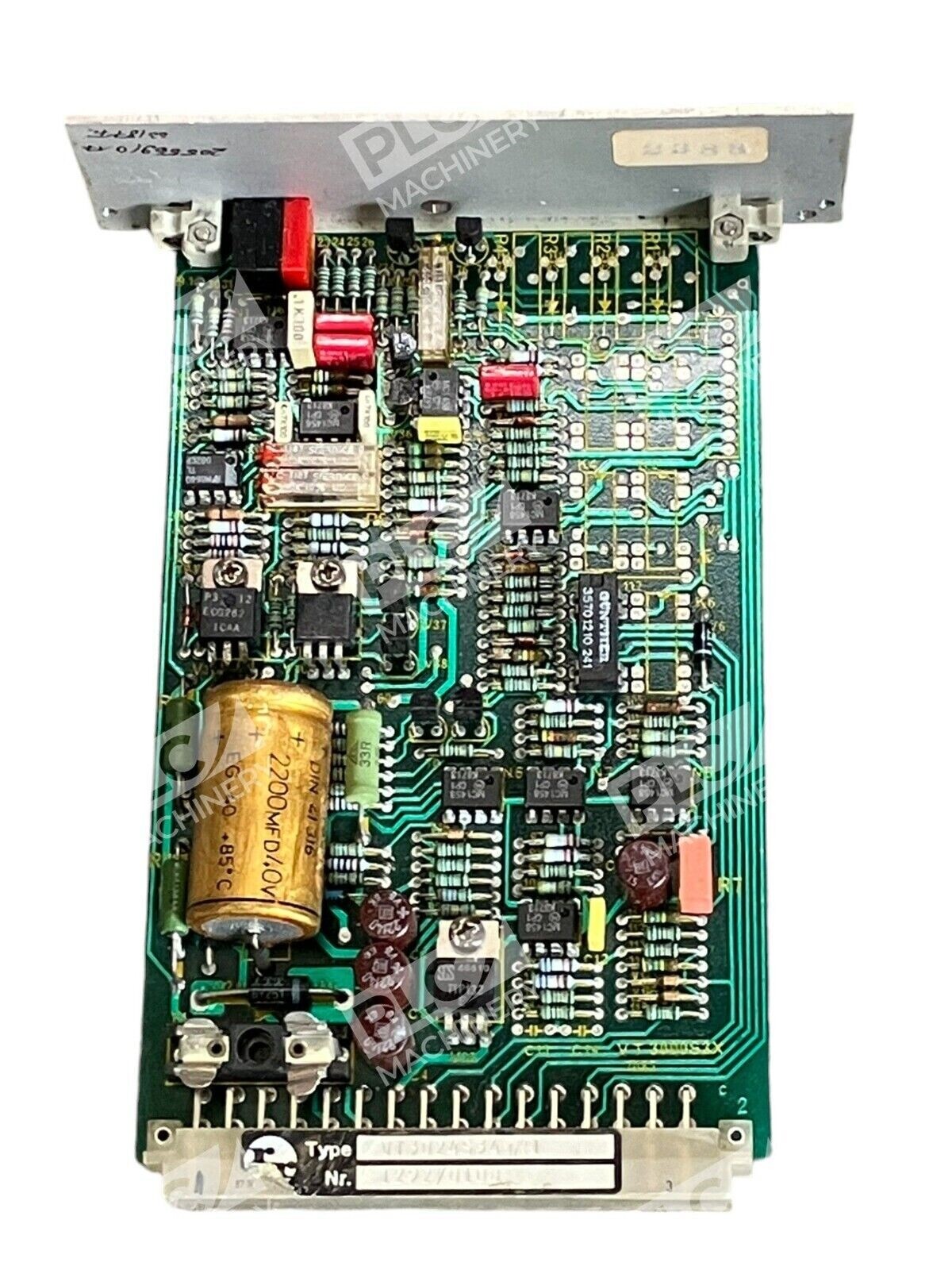

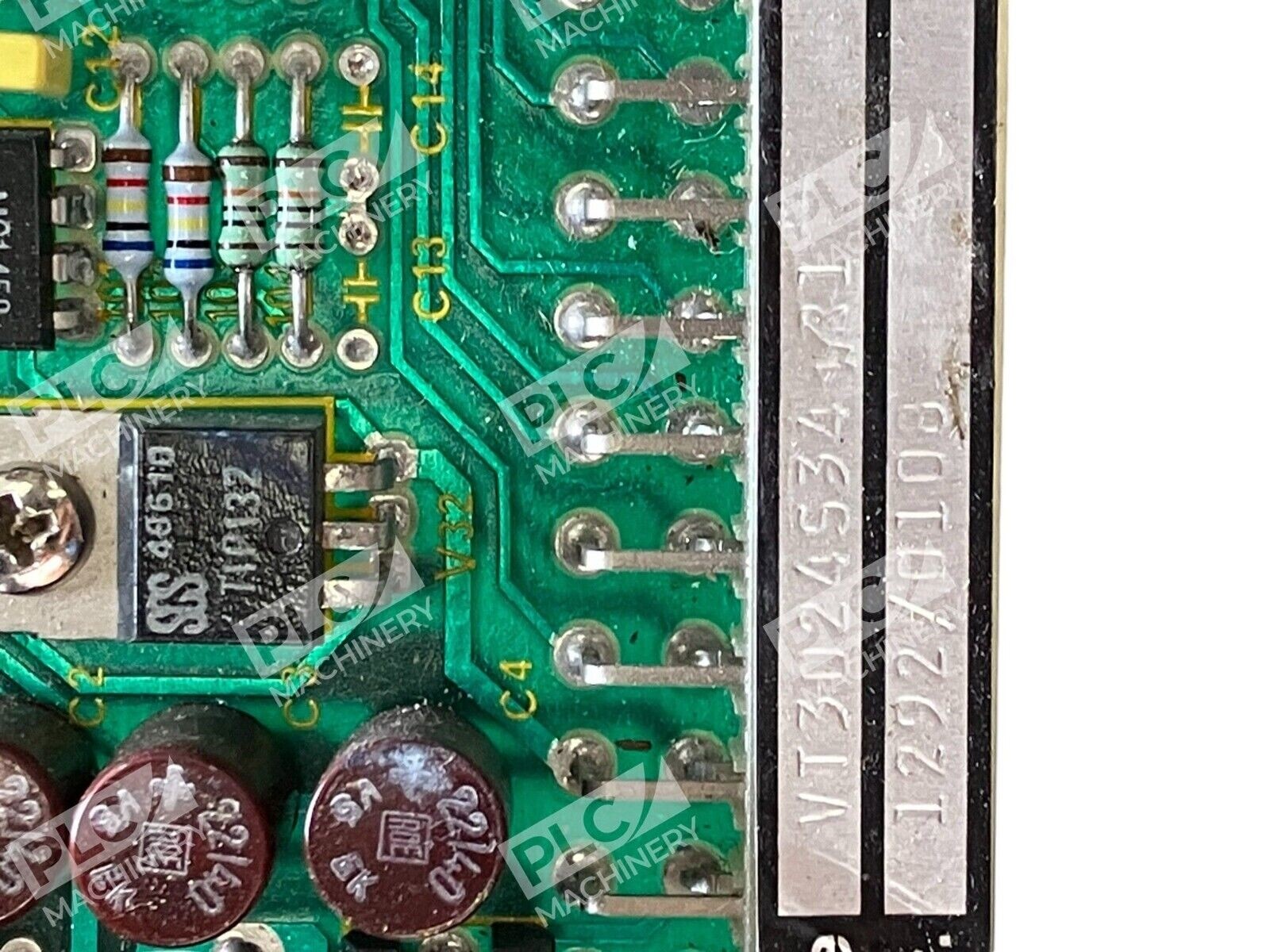

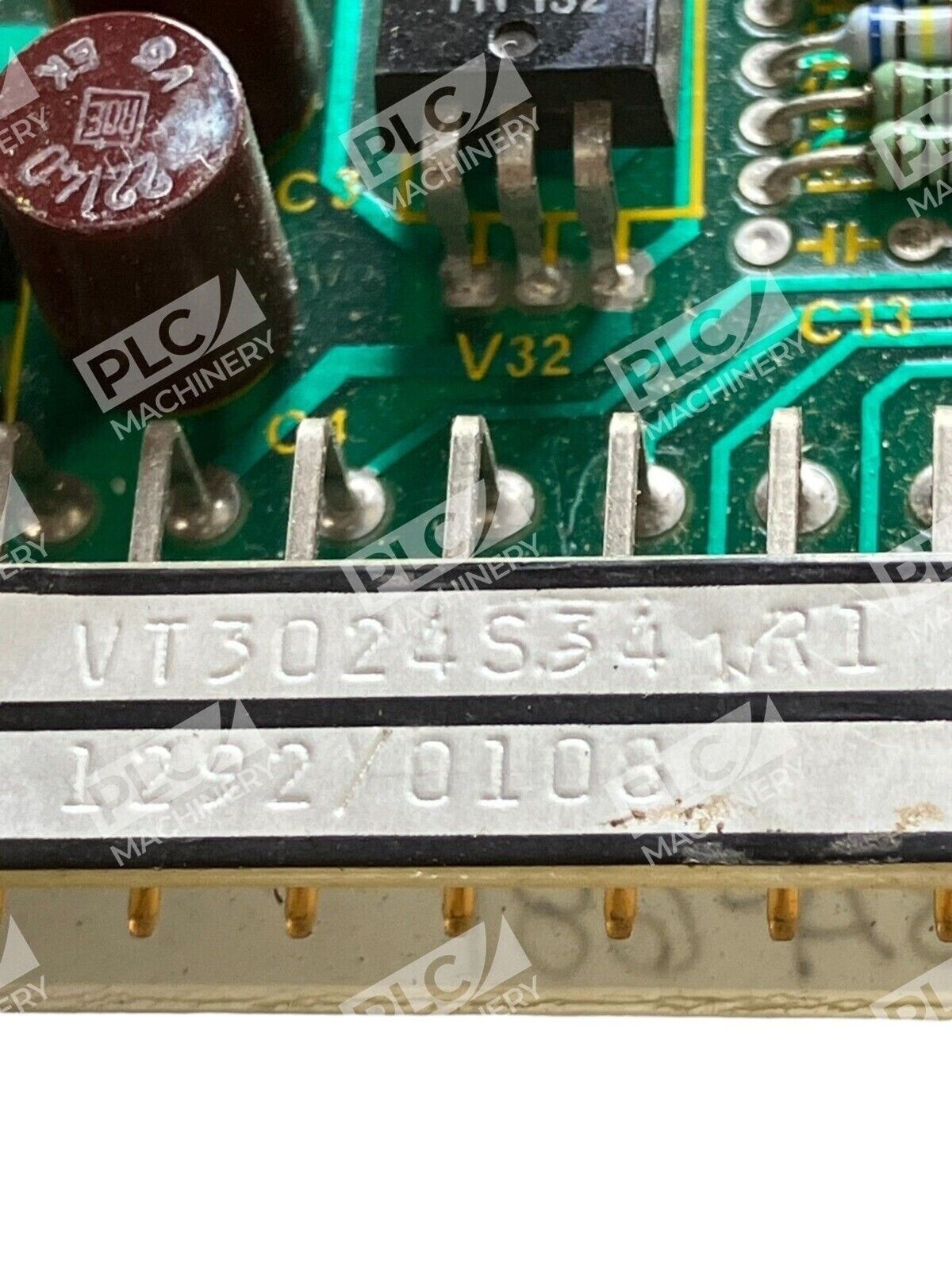

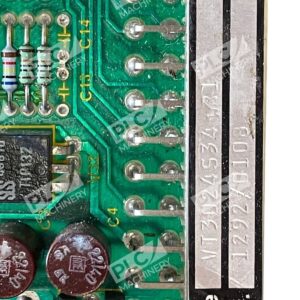

Rexroth Proportional Amplifier VT3024S34R1

Rexroth Proportional Amplifier VT3024S34R1

The Rexroth VT3024S34R1 is a high-performance proportional amplifier designed to precisely control proportional valves by converting input voltage signals into proportional output currents. This functionality ensures accurate and efficient operation of proportional solenoids in various industrial applications.

Key Features

• Operating Voltage: 24 VDC ±10%
• Ramp Time: Adjustable from 0.03 to 1 second
• Connection Type: 32-pin plug-in Euro card design
• Series: 34

Technical Specifications

• Maximum Output Current: 800 mA
• Power Requirement: 30 W
• Pulse Frequency: 160 to 180 Hz
• Temperature Drift: 0.5%/K (from Imax)
• Weight: 0.33 lb (0.15 kg)

Applications

The VT3024S34R1 is ideal for industrial automation systems requiring precise control of proportional valves. Its adjustable ramp time and robust design make it suitable for applications demanding accurate motion control and process regulation.

Design and Integration

Featuring a compact 32-pin Euro card design, the amplifier allows for easy integration into existing control systems. The adjustable ramp time enhances flexibility, enabling customization to meet specific operational requirements.

By delivering reliable performance and precise control, the Rexroth VT3024S34R1 proportional amplifier is a valuable component in optimizing industrial automation processes.
