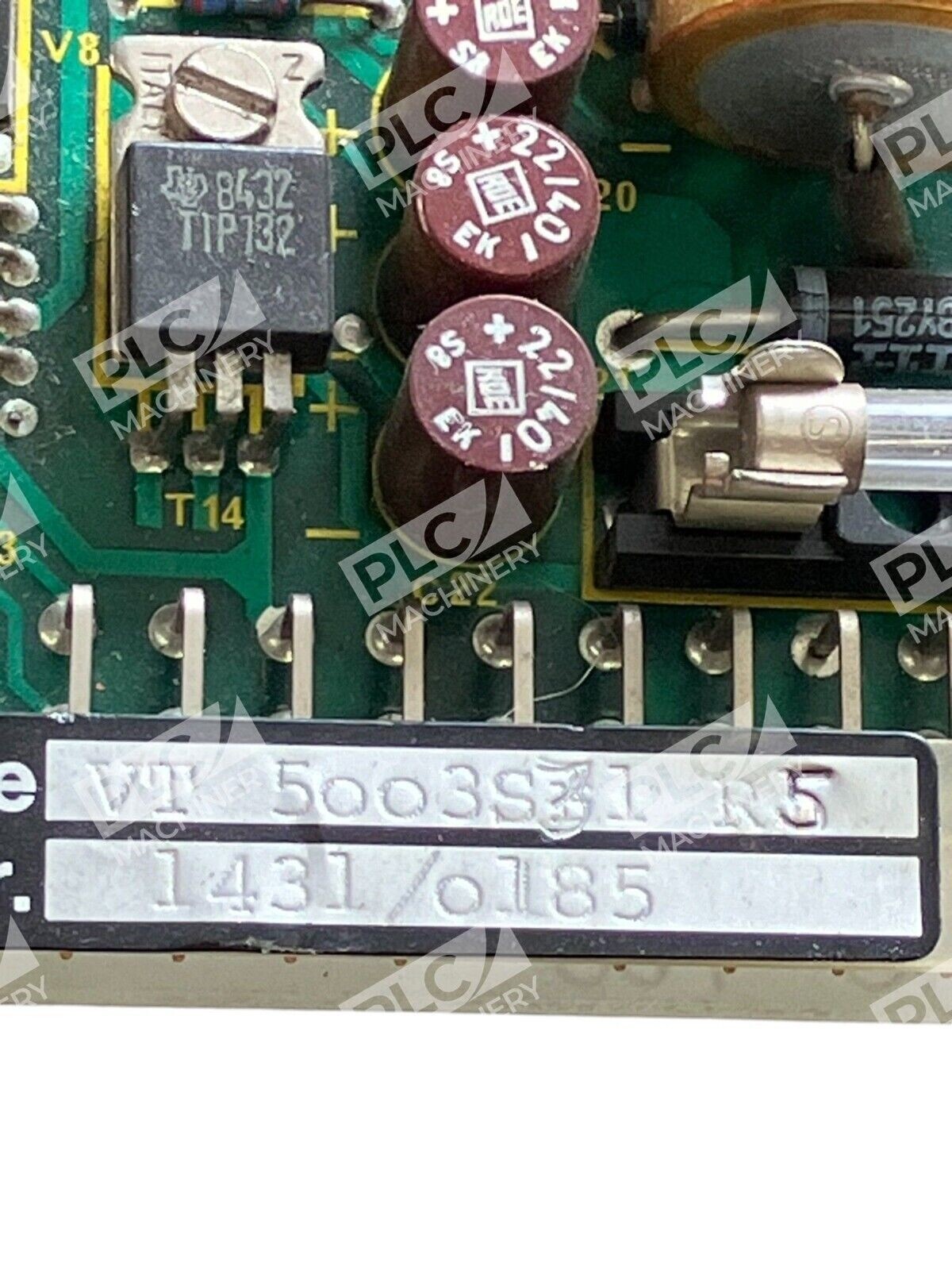

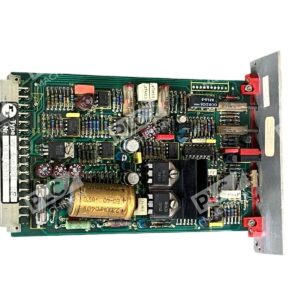

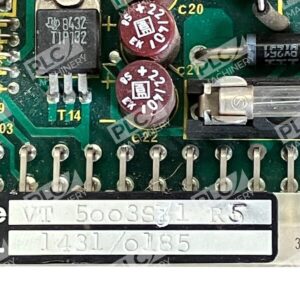

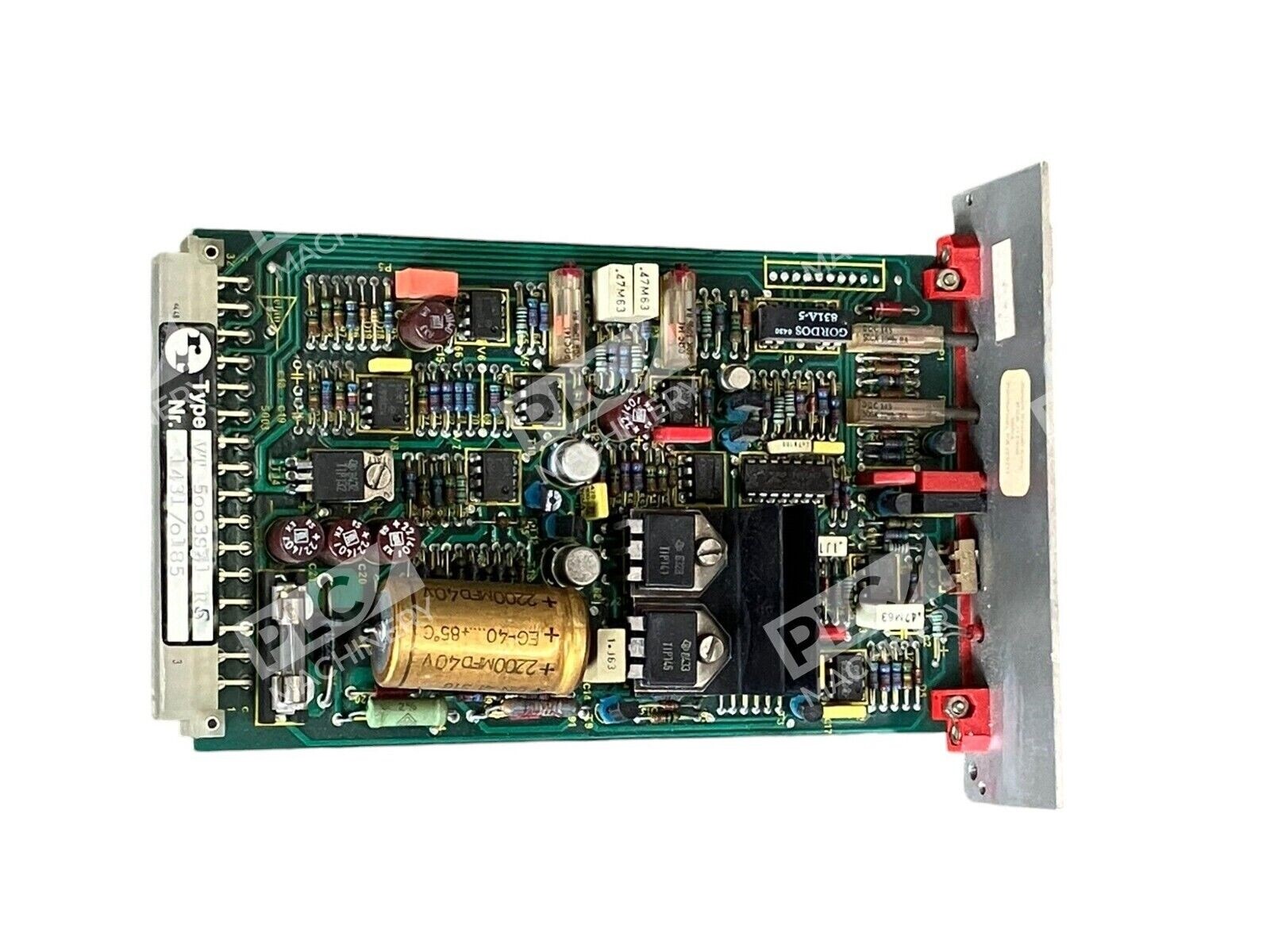

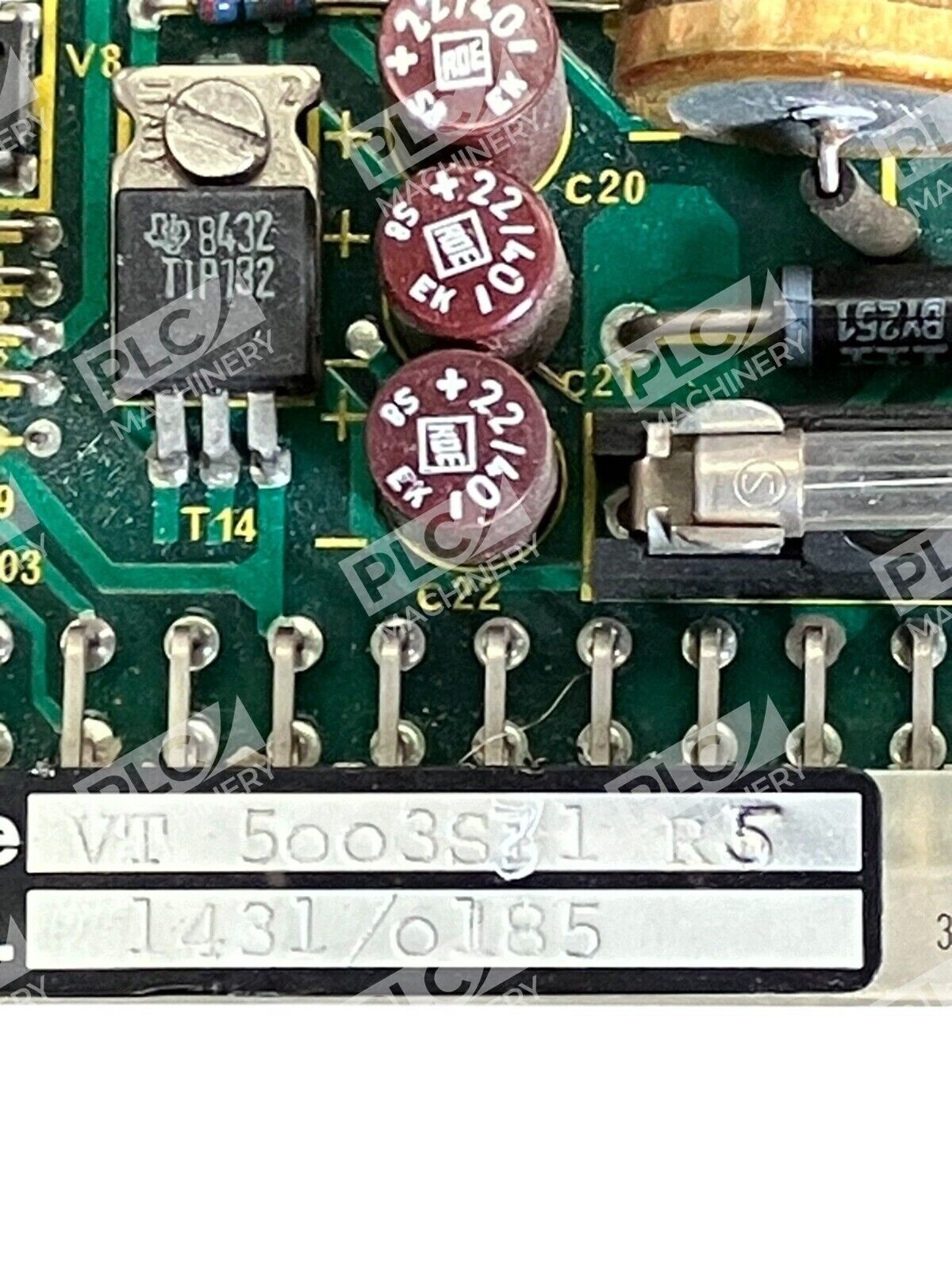

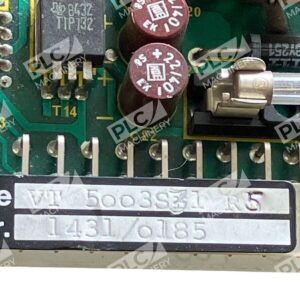

Rexroth Proportional Amplifier VT 5003S31 R5
The Rexroth VT 5003S31 R5 is a high-performance proportional amplifier card engineered for precise control of hydraulic systems in industrial automation. This amplifier converts input voltage signals into proportional output currents, effectively driving proportional solenoids to regulate flow and pressure with exceptional accuracy.
Key Features
- Control Voltage Range: Operates within a control voltage range of ±9V, ensuring precise signal processing.
- Output Current: Delivers a maximum output current of 2.2A, suitable for demanding applications.
- Adjustable Ramp Time: Features an adjustable ramp time control, allowing users to fine-tune the rate of signal change for smooth system responses.
- Integrated Cable Break Indicator: Equipped with a cable break indicator to detect input signal faults, enhancing system reliability.
- Surface Mount Design: Designed for surface mount PCB installation, facilitating seamless integration into existing systems.
- Operating Temperature Range: Functions effectively within a temperature range of 0 to 50°C, ensuring stable performance in various industrial environments.
Technical Specifications
- Input Voltage: 24 VDC
- Output Current: ±60 mA, ±100 mA
- Control Voltage: ±9V ±2%
- Ramp Time: Adjustable from 0.02s to 5s
- Oscillating Frequency: 2.5 kHz
- Load Resistance: 10Ω
- Power Consumption: 50 W
- Protection Class: IP20
The VT 5003S31 R5 is an essential component for applications requiring precise and reliable control of hydraulic valves, making it a valuable asset in industrial automation systems.
