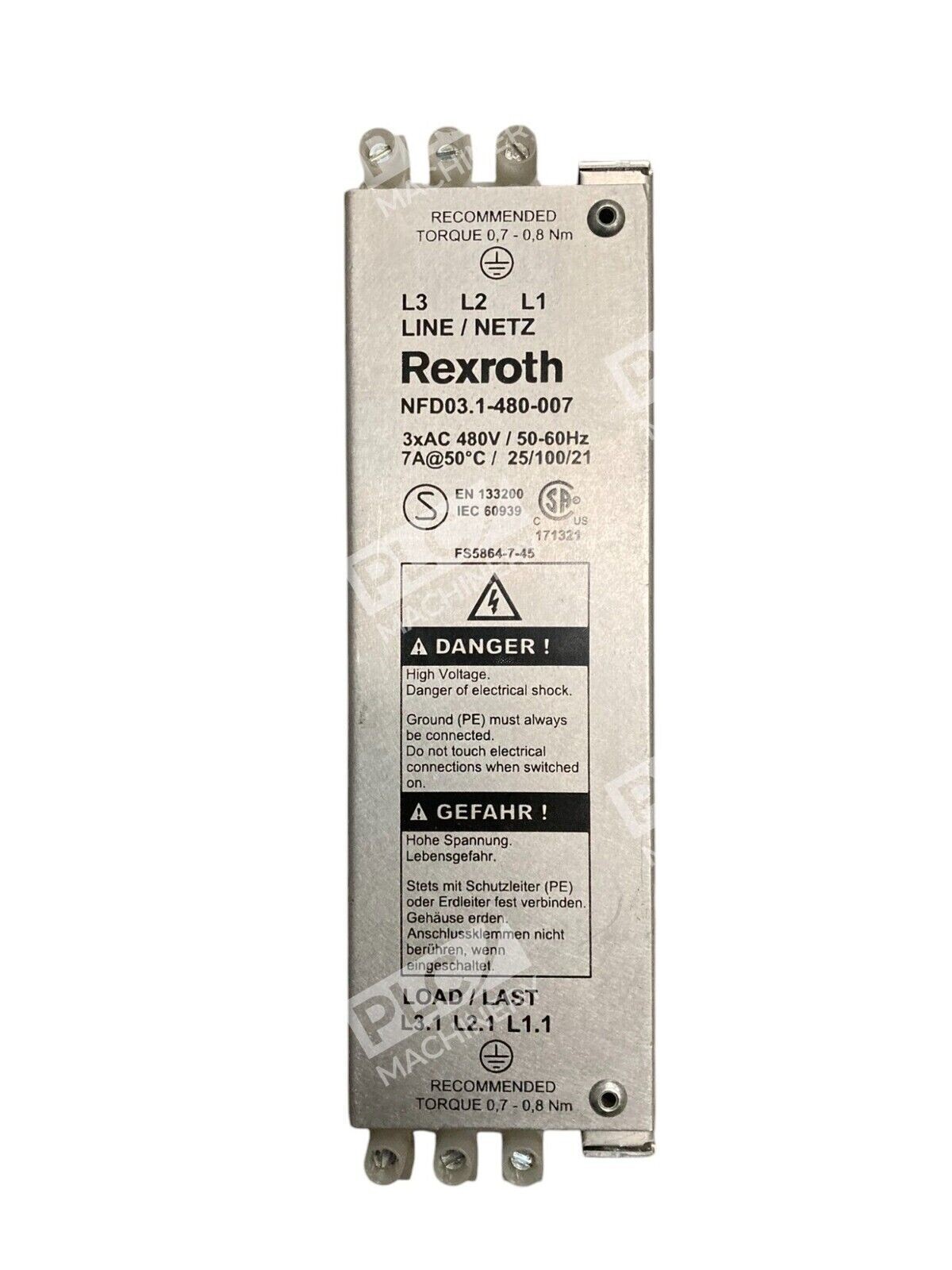

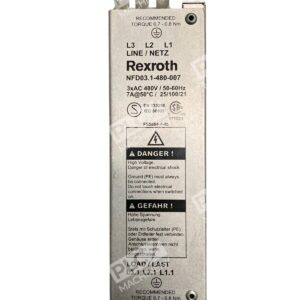

Rexroth NFD03.1-480-007 Power Line Filter
The Rexroth NFD03.1-480-007 is a high-performance power line filter designed to ensure compliance with electromagnetic compatibility (EMC) standards and to suppress leakage currents caused by cable capacitance. This filter is optimally tailored for drive control units and is scalable based on current, number of drives, and motor cable length. When used in conjunction with shielded motor cables, it guarantees fault-free operation.
Key Features
- Nominal Voltage: AC 115 to 480 V
- Rated Current: 7 A
- Frequency: 50-60 Hz
- Operating Temperature: Up to 50°C
- Installation Orientation: Vertical
- Terminal Cross-section: AWG 12
- Weight: Approximately 0.88 kg
Installation Guidelines
For optimal performance and safety, adhere to the following installation guidelines:
- Ensure the device is de-energized before installation or de-installation.
- Connect protective cables first during installation and disconnect them last during de-installation.
- Maintain short connecting cables and earth connections to minimize impedance.
- Position the filter vertically between the switch mode power supply (SMPS) and the AC power line.
Applications
The NFD03.1-480-007 is suitable for various industrial applications, including:
- Automation systems
- Manufacturing equipment
- Robotics
- HVAC systems
By integrating this power line filter into your system, you can effectively eliminate interference from phase controllers, motors, and switch mode power supplies, ensuring reliable and efficient operation of your equipment.
