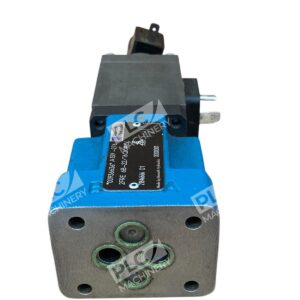

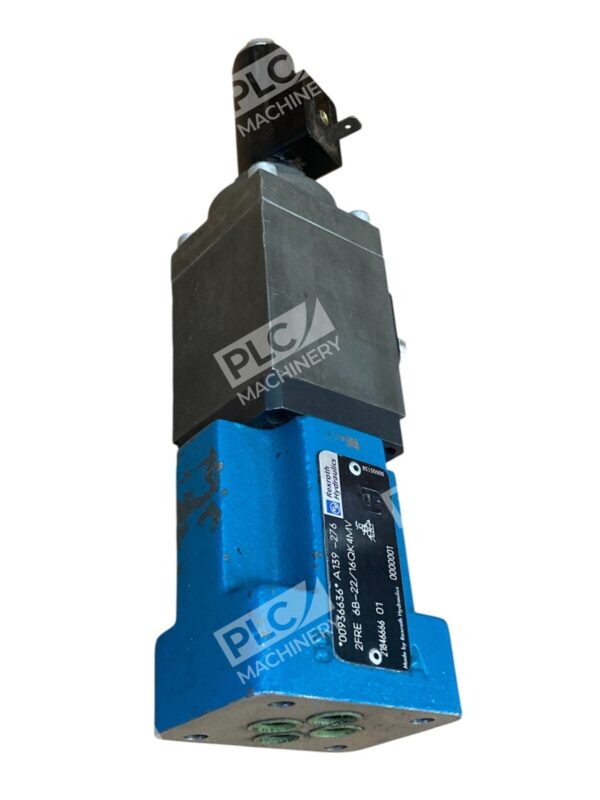

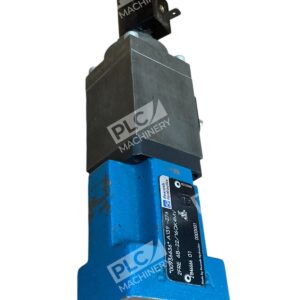

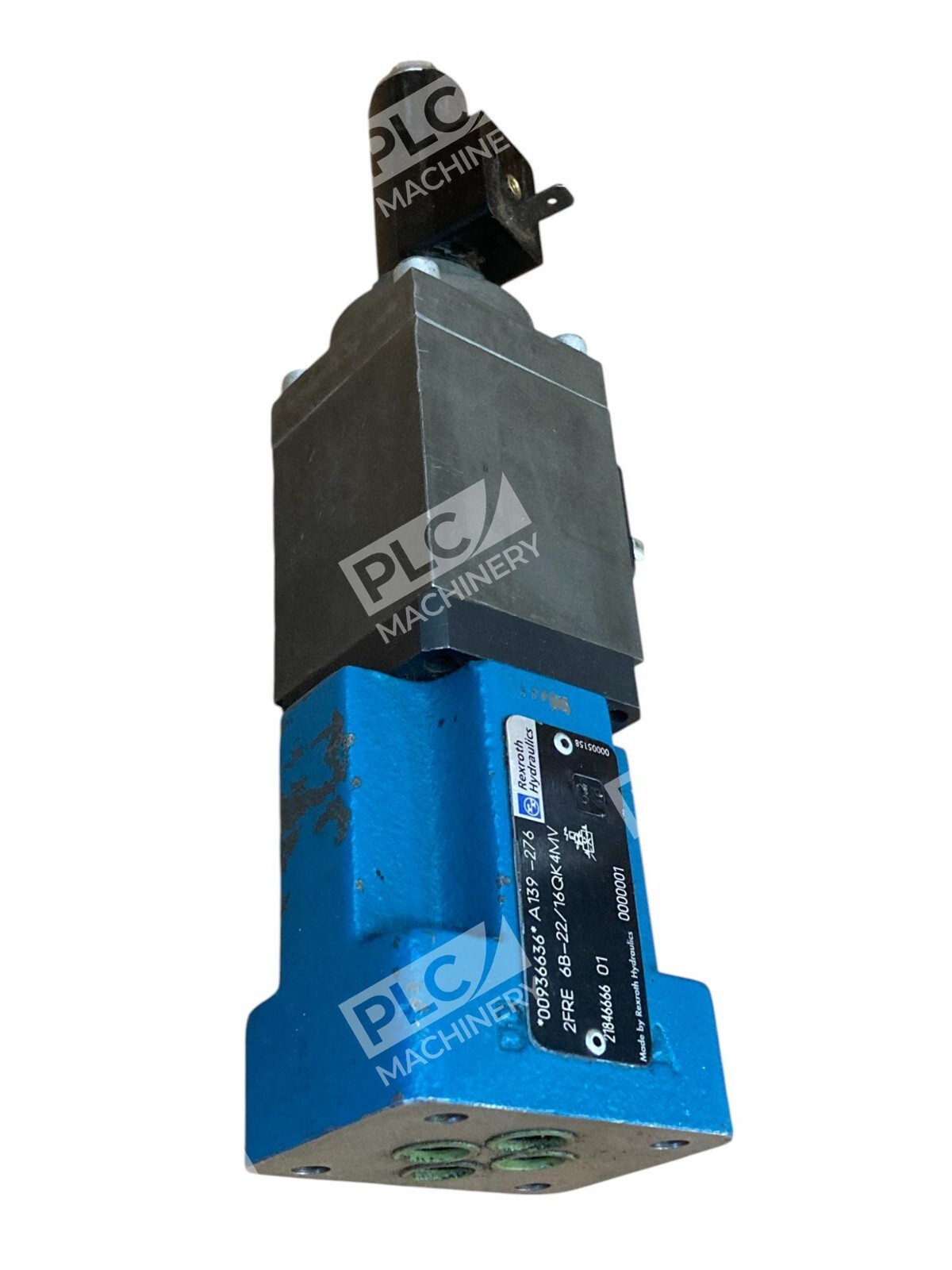

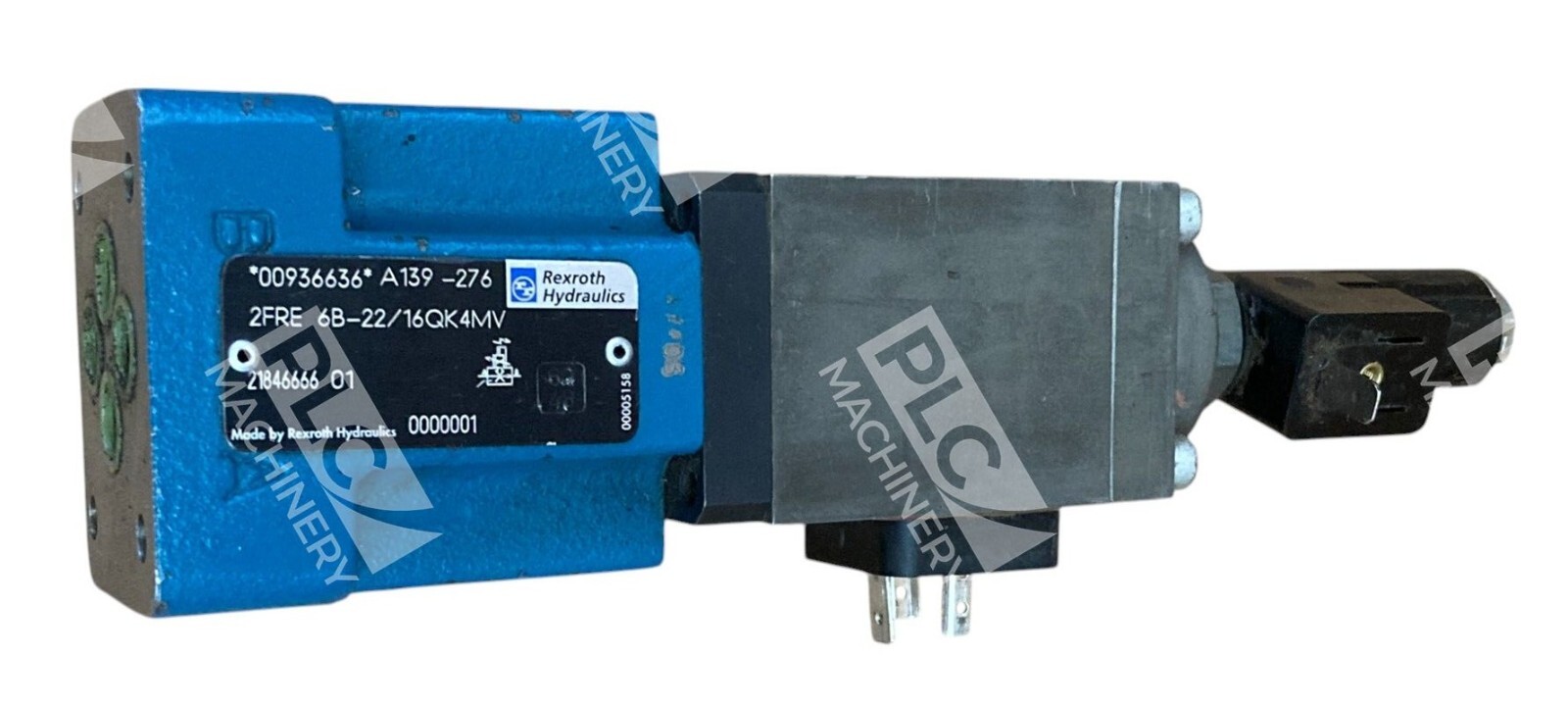

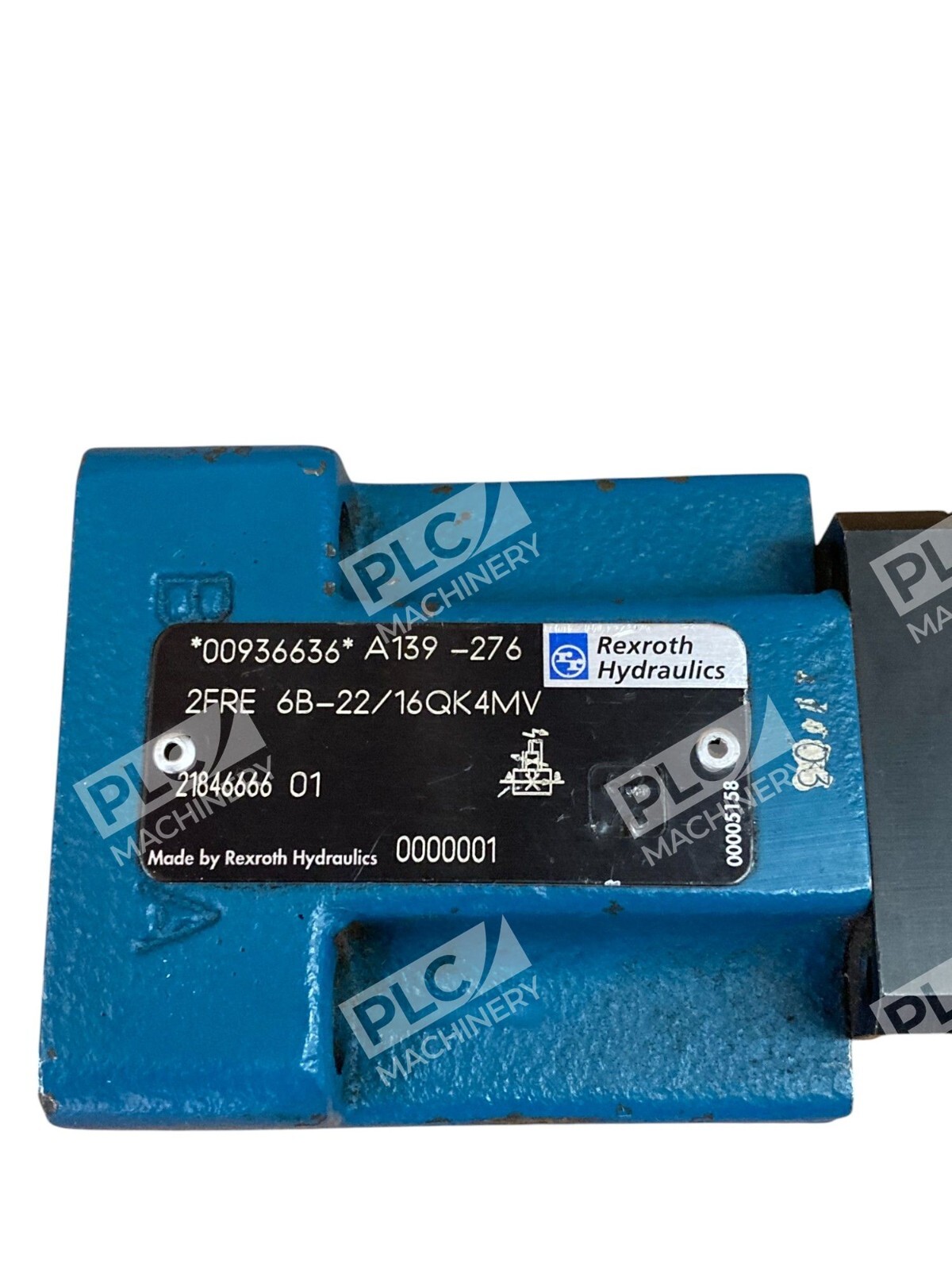

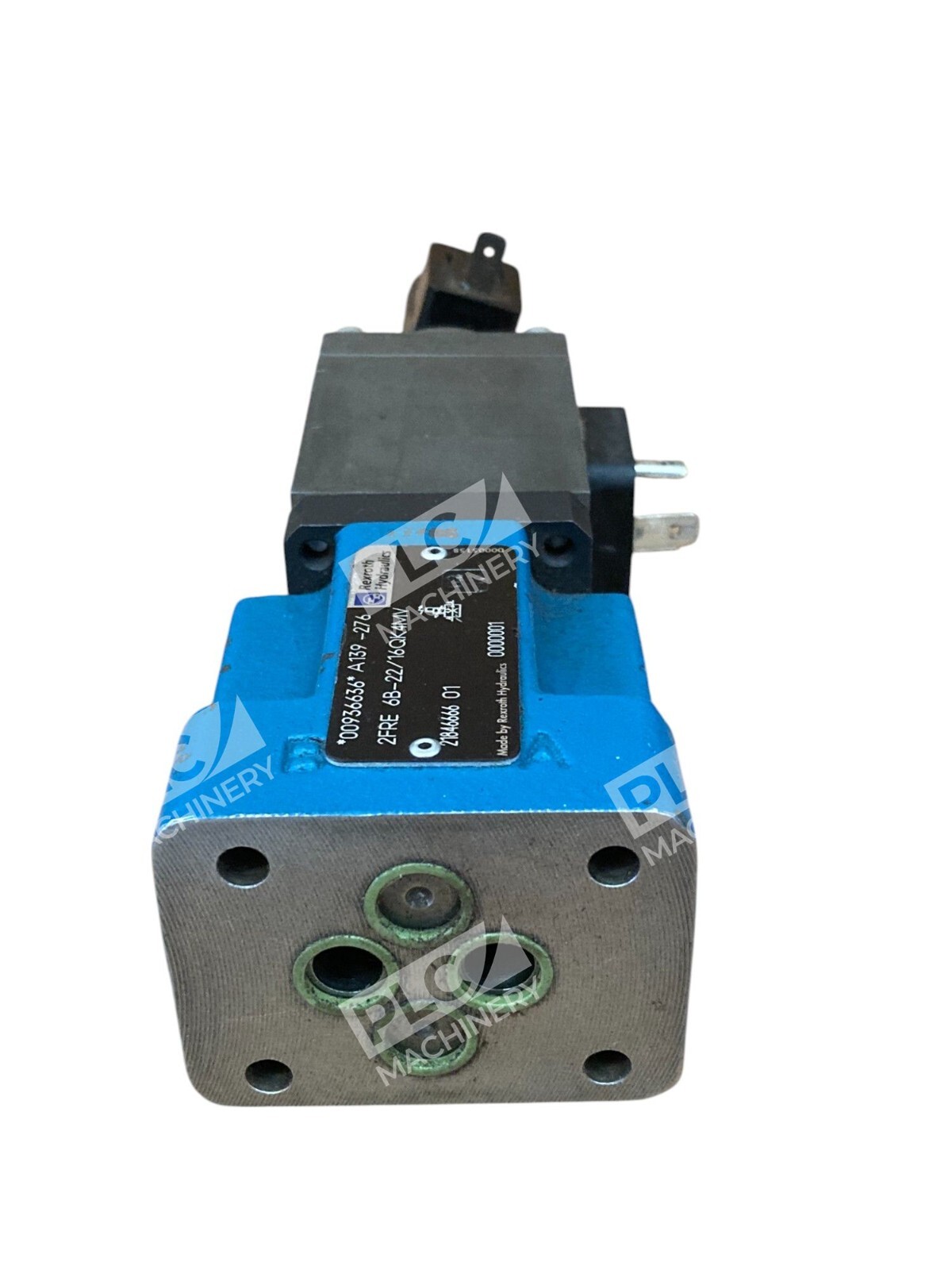

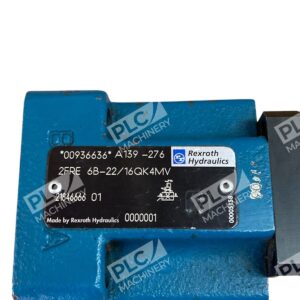

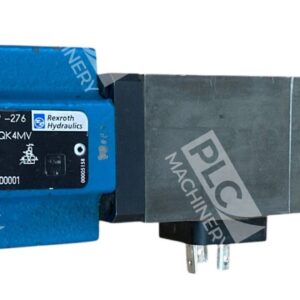

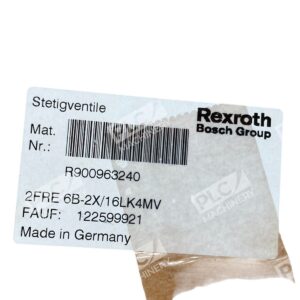

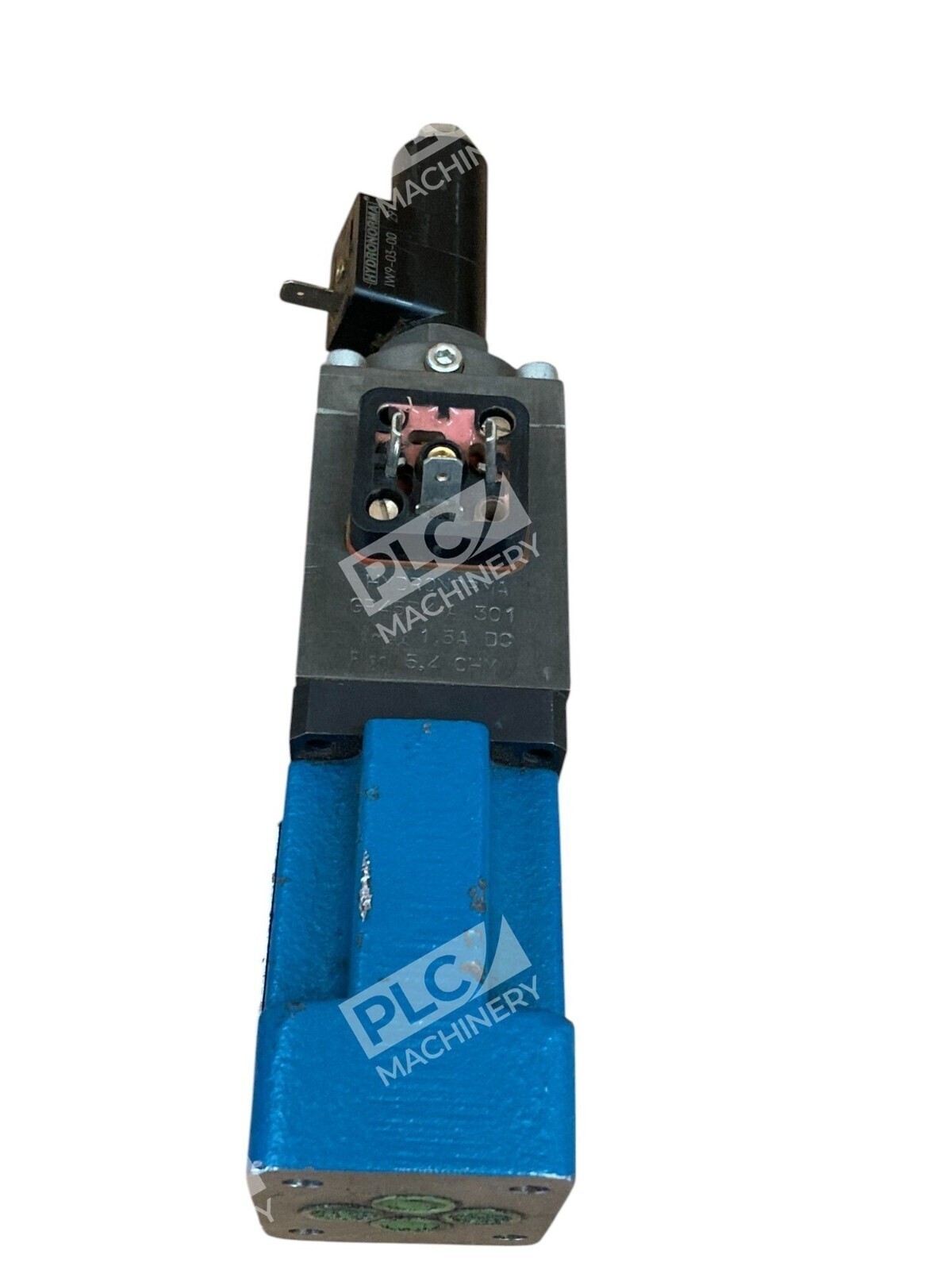

Rexroth 2FRE 6B-22/16QK4MV Hydraulic Flow Control Valve R900963240

Rexroth 2FRE 6B-22/16QK4MV Hydraulic Flow Control Valve R900963240

The Rexroth 2FRE 6B-22/16QK4MV is a high-performance proportional flow control valve designed for precise regulation of hydraulic flow in various industrial applications. This 2-way valve ensures consistent flow control, maintaining optimal system performance under varying pressure and temperature conditions.

Key Features

• Size: Nominal size 6, suitable for compact system integration.
• Component Series: 2X, ensuring compatibility with existing system configurations.
• Maximum Operating Pressure: Up to 210 bar, accommodating high-pressure applications.
• Maximum Flow Rate: Capable of handling flows up to 25 liters per minute, providing flexibility for various operational demands.
• Flow Characteristic: Progressive, allowing for precise control over a range of flow rates.

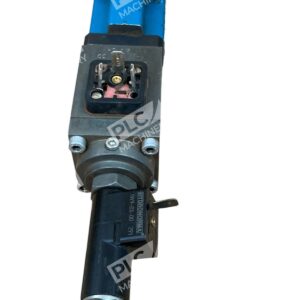

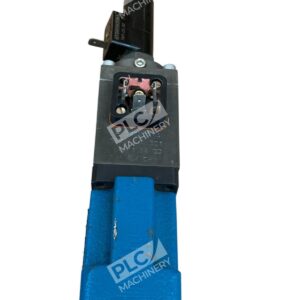

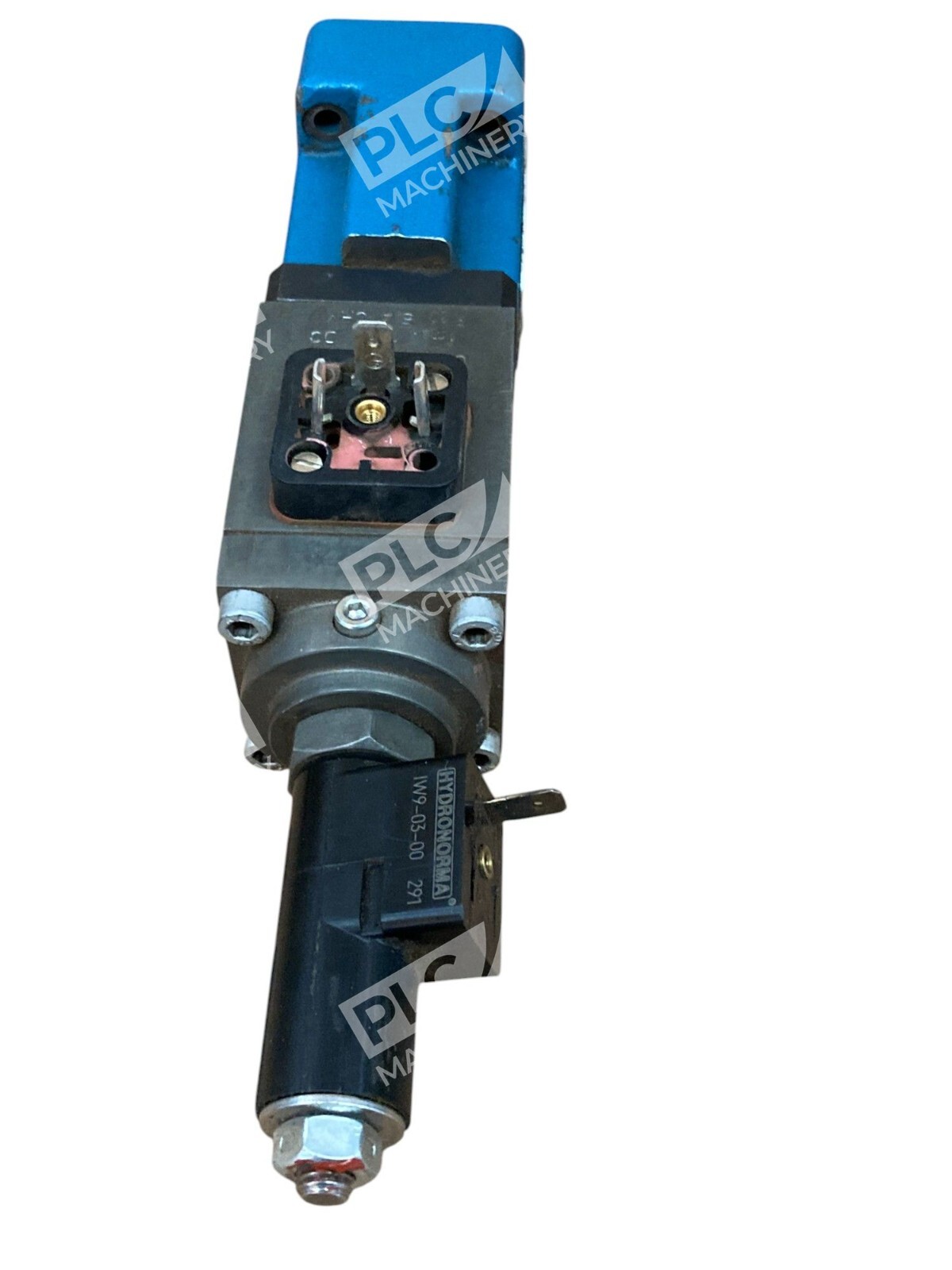

• Electrical Connection: Individual connection with a 3-pole (2 + PE) connector according to EN 175301-803 standards, facilitating straightforward electrical integration.
• Seal Material: FKM seals, offering excellent compatibility with a wide range of hydraulic fluids and enhanced durability.

Functional Overview

The 2FRE 6B-22/16QK4MV valve operates by adjusting the metering orifice in response to an electrical command value. This adjustment is monitored by an inductive position transducer, ensuring accurate flow regulation. The integrated pressure compensator maintains a constant pressure drop across the metering orifice, resulting in load-compensated flow control. In the event of a power failure or signal interruption, the metering orifice closes, enhancing system safety.

Applications

This valve is ideal for applications requiring precise flow control, such as in hydraulic presses, injection molding machines, and other industrial equipment where consistent performance is critical.

By incorporating the Rexroth 2FRE 6B-22/16QK4MV into your hydraulic system, you can achieve reliable and efficient flow management tailored to your specific operational requirements.
