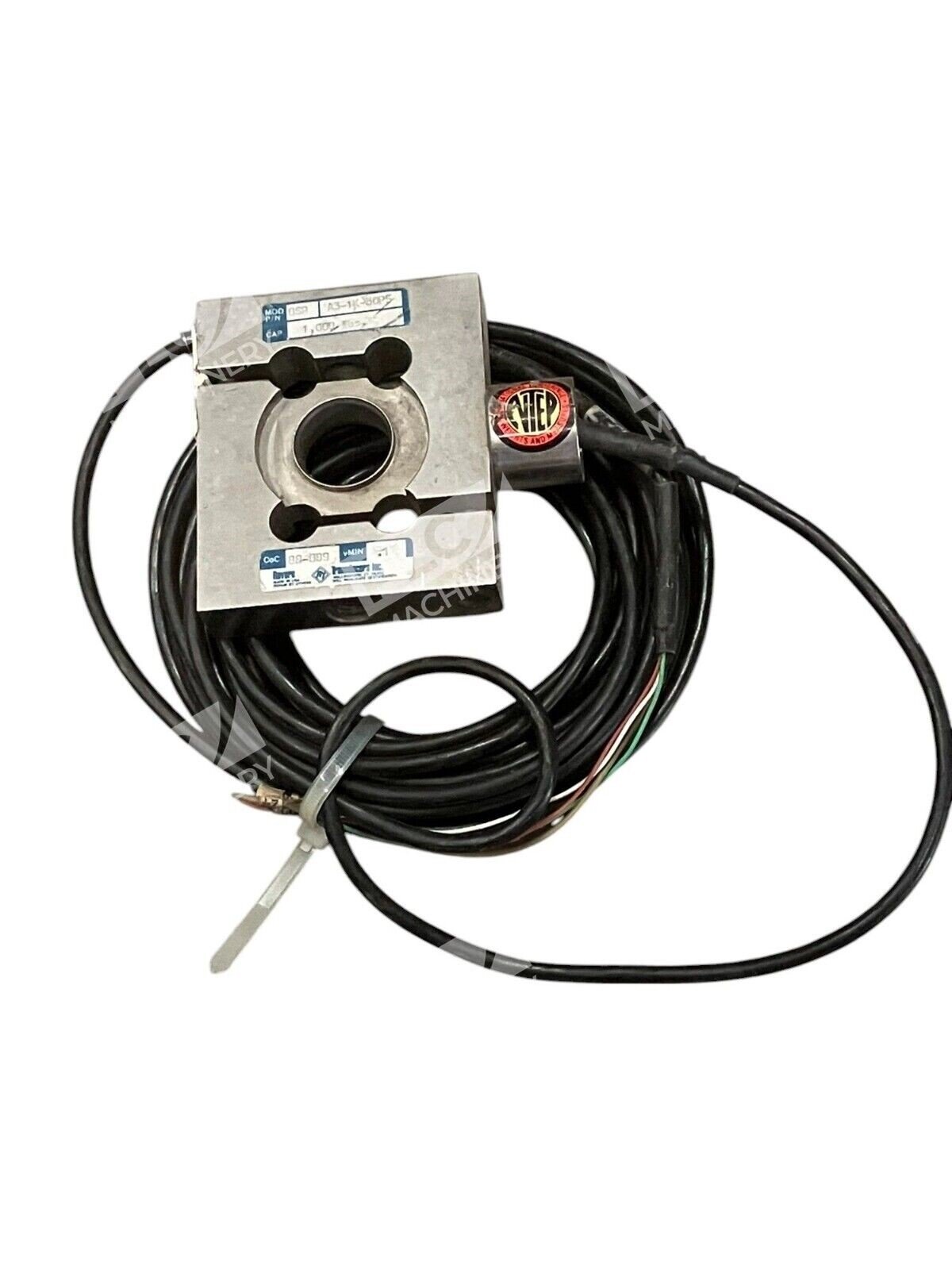

Revere Transducers BSP-A3-1000-30P5 1000lbs Load Cell
The Revere Transducers BSP-A3-1000-30P5 is a high-precision S-beam load cell engineered for both tension and compression applications. With a capacity of 1,000 pounds, this load cell is ideal for scale conversions and general-purpose weighing tasks.
Key Features
- Material and Construction: Crafted from stainless steel, the BSP-A3-1000-30P5 ensures durability and resistance to corrosion, making it suitable for various industrial environments.
- Hermetic Sealing: The load cell features a welded-seal design, providing an IP67 rating for protection against dust and water ingress, ensuring reliable performance in challenging conditions.
- Output and Accuracy: Delivering a full-scale output of 3.0 mV/V, it maintains a combined error of 0.03% full scale and non-repeatability of 0.01% full scale, ensuring precise measurements.
- Electrical Specifications: The input and output resistance are both 350 ohms (±3.5), with a rated excitation of 5 to 10 VDC (15 V maximum).
- Temperature Range: Compensated for temperatures between 14°F to 104°F (-10°C to 40°C) and operable from 0°F to 150°F (-18°C to 65°C), it maintains accuracy across a broad temperature spectrum.
- Overload Capacity: Designed to handle up to 150% of its full-scale capacity, providing a safety margin for unexpected load variations.
- Cable Length: Equipped with a 30-foot (9.2 meters) load cell cable, facilitating flexible installation options.
Applications
The BSP-A3-1000-30P5 load cell is versatile and can be utilized in various applications, including:
- Industrial weighing systems
- Material testing machines
- Process control systems
- Force measurement applications
Its robust construction and high accuracy make it a reliable choice for demanding industrial environments.
