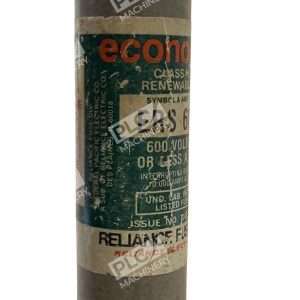

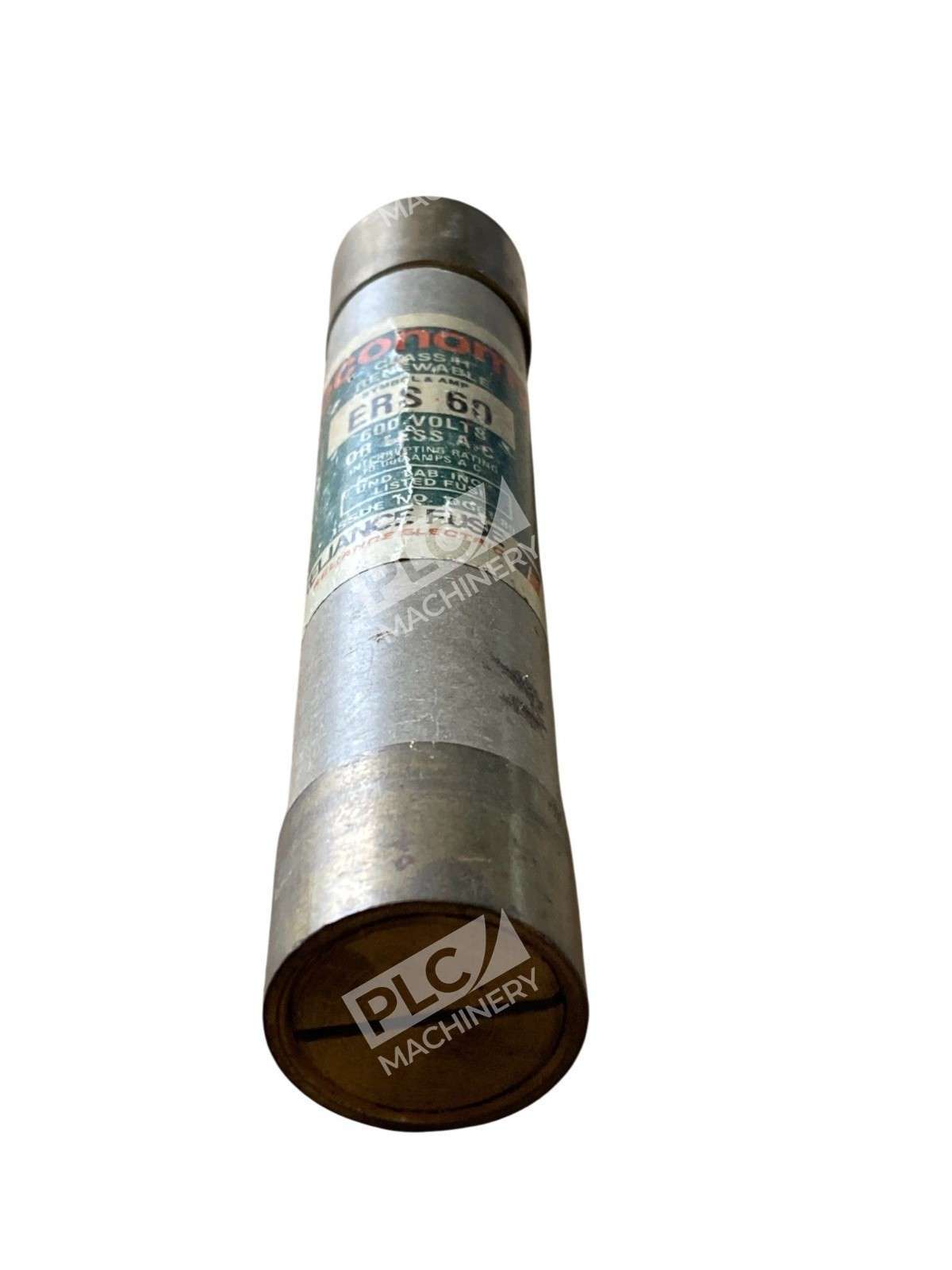

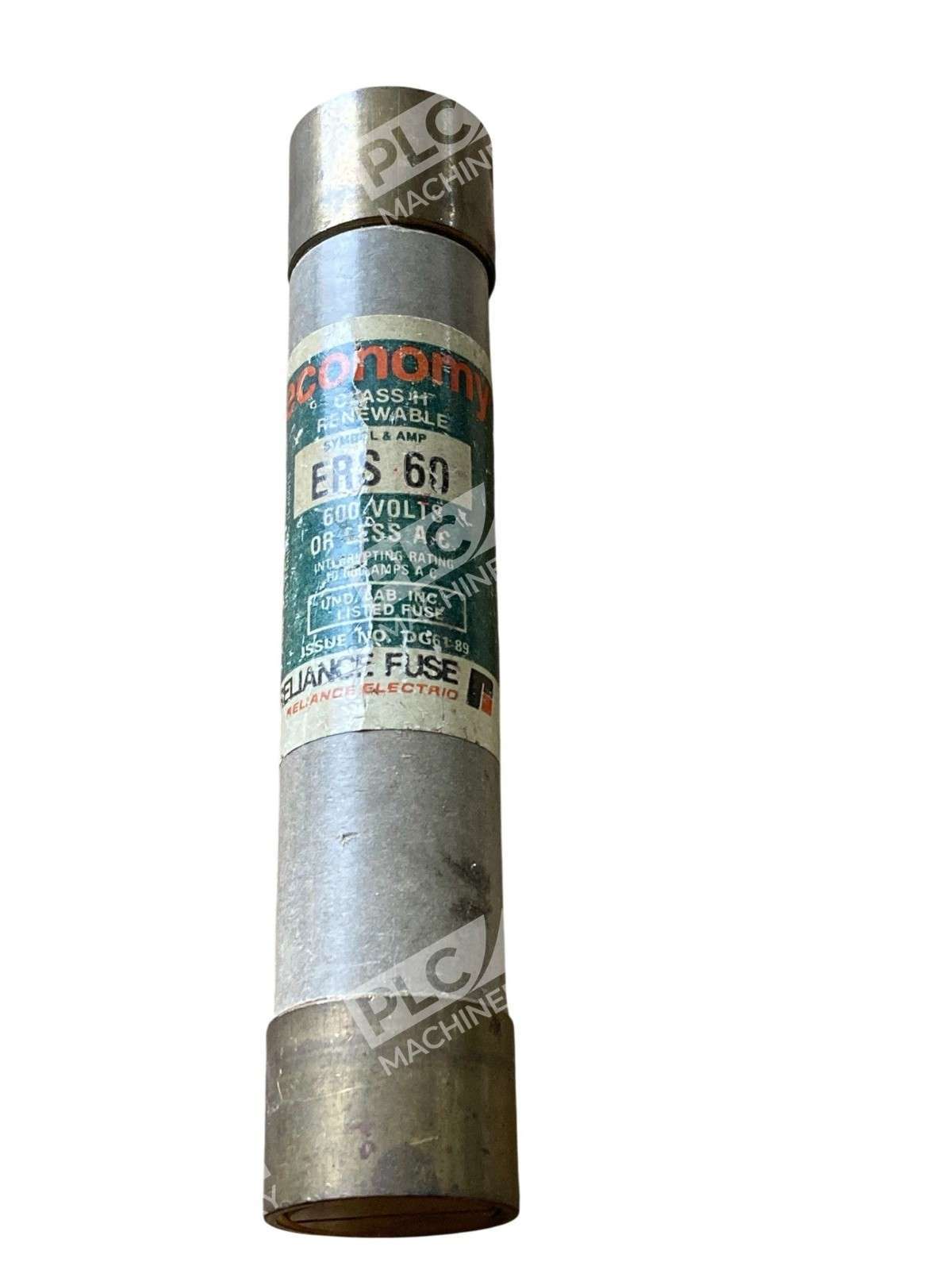

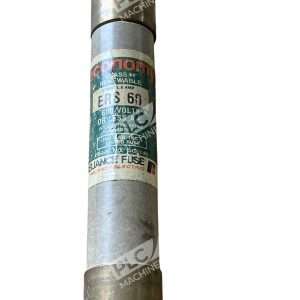

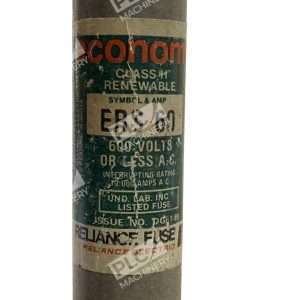

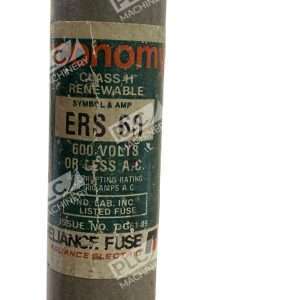

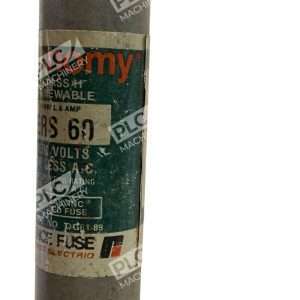

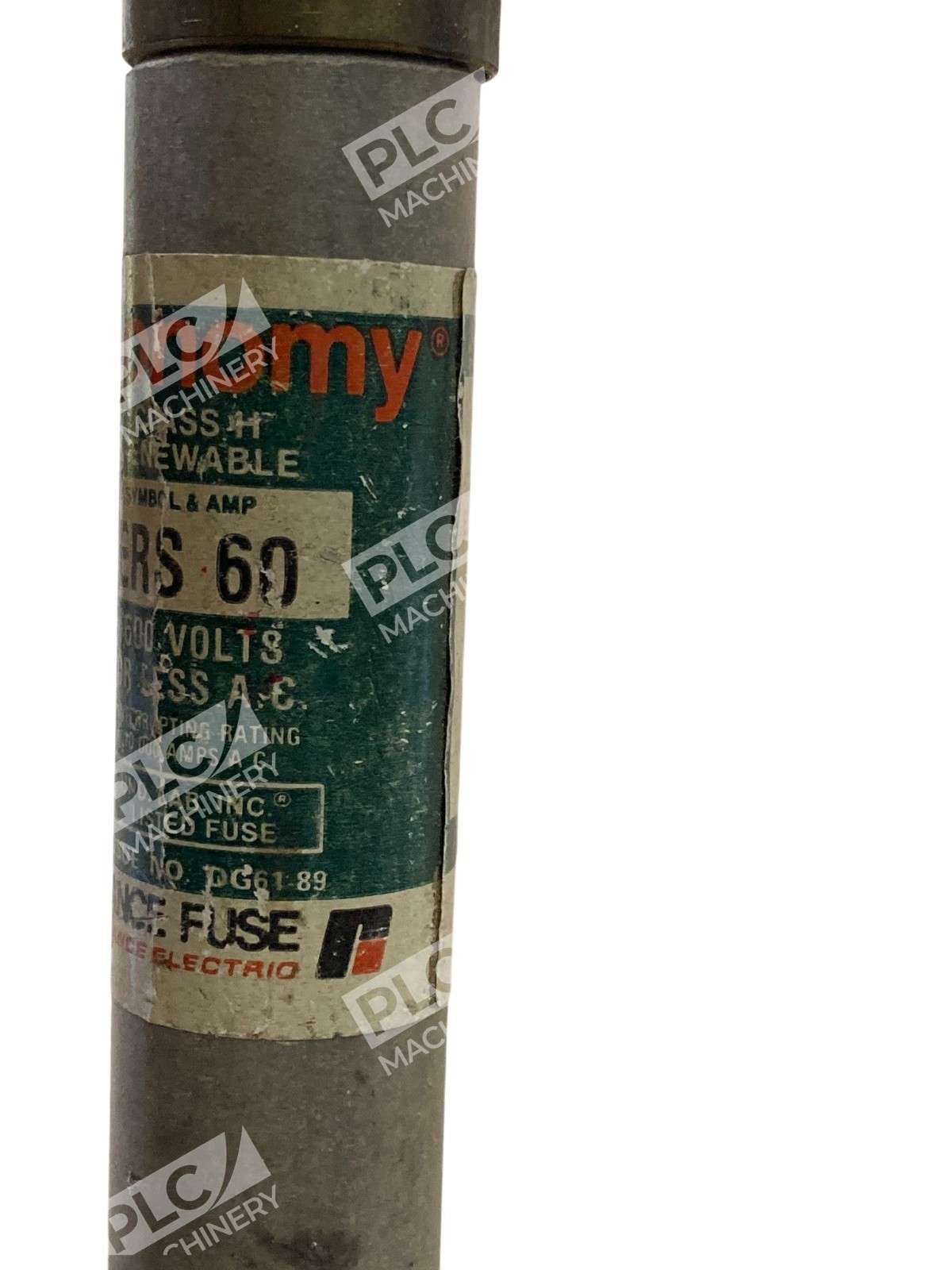

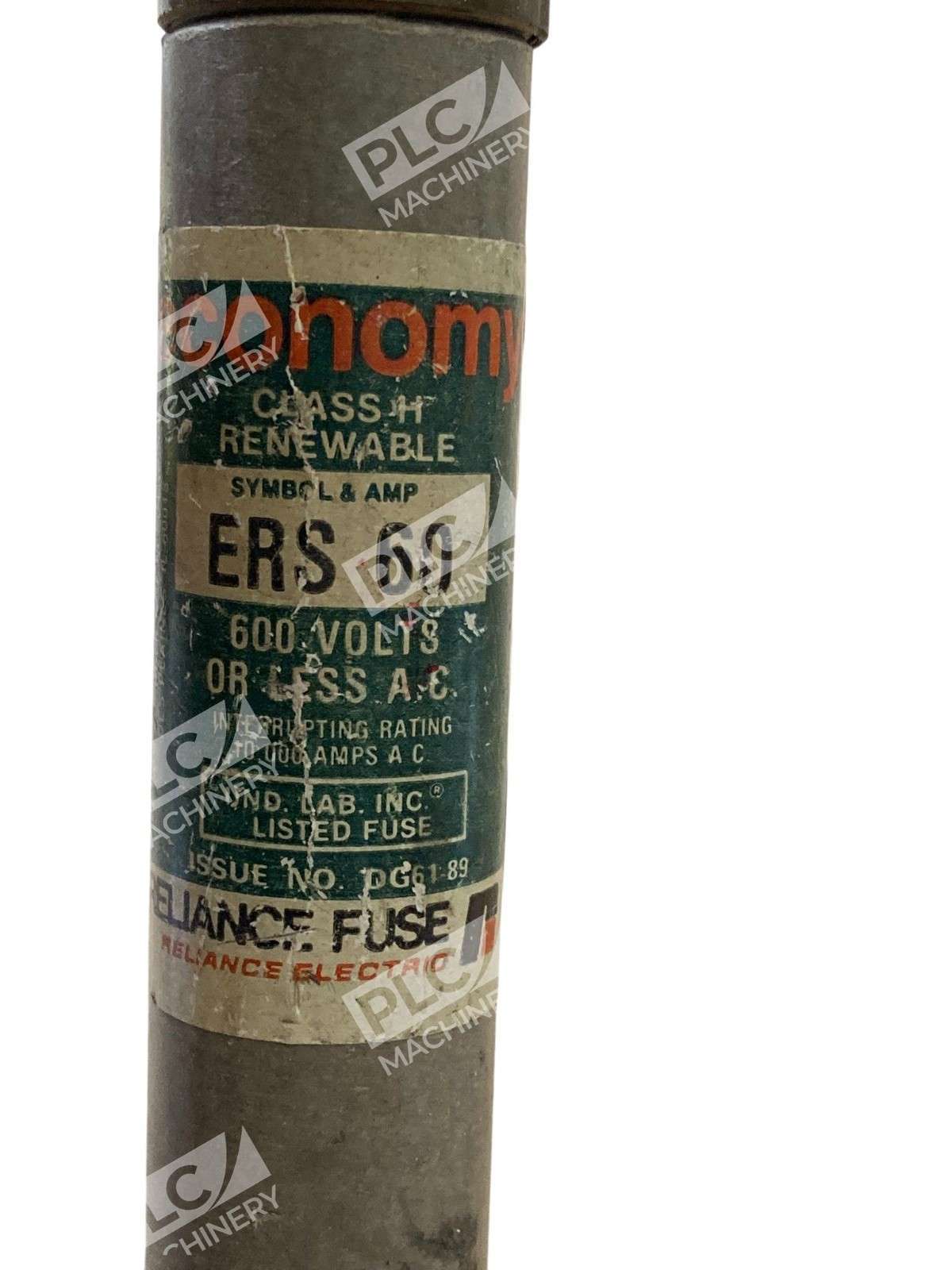

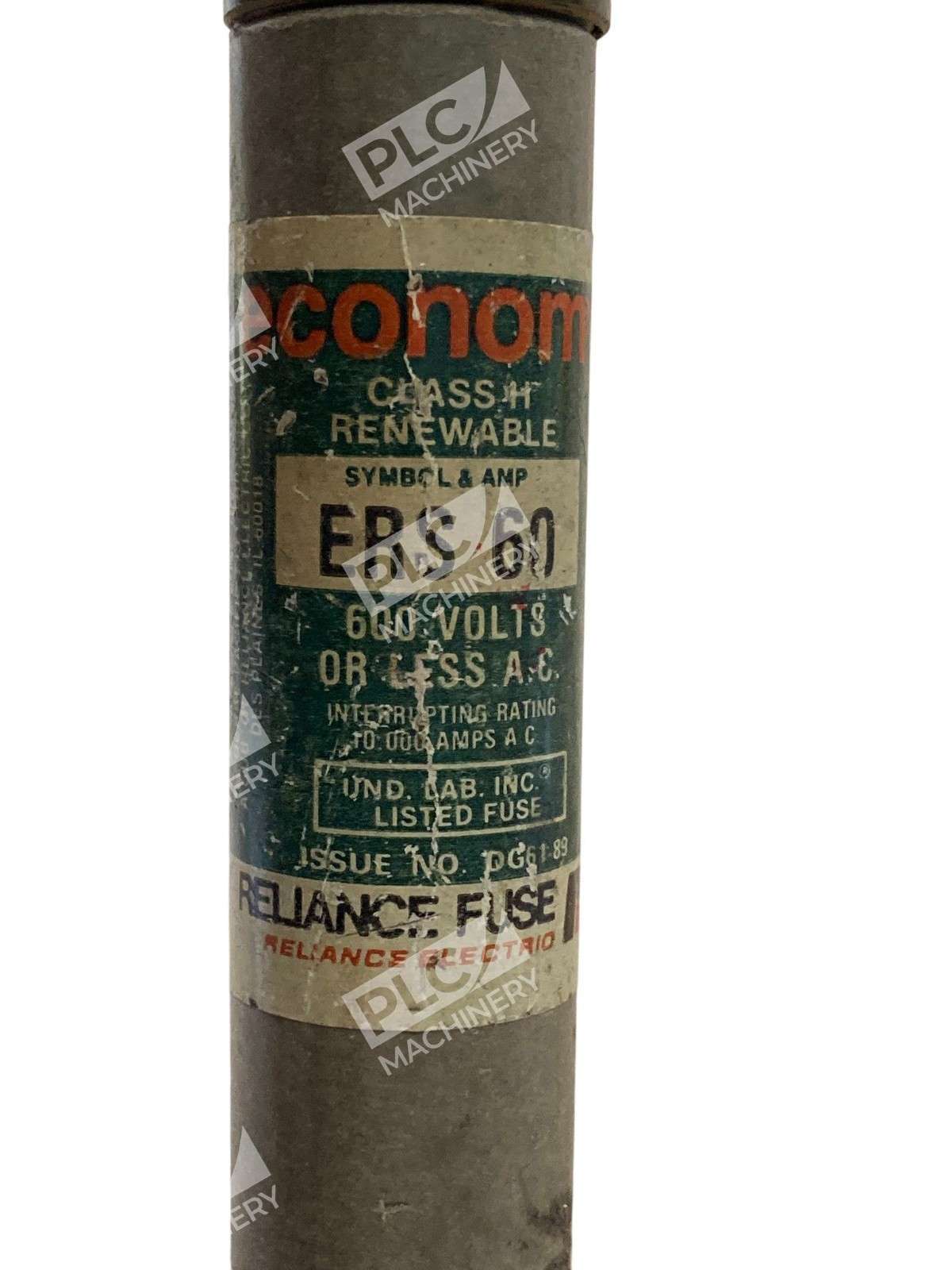

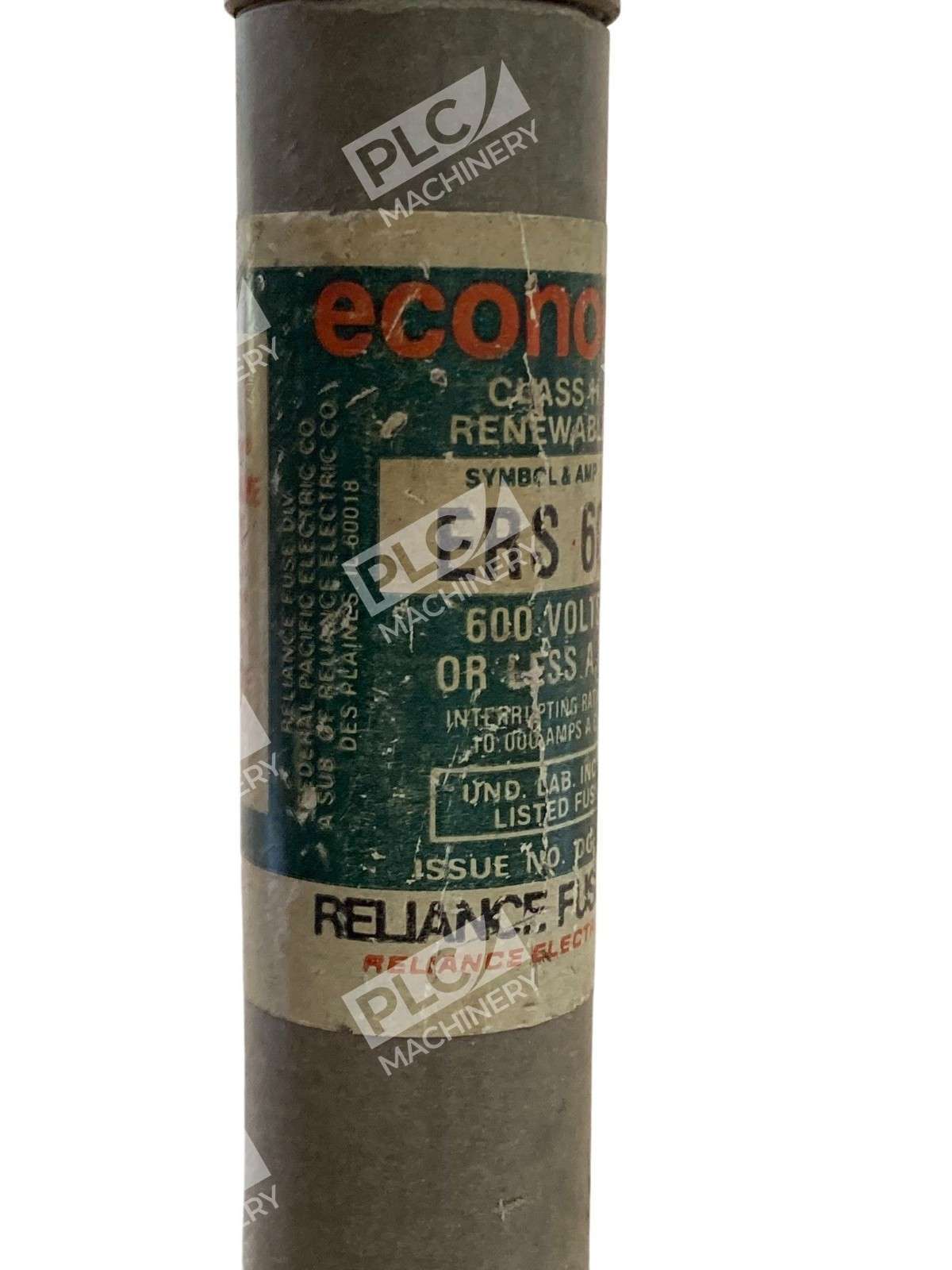

Reliance Electric Economy ERS 60 Class H Renewable Fuse 60A 600V
The Reliance Electric Economy ERS 60 is a Class H renewable fuse designed to provide reliable overcurrent protection in industrial and commercial electrical systems. With a 60-ampere rating and a voltage capacity of 600 volts AC, this fuse is suitable for applications where available short-circuit currents do not exceed 10,000 amperes.
Key Features
- Renewable Design: Allows for the replacement of fuse links, offering cost-effective maintenance and extended service life.
- Class H Rating: Ensures compatibility with standard Class H fuse holders and adherence to industry standards.
- Non-Current Limiting: Suitable for systems where current-limiting fuses are not required.
- Ferrule End Connections: Facilitates easy installation and secure connections.
- Time Lag (Super Lag) Characteristic: Provides protection against overcurrent conditions with a time-delay feature, accommodating temporary inrush currents without nuisance tripping.
Specifications
- Amperage Rating: 60 A
- Voltage Rating: 600 V AC
- Interrupting Rating: 10 kAIC at 250 V AC
- Dimensions: 1.06 inches in diameter x 5.5 inches in length
- Connection Type: Ferrule end x ferrule end
- Fuse Indicator: Non-indicating
The ERS 60 fuse is engineered for environments where frequent outages necessitate the economy of renewable fuses. Its robust construction and renewable nature make it a practical choice for maintaining system protection while managing operational costs.
