Reliance Electric ABB CVTB 82746-67B Current Voltage Transducer Board 0-51831-1

Reliance Electric ABB CVTB 82746-67B Current Voltage Transducer Board 0-51831-1

The Reliance Electric ABB CVTB 82746-67B Current Voltage Transducer Board, part number 0-51831-1, is a critical component designed to convert current and voltage signals within industrial control systems. This board plays a pivotal role in ensuring accurate signal processing and system performance.

Key Features

• Dual-Layer Design: The board features a double-layered structure, enhancing its functionality and reliability in complex industrial applications.

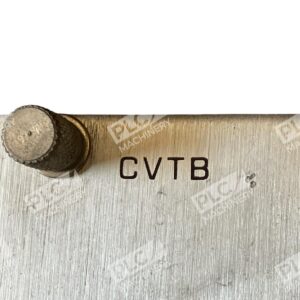

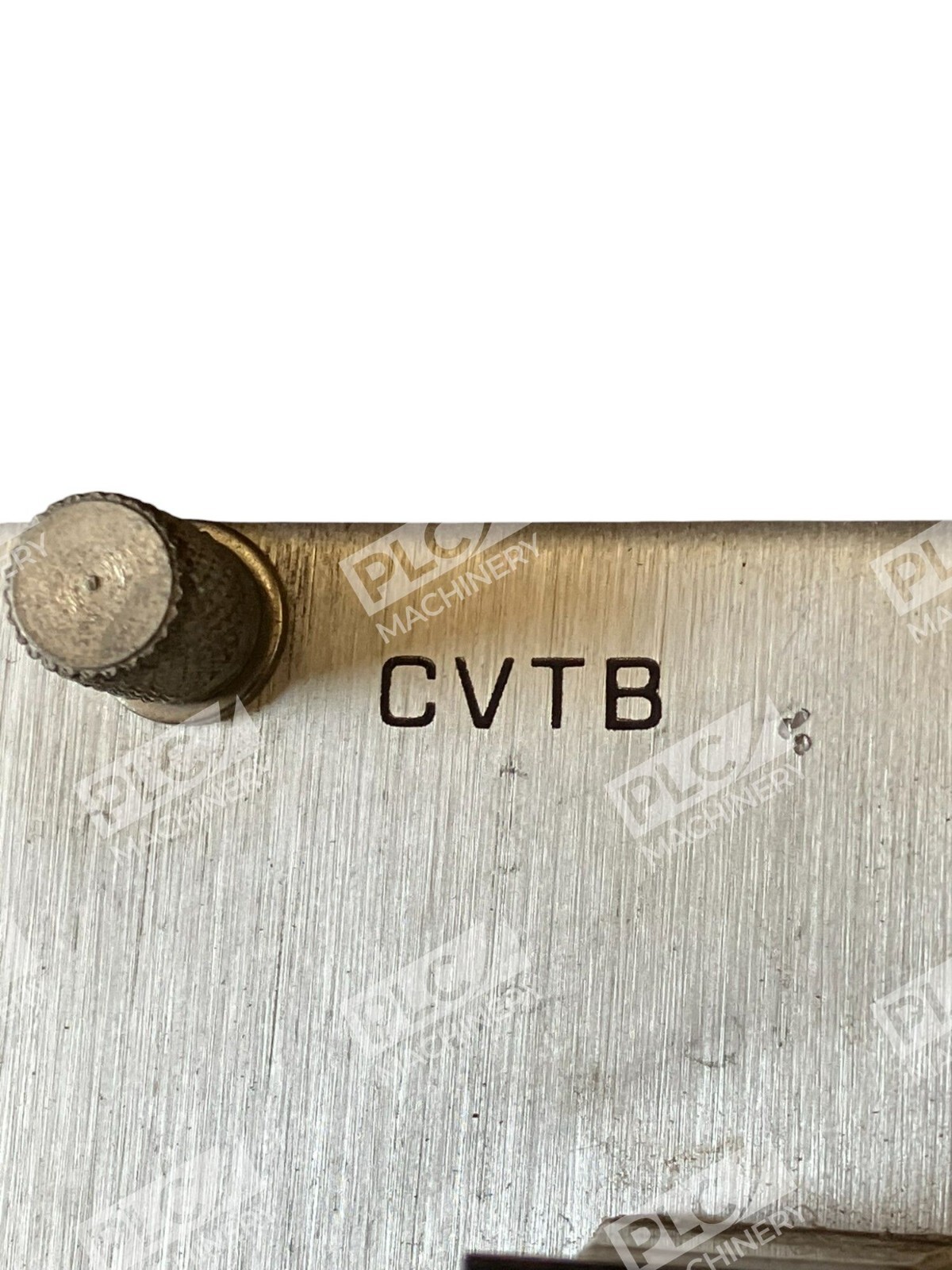

• Front Faceplate: Equipped with a front faceplate labeled “CVTB,” the board includes a terminal strip with twelve punched holes, each corresponding to specific connections, facilitating straightforward installation and maintenance.

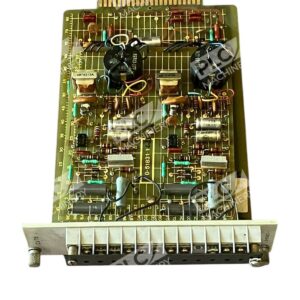

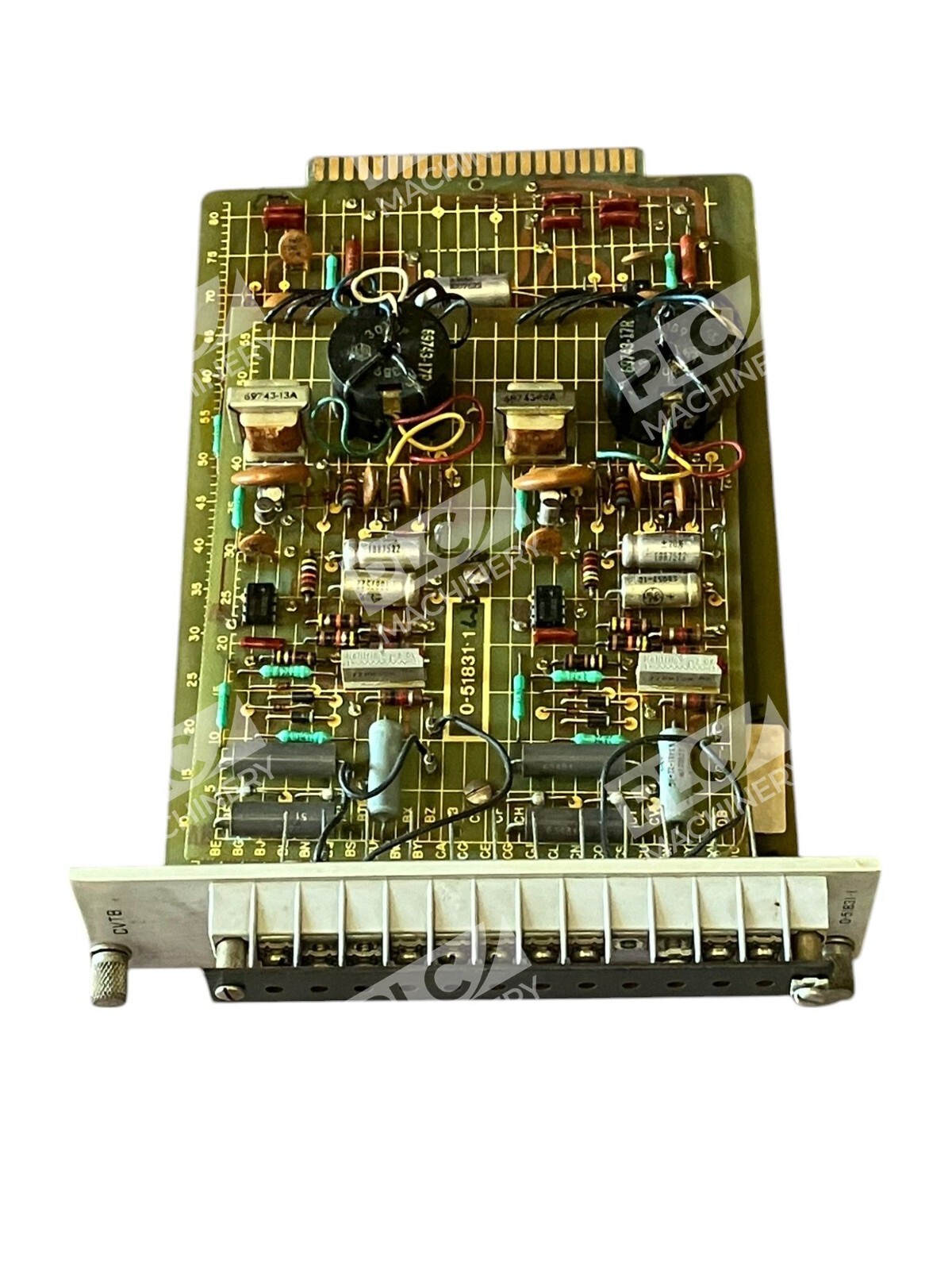

• Component Configuration: The top circuit board hosts:
  • Two small transformers adjacent to two large black circular components, each with red, green, and yellow wires.
  • Large orange capacitors and five smaller light orange capacitors.
  • Two pale gray variable resistors with adjustable screws for precise calibration.
  • Six large black capacitors and four smaller silver capacitors, each marked with their energy storage capacity.

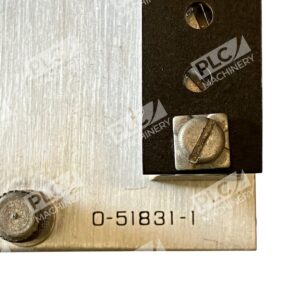

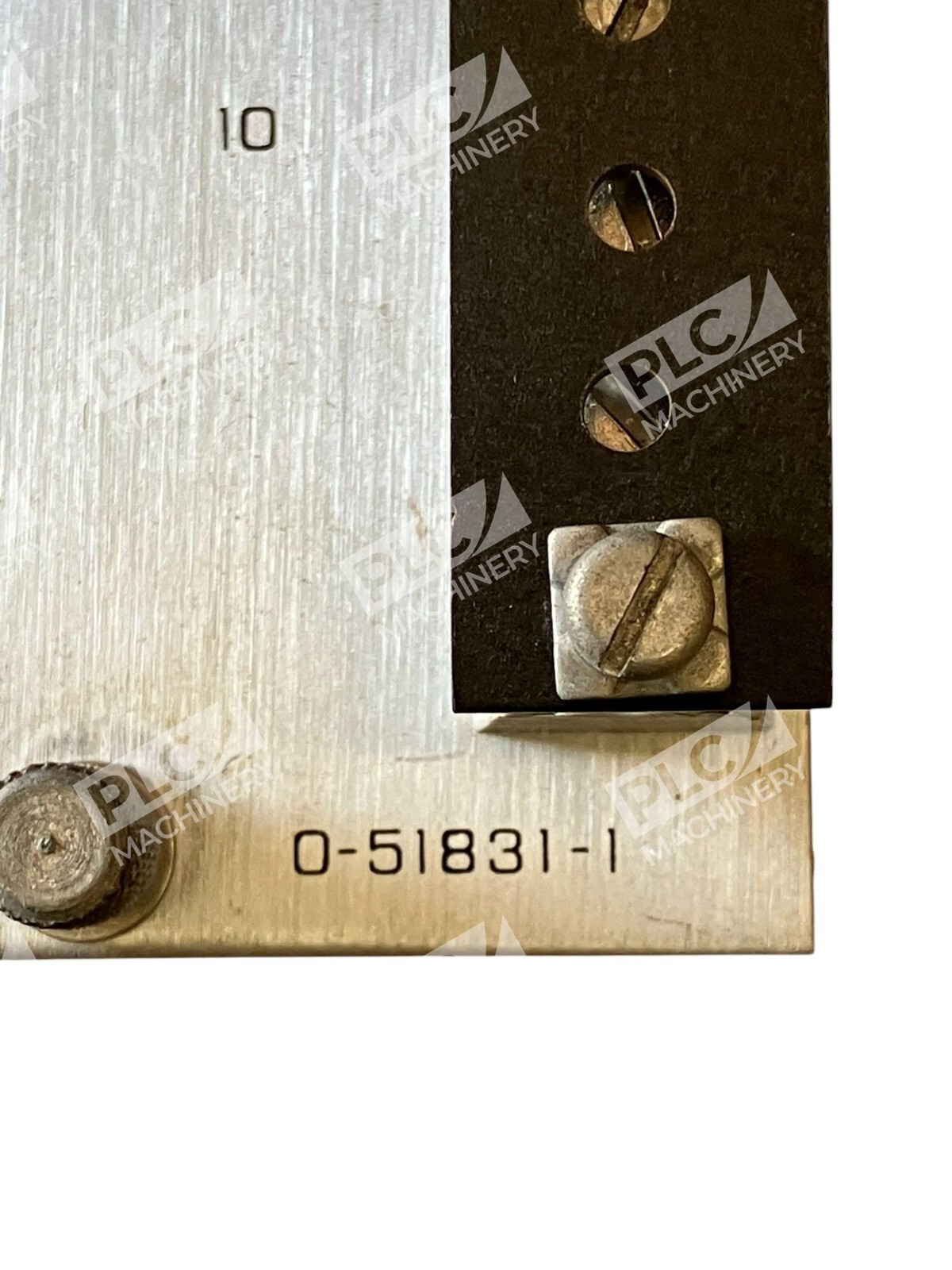

• Identification and Labeling: The board is marked with its part number, 0-51831-1, and the “CVTB” designation, ensuring easy identification and compatibility verification.

Applications

This Current Voltage Transducer Board is integral to industrial control systems, where it ensures accurate signal conversion and processing. Its robust design and precise component configuration make it suitable for various applications requiring reliable current and voltage transduction.

Availability

The 0-51831-1 board is available for purchase and repair through various suppliers. For instance, AX Control offers this board with a 3-year warranty, ensuring quality and reliability. Additionally, other suppliers provide options for purchasing or repairing this component, catering to different customer needs.

For more detailed information or to inquire about purchasing options, please contact authorized distributors or service providers specializing in industrial control components.
