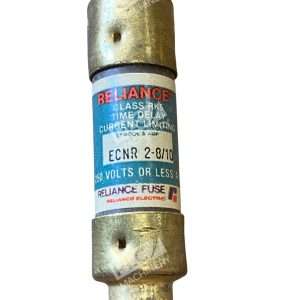

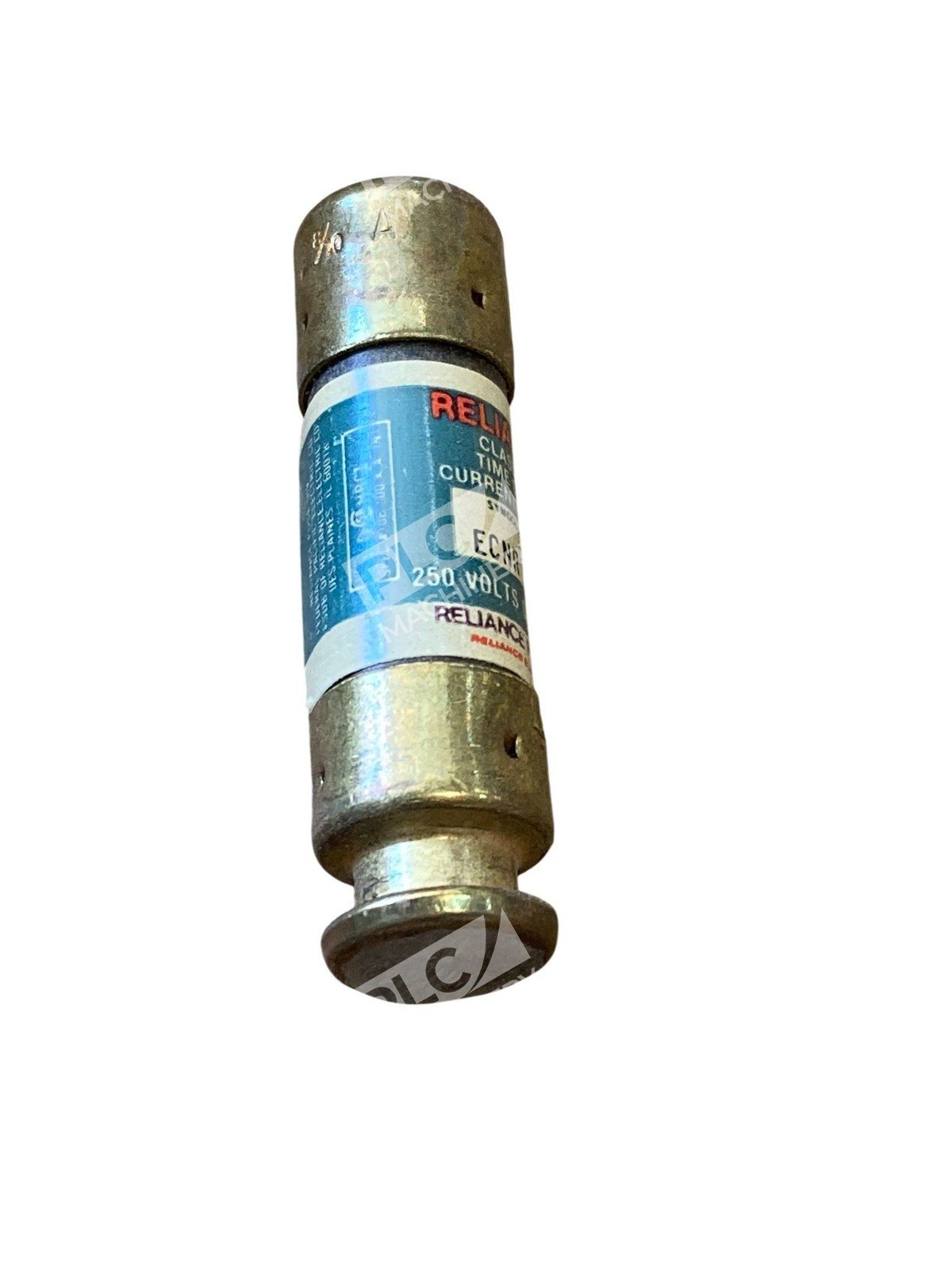

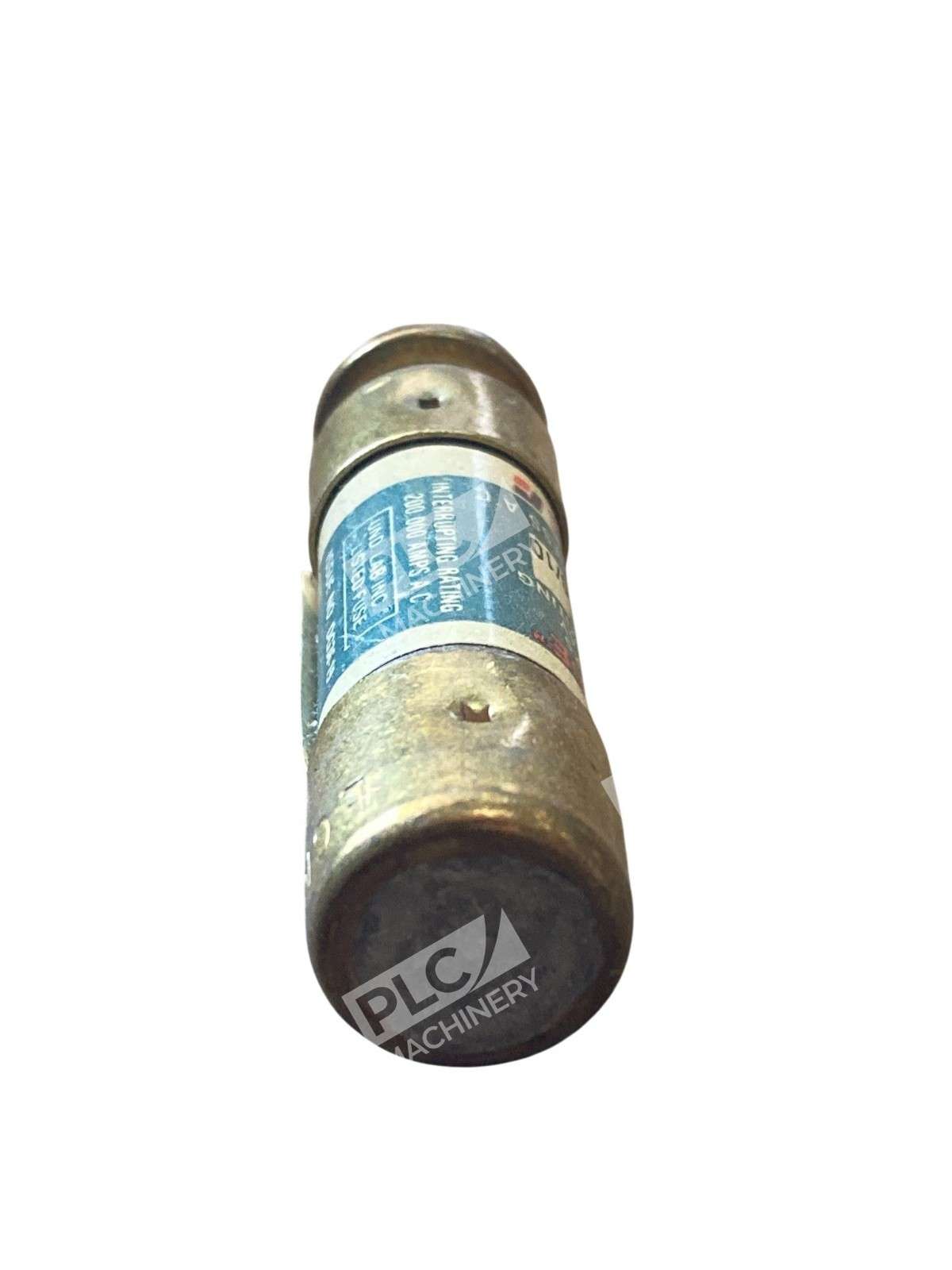

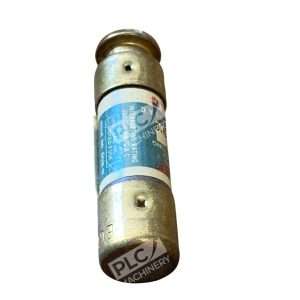

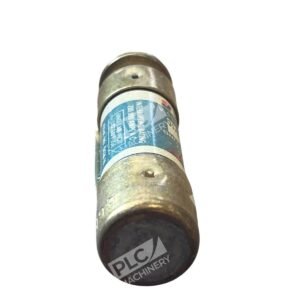

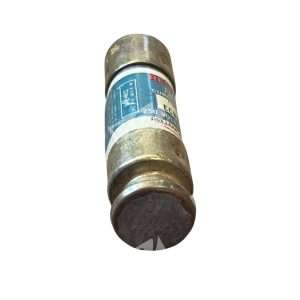

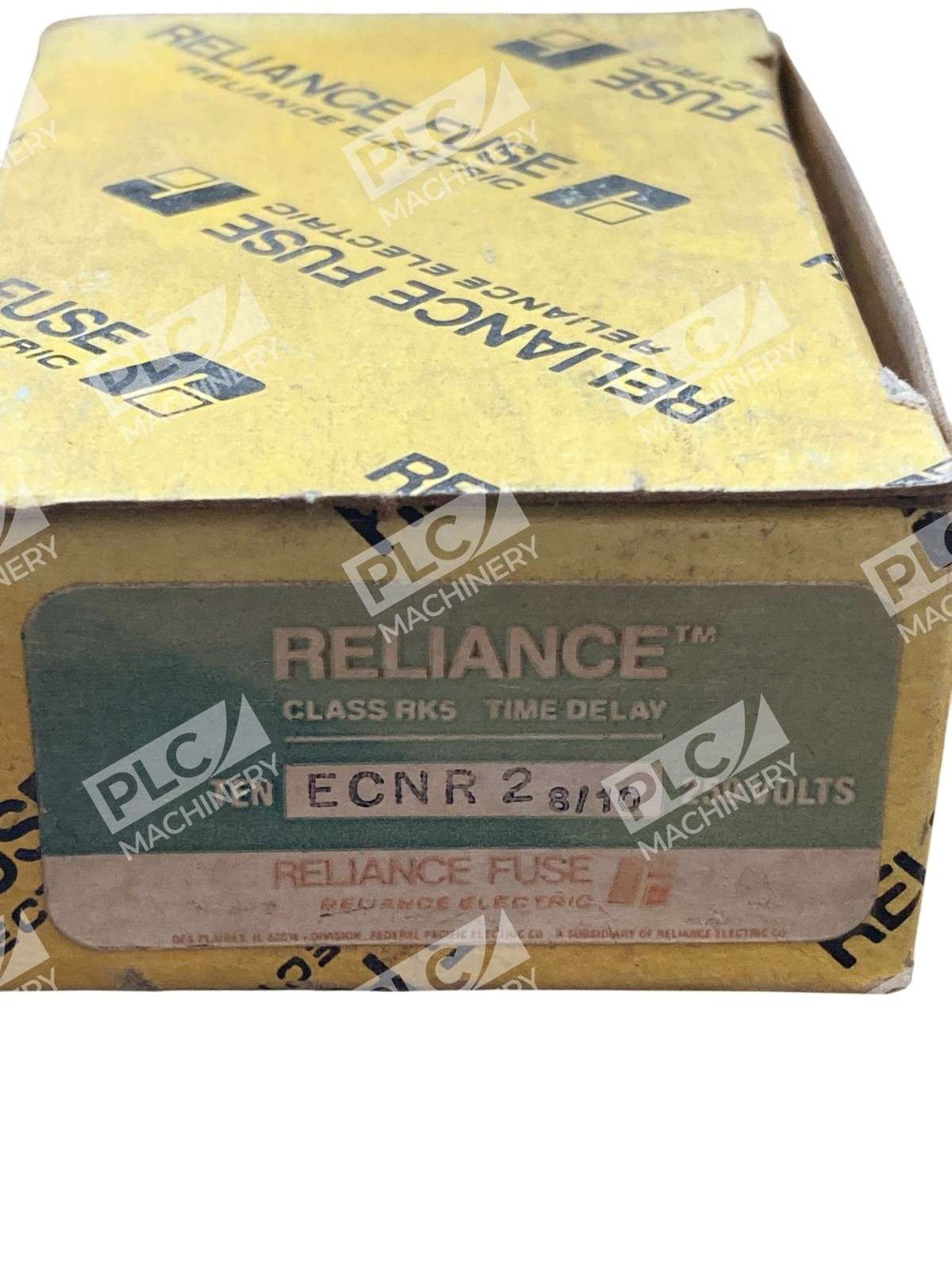

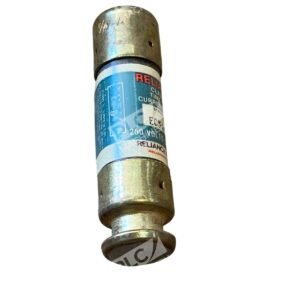

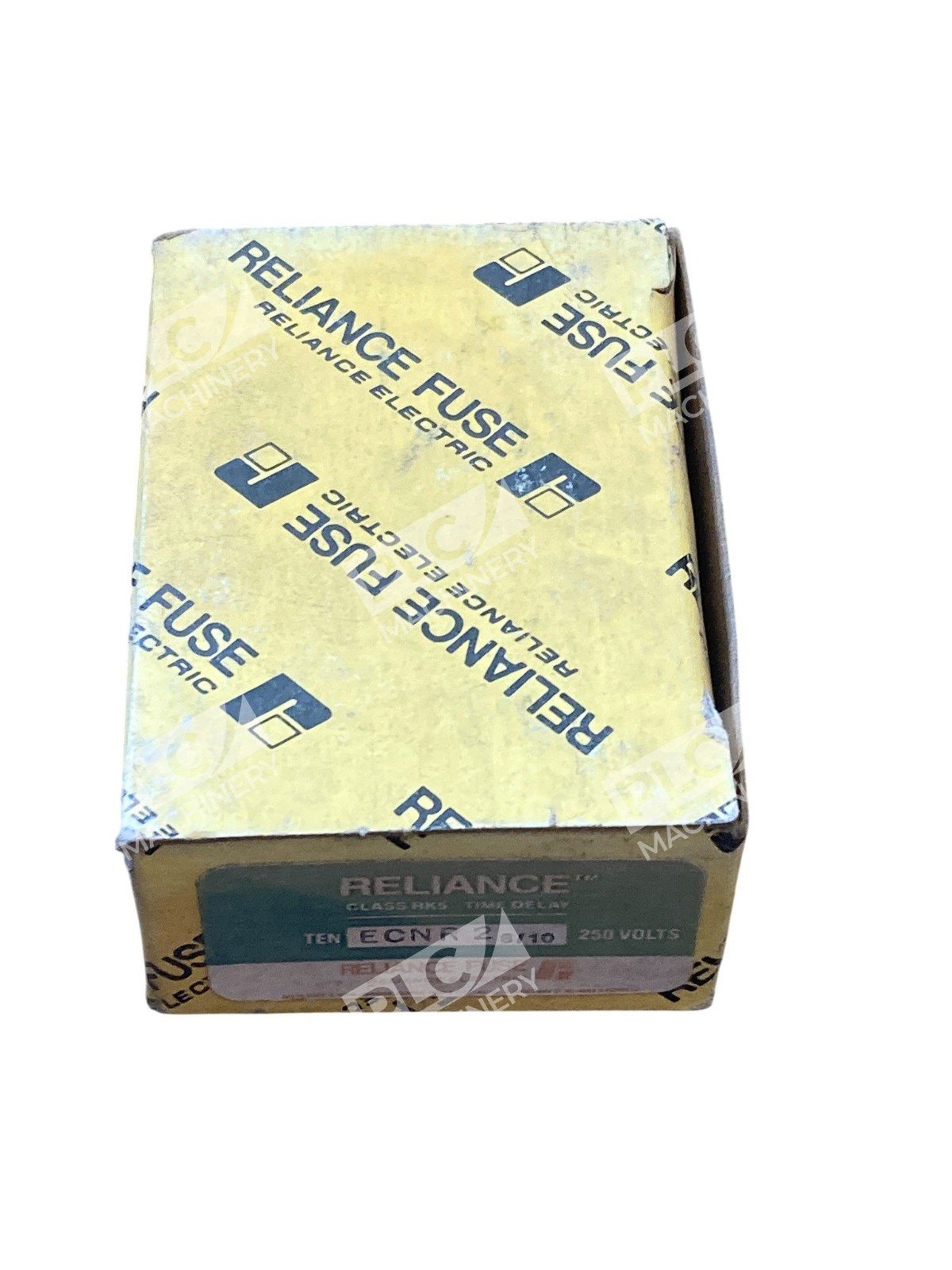

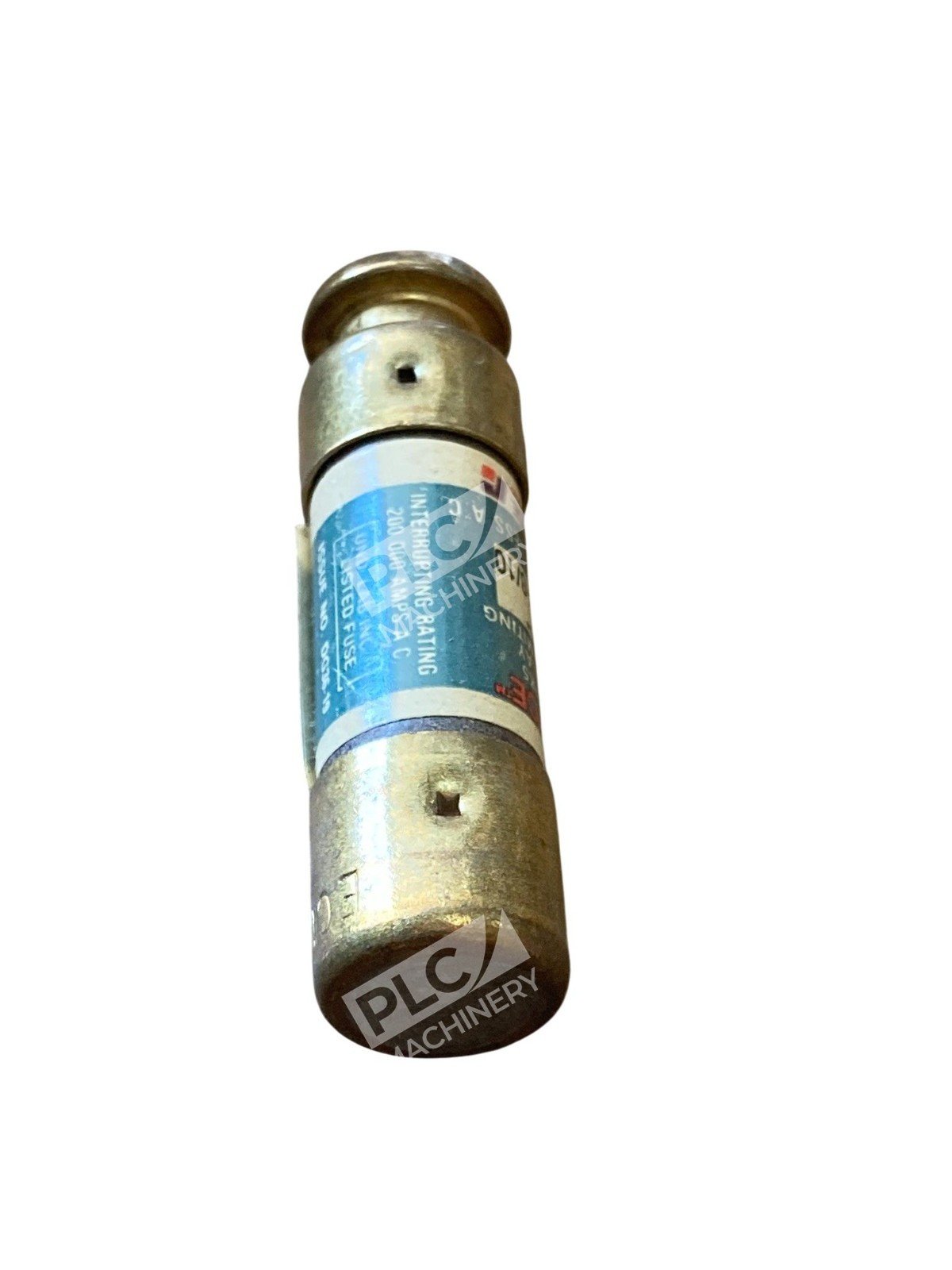

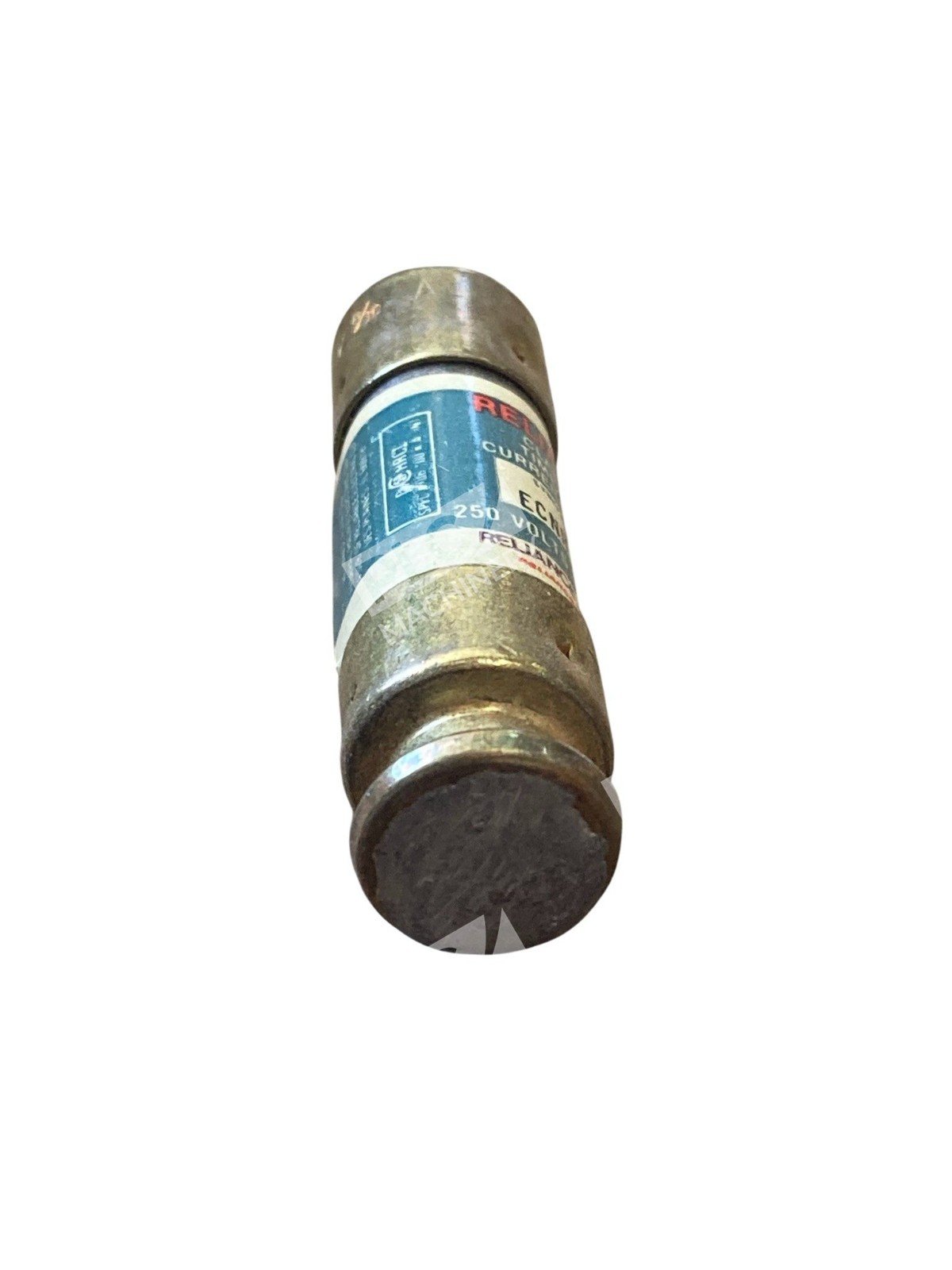

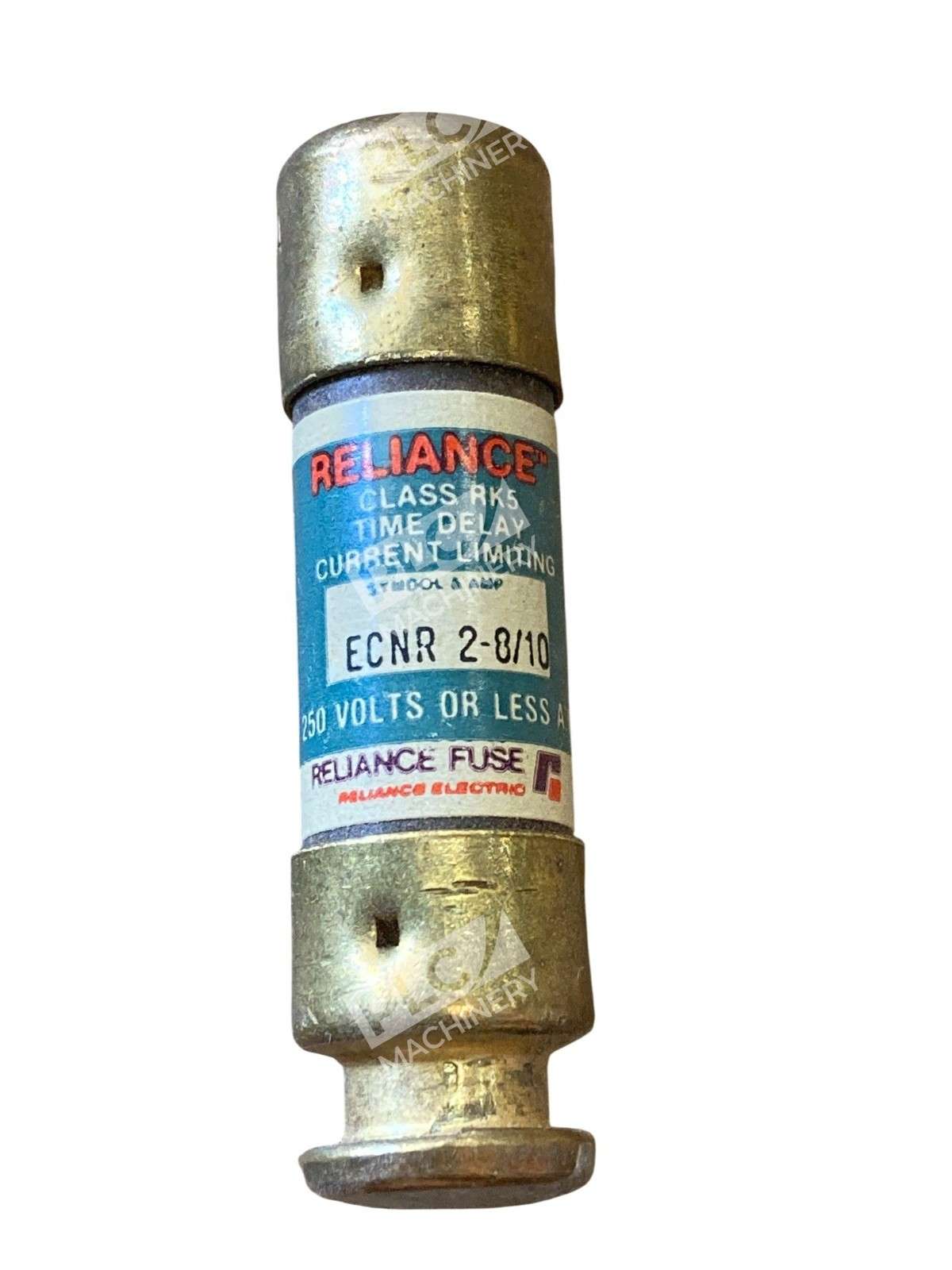

Reliance ECNR 2-8/10 Dual Element Time-Delay Fuse 250V Class RK5 – Box of 10
The Reliance ECNR 2-8/10 is a dual-element, time-delay fuse designed for 250V applications, classified under Class RK5. This fuse is engineered to provide superior protection for both inductive loads, such as motors and transformers, and non-inductive loads like lighting and heating systems.
Key Features
- Dual-Element Construction: Offers enhanced overload and short-circuit protection by incorporating separate overload and short-circuit elements.
- Time-Delay Capability: Provides a minimum time-delay of 10 seconds at 500% of the rated current, allowing for temporary inrush currents without nuisance openings.
- High Interrupting Rating: Capable of interrupting up to 200,000 amperes RMS symmetrical, ensuring reliable performance under high fault conditions.
- Current Limiting: Reduces the let-through energy during short-circuit events, minimizing potential damage to downstream equipment.
- Versatile Application: Suitable for use in AC power distribution system mains, feeders, and branch circuits, as well as for the protection of motors, transformers, and other inductive loads.
Specifications
- Voltage Rating: 250V AC
- Current Rating: 2-8/10 Amperes (2.8A)
- Class: RK5
- Interrupting Rating: 200kA RMS Symmetrical
- Time-Delay: 10 seconds minimum at 500% of rated current

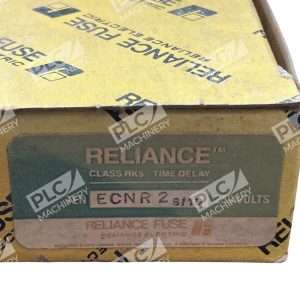

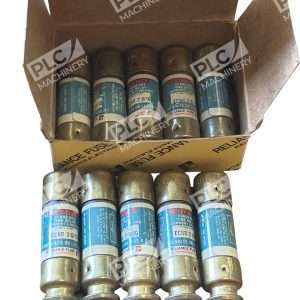

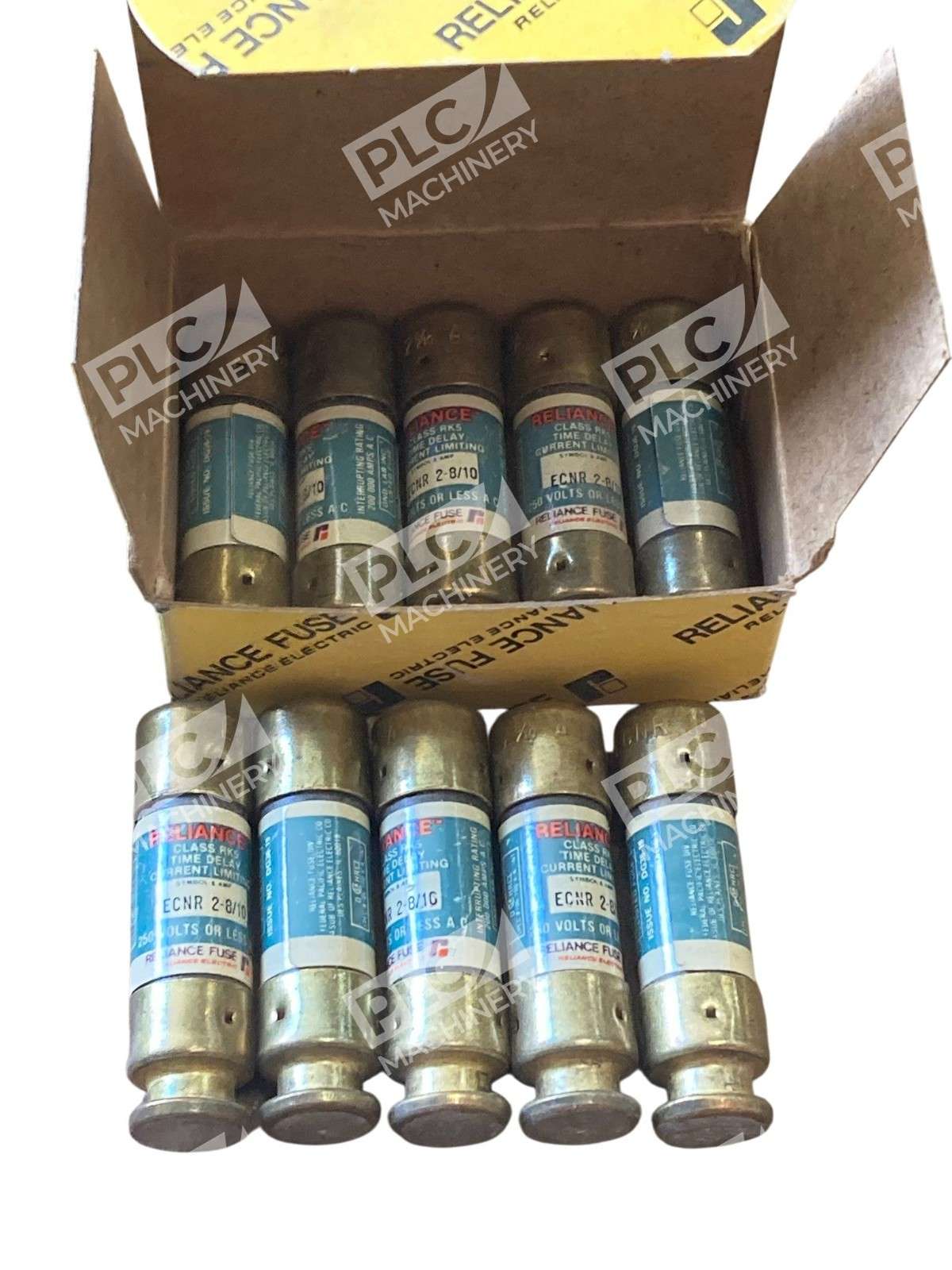

- Package Quantity: Box of 10 fuses
Applications
The ECNR 2-8/10 fuse is ideal for protecting circuits with both inductive and non-inductive loads. Its time-delay feature allows it to handle temporary surges, making it particularly effective for motor and transformer protection. Additionally, its high interrupting capacity ensures safety in systems with high available fault currents.
Compliance and Standards
This fuse meets the following standards:
- UL 248-12 – Class RK5 Fuses
- CSA C22.2 No. 248.12 – Class RK5 Fuses
- CE Marked
Ensure compatibility with your system requirements and consult the manufacturer’s guidelines for proper installation and usage.
