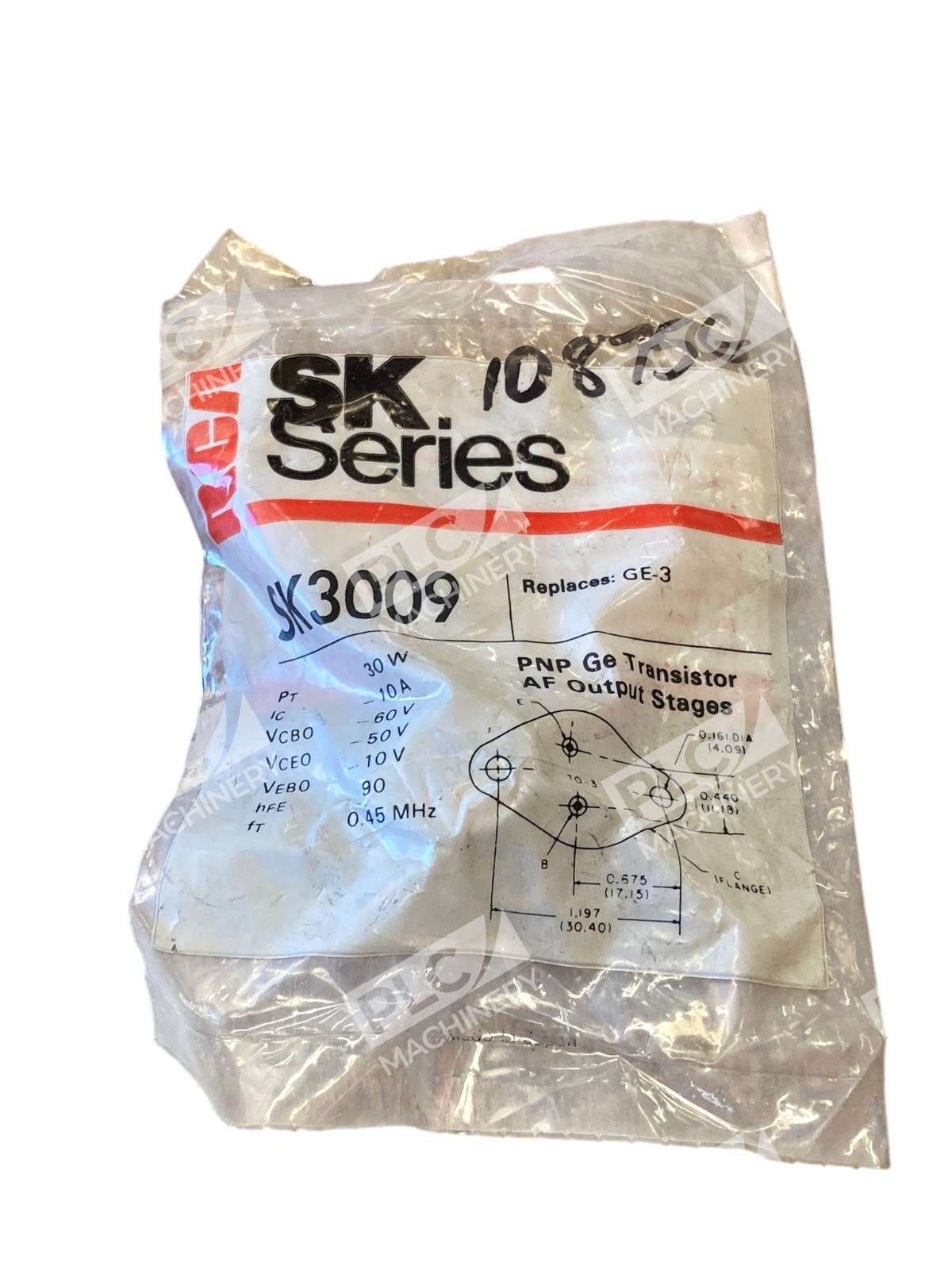

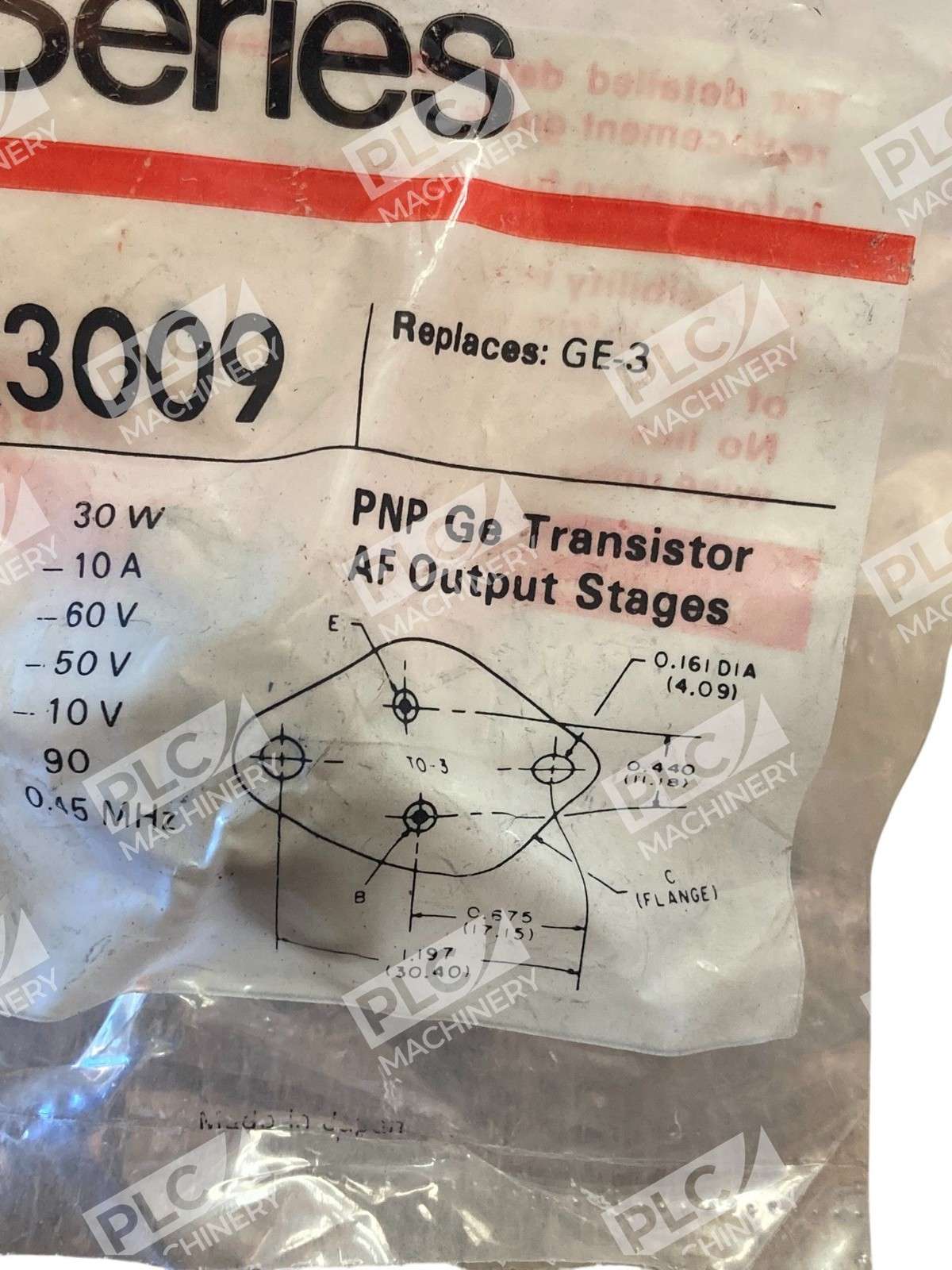

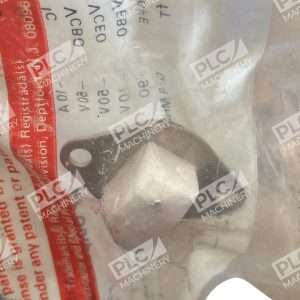

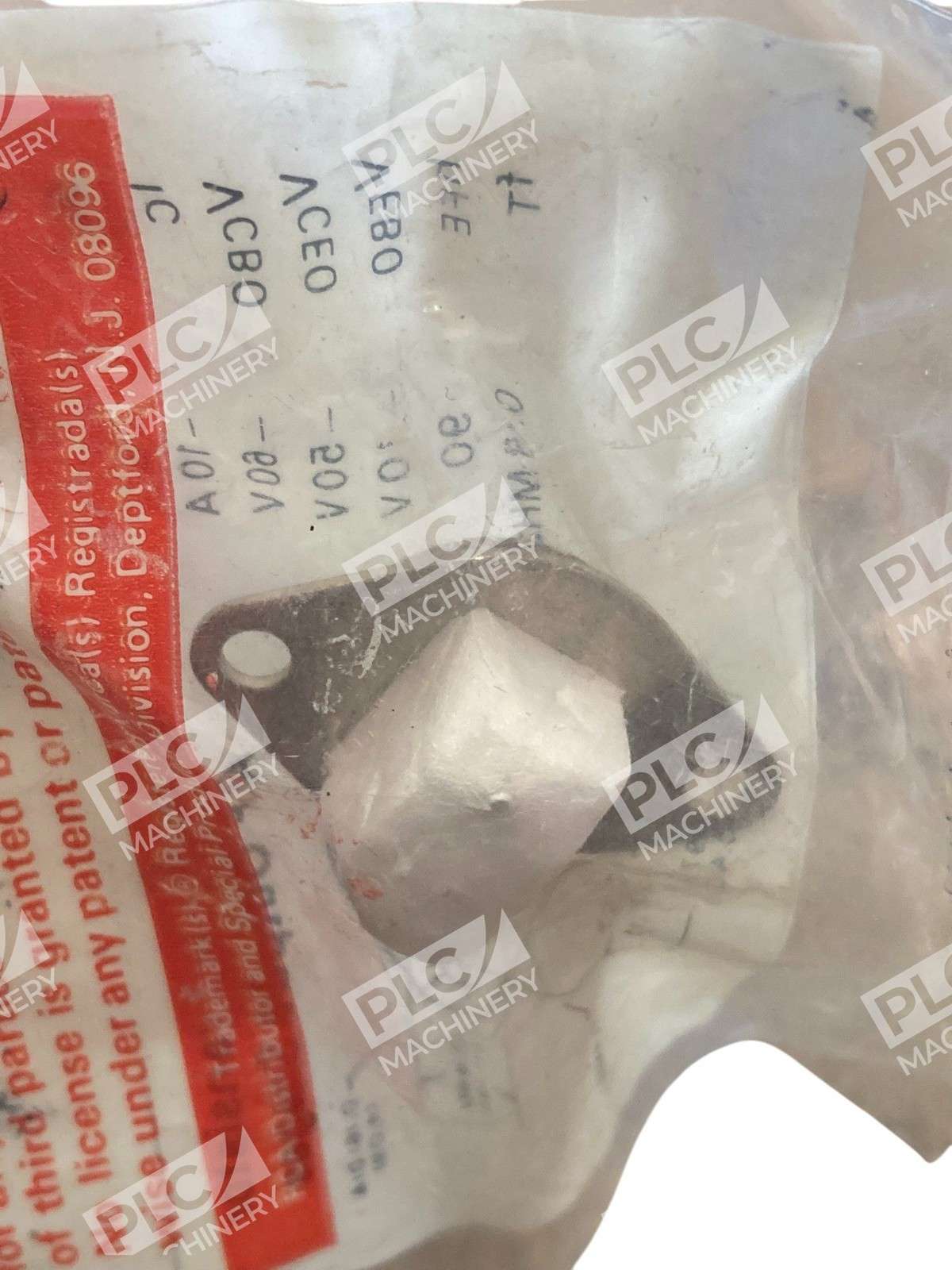

RCA SK3009 PNP Germanium Power Transistor
The RCA SK3009 is a PNP germanium power transistor designed for high-performance audio amplification and other demanding applications. Encased in a durable TO-3 package, this transistor offers robust electrical characteristics suitable for various electronic circuits.

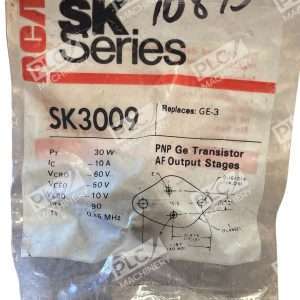

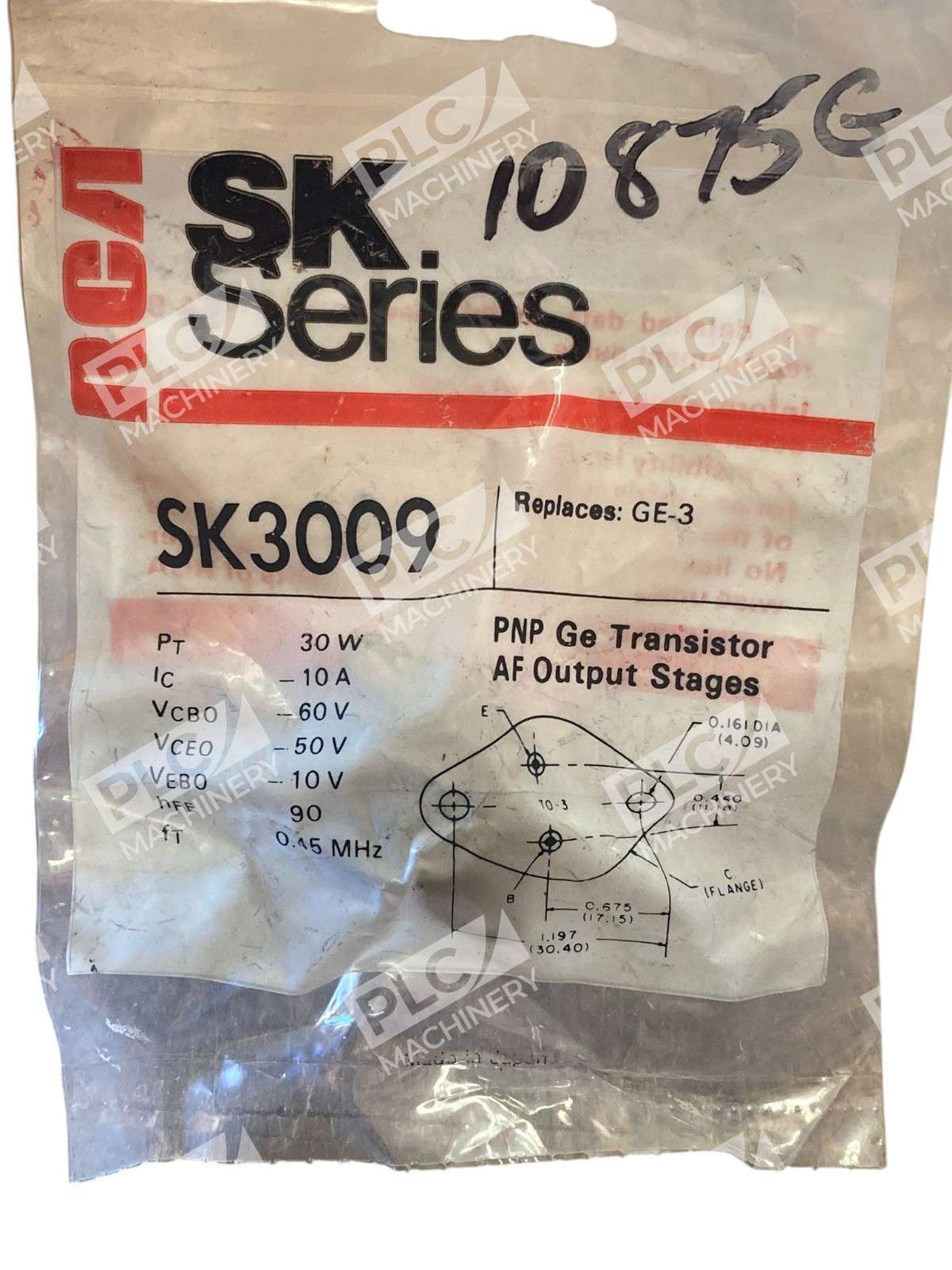

Key Features
- Maximum Voltage Ratings: 50V Collector-Emitter (VCEO), 60V Collector-Base (VCBO).
- Current Handling: Capable of handling up to 10A of collector current.
- Power Dissipation: Supports a maximum power dissipation of 30 watts.

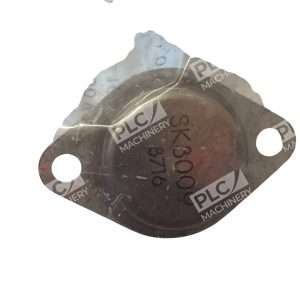

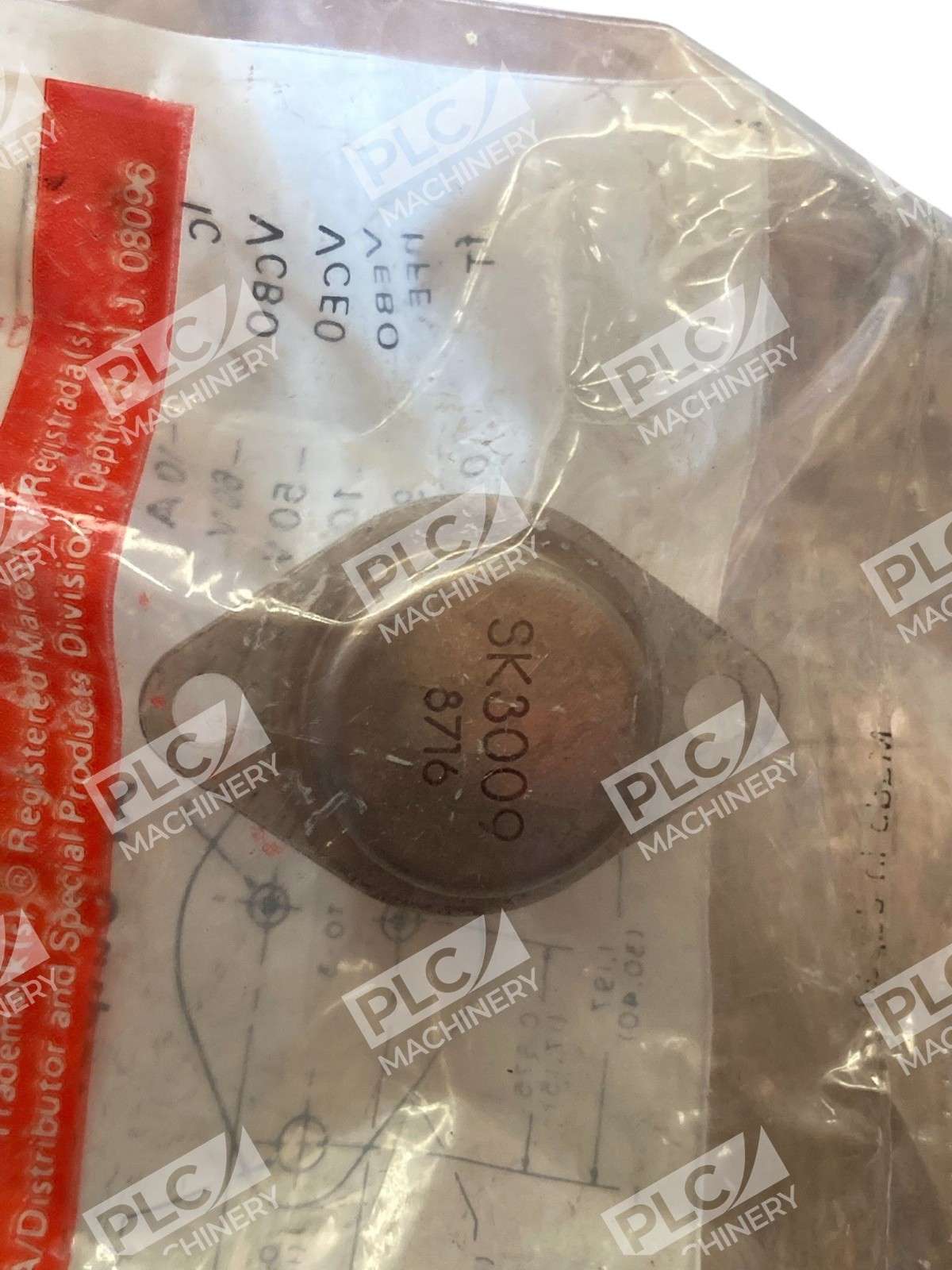

- Package Type: TO-3 metal can, ensuring efficient heat dissipation and mechanical stability.
- Material: Constructed using germanium, offering distinct electrical properties compared to silicon-based transistors.
Applications
The SK3009 is commonly utilized in audio power amplifiers, serving as a key component in delivering high-fidelity sound reproduction. Its high current and voltage ratings make it suitable for various power amplification tasks in both consumer and professional audio equipment.
Equivalent Components
For those seeking alternatives, the SK3009 is equivalent to the NTE121 transistor, providing similar electrical characteristics and performance.
Additional Information
As a vintage component, the RCA SK3009 is valued by enthusiasts and professionals for its unique properties and performance in audio applications. When integrating this transistor into modern circuits, ensure compatibility with existing components and consider the specific requirements of your application.
