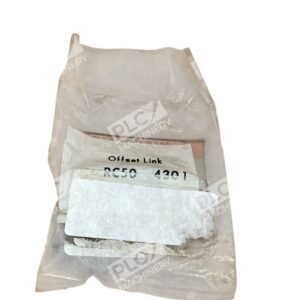

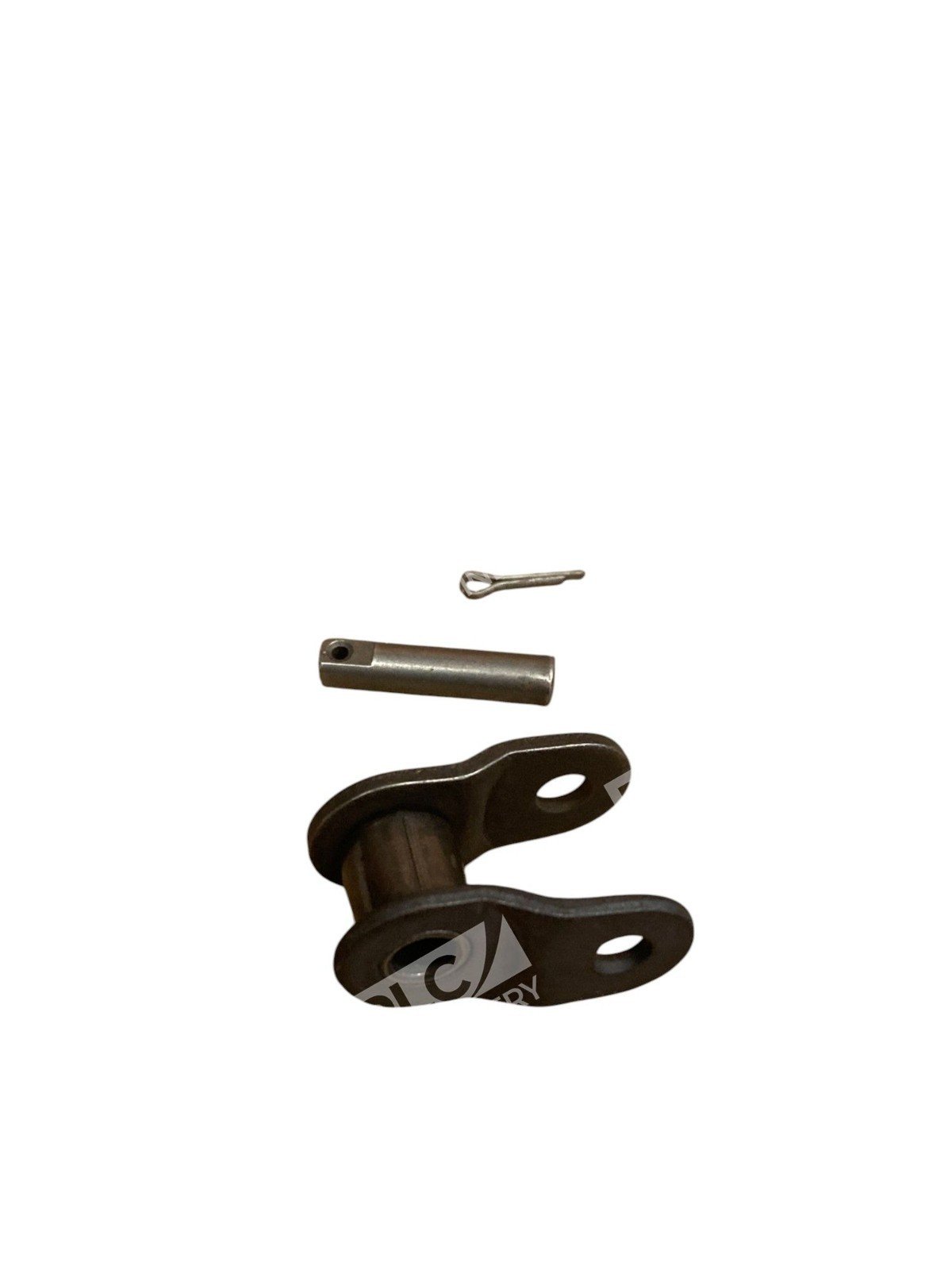

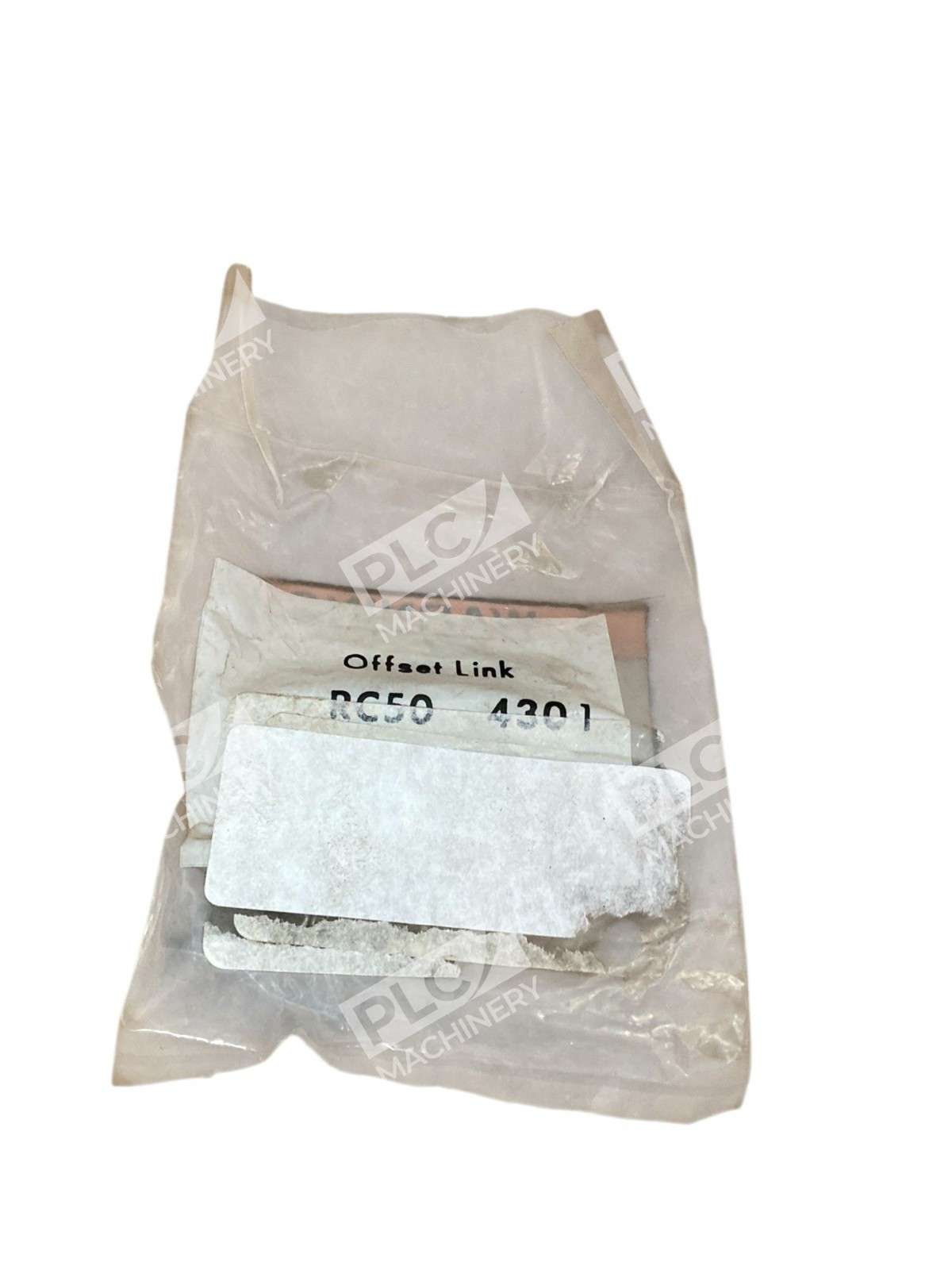

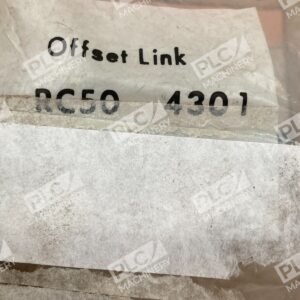

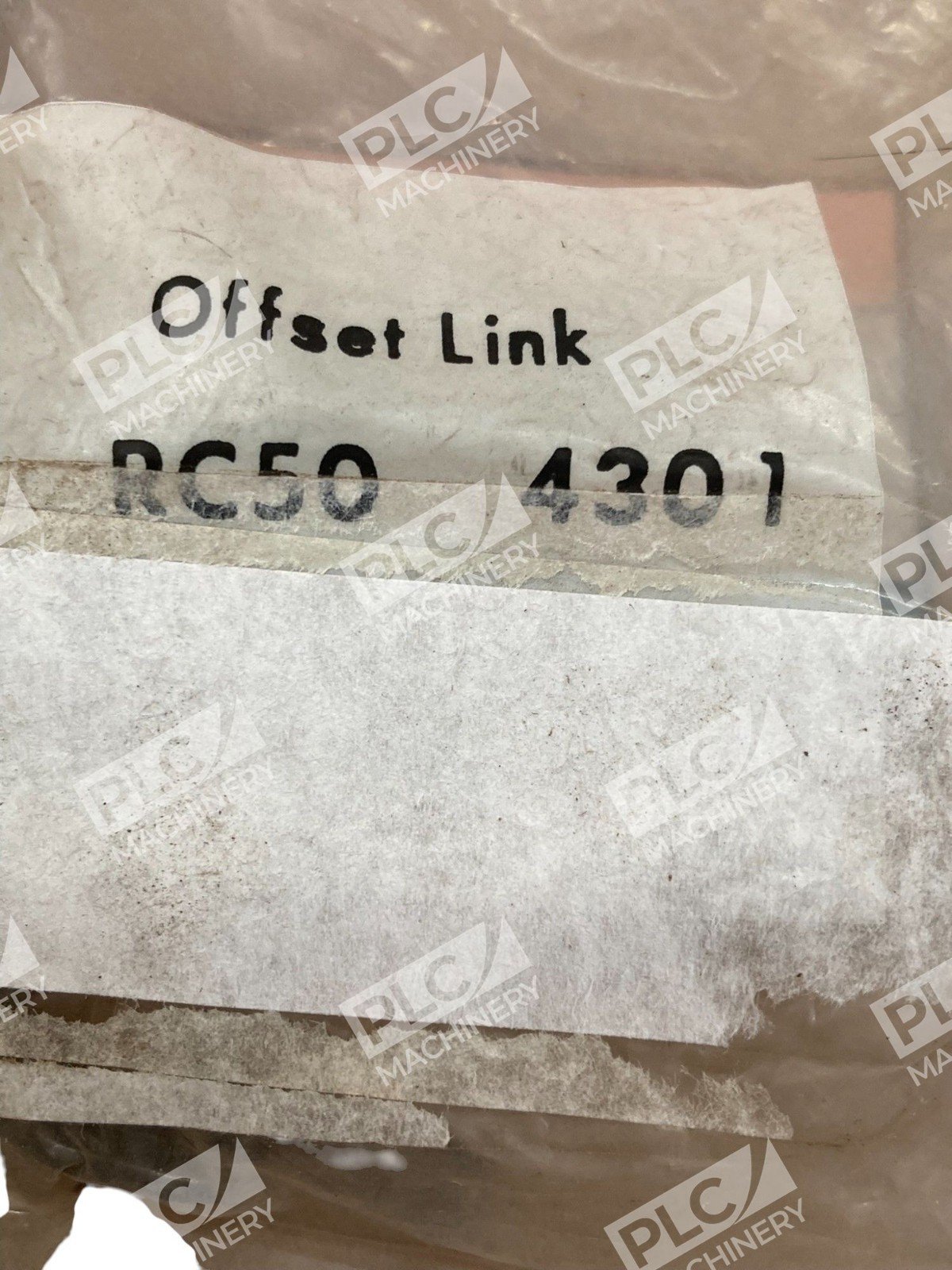

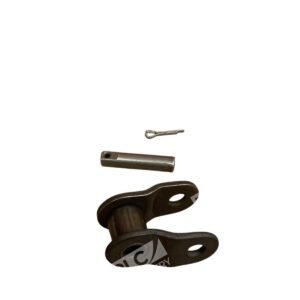

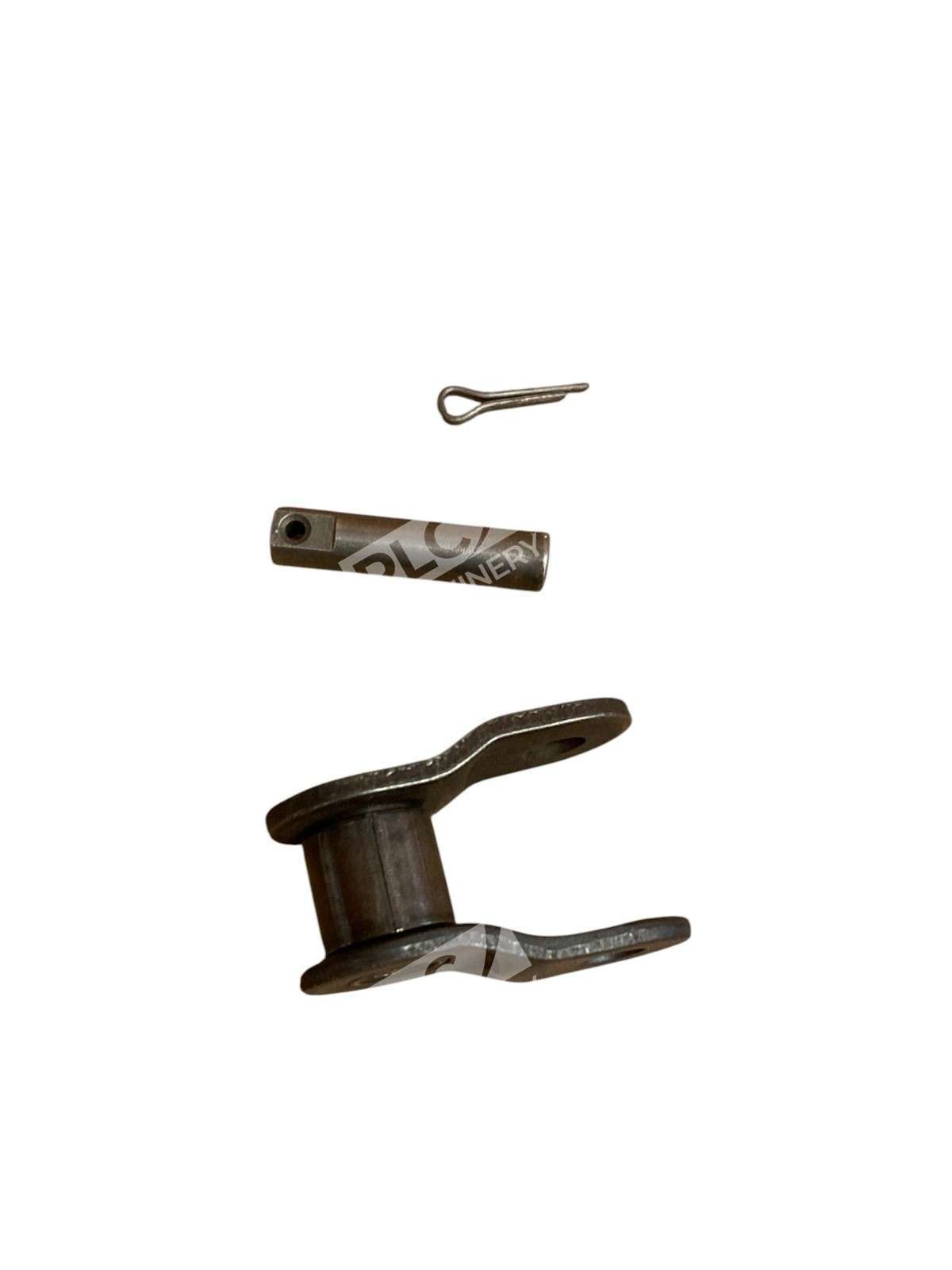

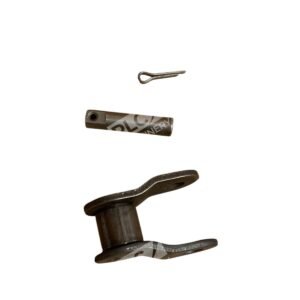

RC50 4301 Offset Link
The RC50 4301 Offset Link is an essential component designed to adjust the length of RC50 roller chains by a single pitch, ensuring precise alignment and optimal performance in various mechanical applications.
Key Features
- Compatibility: Specifically engineered for RC50 standard roller chains, facilitating seamless integration and reliable operation.
- Durable Construction: Manufactured from high-quality materials to withstand rigorous industrial environments and extend the lifespan of the chain assembly.
- Easy Installation: Designed for straightforward attachment, allowing for quick adjustments and minimal downtime during maintenance.
Specifications
| Attribute | Measurement |
|---|---|
| Pitch (P) | 0.625 inches |
| Roller Link Width (W) | 0.375 inches |
| Roller Diameter (D) | 0.400 inches |
| Pin Diameter (d) | 0.200 inches |
| Plate Thickness (T) | 0.079 inches |
| Plate Height (H) | 0.591 inches |
| Approximate Weight | 0.71 lbs/ft |
Applications
The RC50 4301 Offset Link is ideal for use in conveyor systems, agricultural machinery, and other industrial equipment where precise chain length adjustments are necessary to maintain efficient and reliable operations.
Installation Guidelines
- Ensure the machinery is powered off and the chain is free of tension before installation.
- Align the offset link with the chain ends, ensuring proper orientation.
- Secure the link using the appropriate connecting method, such as a clip or cotter pin, to maintain chain integrity.
- After installation, verify the chain’s alignment and tension to ensure optimal performance.
By incorporating the RC50 4301 Offset Link into your chain assembly, you can achieve precise length adjustments, enhancing the efficiency and longevity of your mechanical systems.
