R.E.S. France HK 122 PC Mount Rotary Switch

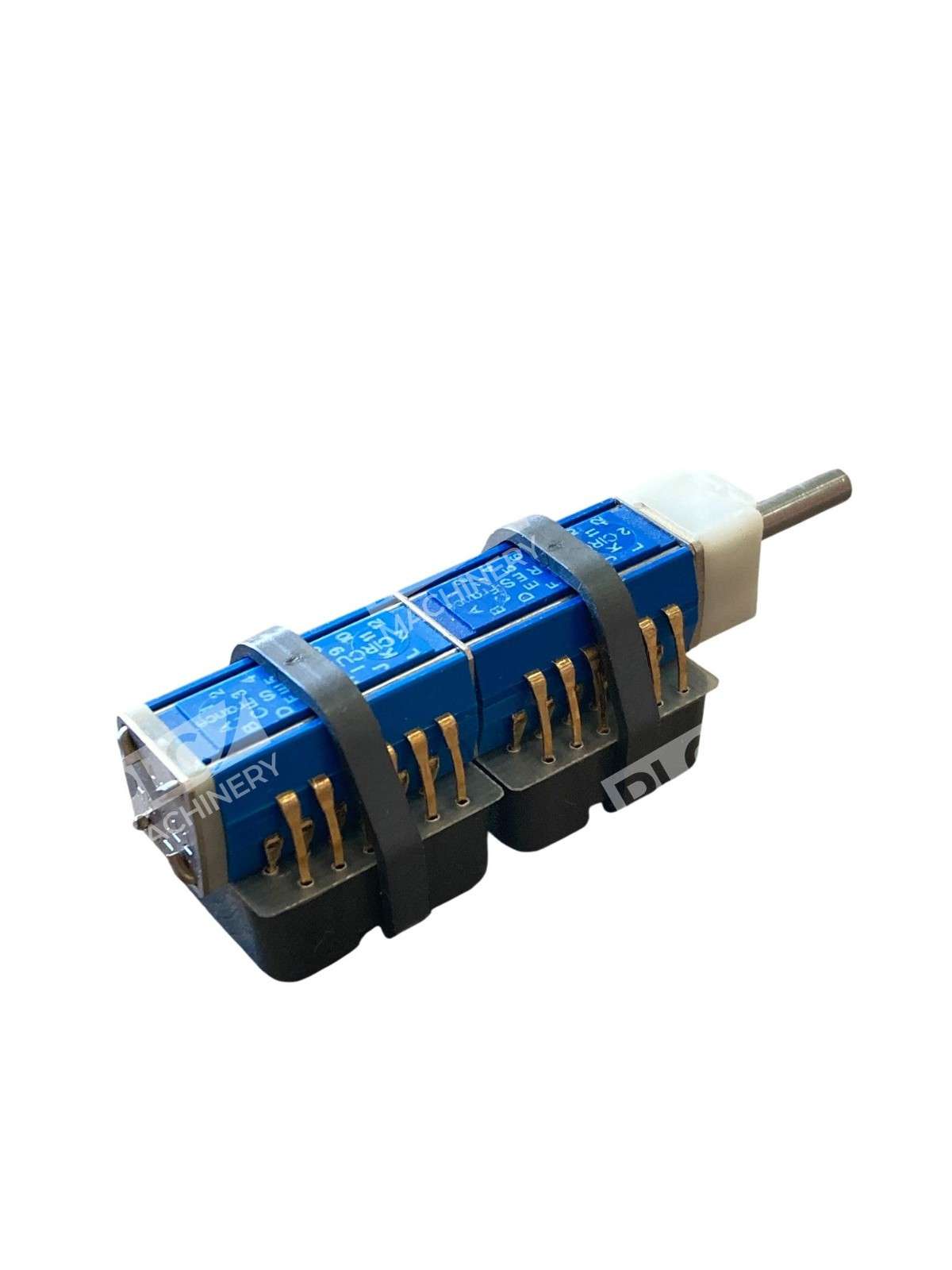

The R.E.S. France HK 122 is a precision rotary switch designed for seamless integration into printed circuit boards (PCBs). This high-quality component is engineered to provide reliable and accurate switching capabilities for various electronic applications.
Key Features
- Positions: Available in configurations with up to 5 positions, allowing for versatile application in circuit designs.
- Contact Mechanism: Features a 12-dip body with gold-plated contacts, ensuring excellent conductivity and resistance to corrosion.

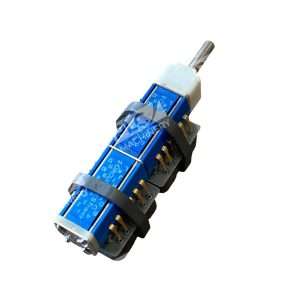

- Dimensions: The switch body measures 1.22 inches in length and 0.415 inches square, with an additional 0.33-inch contact extension, facilitating compact PCB layouts.

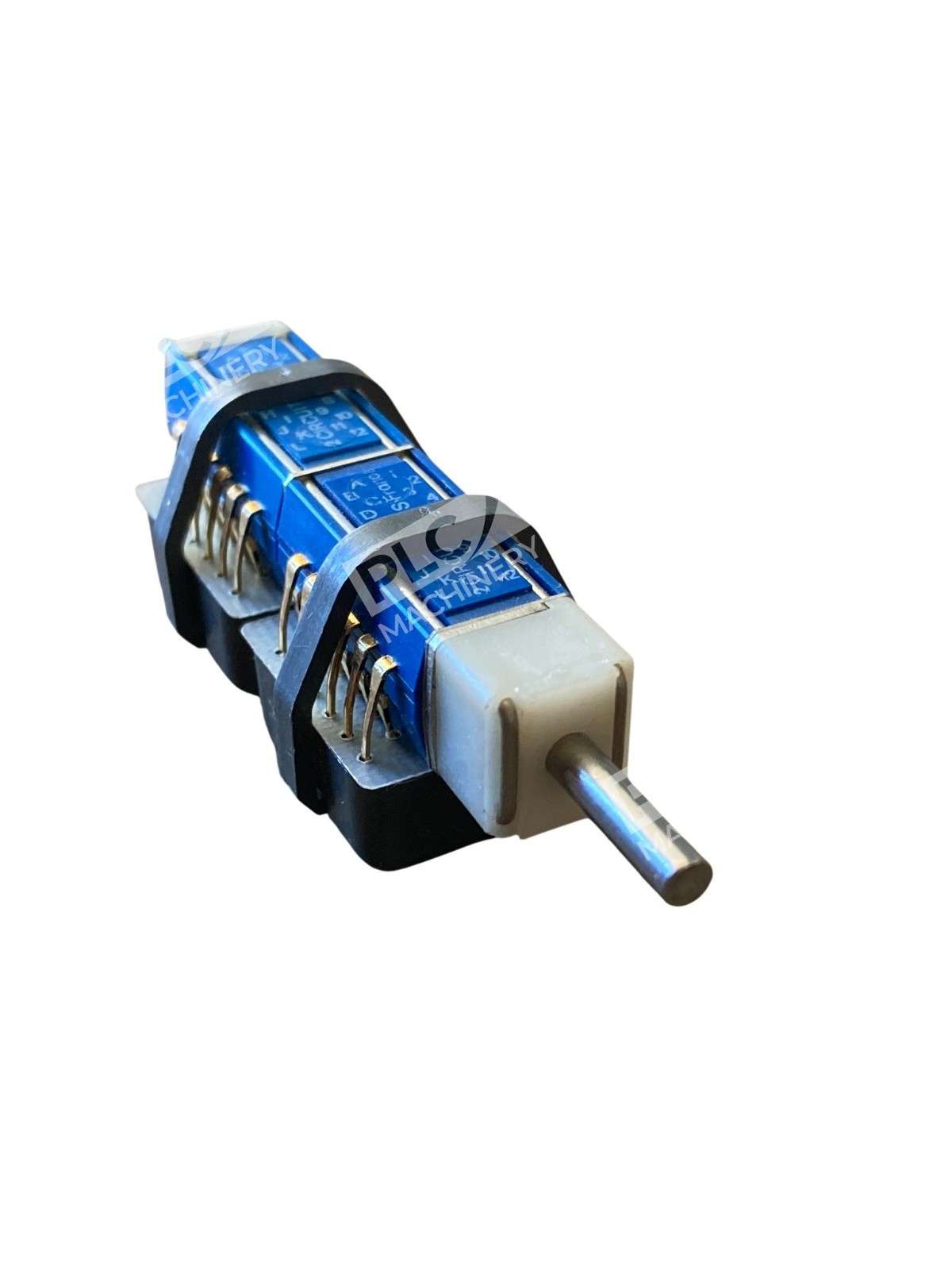

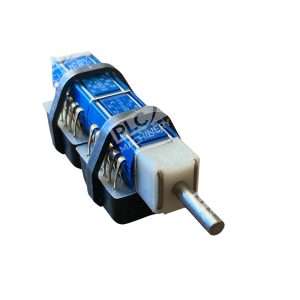

- Shaft Specifications: Equipped with a 3mm diameter shaft extending 25mm (approximately 1 inch), suitable for precise manual adjustments.
- Contact Spacing: Designed with 0.100-inch (2.54mm) center-to-center spacing between side-by-side contacts and approximately 0.4-inch spacing across opposing contacts, accommodating standard PCB design requirements.

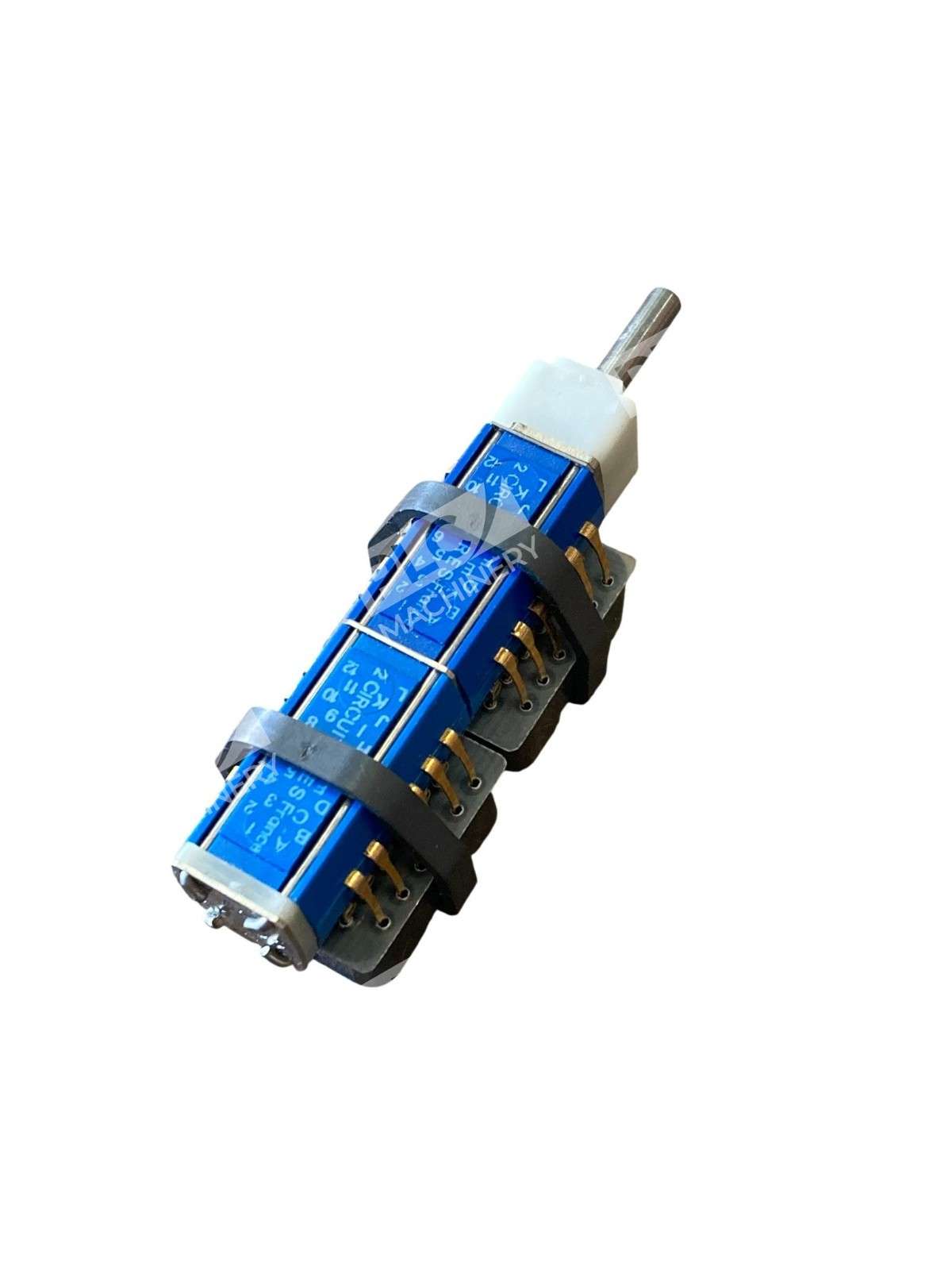

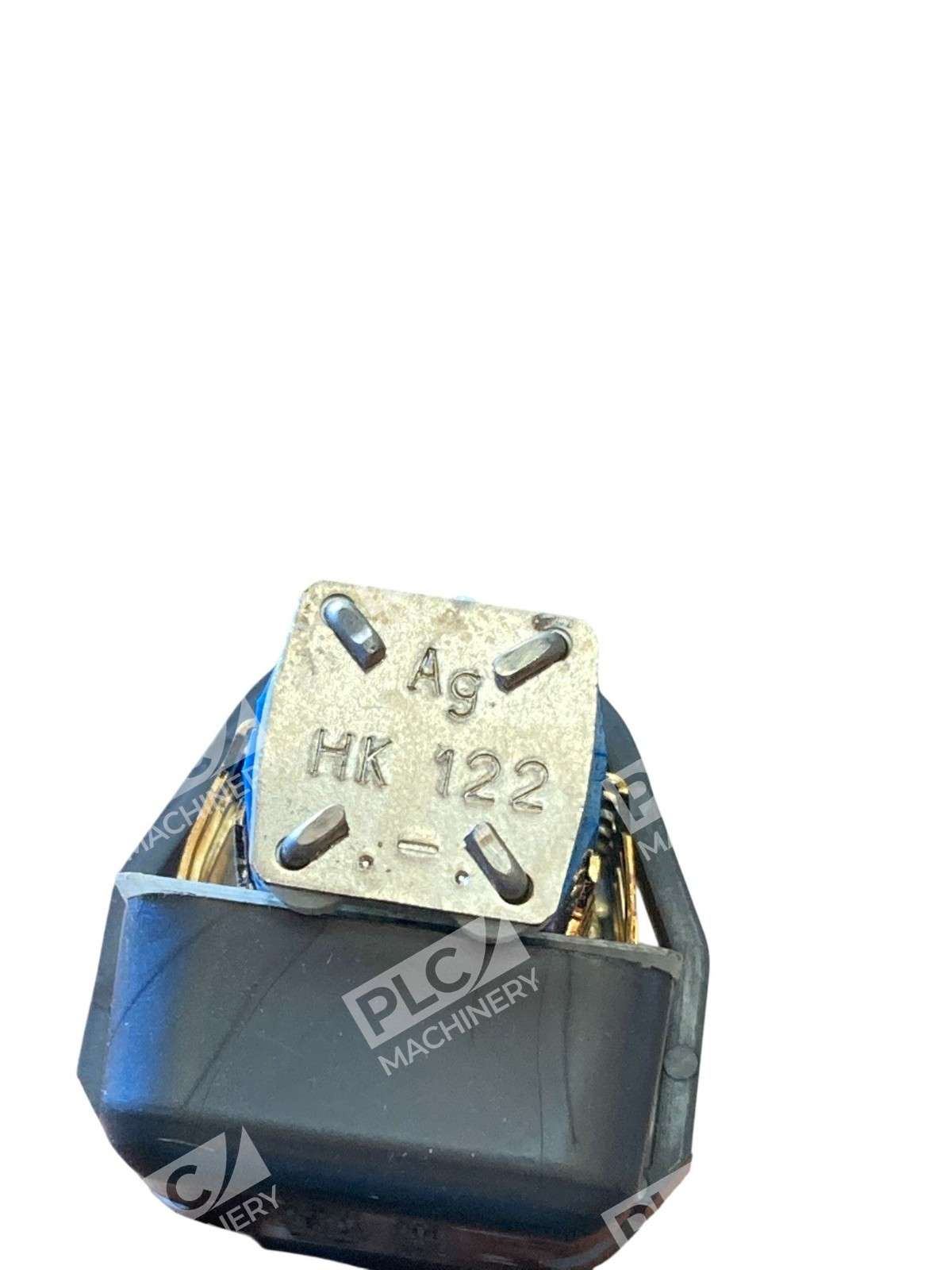

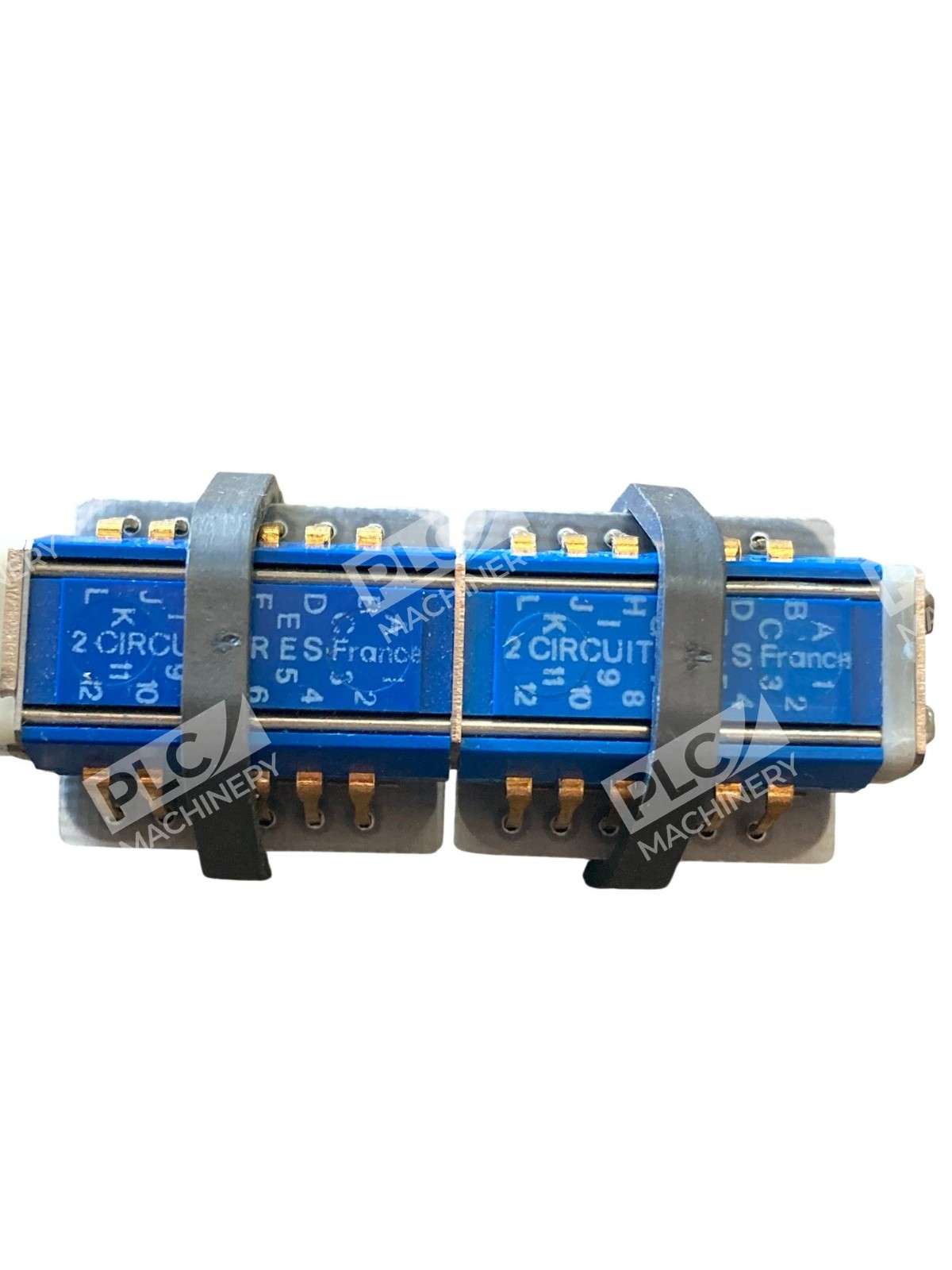

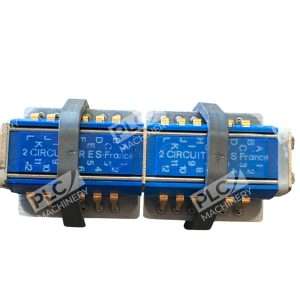

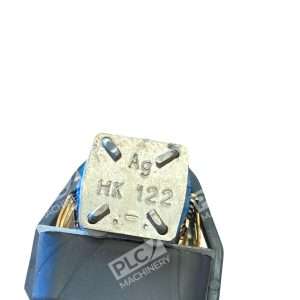

- Markings: The top of the switch is clearly marked with designations A through L and 1 through 12, aiding in accurate installation and wiring.

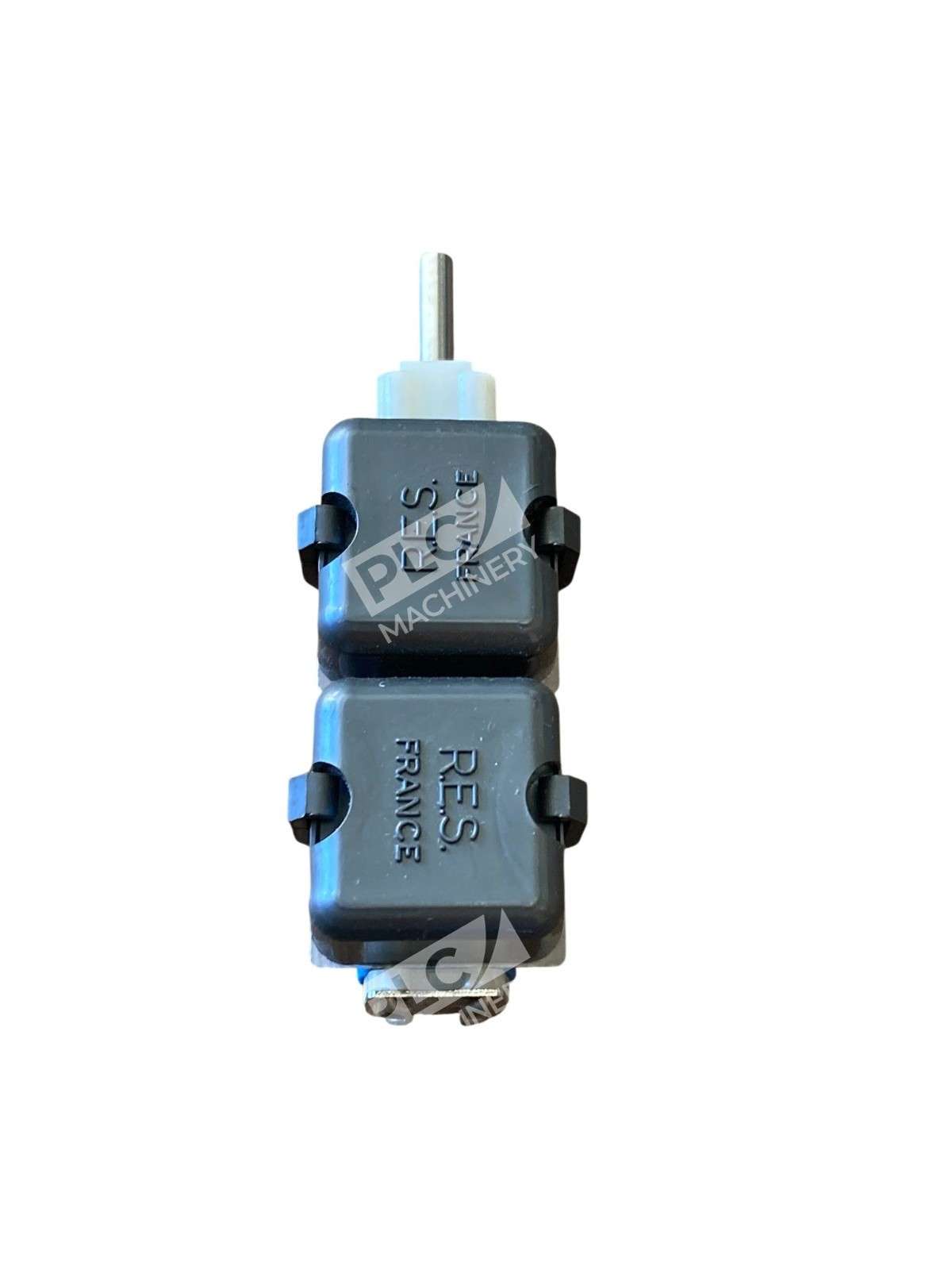

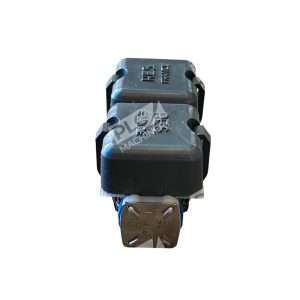

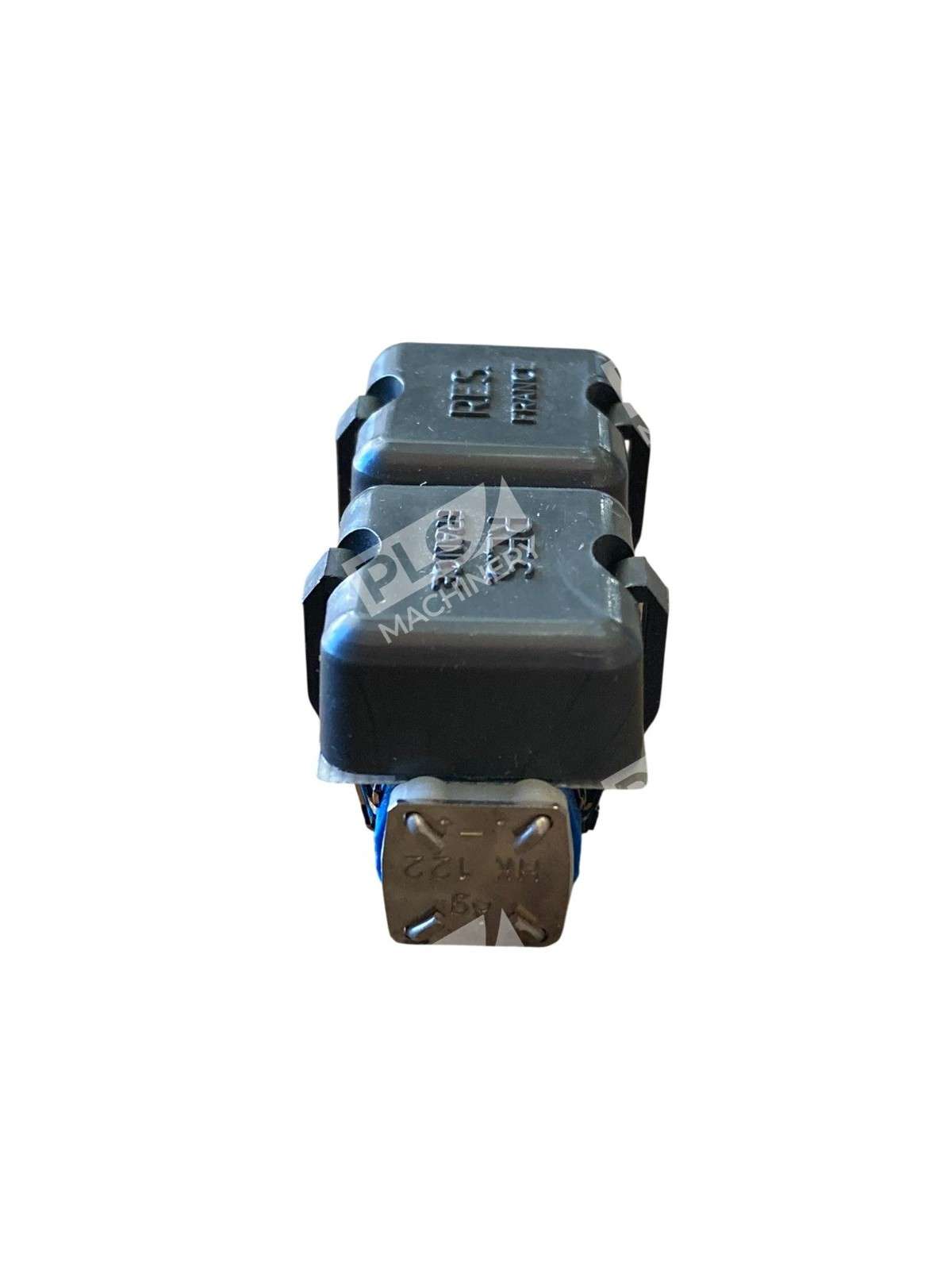

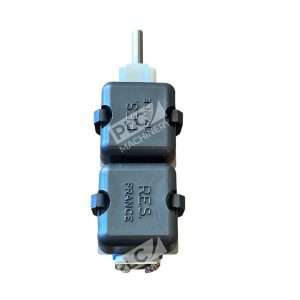

- Protective Features: Ships with a removable lead protector to safeguard the contacts during handling and assembly.
- Origin: Manufactured in France, ensuring adherence to high-quality standards.
Applications
The HK 122 rotary switch is suitable for a wide range of electronic applications, including instrumentation, telecommunications, and control systems, where precise and reliable switching is essential.
Incorporating the R.E.S. France HK 122 into your PCB design ensures a durable and efficient solution for your rotary switching needs.
