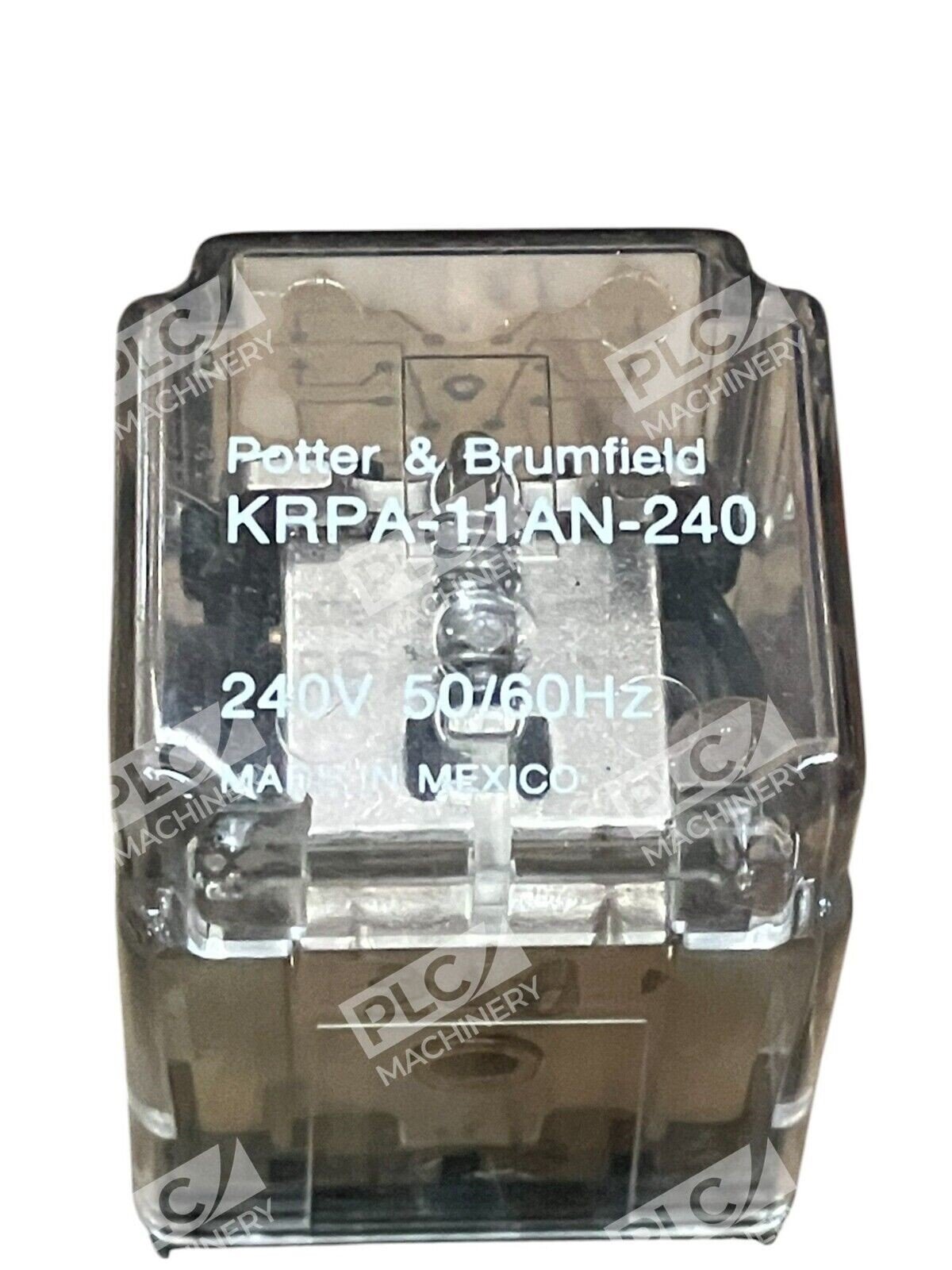

The Potter & Brumfield KRPA-11AN-240 is a general-purpose, industrial panel plug-in relay designed for reliable performance in various applications.
Key Features
- Contact Configuration: Double Pole Double Throw (DPDT), providing two independent circuits.
- Coil Voltage: Operates at 240 VAC, suitable for standard industrial power systems.
- Contact Rating: Each contact supports up to 10 A at 240 VAC, accommodating substantial electrical loads.
- Contact Material: Constructed with silver cadmium oxide (AgCdO) for enhanced conductivity and durability.
- Coil Resistance: Features a coil resistance of 9.11 kΩ, ensuring efficient operation.
- Indicator Lamp: Equipped with an integrated indicator lamp for visual status confirmation.

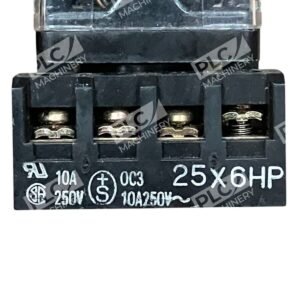

- Mounting: Designed for socket mounting with an 8-pin octal base, facilitating easy installation and replacement.
- Operating Temperature Range: Functions effectively within a temperature range of -45°C to +55°C, suitable for diverse environments.
- Certifications: Complies with UL and CSA standards, ensuring adherence to safety and performance regulations.
Applications
The KRPA-11AN-240 relay is ideal for various applications, including:
- Lighting control systems
- Test and measurement equipment
- Defense and aerospace systems
- Industrial automation and control panels
Dimensions
- Length: 35.7 mm (1.406 in)
- Width: 35.7 mm (1.405 in)
- Height: 50.8 mm (2 in)
The Potter & Brumfield KRPA-11AN-240 relay offers robust performance and versatility, making it a reliable choice for various industrial and commercial applications.
