The Potter & Brumfield KRPA-11AN-240 is a general-purpose power relay designed for industrial applications requiring reliable switching capabilities.
Key Features
- Contact Configuration: Double Pole Double Throw (DPDT), also known as 2 Form C, allowing for versatile switching operations.
- Coil Voltage: Operates at 240 VAC, suitable for standard industrial power systems.
- Contact Rating: Each contact is rated for up to 10 A at 240 VAC, accommodating substantial electrical loads.
- Coil Resistance: Features a coil resistance of 9.11 kΩ, ensuring efficient operation.
- Indicator Lamp: Equipped with an integrated indicator lamp for visual confirmation of relay status.
- Mounting: Designed for plug-in mounting with an 8-pin octal socket, facilitating easy installation and replacement.
- Contact Material: Constructed with silver cadmium oxide (AgCdO) contacts, providing durability and reliable conductivity.
- Operating Temperature Range: Capable of functioning within a temperature range of -45°C to 55°C, suitable for various environmental conditions.
- Certifications: Complies with UL and CSA standards, ensuring adherence to safety and performance requirements.
Applications
The KRPA-11AN-240 relay is ideal for a wide range of applications, including:
- Industrial control systems
- Automation equipment
- Lighting control
- Test and measurement devices
- Defense and aerospace systems
Base 2547HP
The 2547HP is a compatible socket base designed to accommodate the KRPA-11AN-240 relay. It provides a secure and reliable connection, ensuring optimal performance of the relay in various applications.
Dimensions
- Width: 35.7 mm (1.405 inches)
- Length: 35.7 mm (1.406 inches)
- Height: 50.8 mm (2 inches)
These dimensions make the relay compact and suitable for integration into various control panels and systems.

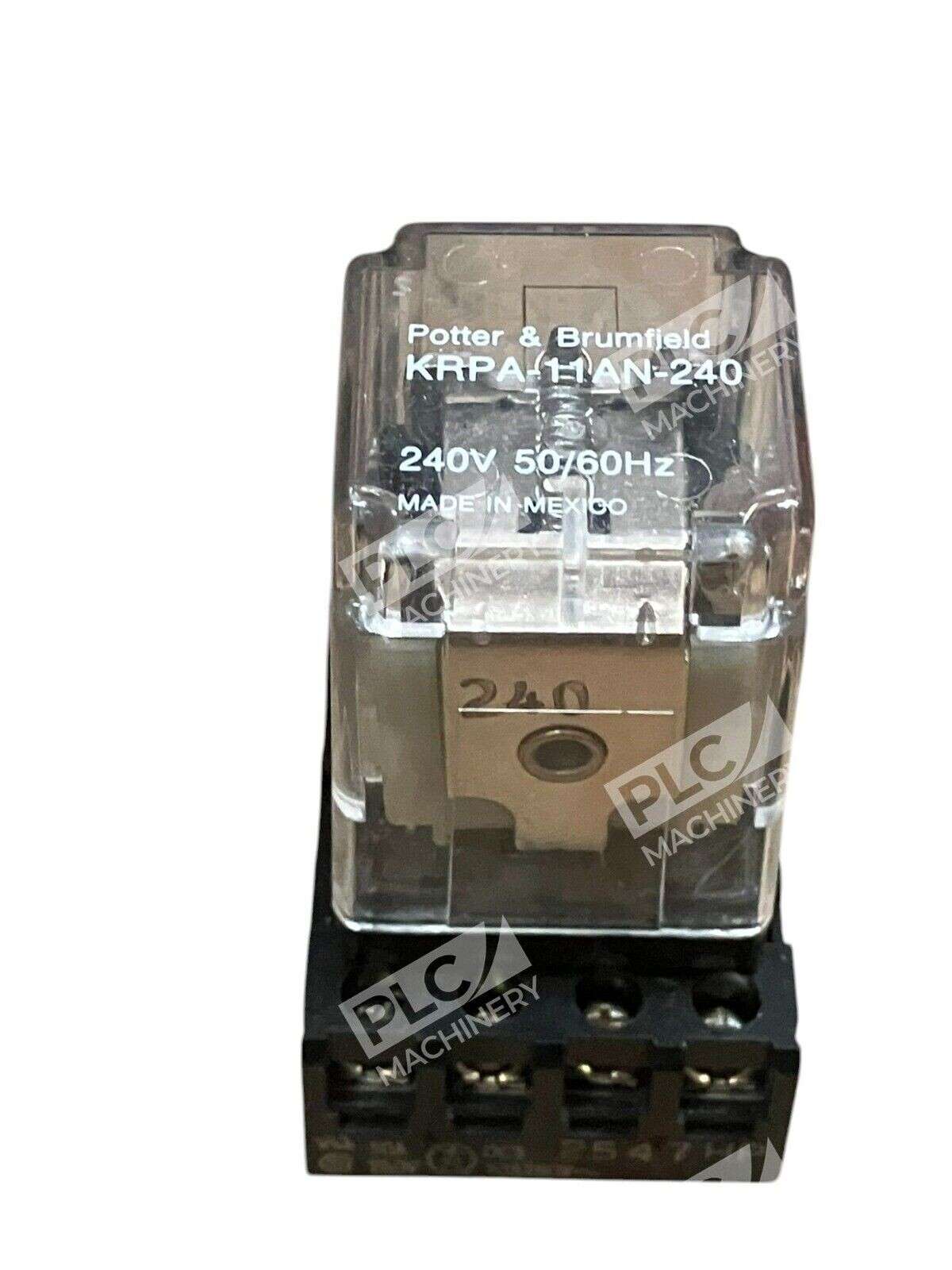

The Potter & Brumfield KRPA-11AN-240 relay, when paired with the 2547HP base, offers a robust solution for industrial switching needs, combining reliability, ease of installation, and compliance with industry standards.
