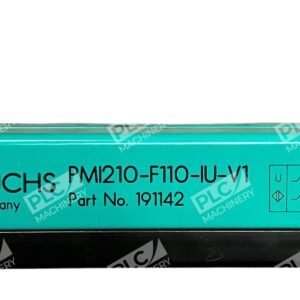

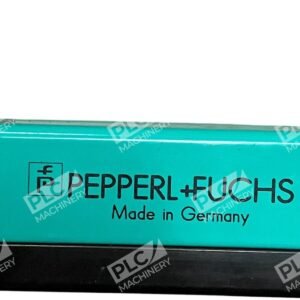

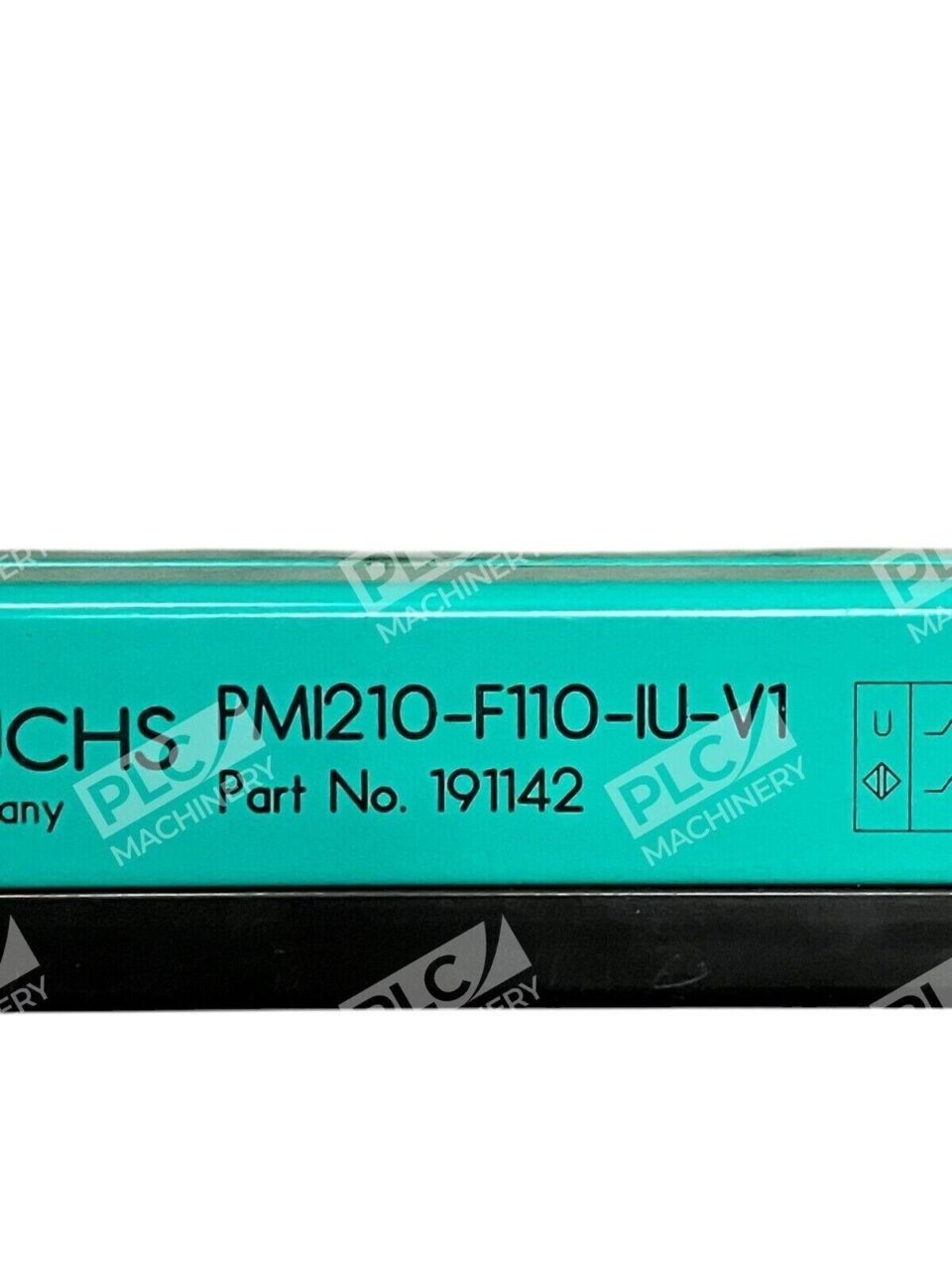

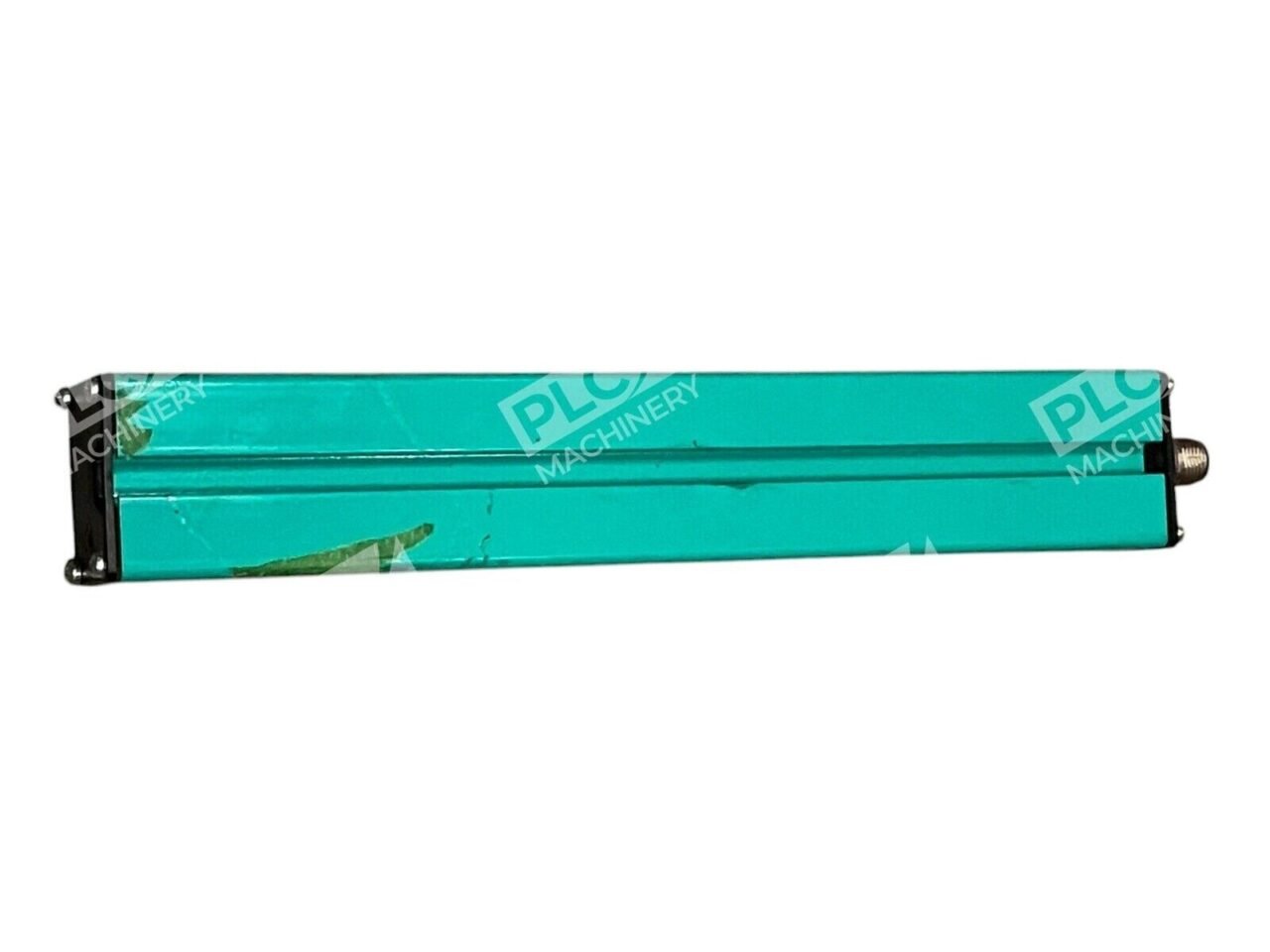

Pepperl+Fuchs PMI210-F110-IU-V1 Inductive Positioning System
The Pepperl+Fuchs PMI210-F110-IU-V1 is a high-precision inductive positioning system designed for accurate linear position measurement in industrial applications. Utilizing non-contact measuring technology, it ensures wear-free operation and reliable performance.
Key Features
- Analog Output Options: Provides both 0 V to 10 V and 4 mA to 20 mA outputs, offering flexibility for various control systems.
- Extended Measuring Range: Capable of measuring distances from 0 to 210 mm, suitable for a wide array of applications.
- High Accuracy: Features a linearity error of ±0.4 mm and a repeat accuracy of ±0.2 mm, ensuring precise measurements.
- Robust Design: Encased in a durable PA 6/AL housing with an IP65 protection rating, making it suitable for harsh industrial environments.
- Easy Integration: Equipped with a 4-pin M12 x 1 connector for straightforward installation and connectivity.
Technical Specifications
- Operating Voltage: 18 to 30 V DC
- Resolution: 210 µm
- Temperature Drift: ±0.5 mm within a temperature range of -25°C to 70°C
- Load Resistor: Current output: ≤ 400 Ω; Voltage output: ≥ 1000 Ω
- Dimensions: Height: 30 mm; Width: 41 mm; Length: 267 mm
Applications
The PMI210-F110-IU-V1 is ideal for applications requiring precise position feedback, such as in automated assembly lines, material handling systems, and machine tool positioning. Its non-contact measurement principle ensures longevity and minimal maintenance, making it a reliable choice for continuous operation.
Compliance and Certifications
- Standards: Complies with EN 60947-5-2:2007 and IEC 60947-5-2:2007 standards.
- Approvals: cULus Listed for General Purpose, Class 2 Power Source.
For more detailed information and technical documentation, please refer to the product datasheet.
