Parker Watts 1/2″ Metal Pneumatic Filter with Sight Gauge (Model F602-044B)
The Parker Watts F602-044B is a robust 1/2-inch metal pneumatic filter designed to efficiently remove solid particles and separate bulk liquids from compressed air systems. This filter is ideal for industrial applications requiring high moisture removal and contaminant filtration.
Key Features
- High Water Removal Efficiency: The unique deflector plate creates a swirling air stream, ensuring maximum water and dirt separation.
- Durable Construction: Features a zinc body and metal bowl with a sight gauge for easy monitoring of accumulated liquids.
- Effective Filtration: Equipped with a 40-micron filter element to capture fine particles, enhancing the longevity and performance of downstream equipment.
- Manual Drain: Includes a manual twist drain for convenient removal of collected liquids.
- Operating Parameters: Supports a maximum inlet pressure of 250 psi and a maximum flow rate of 80 SCFM, suitable for various industrial environments.
Applications
The F602-044B is suitable for use in normal industrial environments. It should not be located in areas where it is subjected to sunlight, impact blows, or temperatures outside the rated range. Additionally, it should not be exposed to chlorinated hydrocarbons, ketones, esters, and certain alcohols. It is not recommended for use in air systems where compressors are lubricated with fire-resistant fluids such as phosphate ester and di-ester types.
Specifications
- Port Size: 1/2″ NPT
- Filter Element Material: Polypropylene
- Filter Rating: 40 micron
- Bowl Material: Zinc with Sight Glass
- Bowl Capacity: 5 ounces
- Drain Type: Manual
- Body Material: Zinc

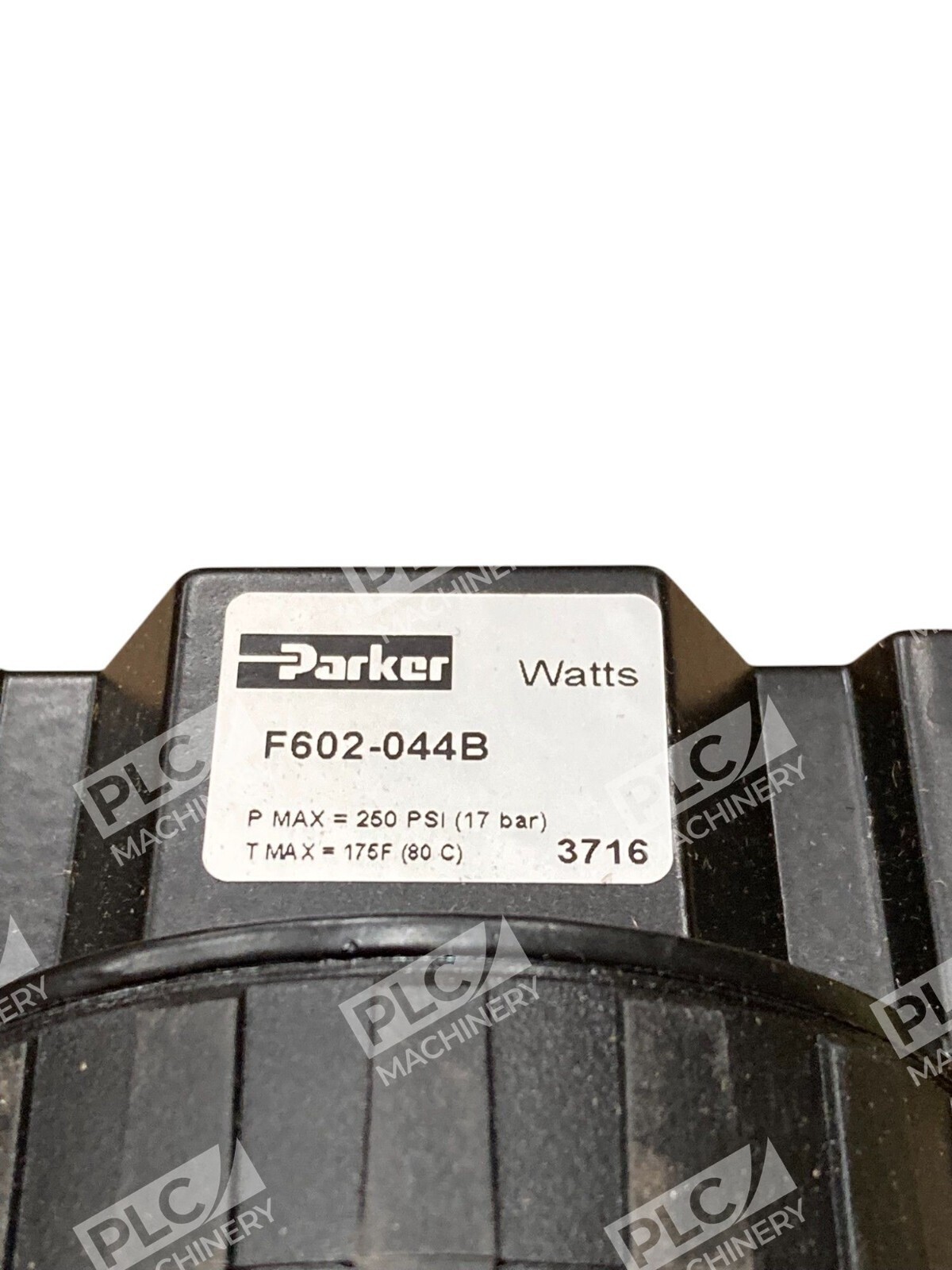

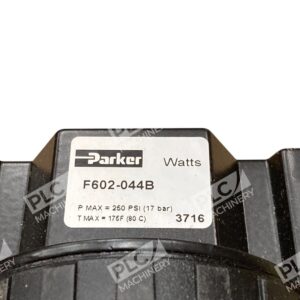

- Maximum Inlet Pressure: 250 psi
- Maximum Flow Rate: 80 SCFM
By integrating the Parker Watts F602-044B into your pneumatic system, you can ensure cleaner air supply, protect sensitive equipment, and maintain optimal operational efficiency.
