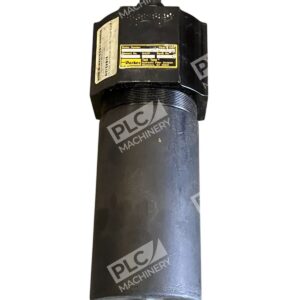

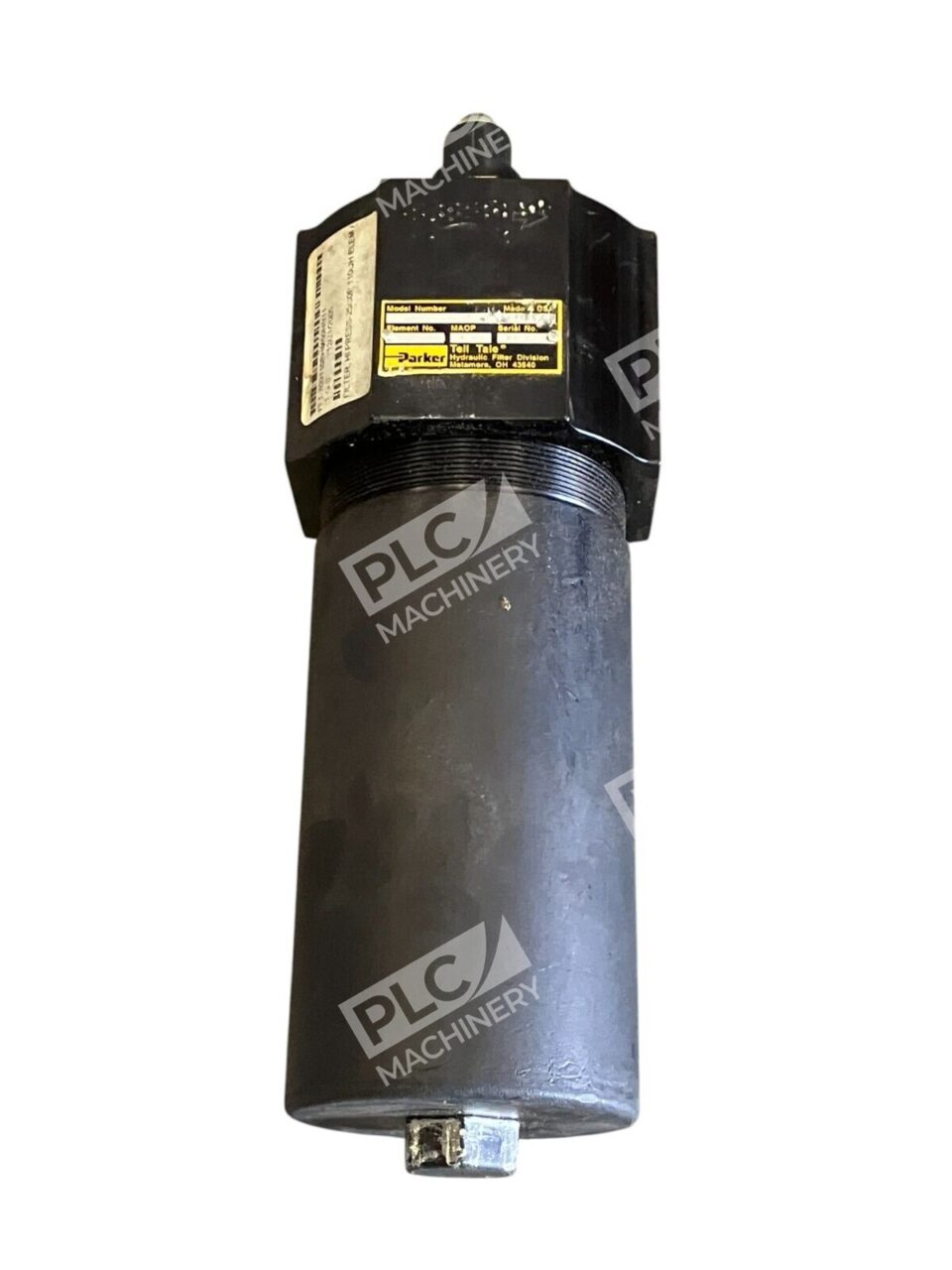

Parker Tell Tale Hydraulic Filter W/ Indicator 30P1 10GH M2 50NN 1195

Parker 30P Series High-Pressure Hydraulic Filter with Indicator

The Parker 30P Series High-Pressure Hydraulic Filter is engineered to deliver superior filtration performance in demanding hydraulic systems. Designed to protect sensitive components from contamination, this filter ensures optimal system efficiency and longevity.

Key Features

• High-Pressure Capability: With a maximum allowable operating pressure of 3,000 psi (206.9 bar) and a rated fatigue pressure of 2,000 psi (138 bar), the 30P Series is suitable for high-pressure applications.
• Efficient Filtration: Equipped with Microglass III media, the filter offers a 10-micron filtration rating, effectively capturing contaminants to maintain fluid cleanliness.
• Integrated Indicator: The built-in visual indicator provides real-time status of the filter element, allowing for timely maintenance and preventing system downtime.
• Durable Construction: Featuring an anodized aluminum head and bowl, the filter is designed for durability and corrosion resistance.
• Versatile Port Options: Available with various port configurations, including SAE and BSPF(G) threads, to accommodate different system requirements.

Specifications

• Maximum Flow Rate: Up to 200 liters per minute (l/min).
• Bypass Valve Setting: 3.5 bar (50 psi) to ensure consistent performance under varying conditions.
• Operating Temperature Range: -40°F to 225°F (-40°C to 107°C) with Nitrile seals.
• Element Collapse Rating: Standard at 350 psid (24.1 bar), with high-collapse options available for demanding applications.

Applications

The Parker 30P Series High-Pressure Hydraulic Filter is ideal for a wide range of applications, including:

• Marine equipment
• Sawmills
• Aircraft ground support equipment
• Asphalt pavers
• Hydraulic fan drives
• Power steering circuits
• Domestic refuse vehicles
• Cement trucks
• Servo control protection
• Logging equipment

By integrating the Parker 30P Series High-Pressure Hydraulic Filter into your hydraulic system, you can achieve enhanced performance, reduced maintenance costs, and extended component life.
