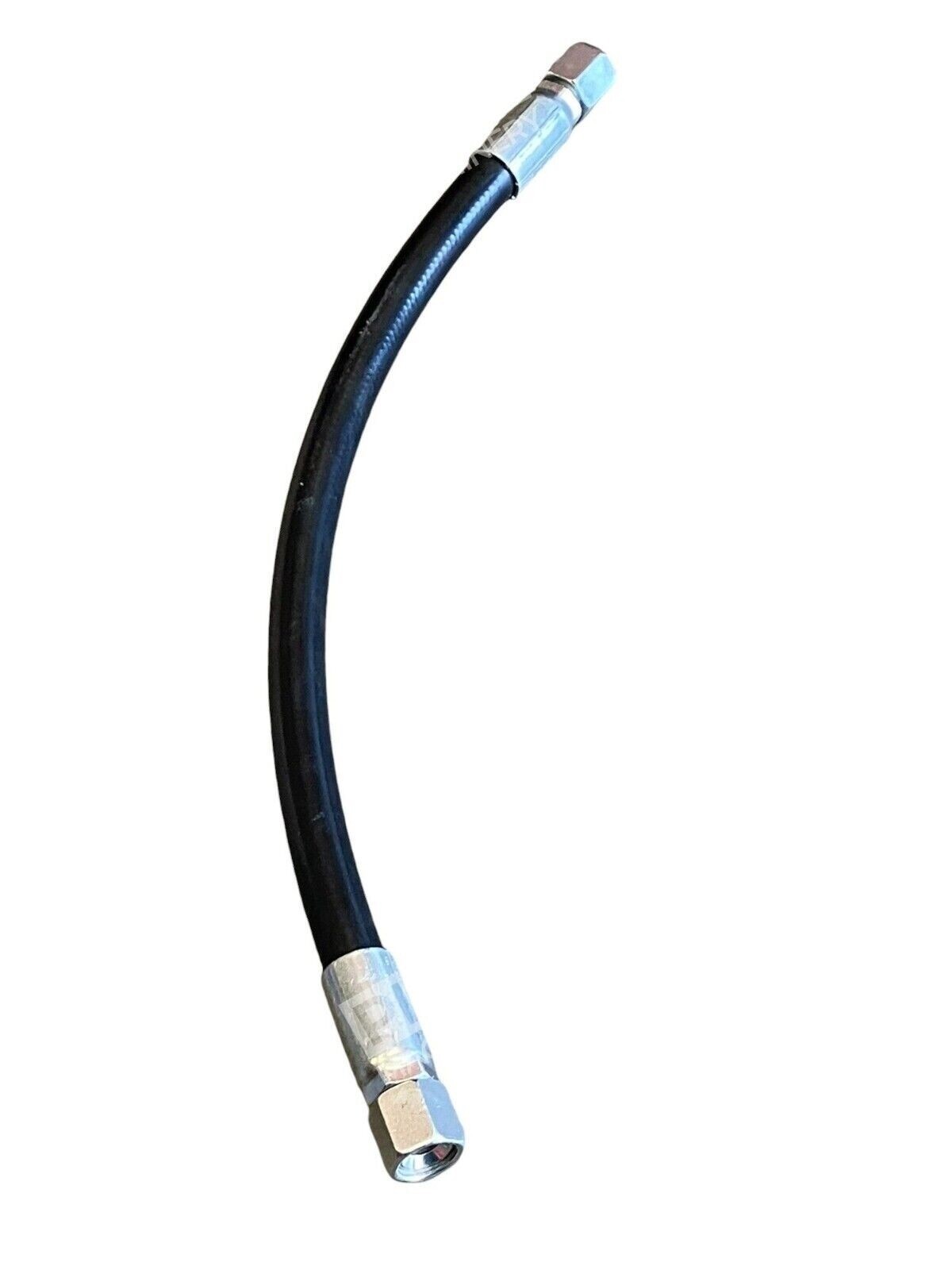

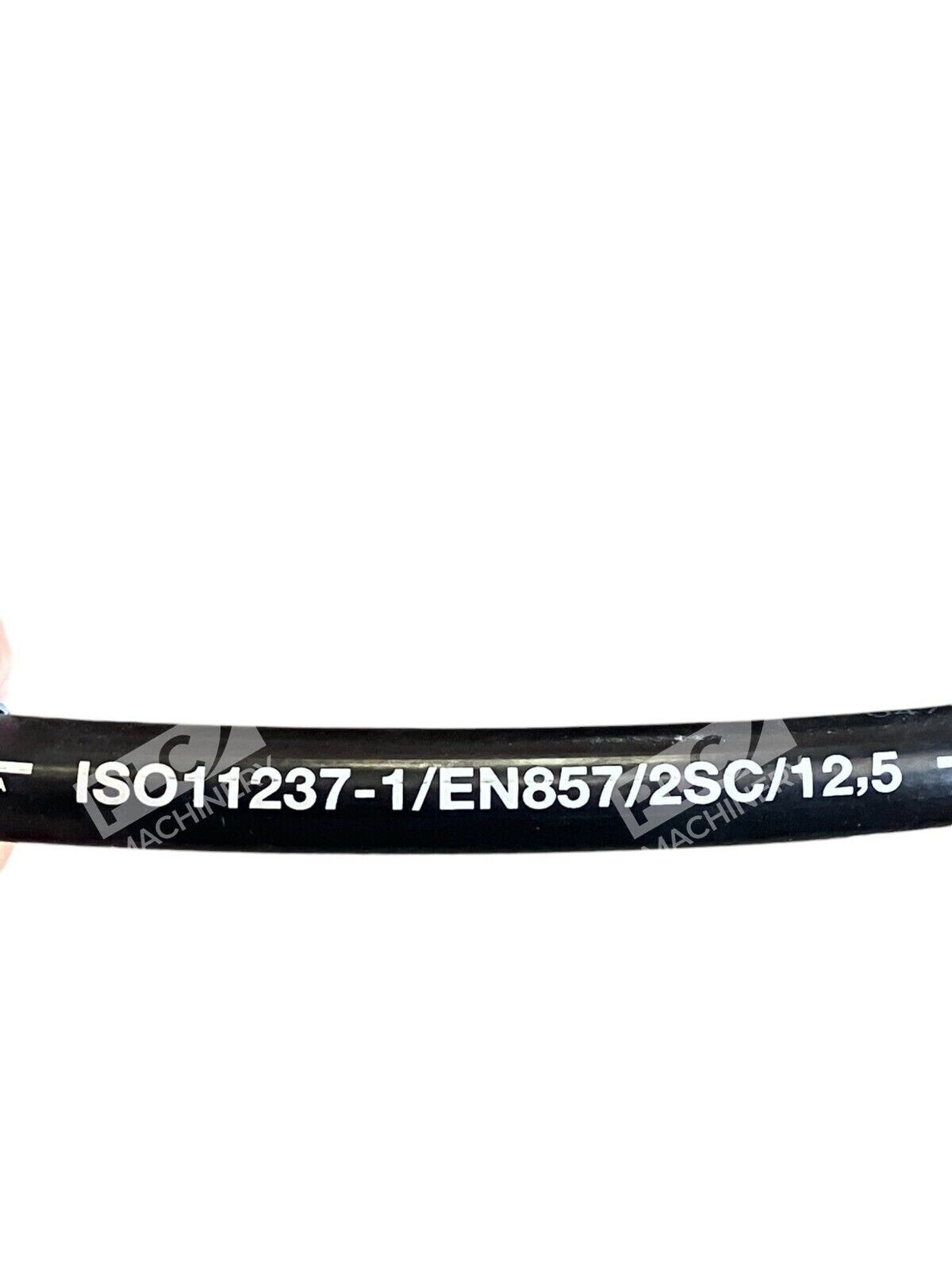

The Parker Hydraulic Hose ISO11237-1/EN857/2SC/12.5 is a high-performance, compact hydraulic hose designed to meet the rigorous demands of medium-pressure hydraulic applications.
Key Features
- Compact Design: The hose features a two-wire braided construction, resulting in a smaller outer diameter for easier installation in tight spaces.
- Enhanced Flexibility: With a minimum bend radius of 3.5 inches (90 mm), the hose allows for more flexible routing, reducing the need for additional fittings and potential leak points.
- High-Pressure Performance: It supports a maximum working pressure of 4,250 psi (29.7 MPa), making it suitable for demanding hydraulic systems.
- Durable Construction: The inner tube is made of synthetic rubber, reinforced with two braids of high-tensile steel wire, and covered with an abrasion-resistant synthetic rubber that is MSHA accepted.
- Temperature Range: The hose operates effectively in temperatures ranging from -40°F to +212°F (-40°C to +100°C), accommodating various environmental conditions.
- Compatibility: It is approved for use with Parker’s 43 Series fittings, ensuring a secure and reliable connection.
Applications
This hydraulic hose is ideal for a wide range of applications, including:
- Petroleum-based hydraulic fluids and lubricating oils.
- Construction machinery and equipment.
- Agricultural and forestry equipment.
- Material handling and storage systems.
- Pulp and paper industry machinery.
Specifications
| Parameter | Value |
|---|---|
| Inner Diameter | 1/2 inch (12.5 mm) |
| Outer Diameter | 0.80 inch (20 mm) |
| Working Pressure | 4,250 psi (29.7 MPa) |
| Minimum Bend Radius | 3.5 inches (90 mm) |
| Weight | 0.35 lb/ft (0.52 kg/m) |
| Temperature Range | -40°F to +212°F (-40°C to +100°C) |
| Reinforcement | Two braids of high-tensile steel wire |
| Cover | Abrasion-resistant synthetic rubber, MSHA accepted |
The Parker Hydraulic Hose ISO11237-1/EN857/2SC/12.5 combines durability, flexibility, and high-pressure performance, making it a reliable choice for various hydraulic applications.
