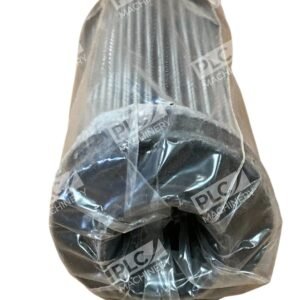

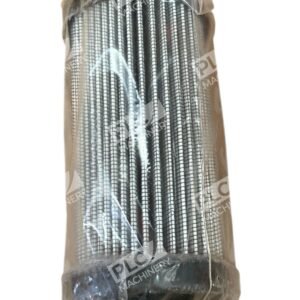

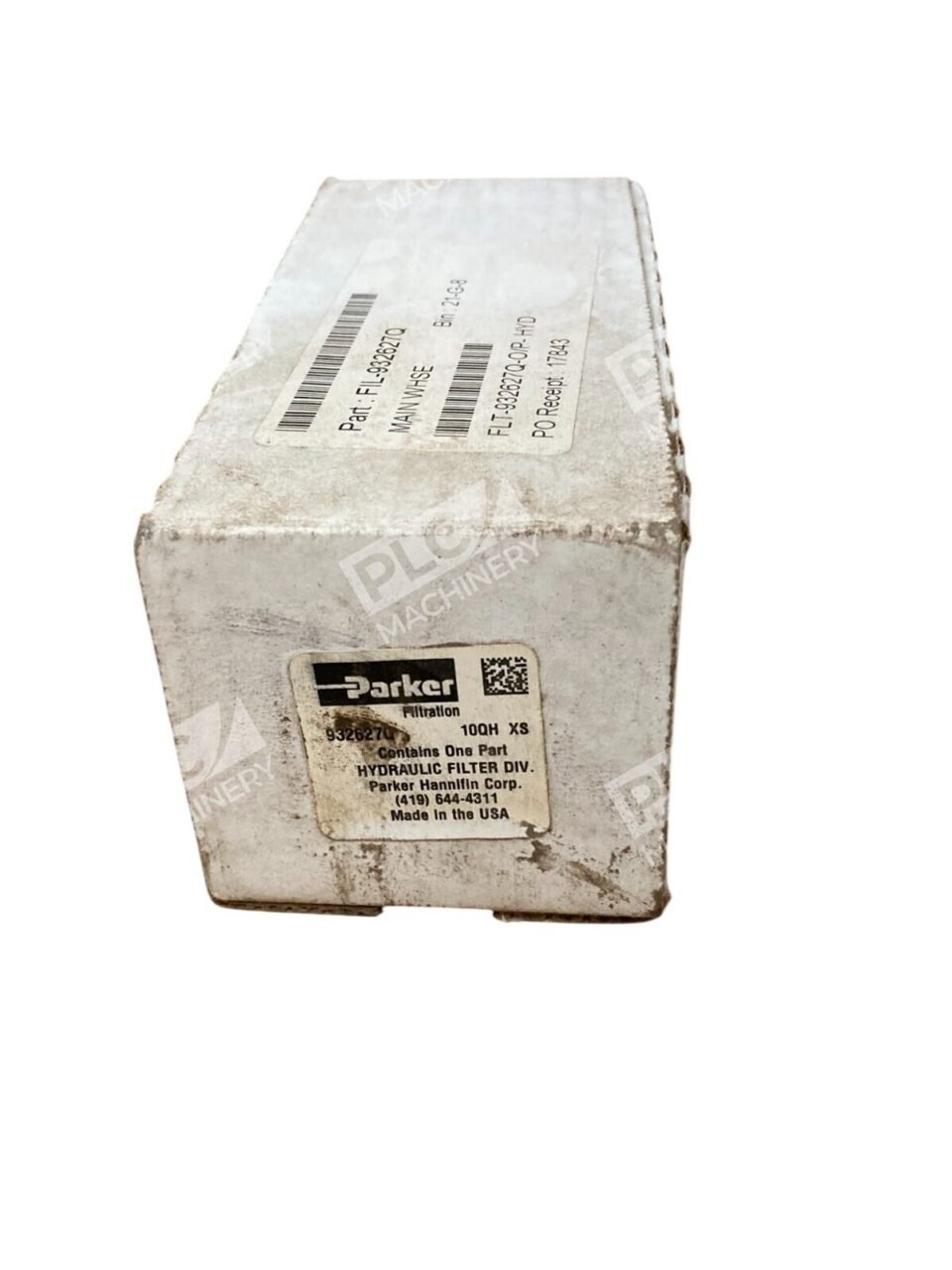

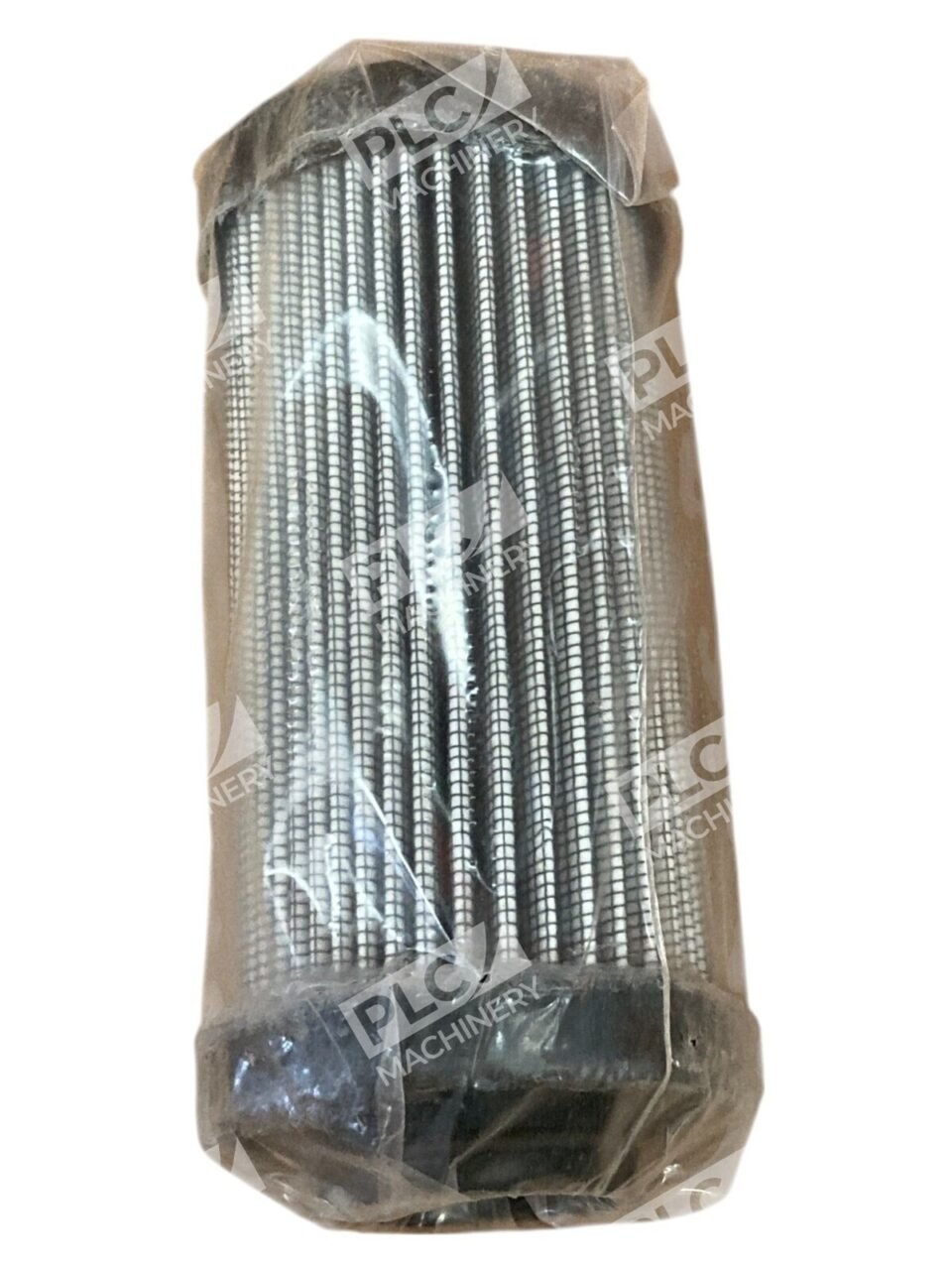

Parker Hannifin Hydraulic Filter 10QH XS Filtration 932627Q

Parker Hannifin Hydraulic Filter 10QH XS Filtration 932627Q

The Parker Hannifin 932627Q is a high-performance hydraulic and lube oil filter element, designed to ensure optimal system cleanliness and efficiency. As part of Parker’s 30P Series, this filter element is engineered to meet the rigorous demands of modern hydraulic systems.

Key Features

• Advanced Filtration Media: Utilizes Microglass III media, providing a 10-micron absolute filtration rating. This ensures the effective removal of contaminants, safeguarding sensitive system components.
• High Collapse Pressure: Built to withstand pressures up to 2000 psi (138 bar), making it suitable for high-pressure applications.
• Durable Construction: Features steel zinc-plated end caps and a mild steel tin-plated inner support cylinder, enhancing durability and corrosion resistance.
• Temperature Resilience: Operates efficiently within a temperature range of -40°F to 225°F (-40°C to 107°C), accommodating various environmental conditions.
• Fluorocarbon Seals: Equipped with FKM (Fluorocarbon) seals, ensuring compatibility with a wide range of hydraulic fluids and providing excellent chemical resistance.

Specifications

• Part Number: 932627Q
• Series: 30P
• Filter Media Code: 10QH
• Element Length: Single
• Dimensions:
  • A Dimension: 2.441 in (62 mm)
  • D Dimension: 2.441 in (62 mm)
  • E Dimension: 4.902 in (124.5 mm)
  • H Dimension: 1.429 in (36.3 mm)

The Parker 932627Q filter element is an ideal choice for maintaining the cleanliness and efficiency of hydraulic systems, ensuring prolonged equipment life and reliable performance.
