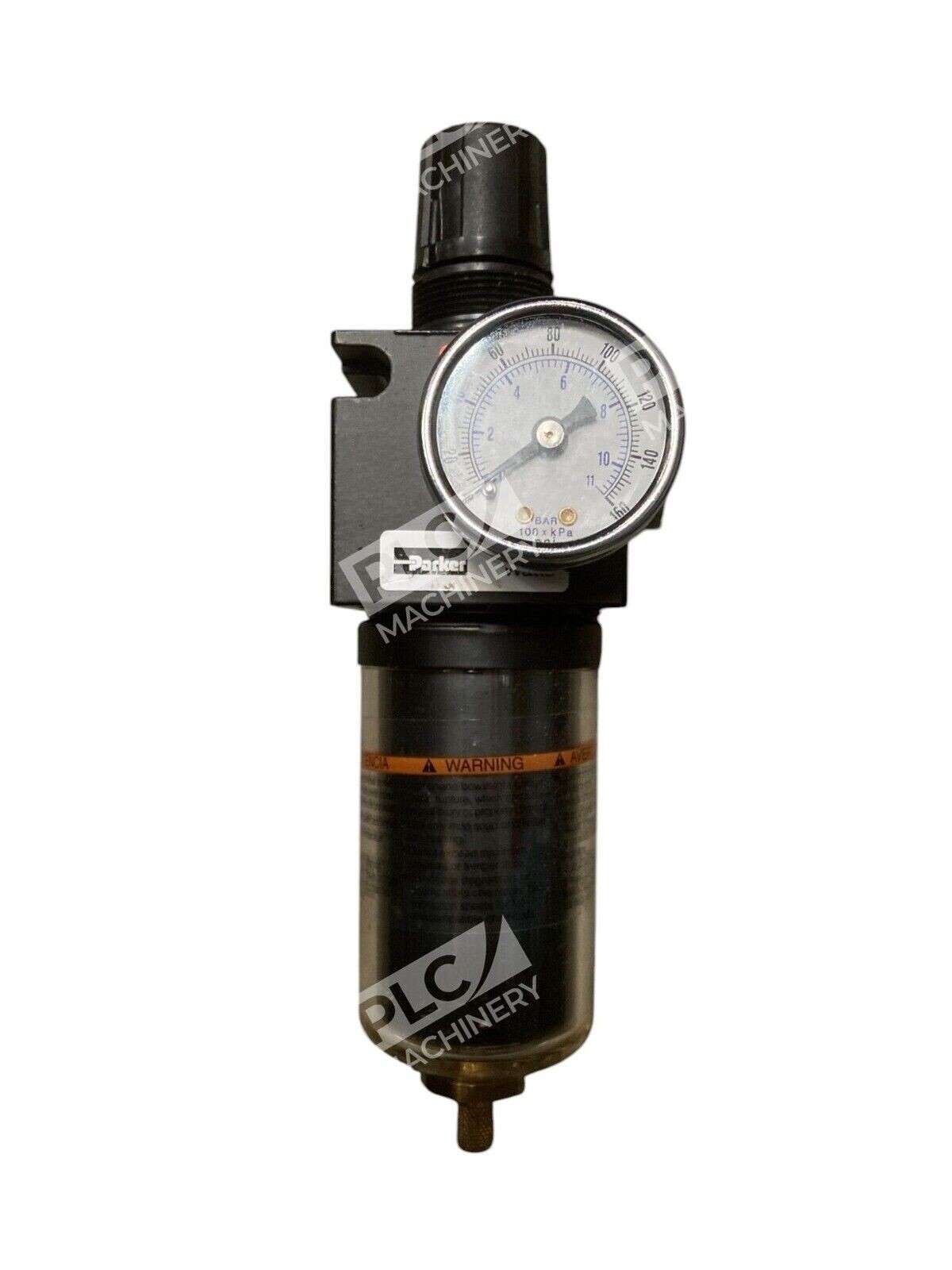

Parker Filter Regulator With Gauge B75-02WJC

Parker Filter Regulator with Gauge B75-02WJC

The Parker B75-02WJC is a high-performance integral filter regulator designed to provide precise air pressure control and efficient filtration in pneumatic systems. This unit combines a filter and regulator into a single compact assembly, optimizing space and enhancing system efficiency.

Key Features

• Pipe Size: 1/4″ NPT
• Pressure Range: 0–125 psi
• Maximum Inlet Pressure: 250 psi
• Maximum Flow Rate: 40 SCFM
• Filter Element: 40-micron polyethylene
• Bowl Material: Zinc with wraparound sight gauge
• Bowl Capacity: 3.8 ounces
• Drain Type: Manual
• Body Material: Zinc
• Diaphragm/O-Ring Material: Buna-N
• Adjustment Type: Knob
• Gauge Ports: Two 1/8″ NPT (gauge not included)
• Relieving: Yes
• Panel Mountable: No

Design and Construction

The B75-02WJC features a durable zinc body and bowl, ensuring longevity and resistance to harsh industrial environments. The wraparound sight gauge allows for easy monitoring of the bowl’s contents, facilitating timely maintenance. The 40-micron polyethylene filter element effectively removes contaminants, protecting downstream equipment and ensuring clean air delivery.

Performance and Applications

With a maximum flow rate of 40 SCFM and a pressure range of 0–125 psi, this filter regulator is suitable for a wide range of pneumatic applications. Its compact design allows for greater design flexibility, making it ideal for systems where space is limited. The manual drain feature simplifies maintenance, while the relieving design ensures consistent pressure regulation.

Whether used in manufacturing, automation, or other industrial settings, the Parker B75-02WJC provides reliable performance and efficient air preparation, contributing to the overall efficiency and longevity of pneumatic systems.
