Overview

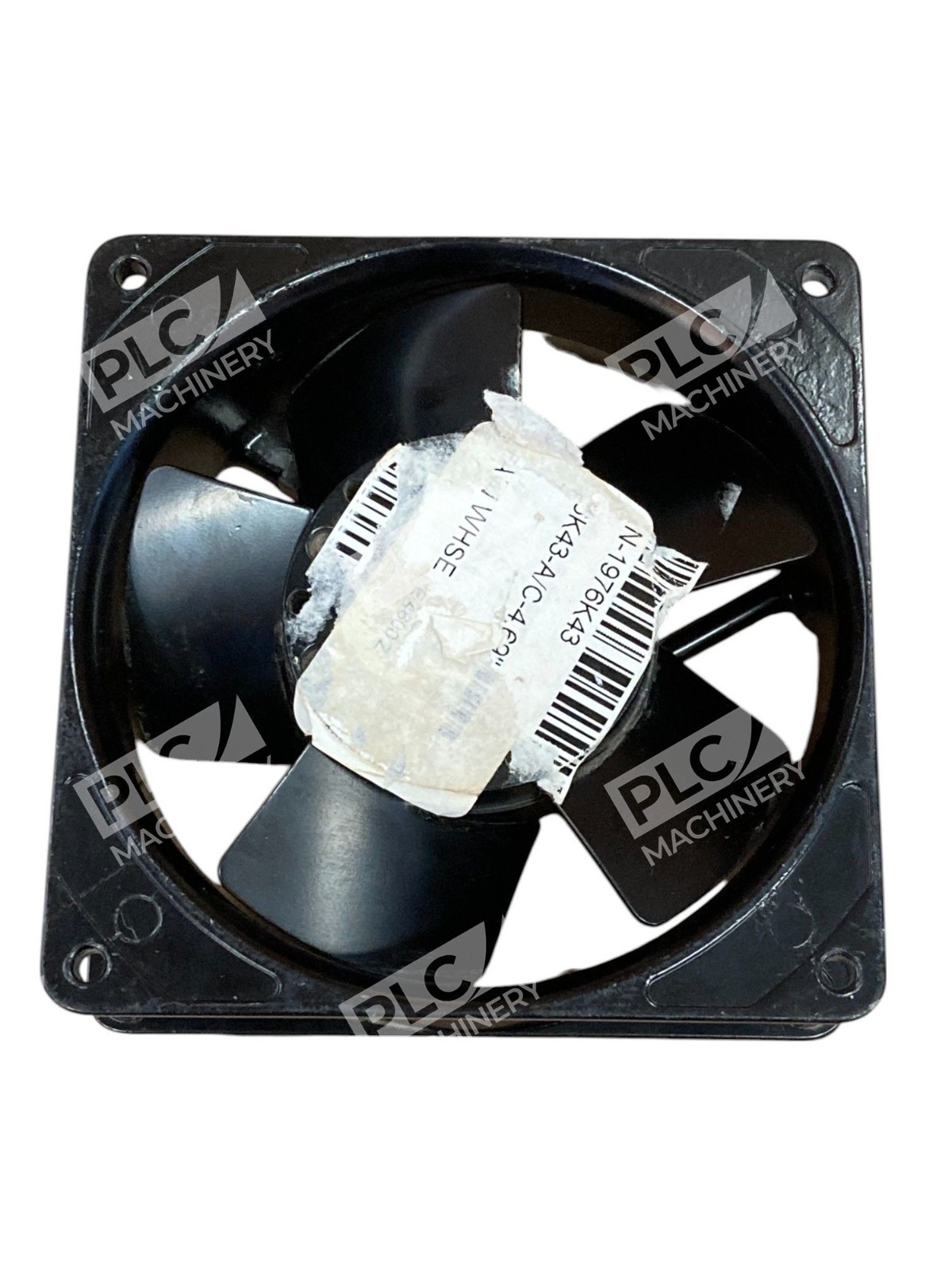

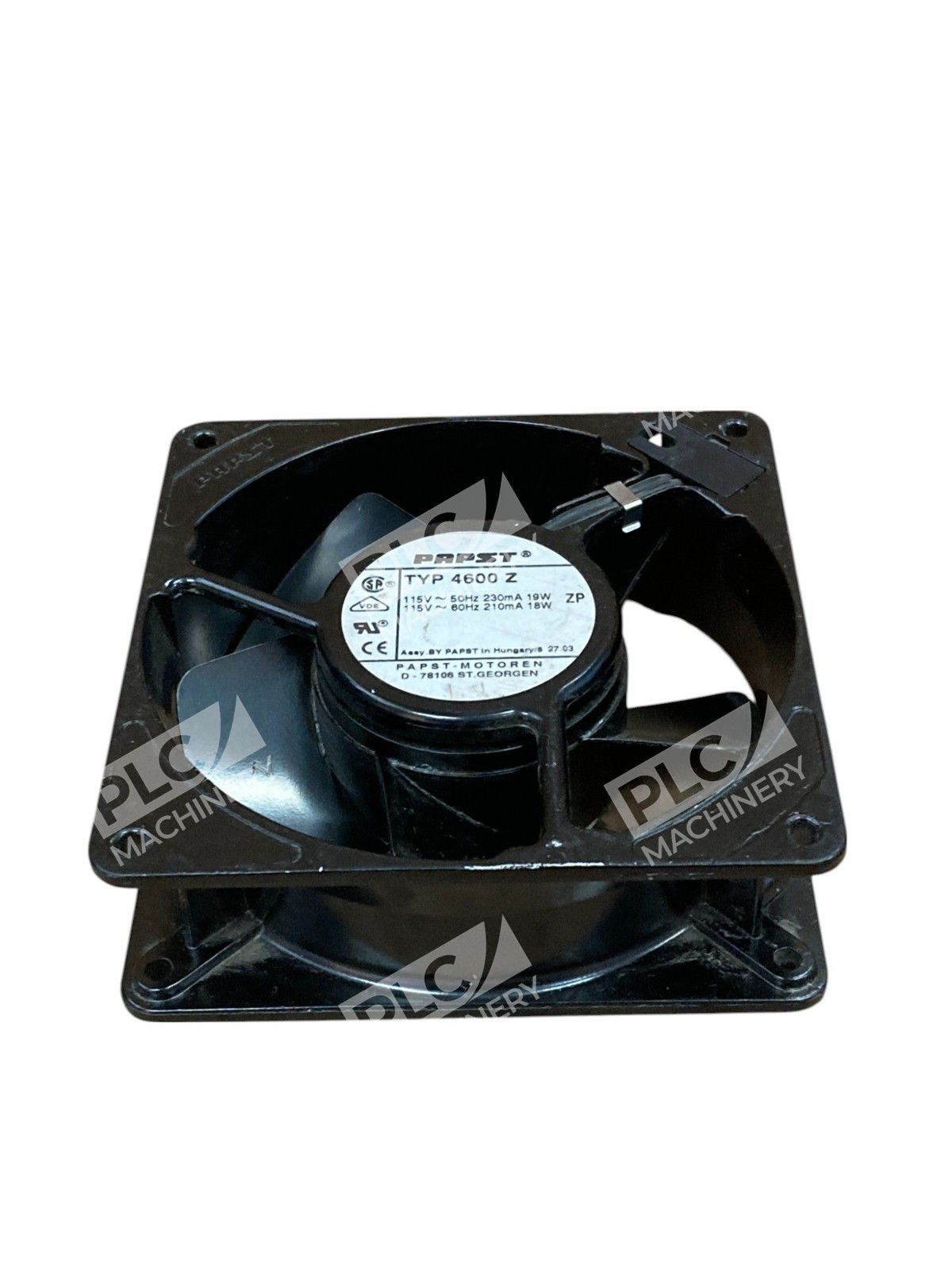

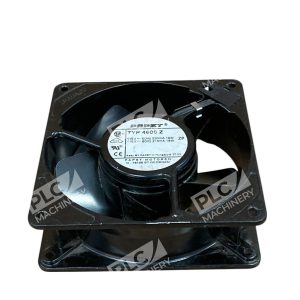

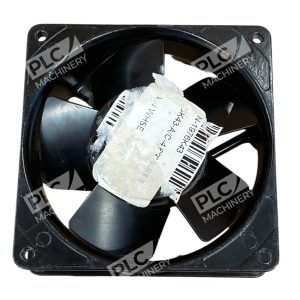

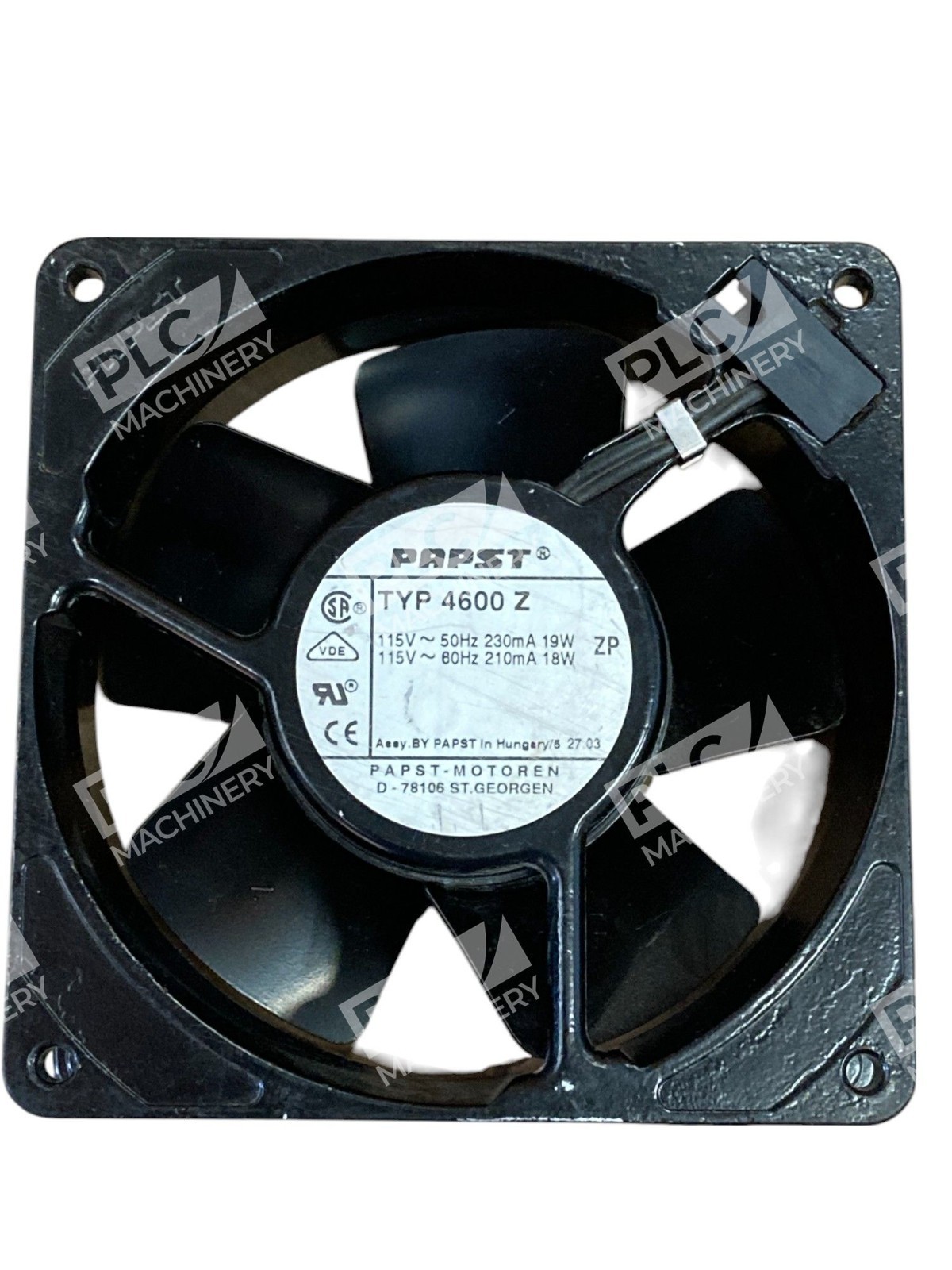

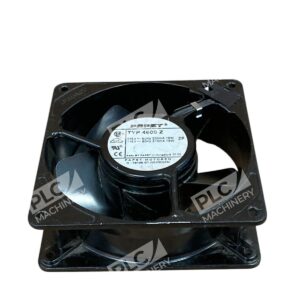

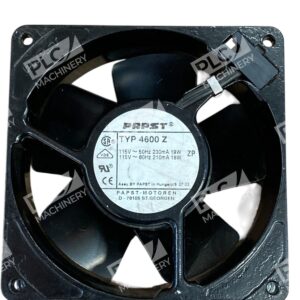

The Papst Axial Enclosure Fan TYP 4600 Z is a high-performance AC axial fan designed to provide efficient cooling solutions for various applications. Manufactured by ebm-papst, this fan combines robust construction with reliable performance, making it suitable for demanding environments.
Key Features
- Dimensions: 119 mm x 119 mm x 38 mm
- Operating Voltage: 115V AC
- Airflow: 106.0 CFM (2.97 m³/min)
- Noise Level: 45.0 dB(A)
- Power Consumption: 18.0 W
- Rotational Speed: 3100 RPM
- Bearing Type: Sintec sleeve bearing
- Frame Material: Die-cast aluminum
- Impeller Material: Painted sheet steel
- Operating Temperature Range: -10°C to +60°C

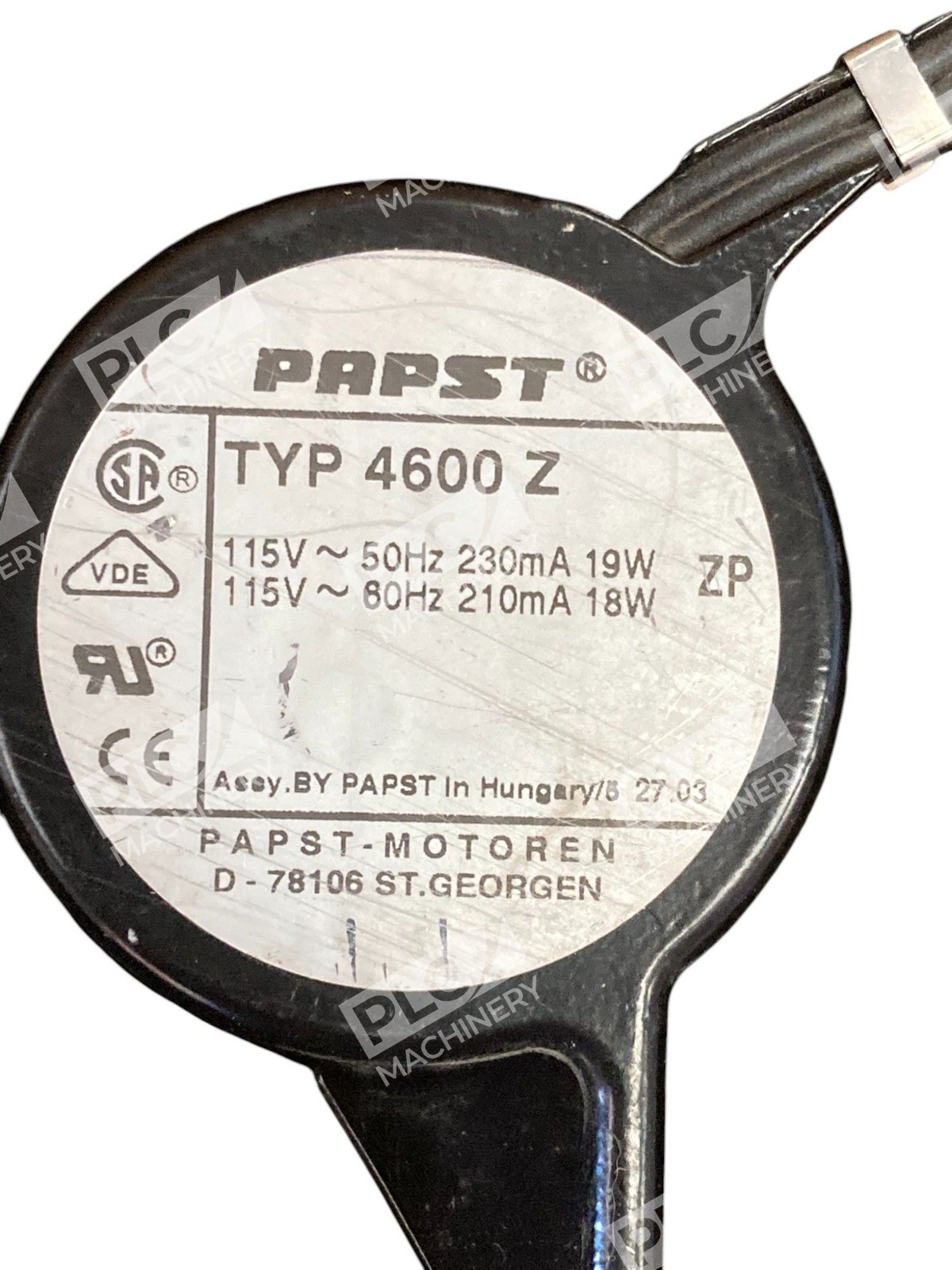

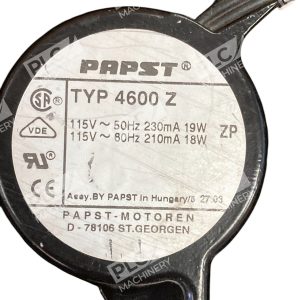

- Certifications: CE, CSA, UL, VDE
Design and Construction
The 4600 Z fan features a compact square frame measuring 119 mm on each side with a depth of 38 mm, allowing for easy integration into various systems. The housing is constructed from durable die-cast aluminum, providing strength and longevity, while the impeller is made from painted sheet steel, ensuring efficient airflow and resistance to wear.
Performance
Operating at 115V AC, the fan delivers an airflow of 106.0 CFM (2.97 m³/min), effectively dissipating heat in enclosed spaces. With a rotational speed of 3100 RPM, it maintains consistent performance. The noise level is rated at 45.0 dB(A), balancing powerful airflow with quiet operation.
Reliability
Equipped with Sintec sleeve bearings, the 4600 Z fan offers a service life of approximately 40,000 hours at 40°C, ensuring long-term reliability. The fan is impedance protected, safeguarding against overload conditions.
Applications
This axial fan is ideal for a wide range of applications, including:
- Enclosure cooling
- Industrial equipment
- Telecommunications
- Medical devices
- Power supplies
- HVAC systems
Installation
The fan features two terminals for electrical connection and includes a grounding lug for secure installation. Its design allows for straightforward mounting in various orientations to suit specific cooling requirements.
Certifications
The 4600 Z fan meets international safety and performance standards, holding certifications from CE, CSA, UL, and VDE, ensuring compliance with industry regulations and peace of mind for users.
In summary, the Papst Axial Enclosure Fan TYP 4600 Z combines durable construction, efficient performance, and reliable operation, making it a suitable choice for diverse cooling applications across multiple industries.
