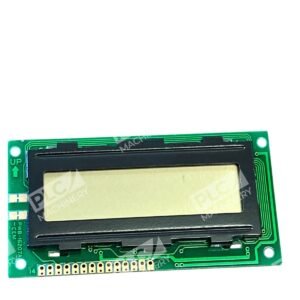

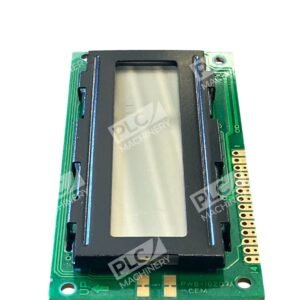

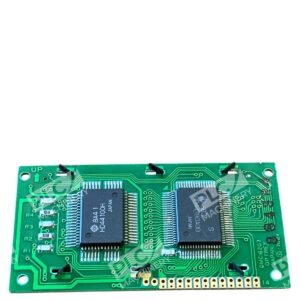

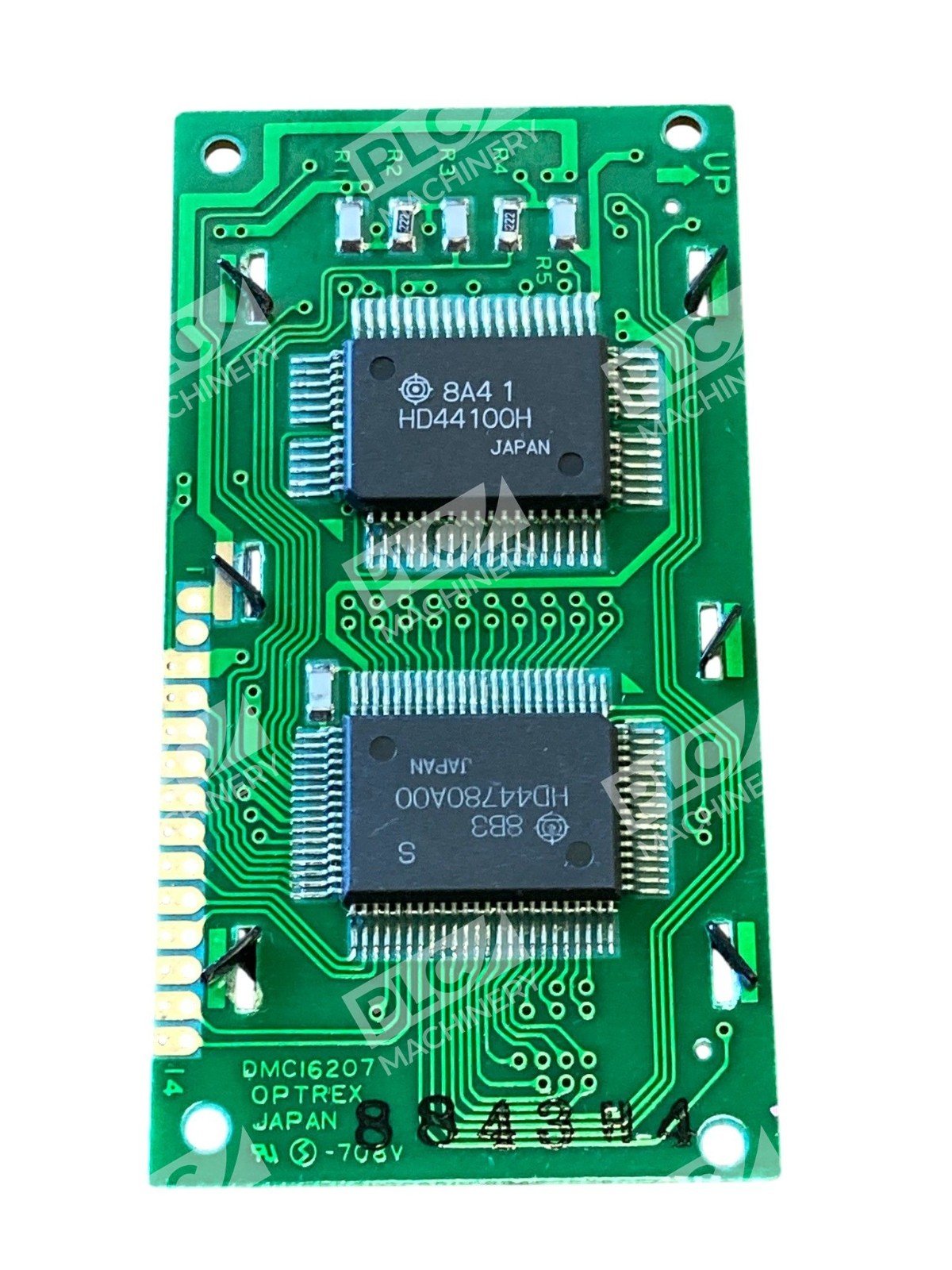

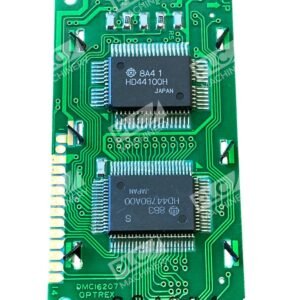

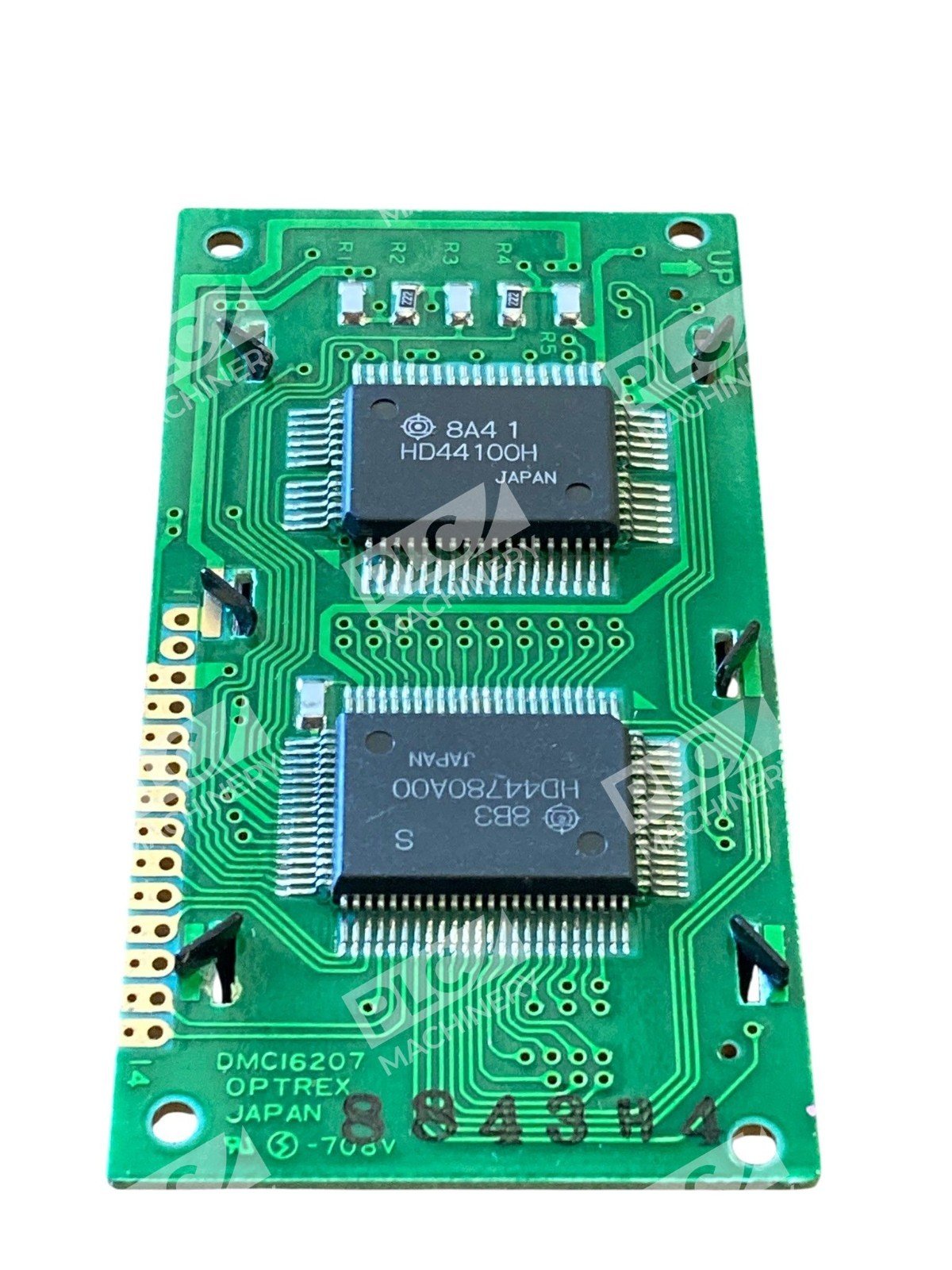

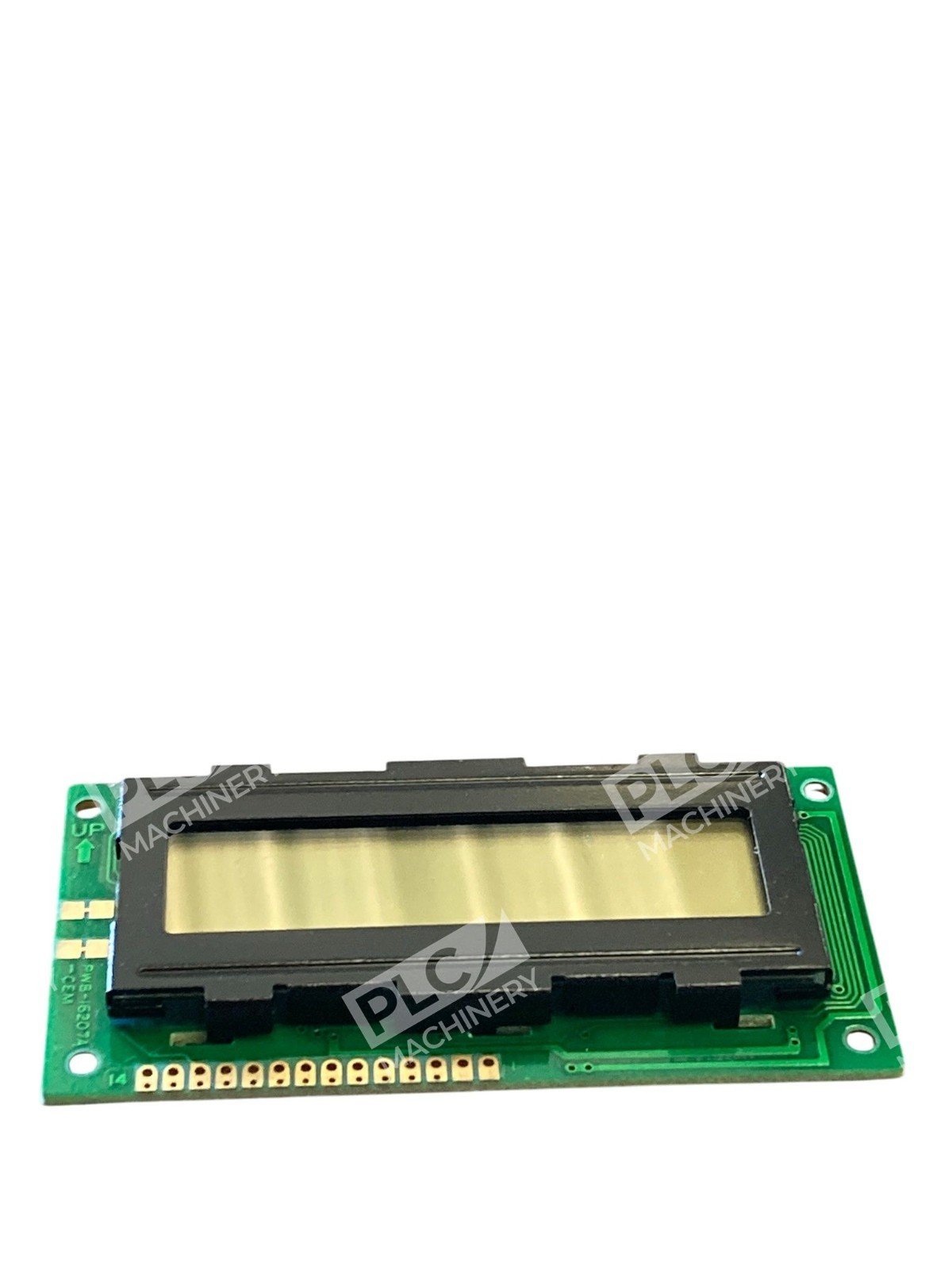

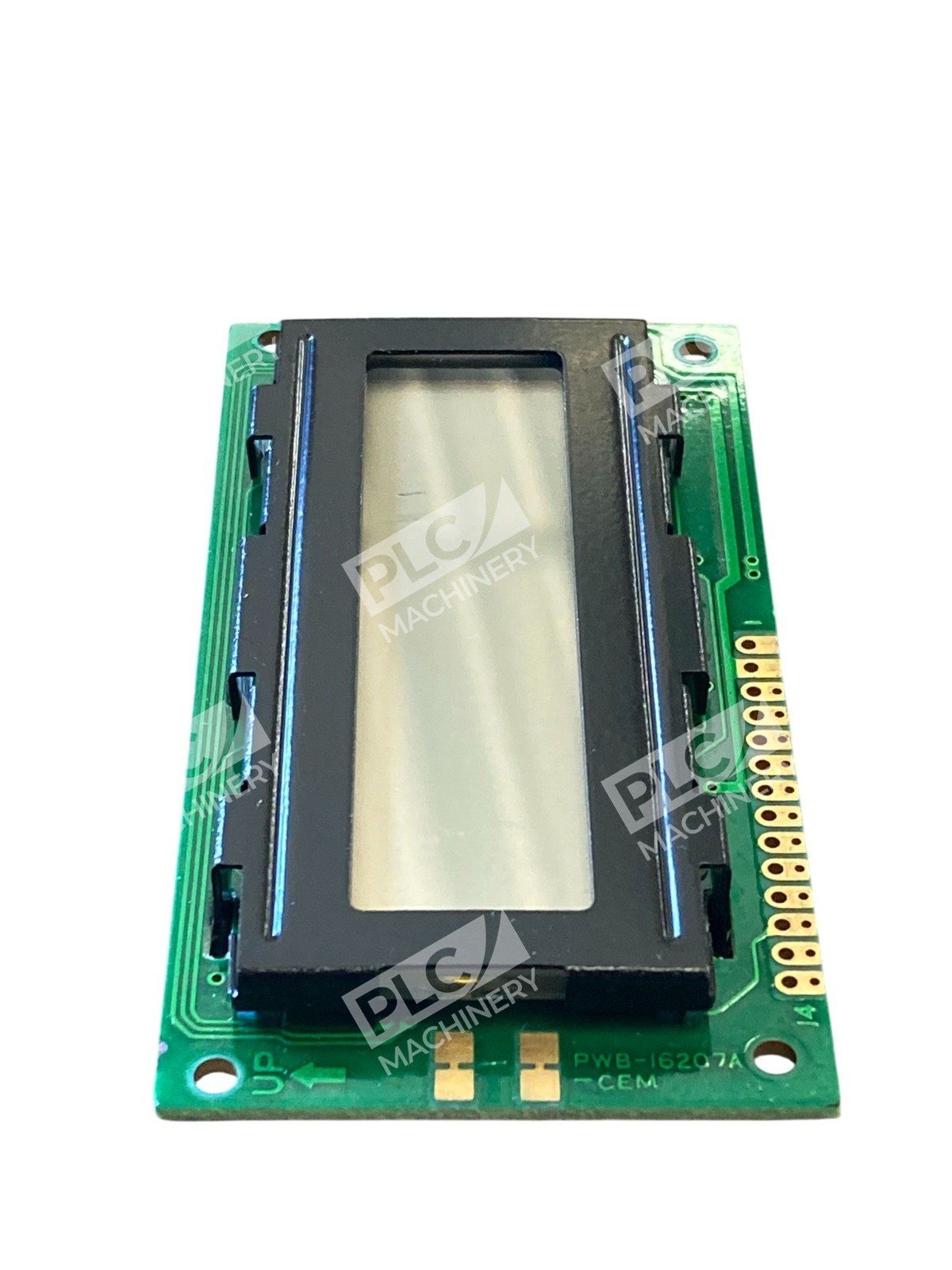

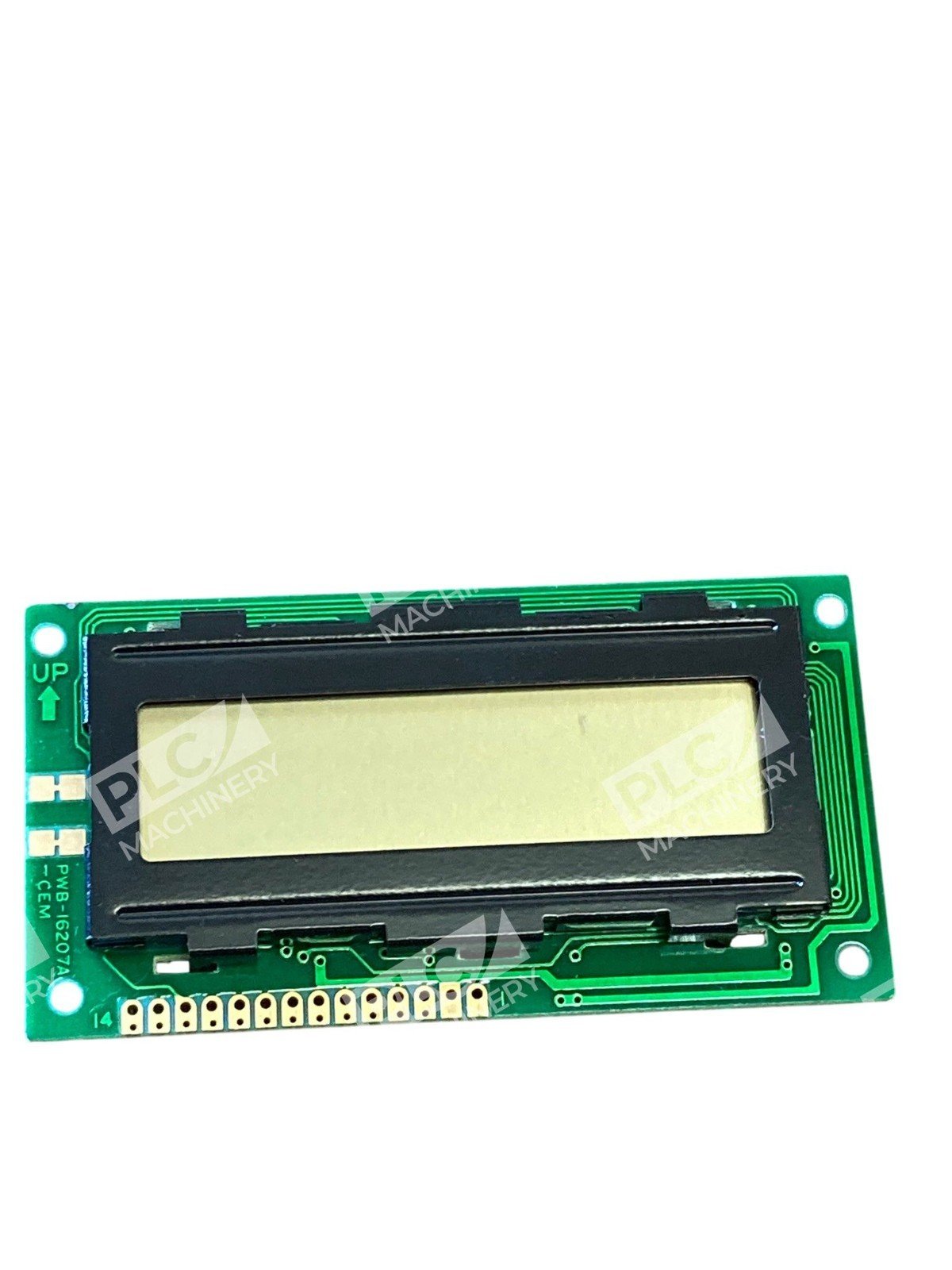

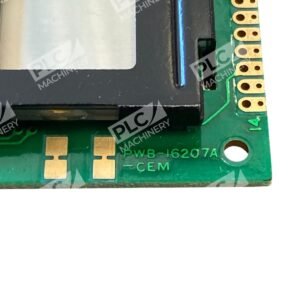

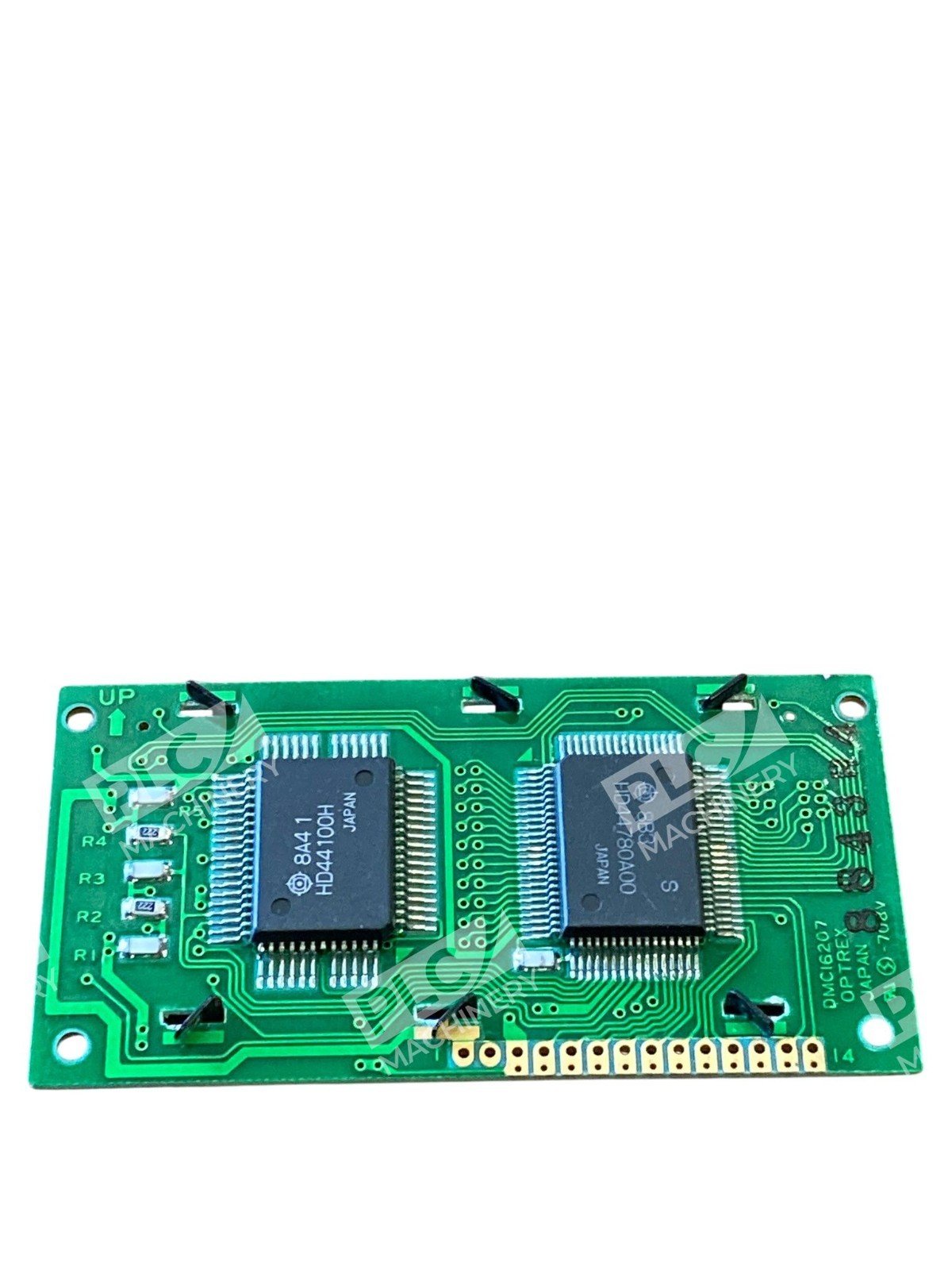

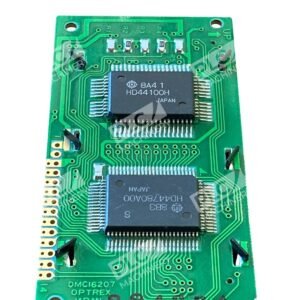

The Optrex DMC 16207 is a 16-character by 2-line dot matrix character LCD module, designed to deliver clear and reliable display performance for various applications.

Key Features

• Display Format: 16 characters × 2 lines
• Character Font: 5 × 8 dots per character
• Viewing Area: 61.0 mm (W) × 16.0 mm (H)
• Outline Dimensions: 84.0 mm (W) × 44.0 mm (H) × 11.0 mm (D) max
• LCD Type: STN (Super-Twisted Nematic) with Neutral-mode and Reflective properties
• Viewing Angle: Optimized for 6:00 direction
• Operating Temperature Range: 0°C to 50°C
• Storage Temperature Range: -20°C to 70°C
• Weight: Up to 50 grams

Design and Integration

The DMC 16207’s compact design and standard dimensions make it suitable for seamless integration into various electronic devices. Its reflective STN LCD technology ensures clear visibility without the need for backlighting, making it energy-efficient and ideal for applications where power consumption is a concern.

Applications

This LCD module is well-suited for a range of applications, including:

• Industrial control panels
• Consumer electronics
• Medical devices
• Instrumentation

Its reliable performance and standard interface make it a preferred choice for developers and engineers seeking a dependable display solution.

Handling Precautions

To ensure the longevity and optimal performance of the DMC 16207, consider the following handling precautions:

• Avoid strong mechanical shocks to prevent damage to the glass panel.
• Protect the polarizer surface from scratches by handling it with care.
• Implement anti-static measures during assembly to prevent electrostatic discharge.
• Store the module in environments free from high humidity and direct sunlight.

By adhering to these guidelines, users can maintain the module’s integrity and functionality over time.
