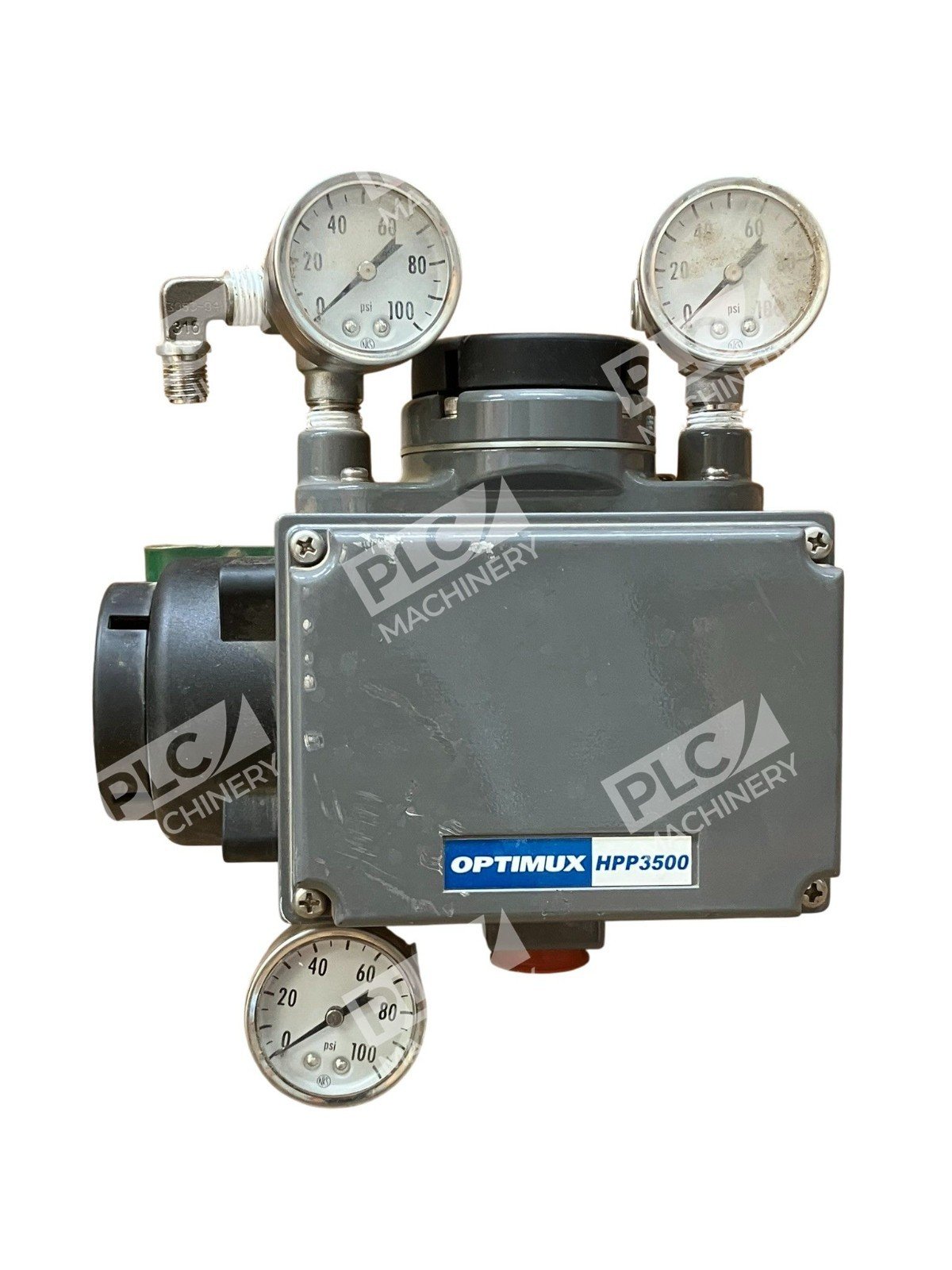

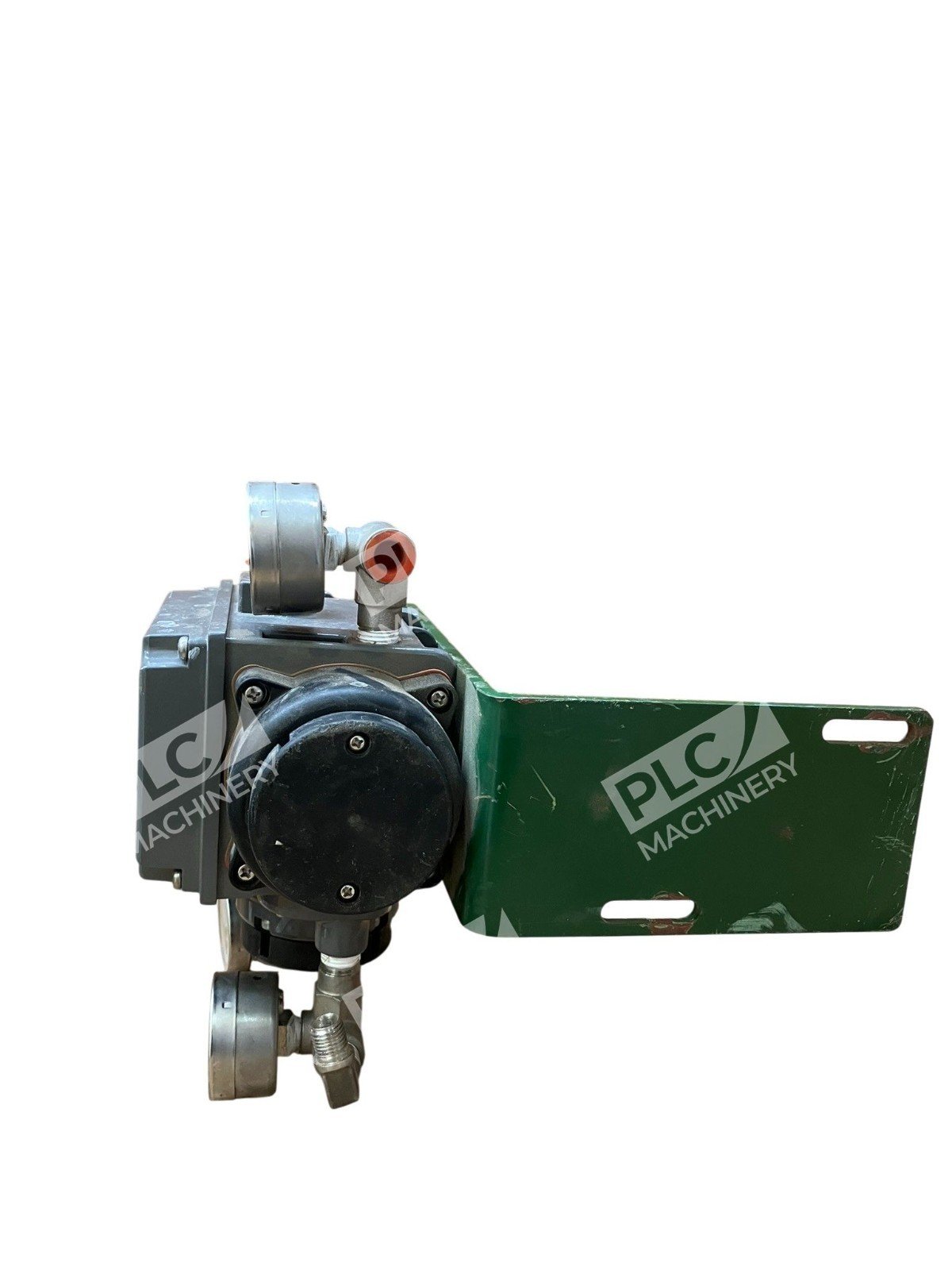

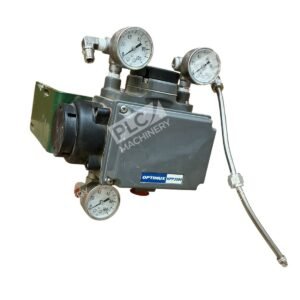

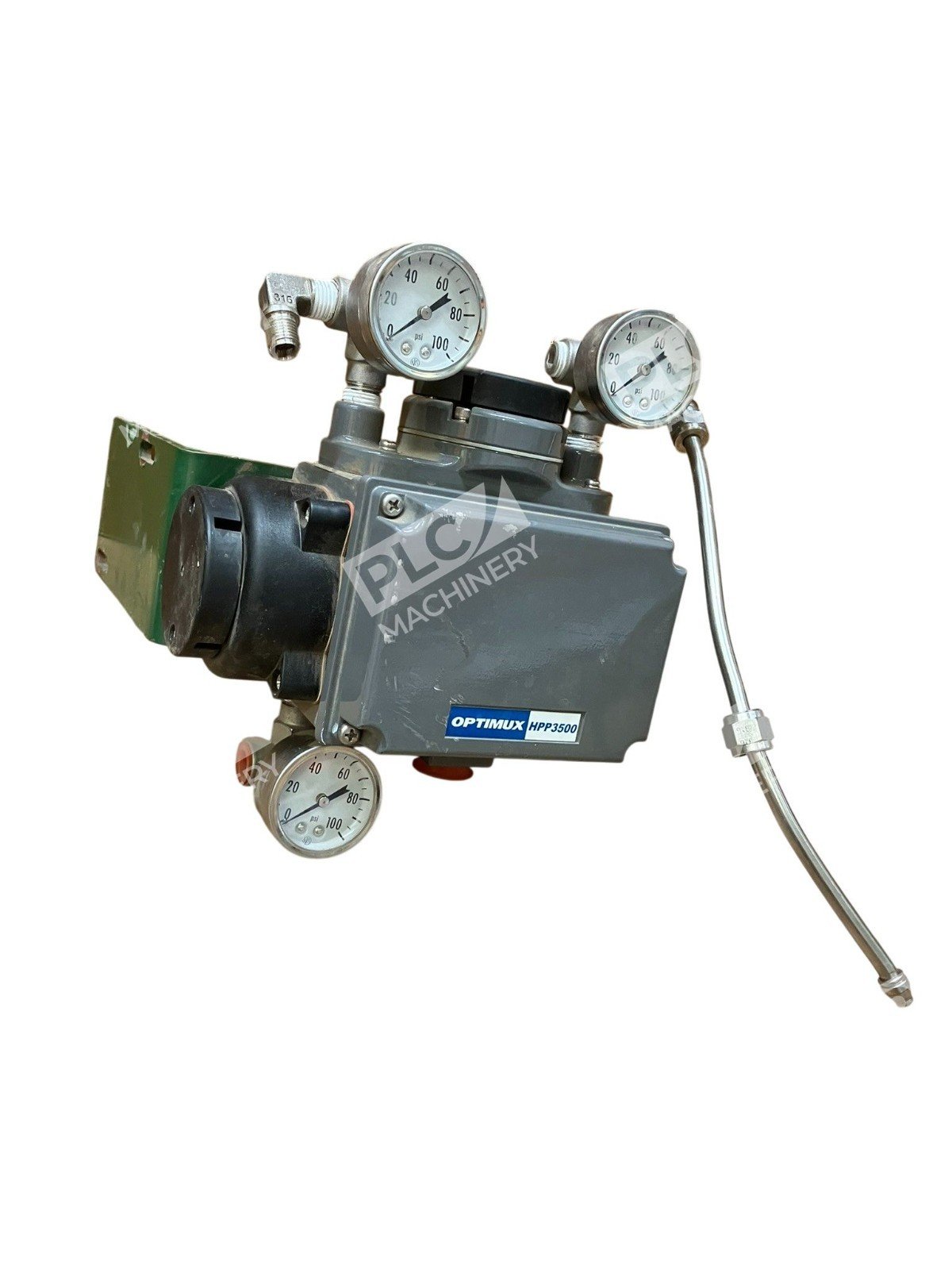

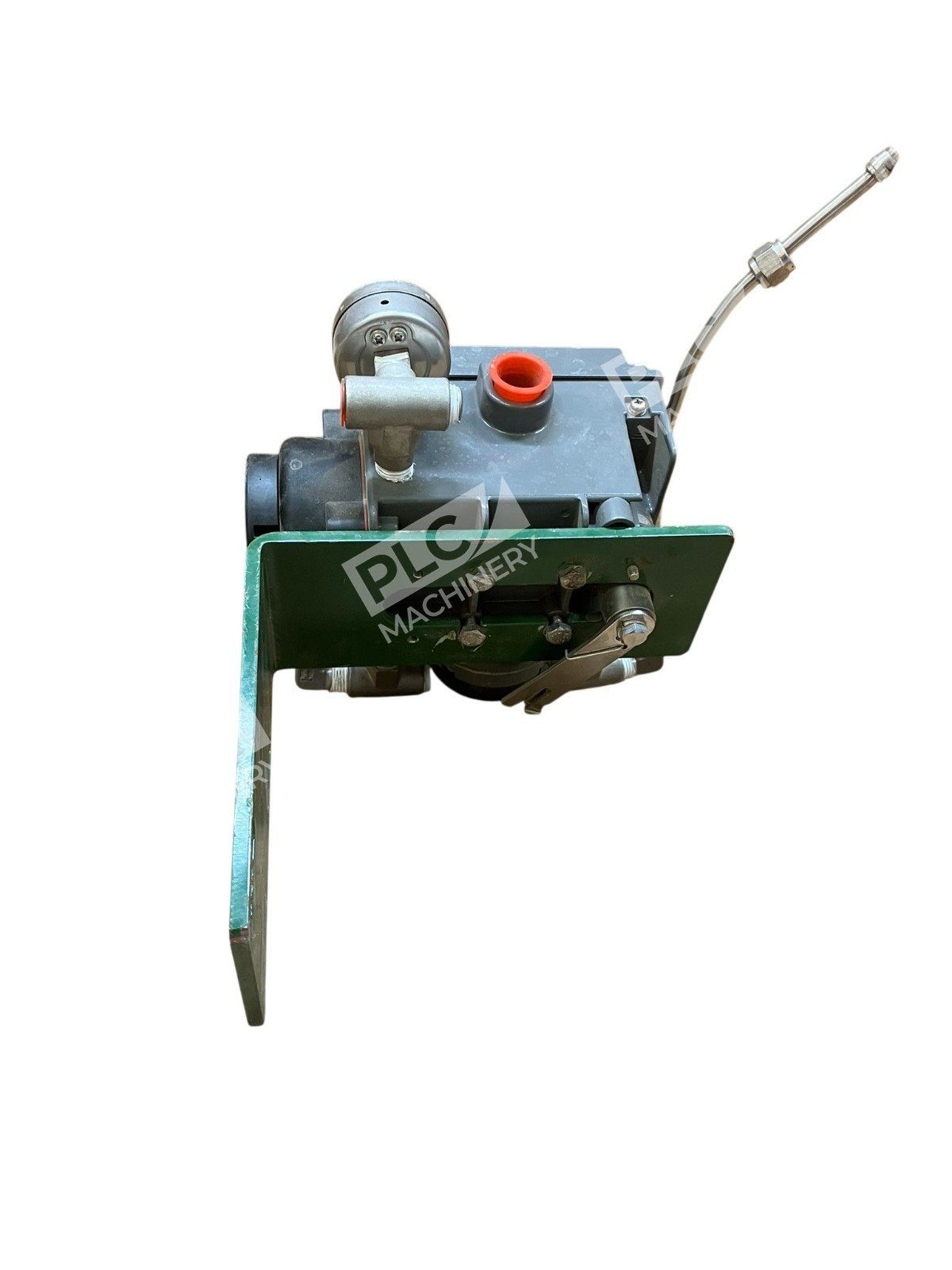

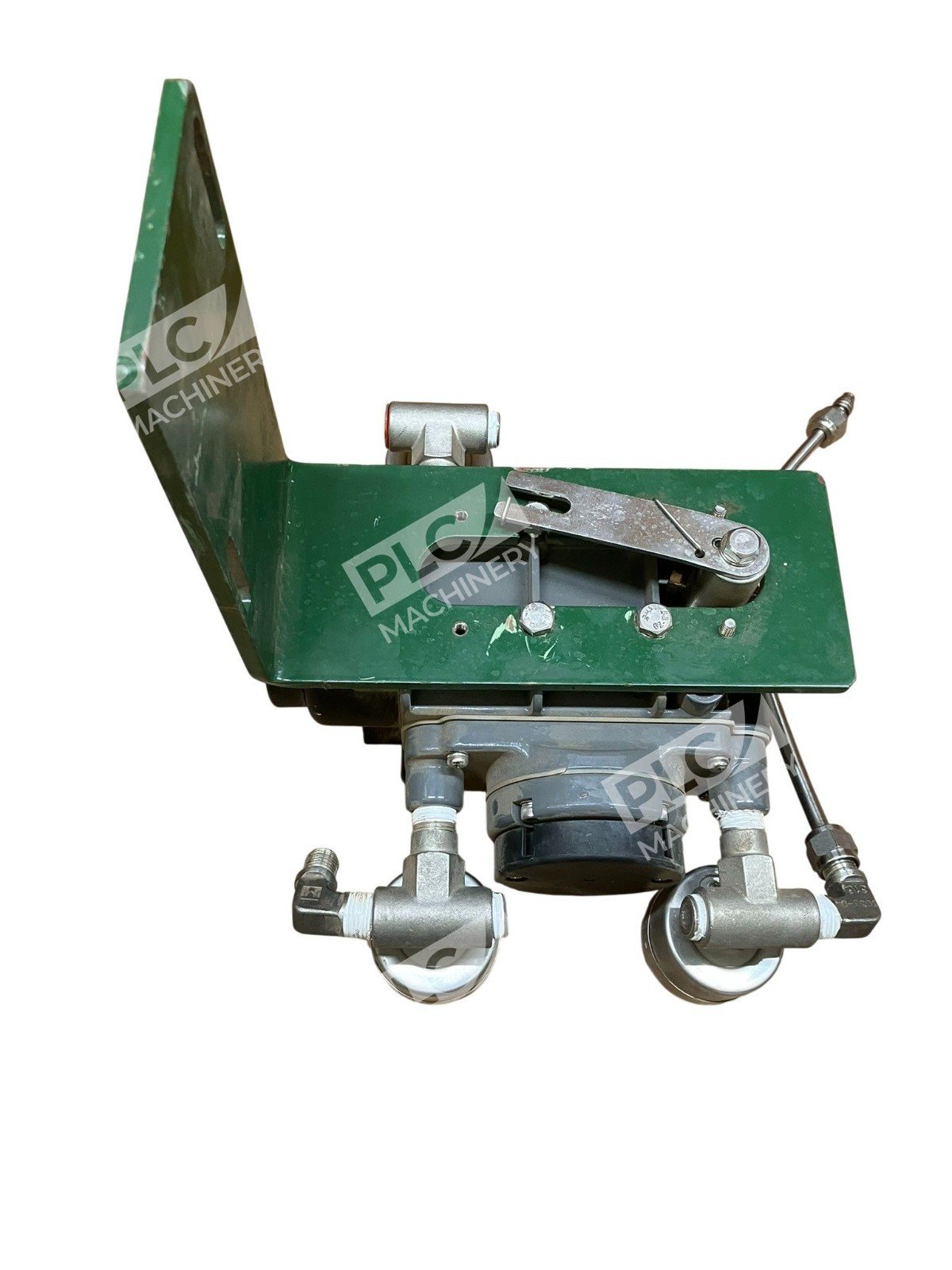

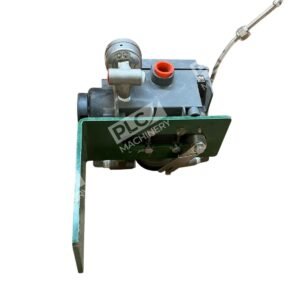

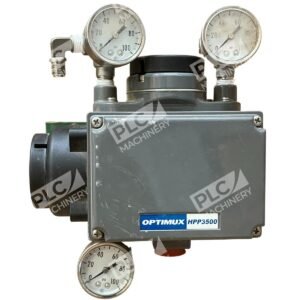

Optimux HPP3500 Pneumatic Control Valve SVXA02-LUSRX

The Optimux HPP3500 Pneumatic Control Valve SVXA02-LUSRX is a microprocessor-equipped, current-to-pneumatic smart valve positioner designed for both rotary and linear valves. It receives a DC current signal from control devices to precisely control pneumatic valves. Beyond its primary function, the HPP3500 offers communication capabilities, an automatic configuration program, and self-diagnostic features, all aimed at enhancing plant productivity and operational efficiency.

Key Features

• Auto Setup: The fully automatic configuration program specifies the actuator and adjusts the zero and span of the rotary valve. This function can be activated via a switch, allowing for quick and safe adjustments even in hazardous areas.
• Valve Diagnostics: For models with software version 4.9 or newer, parameters such as Stick Slip, Cycle Count, Total Stroke, Shut-off Count, Travel Histogram, and Max. Travel Speed can be monitored using a HART communicator or the Control Valve Maintenance Support System Valstaff.

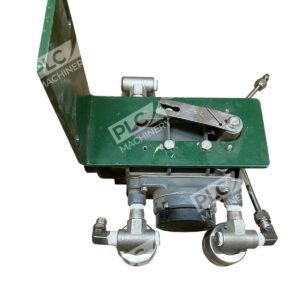

• Fork Lever Type: The HPP3500 can be compactly mounted on the upper part of the valve stem, complying with VDI/VDE3845 standards.
• Positive Seating: This function ensures complete valve shut-off if the input signal drops below a preset level, enhancing the valve’s full shut-off capabilities.
• Self-Diagnostic: The positioner can check its status at any time and alert operators in case of failure.
• Single Model for Multiple Specifications: Settings can be changed without replacing parts, allowing a single model to adapt to various applications.
• Flexible Installation: Available in stroke lever or fork lever types to facilitate installation on rotary valves.
• Flow Characteristics: Supports Linear, Equal Percentage (EQ%), Quick Opening, or custom user characteristics (16 points).
• Actuator Compatibility: Compatible with both double and single acting actuators.
• HART Communication: Calibration, configuration, and self-diagnostics can be performed using a HART communicator, such as model 275.
• Direct Mounting Type: Can be installed on NAMUR cylinder actuators without linkage.
• Stroke Lever Type: Allows valve stem adjustments with a pipe wrench for manual operation.

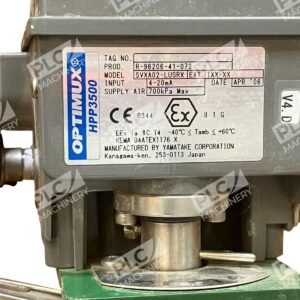

The HPP3500 is intrinsically safe and certified by FM/CENELEC/ATEX, ensuring compliance with international safety standards. For more detailed information, refer to the Optimux HPP3500 technical bulletin.
