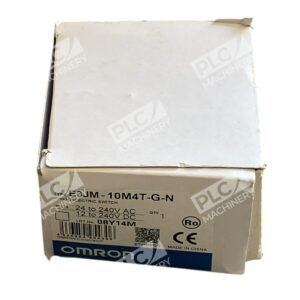

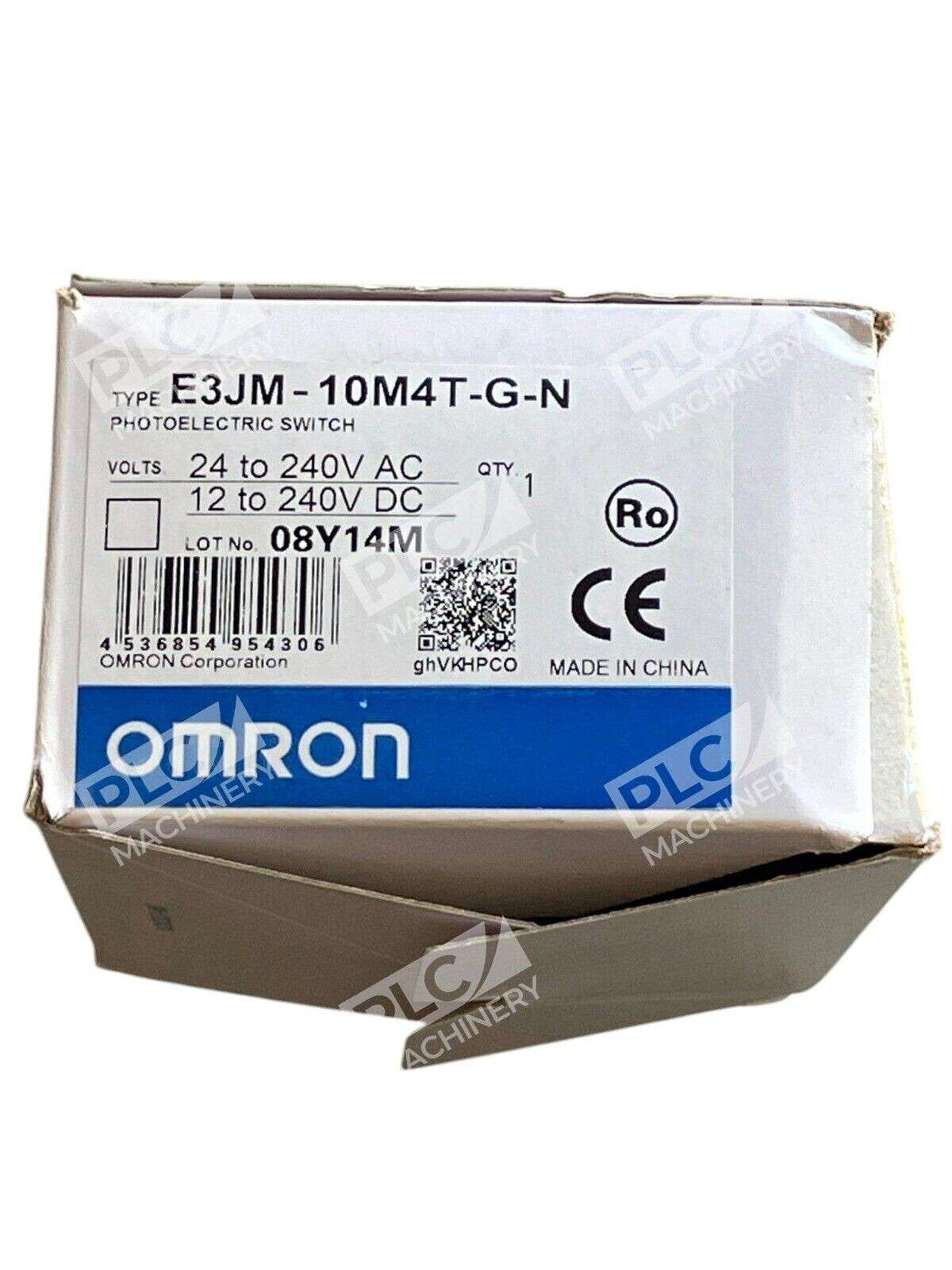

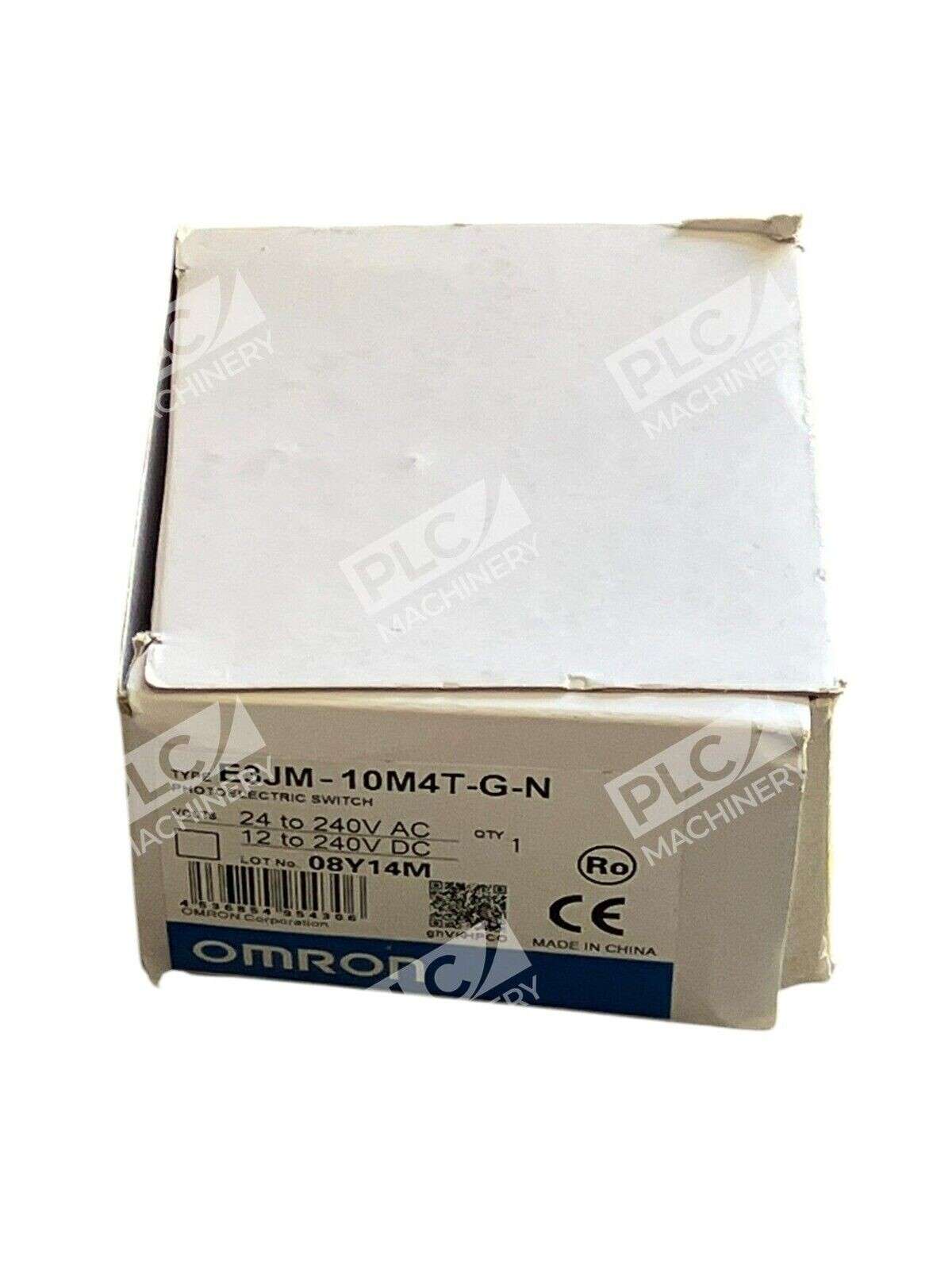

Omron Photoelectric Switch E3JM-10M4T-G-N

Omron Photoelectric Switch E3JM-10M4T-G-N

The Omron E3JM-10M4T-G-N is a through-beam photoelectric sensor designed for reliable object detection in industrial environments. This sensor offers a sensing distance of up to 10 meters, making it suitable for various applications requiring precise and long-range detection.

Key Features

• Sensing Method: Through-beam type
• Sensing Distance: 10 meters
• Light Source: Infrared LED (950 nm)
• Power Supply Voltage: 100 to 240 VAC ±10% (50/60 Hz) or 24 to 240 VDC ±10% with a ripple (p-p) of 10% max.
• Control Output: Relay output (SPDT) with a maximum of 250 VAC 3 A (cosφ=1) and a minimum of 5 VDC 10 mA
• Operation Mode: Selectable Light-ON/Dark-ON
• Response Time: Maximum of 30 ms for operation or reset
• Timer Function: Adjustable ON-delay, OFF-delay, or One-shot delay ranging from 0.1 to 5 seconds
• Connection Method: Terminal block models
• Degree of Protection: IEC IP66

Design and Construction

The E3JM-10M4T-G-N features a robust square-shaped housing made of ABS material, ensuring durability in harsh industrial settings. The sensor’s lens is constructed from methacrylate resin, and the cover is made of polycarbonate, providing additional protection and longevity.

Environmental Specifications

• Ambient Temperature Range: Operating: -25 to 55°C (with no freezing or condensation); Storage: -30 to 70°C (with no freezing or condensation)
• Ambient Humidity Range: Operating: 45 to 85% (with no condensation); Storage: 35 to 95% (with no condensation)
• Vibration Resistance: Destruction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 hours; Malfunction: 10 to 55 Hz, 1.5 mm double amplitude each in X, Y, and Z directions for 2 hours
• Shock Resistance: Destruction: 500 m/s², 3 times each in X, Y, and Z directions; Malfunction: 100 m/s², 3 times each in X, Y, and Z directions

Applications

The Omron E3JM-10M4T-G-N is ideal for various industrial applications, including:

• Conveyor systems
• Packaging machinery
• Material handling
• Automated assembly lines

Its long sensing distance, adjustable timer functions, and robust design make it a versatile and reliable choice for demanding environments.
