Omron Limit Switch D4CC-1024

Omron D4CC-1024 Miniature Limit Switch

The Omron D4CC-1024 is a compact and reliable miniature limit switch designed for precise position detection in various industrial applications. Its slim profile and robust construction make it suitable for environments where space is limited and durability is essential.

Key Features

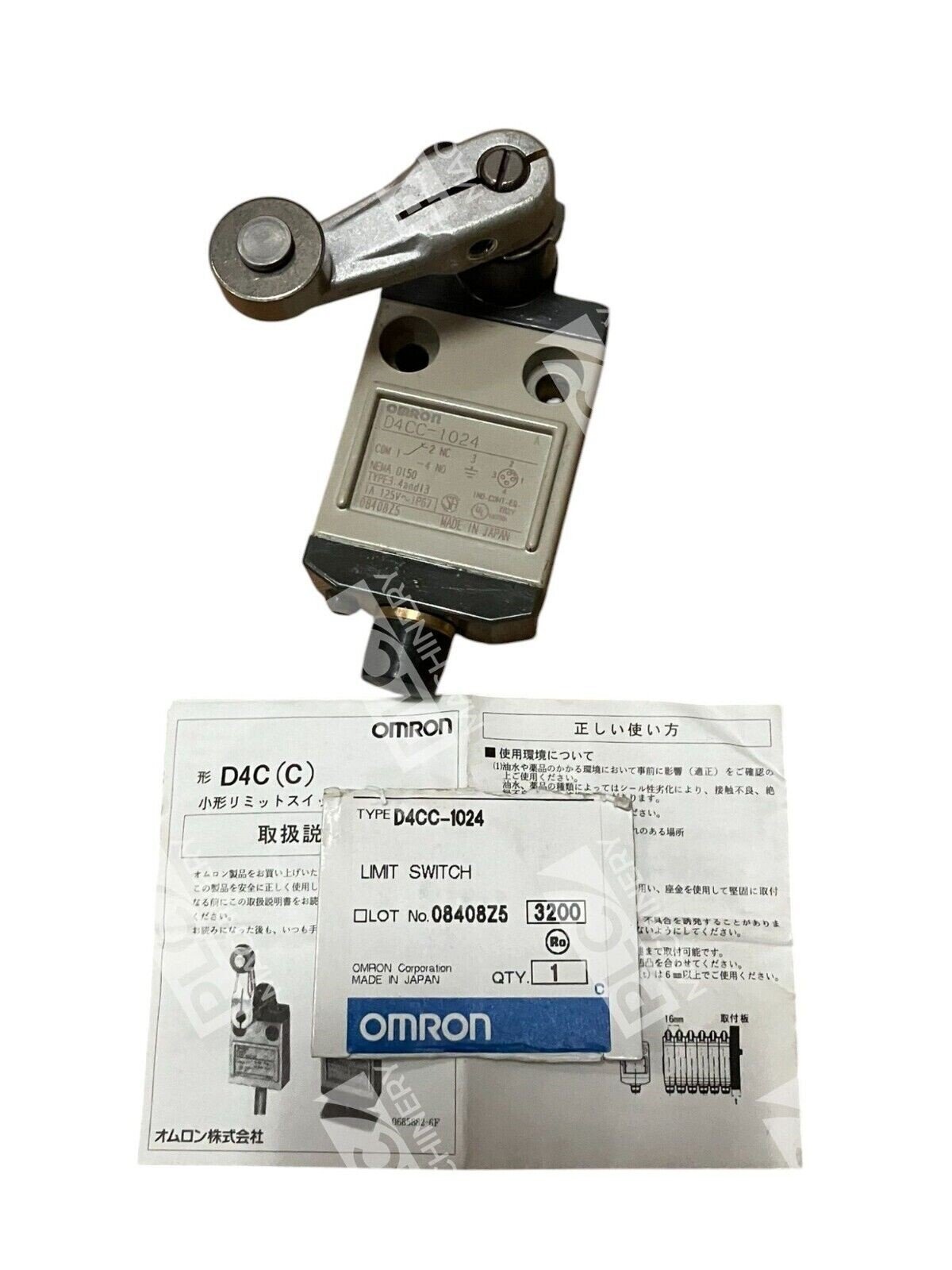

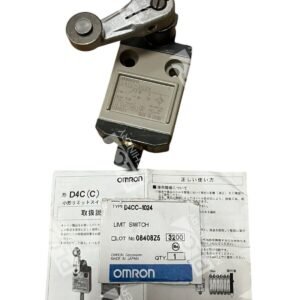

• Actuator Type: Roller lever with a 17.5 mm diameter sintered stainless steel roller, ensuring smooth and consistent operation.

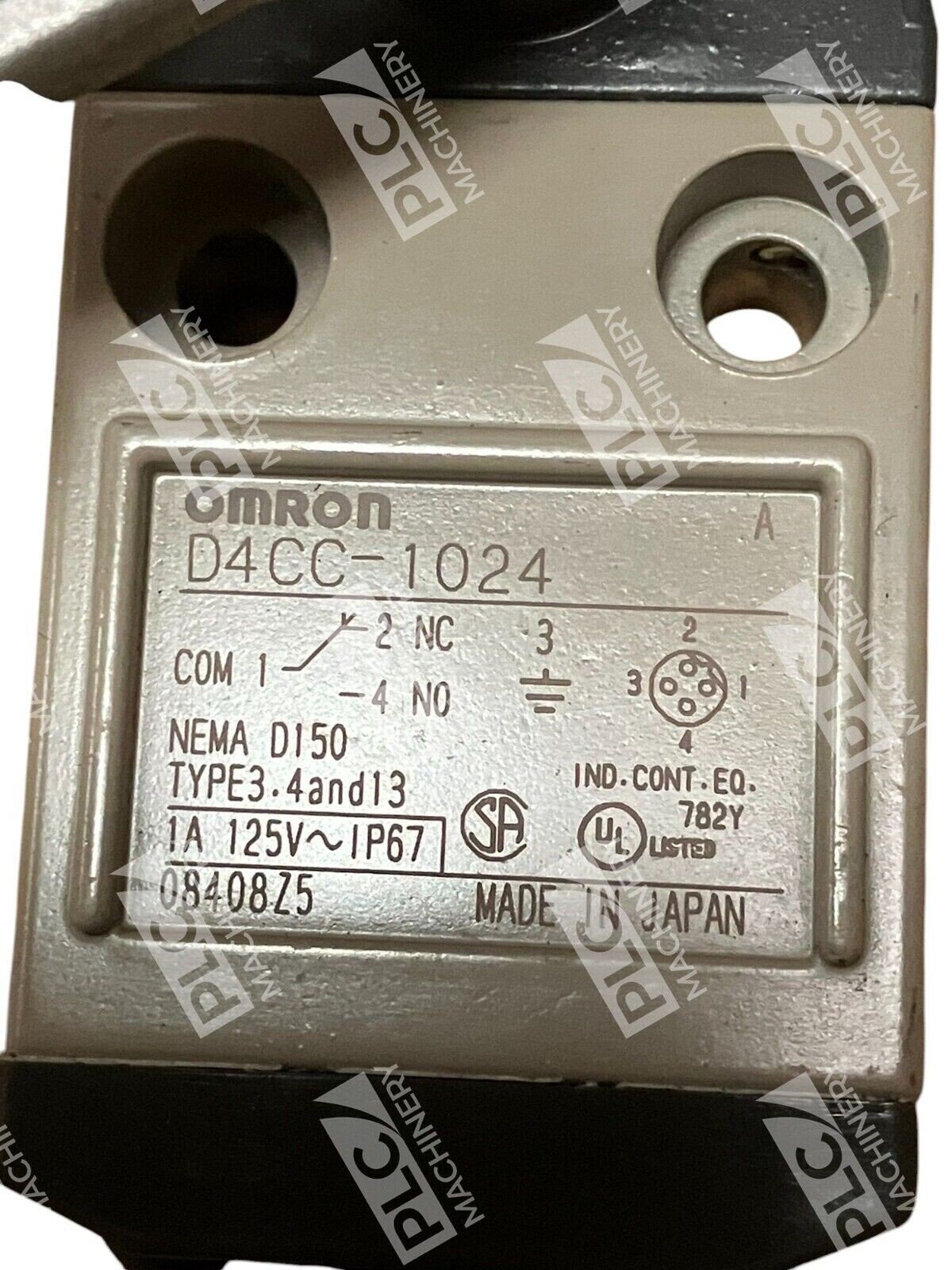

• Electrical Rating: Capable of handling up to 1 A at 125 VAC, suitable for general load applications.
• Contact Configuration: Single Pole Double Throw (SPDT) contacts provide versatile switching capabilities.
• Protection Rating: Rated IP67, offering excellent resistance to dust and water ingress, making it ideal for harsh environments.
• Durability: Engineered for longevity with a mechanical durability of up to 10 million operations and an electrical durability of 200,000 operations at rated load.
• Operating Conditions: Functions effectively within a temperature range of -10 to 70°C and humidity levels between 35% and 95% RH.

Applications

The D4CC-1024 is well-suited for a variety of industrial applications, including:

• Automated machinery requiring precise position detection.
• Conveyor systems for monitoring and controlling movement.
• Packaging equipment to ensure accurate operation.
• Robotics where compact and reliable limit switches are essential.

Dimensions

The switch features a compact design with body dimensions of 57 mm x 40 mm x 16 mm, facilitating easy integration into equipment with limited space.

Installation

Equipped with an M12 male connector for straightforward and secure electrical connections. The mounting holes have a pitch of 25 mm, allowing for stable and secure installation.

The Omron D4CC-1024 miniature limit switch combines compactness, durability, and high performance, making it an excellent choice for precise position detection in demanding industrial environments.
