Omega CN74000 Process Control Equipment 1/32 DIN Controller CN74030

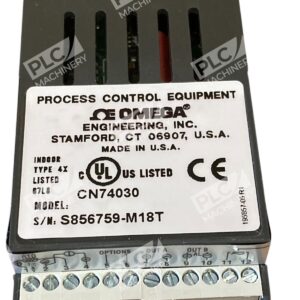

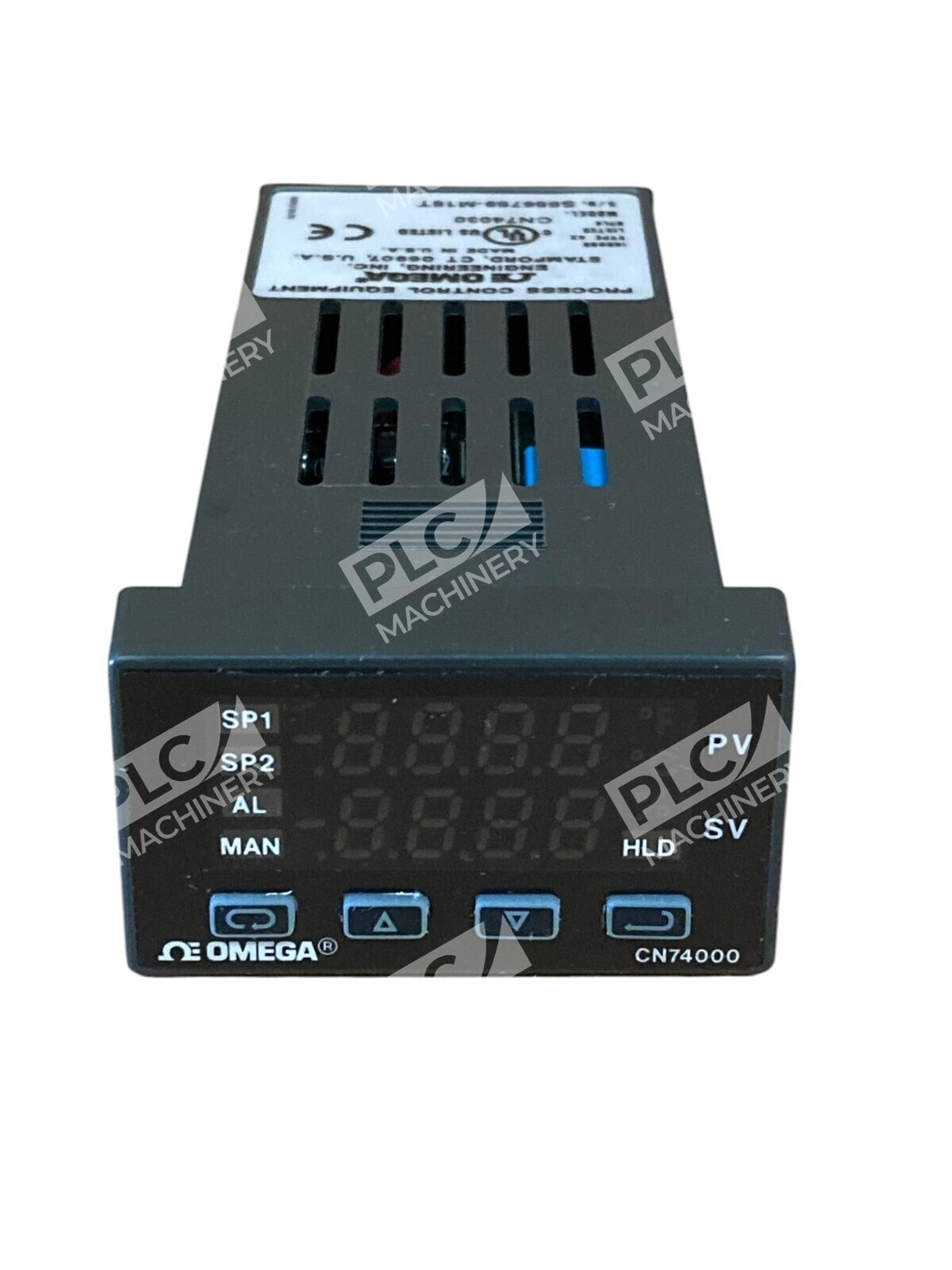

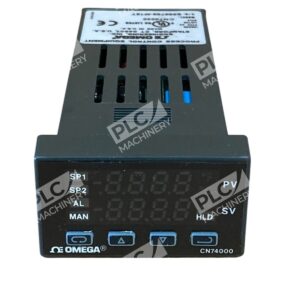

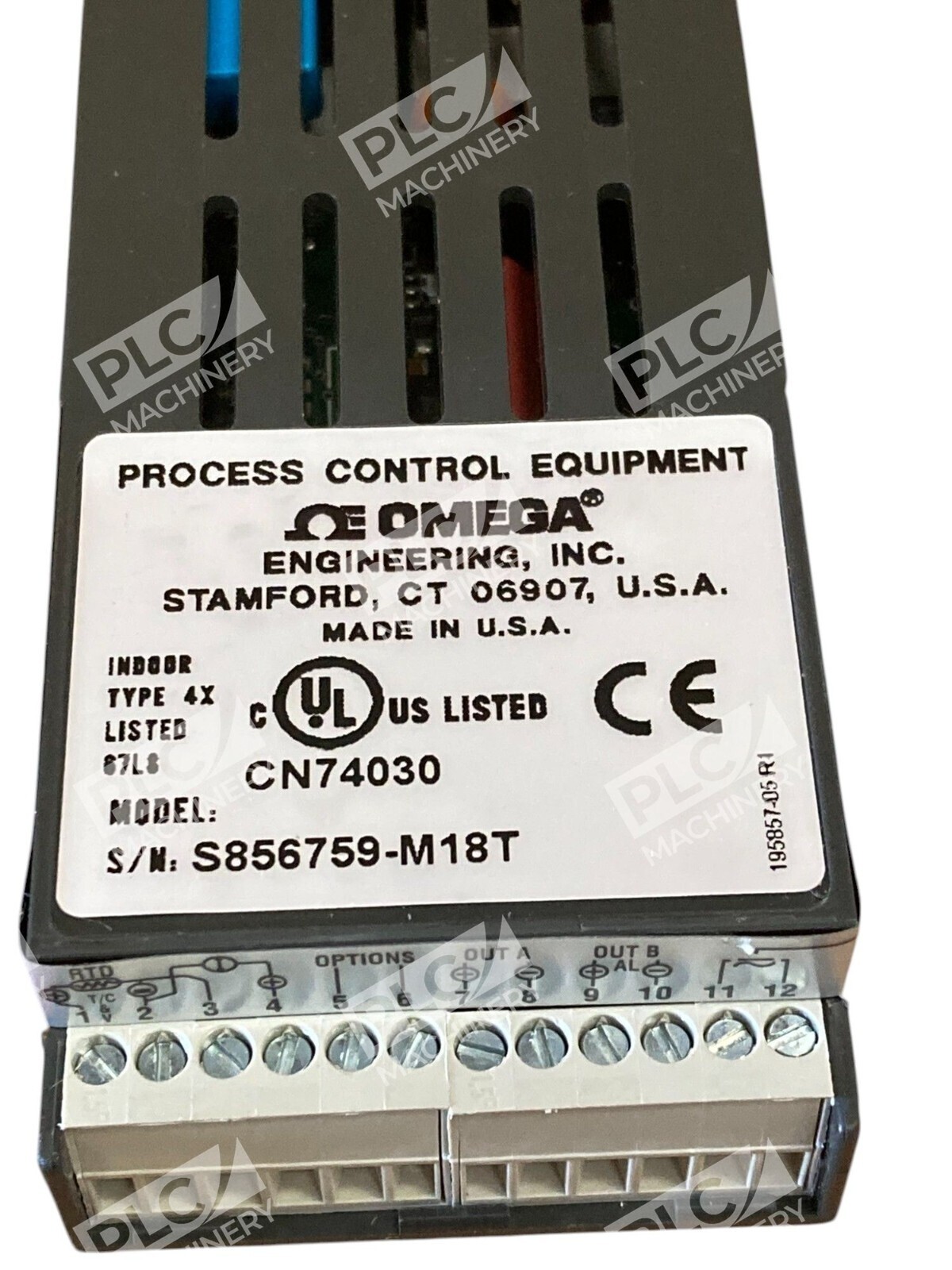

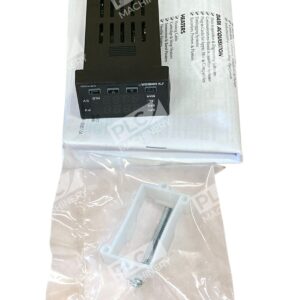

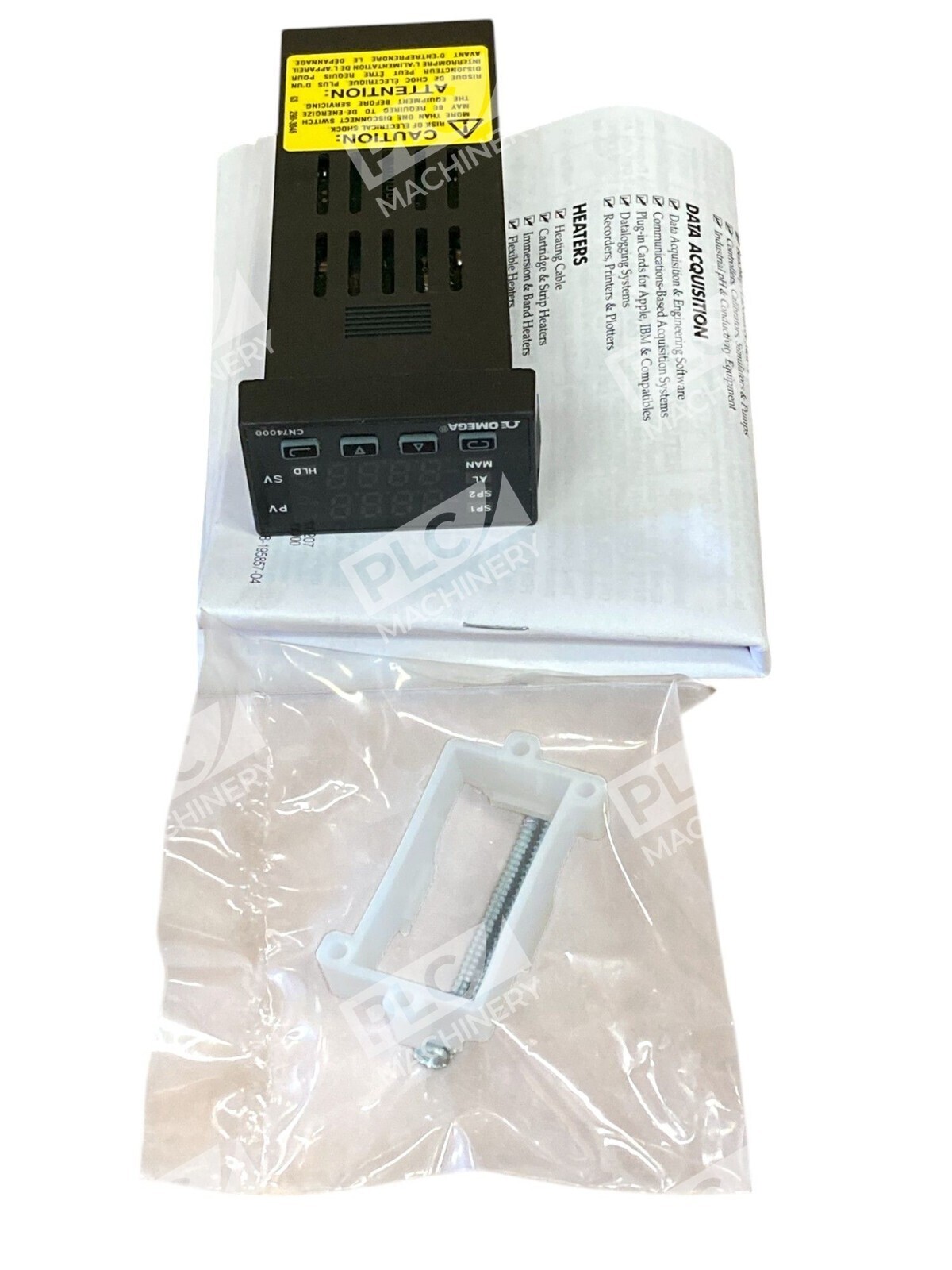

Omega CN74030 1/32 DIN Ramp/Soak Controller

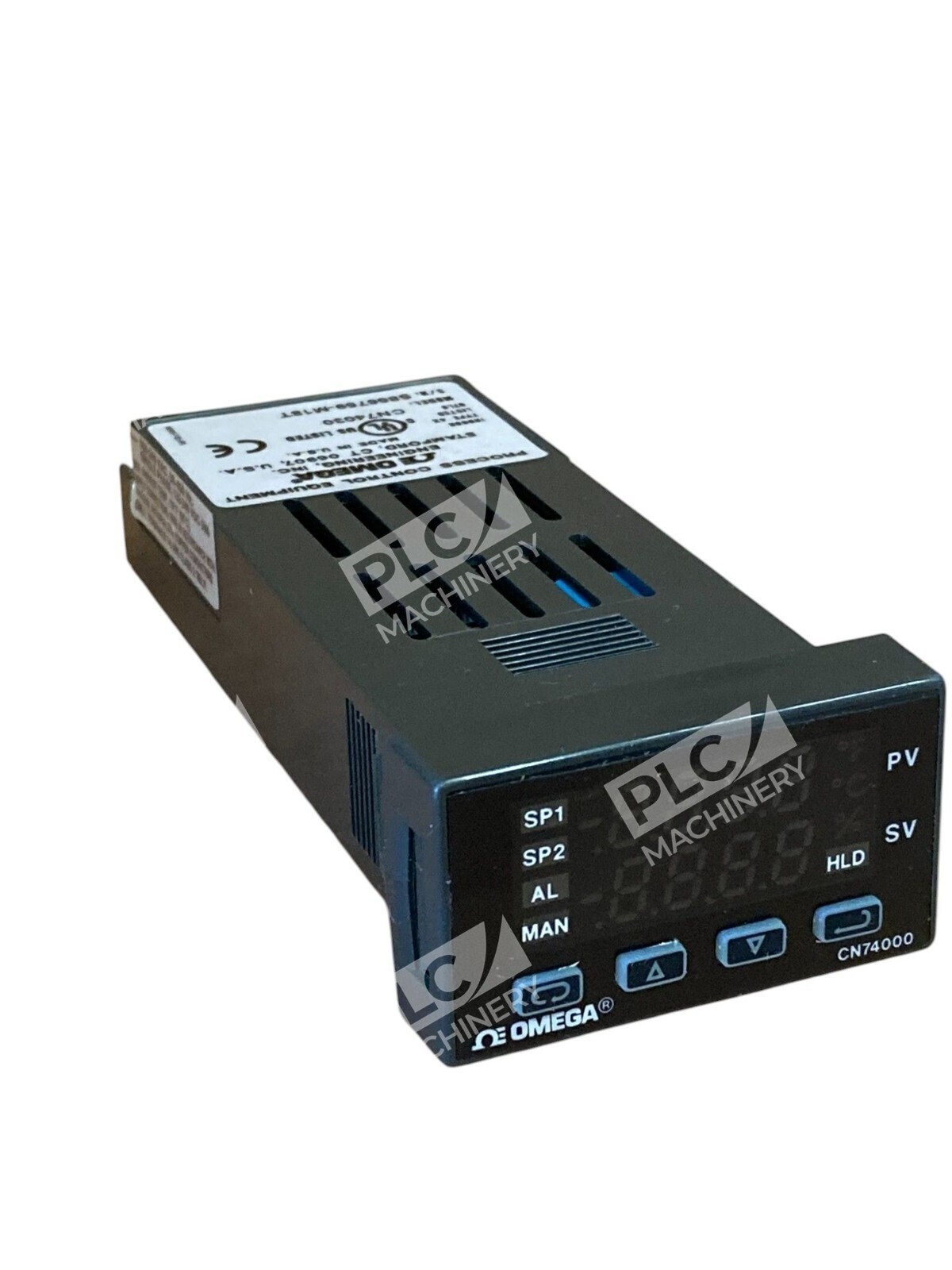

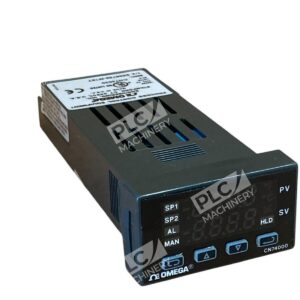

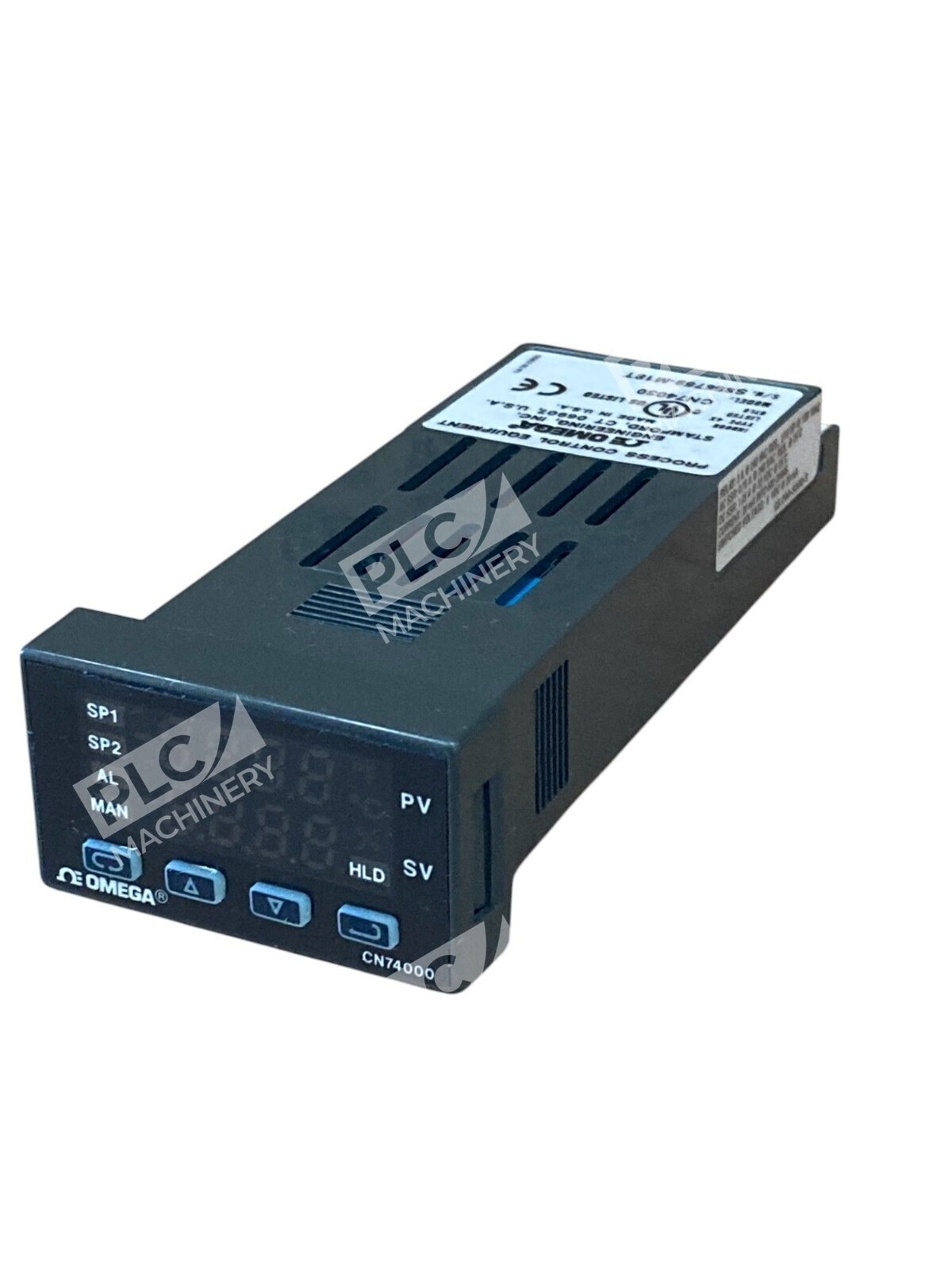

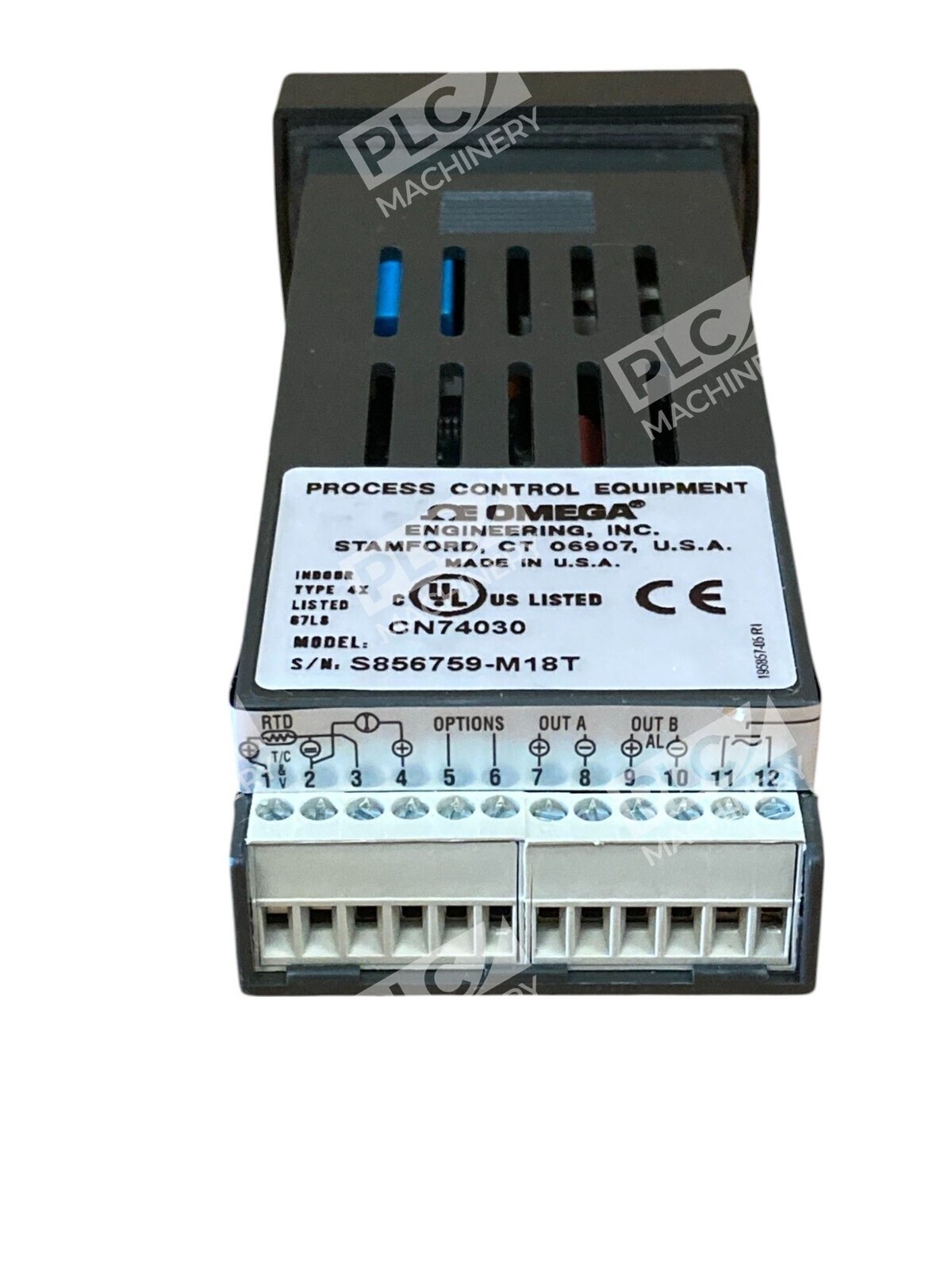

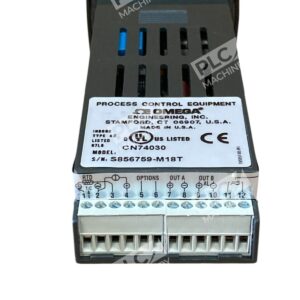

The Omega CN74030 is a compact and versatile 1/32 DIN process controller designed to deliver precise temperature and process control in a minimal footprint. Despite its small size, this controller is equipped with a comprehensive suite of features tailored for demanding industrial applications.

Key Features

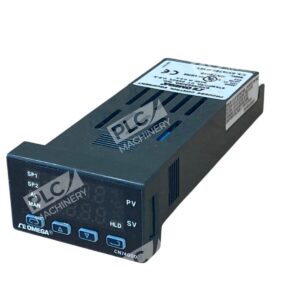

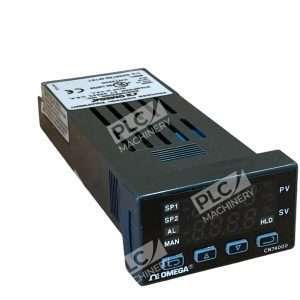

• Large Dual Display: The controller features two 4-digit, 7-segment LEDs with a digit height of 6.35 mm, providing clear and simultaneous visualization of process and setpoint values.
• Universal Inputs: Supports a wide range of input types, including multiple thermocouple types (K, J, T, E, N, R, S, B, L, C), RTDs (Pt100, Pt1000, 120 Ω Nickel), and analog signals (0 to 20 mA, 4 to 20 mA, 0 to 10 Vdc, -10 to 10 Vdc, -10 to 10 mVdc), ensuring compatibility with various sensors and process signals.
• Advanced Control Algorithms: Incorporates autotune and fuzzy logic capabilities to optimize PID control parameters, enhancing system stability and response.
• Ramp and Soak Functionality: Offers a 16-segment ramp/soak program with an adjustable time base, allowing for precise control over process profiles.
• Illuminated Keypad: Equipped with an illuminated keypad for improved visibility and ease of operation in various lighting conditions.
• Communication Options: Optional RS485 serial communication enables integration into networked systems for remote monitoring and control.

Specifications

• Accuracy: ±0.25% of span, ±1 least significant digit.
• Supply Voltage: 100 to 240 Vac, nominal, 10 to 15%, 50 to 400 Hz; single phase; 132 to 240 Vdc, nominal, 10 to 20%.
• Power Consumption: 5 VA max.
• Operating Temperature: -10 to 55°C (14 to 131°F).
• Memory Backup: Non-volatile memory, eliminating the need for batteries.
• Control Output Ratings: Relay: SPST, 3 A @ 240 Vac resistive; 1.5 A @ 240 Vac inductive; Pilot Duty Rating: 250 VA, 2 A @ 120 Vac or 1 A @ 240 Vac.
• Panel Cut-Out: 45 x 22 mm (1.772 x 0.874″).
• Panel Depth: 111.60 mm (4.395″).
• Front-Panel Rating: NEMA 4X (IP66), ensuring protection against dust and water ingress.

The Omega CN74030 is an ideal solution for applications requiring precise and reliable process control within a compact form factor. Its extensive input compatibility, advanced control features, and robust design make it suitable for a wide range of industrial environments.
