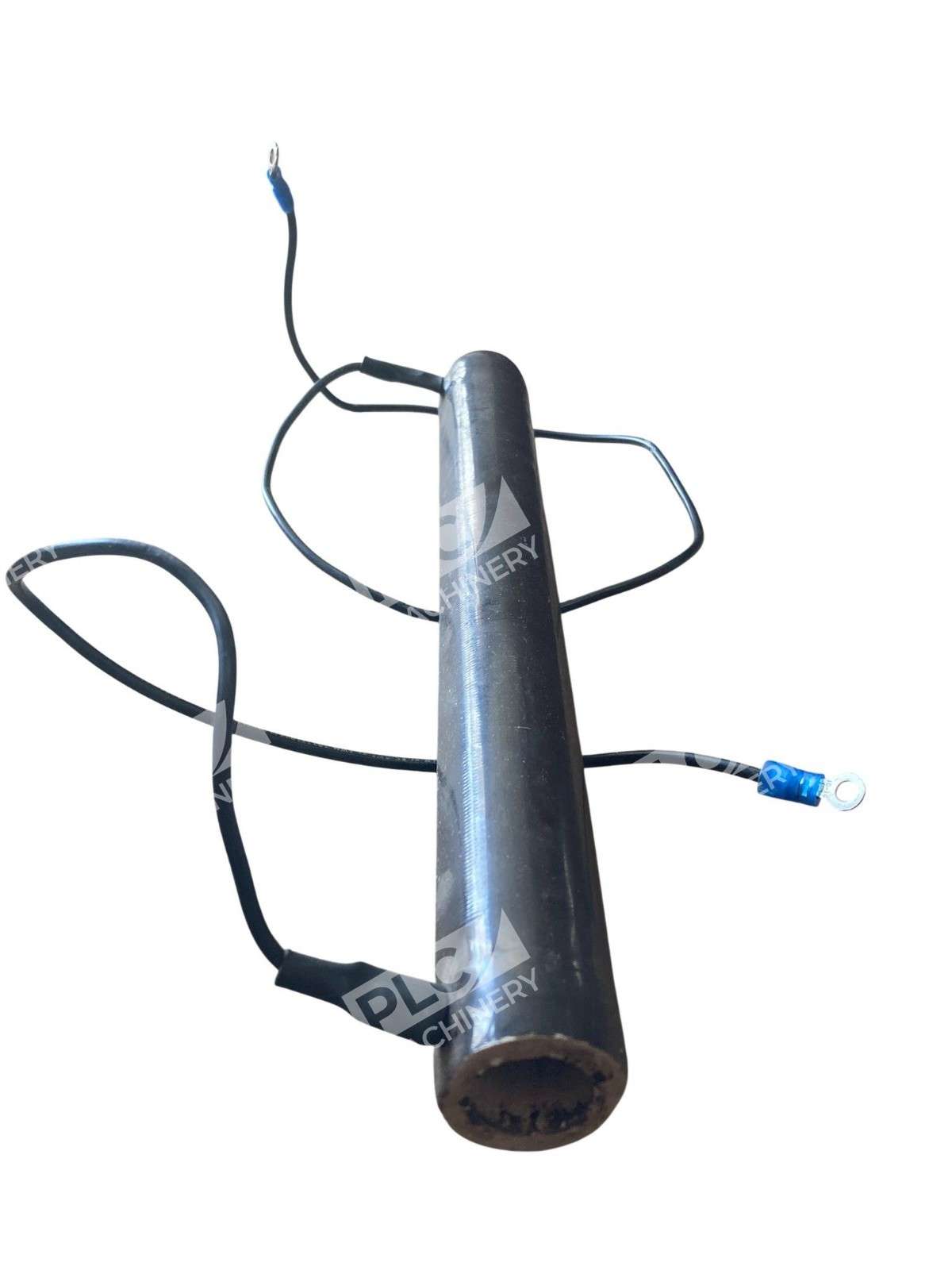

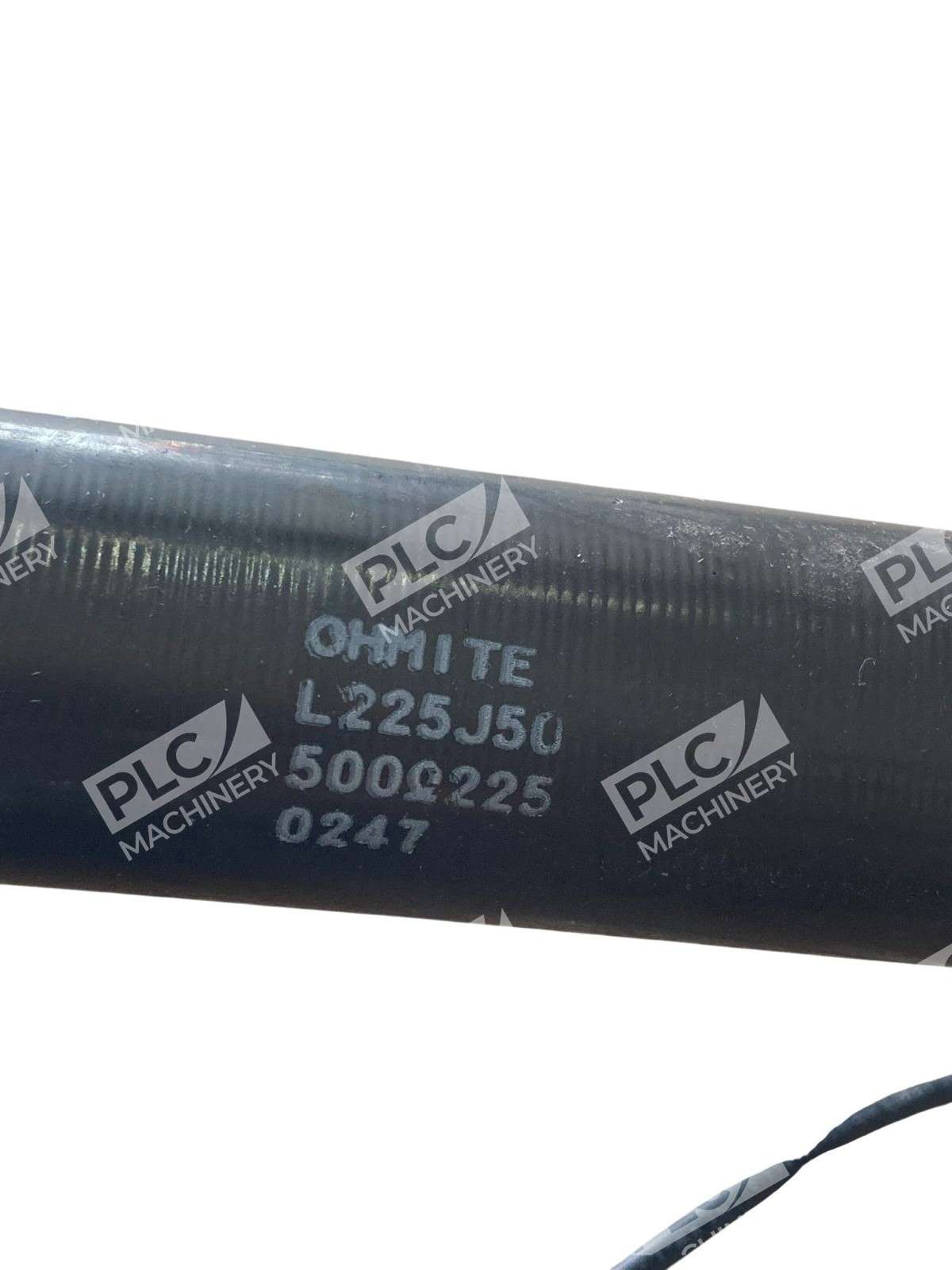

Ohmite L225J500E 500 Ohm 225W Wirewound Resistor
The Ohmite L225J500E is a high-power wirewound resistor designed for applications requiring substantial power dissipation and precise resistance. With a resistance value of 500 ohms and a power rating of 225 watts, this resistor is suitable for demanding electrical circuits.
Key Features
- Resistance Value: 500 ohms
- Power Rating: 225 watts
- Tolerance: ±5%
- Temperature Coefficient: ±260 ppm/°C
- Construction: Wirewound
- Coating: Vitreous enamel for enhanced durability and flame resistance
- Mounting: Tubular design with solder lug terminals for secure connections
- Operating Temperature Range: -55°C to +350°C
- Voltage Rating: 4,595 volts
Applications
The L225J500E resistor is ideal for high-power and high-energy applications, including:
- Industrial machinery
- Power supplies
- Motor drives
- Load testing
- Braking and snubbing circuits
Dimensions
- Diameter: 1.126 inches (28.60 mm)
- Length: 10.500 inches (266.70 mm)
Its robust construction and high power rating make the Ohmite L225J500E a reliable choice for applications requiring efficient heat dissipation and stable performance under varying electrical loads.
