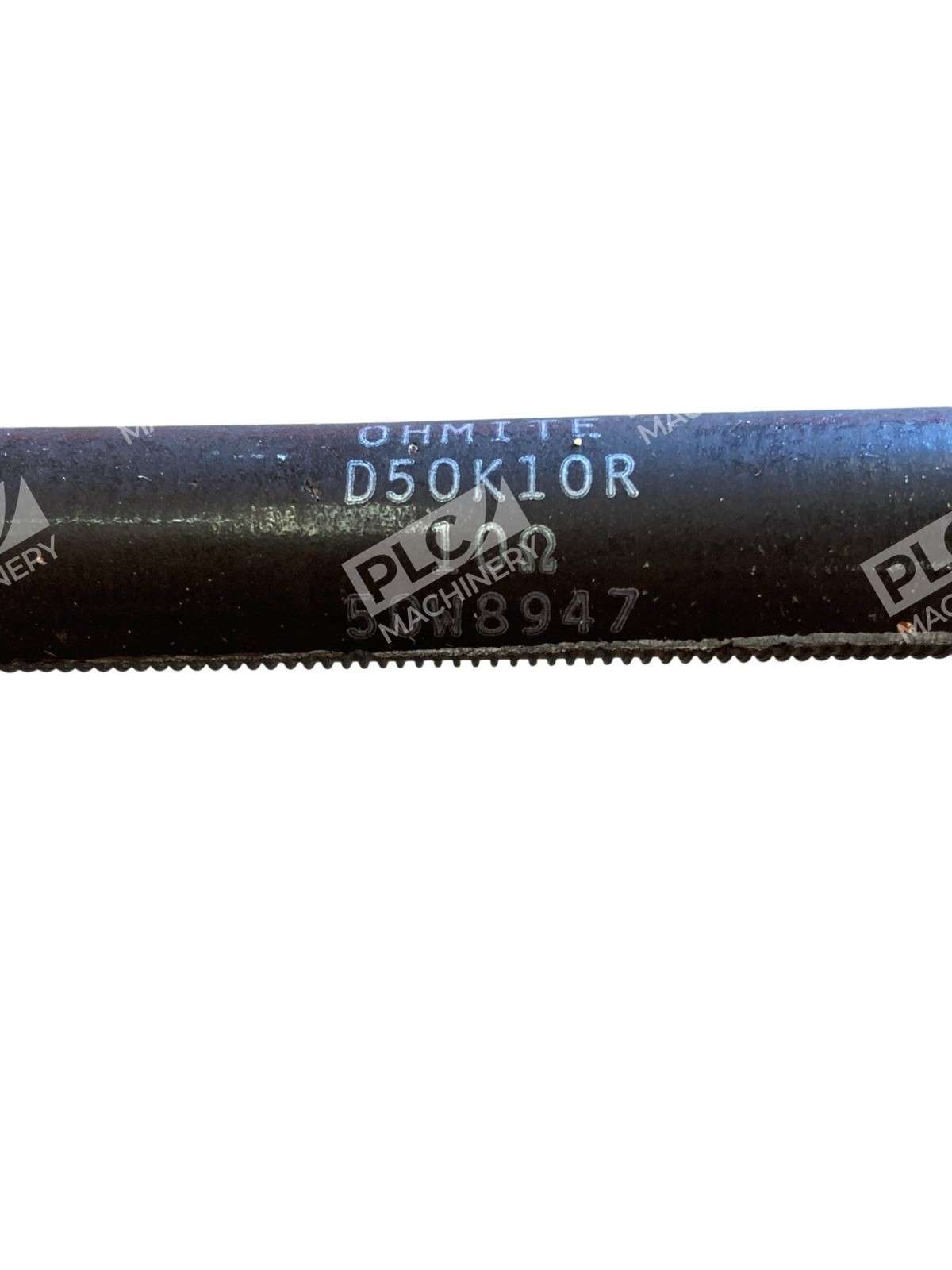

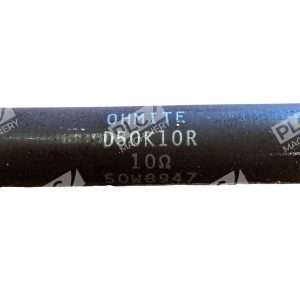

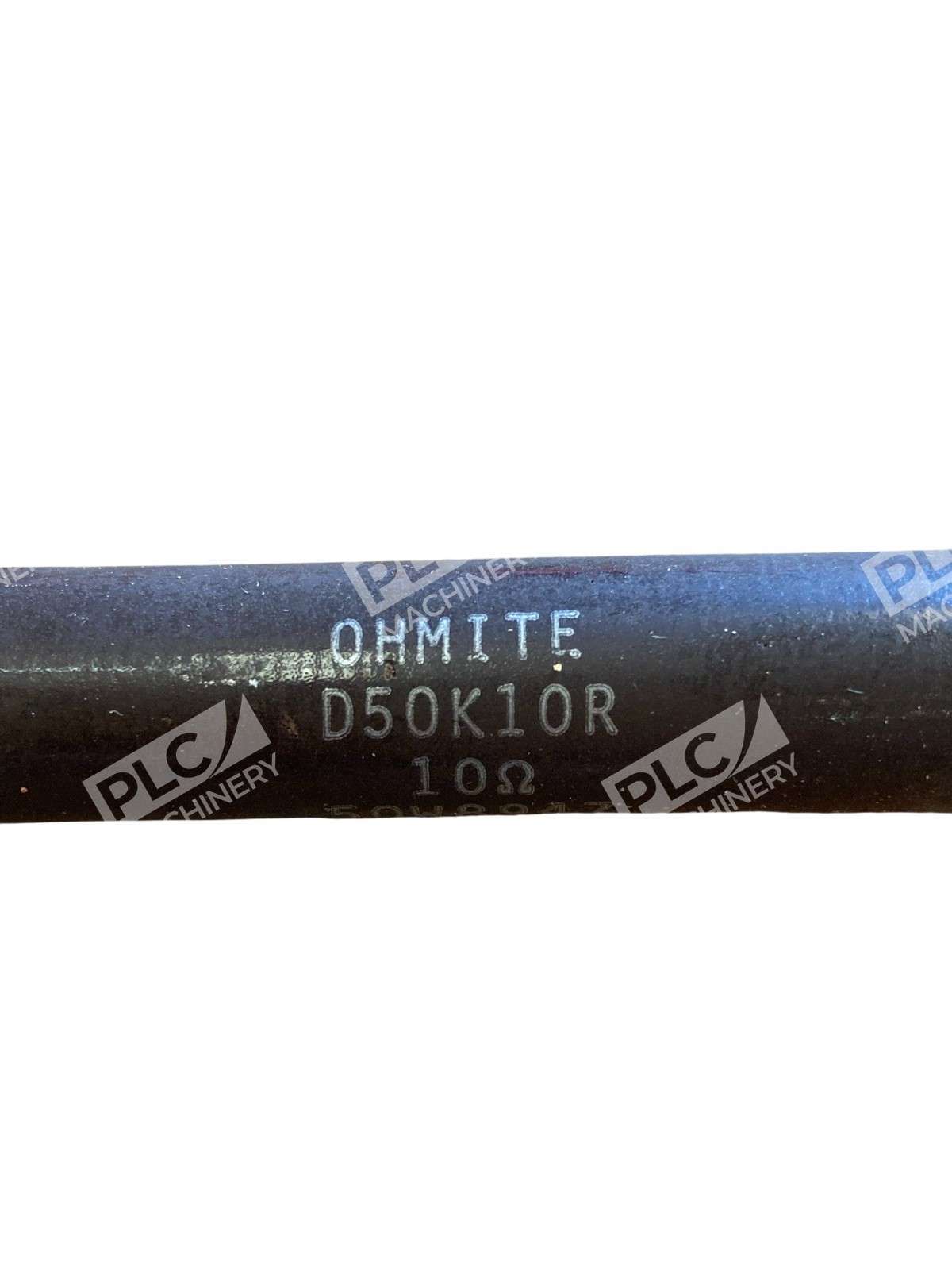

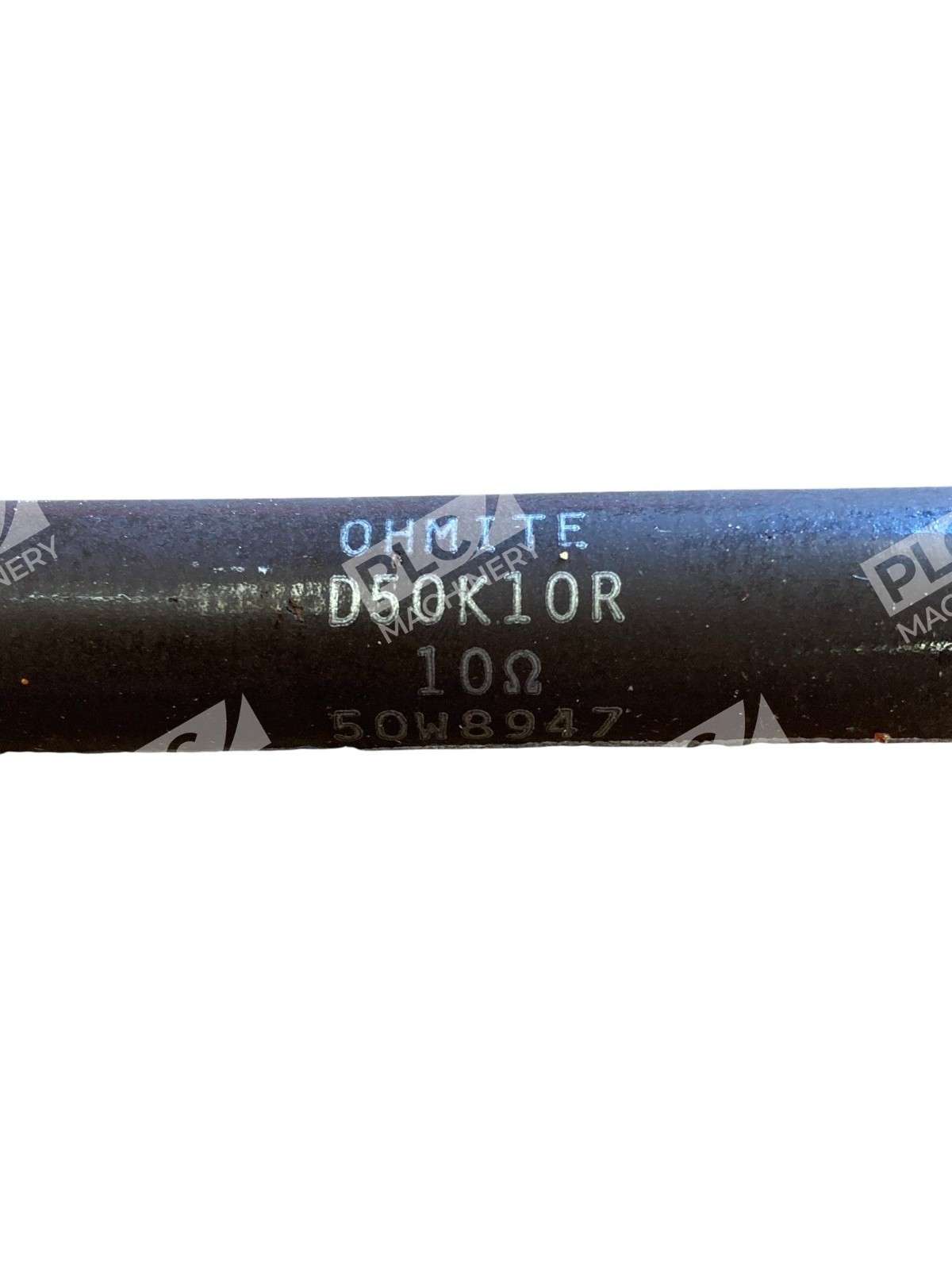

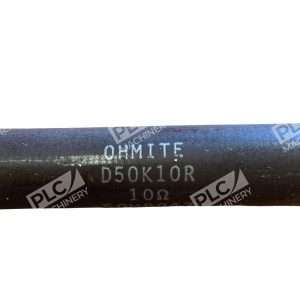

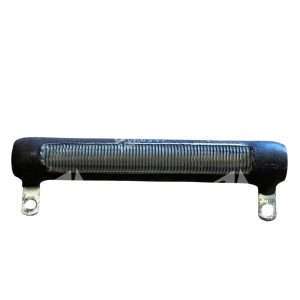

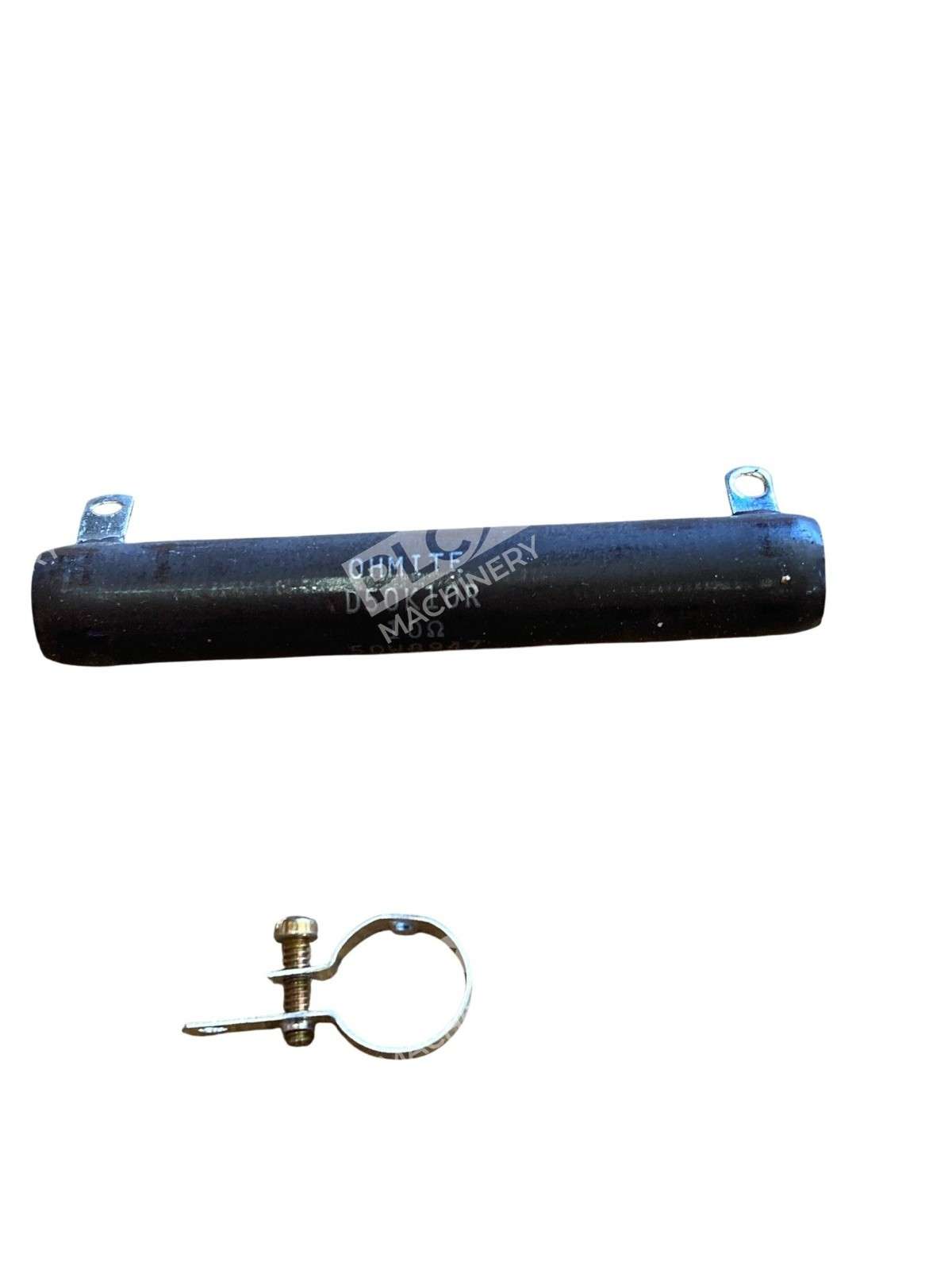

Ohmite D50K10R Adjustable Wirewound Power Resistor
The Ohmite D50K10R is a high-power, adjustable wirewound resistor designed for applications requiring precise resistance settings. Part of the Dividohm® 210 Series, this resistor is ideal for adjusting circuits, obtaining specific resistance values, and accommodating various line voltages.
Key Features

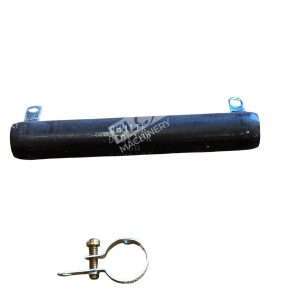

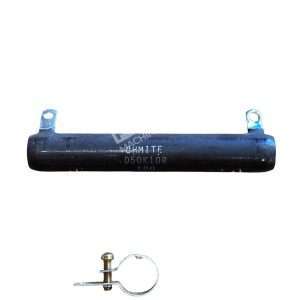

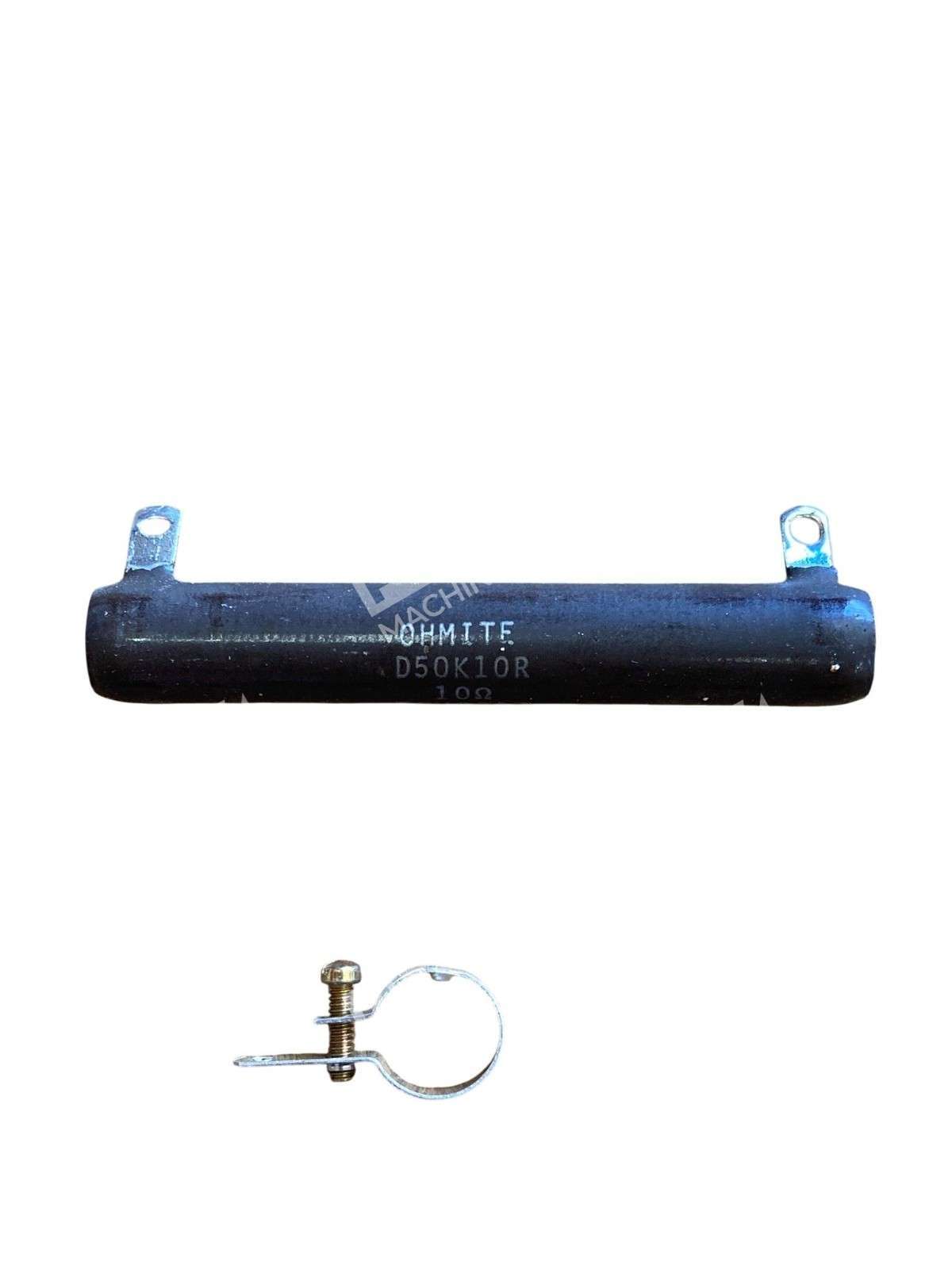

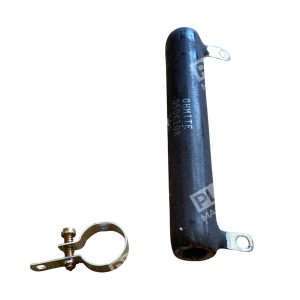

- Adjustable Resistance: Equipped with a nickel-plated steel adjustable lug, allowing for fine-tuning of resistance values to meet specific application requirements.
- High Power Rating: Capable of dissipating up to 50 watts of power, making it suitable for demanding applications.
- Durable Construction: Features a tubular ceramic core with a lead-free vitreous enamel coating, ensuring robustness and longevity.
- Versatile Mounting: The hollow core design permits secure fastening using spring-type clips or through bolts with washers, facilitating flexible installation options.
- Flame-Resistant Coating: The vitreous enamel coating provides flame resistance, enhancing safety in various operating environments.
Technical Specifications
- Resistance: 10 ohms
- Power Rating: 50 watts
- Resistance Tolerance: ±10%
- Temperature Coefficient: ±260 ppm/°C
- Voltage Rating: 1,625 volts
- Resistor Terminals: Solder lug
- Resistor Mounting: Through-hole
- Product Length: 101.6 mm
- Diameter: 14.3 mm
The Ohmite D50K10R adjustable wirewound power resistor combines precision, durability, and versatility, making it an excellent choice for applications requiring adjustable resistance in high-power settings.
