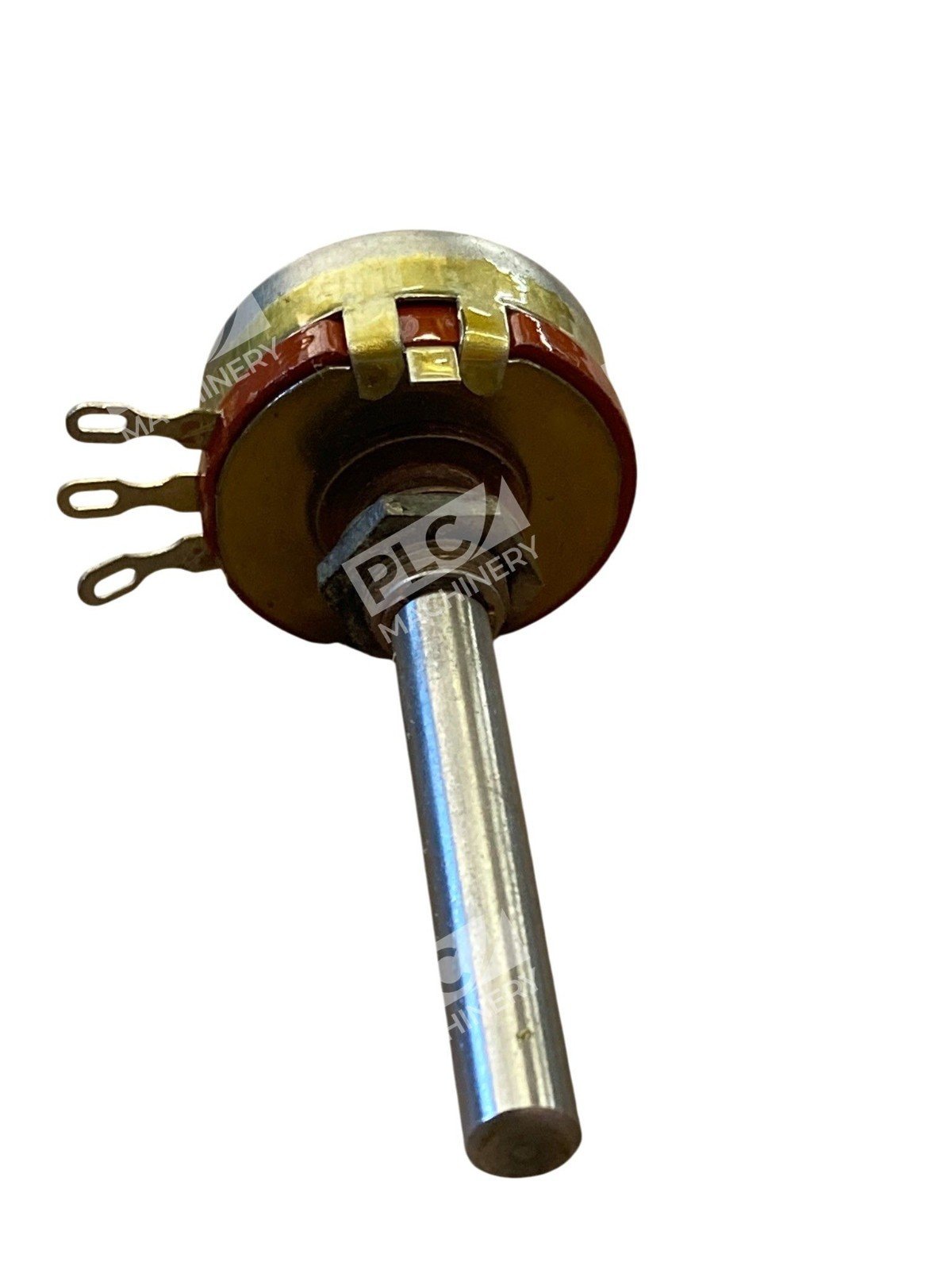

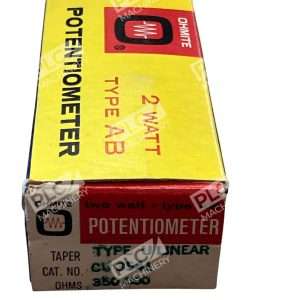

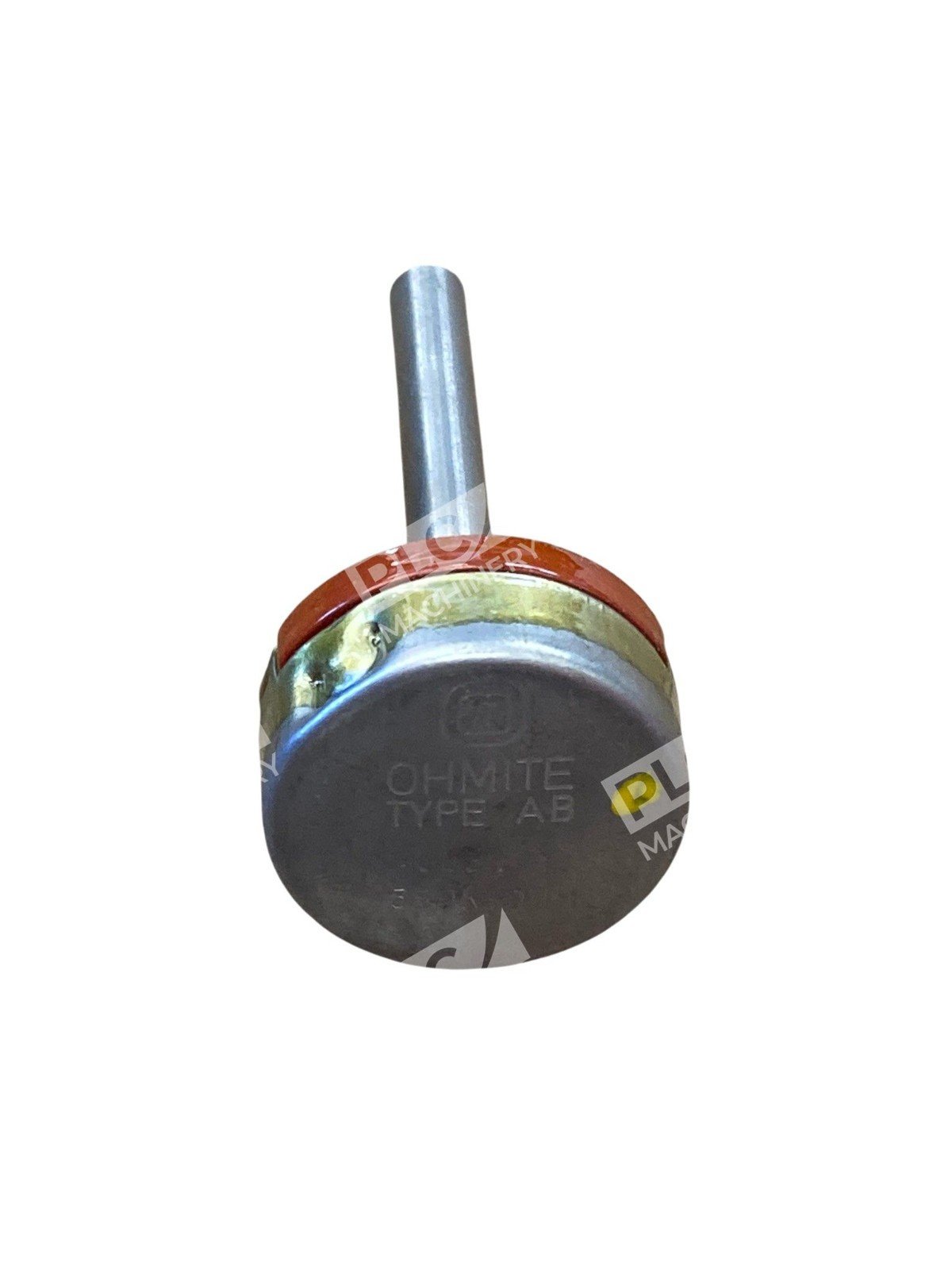

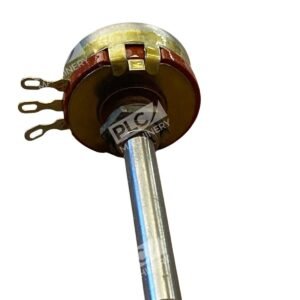

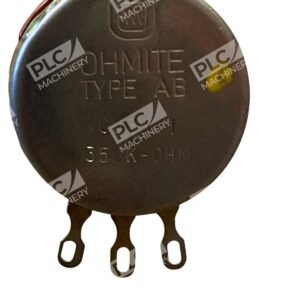

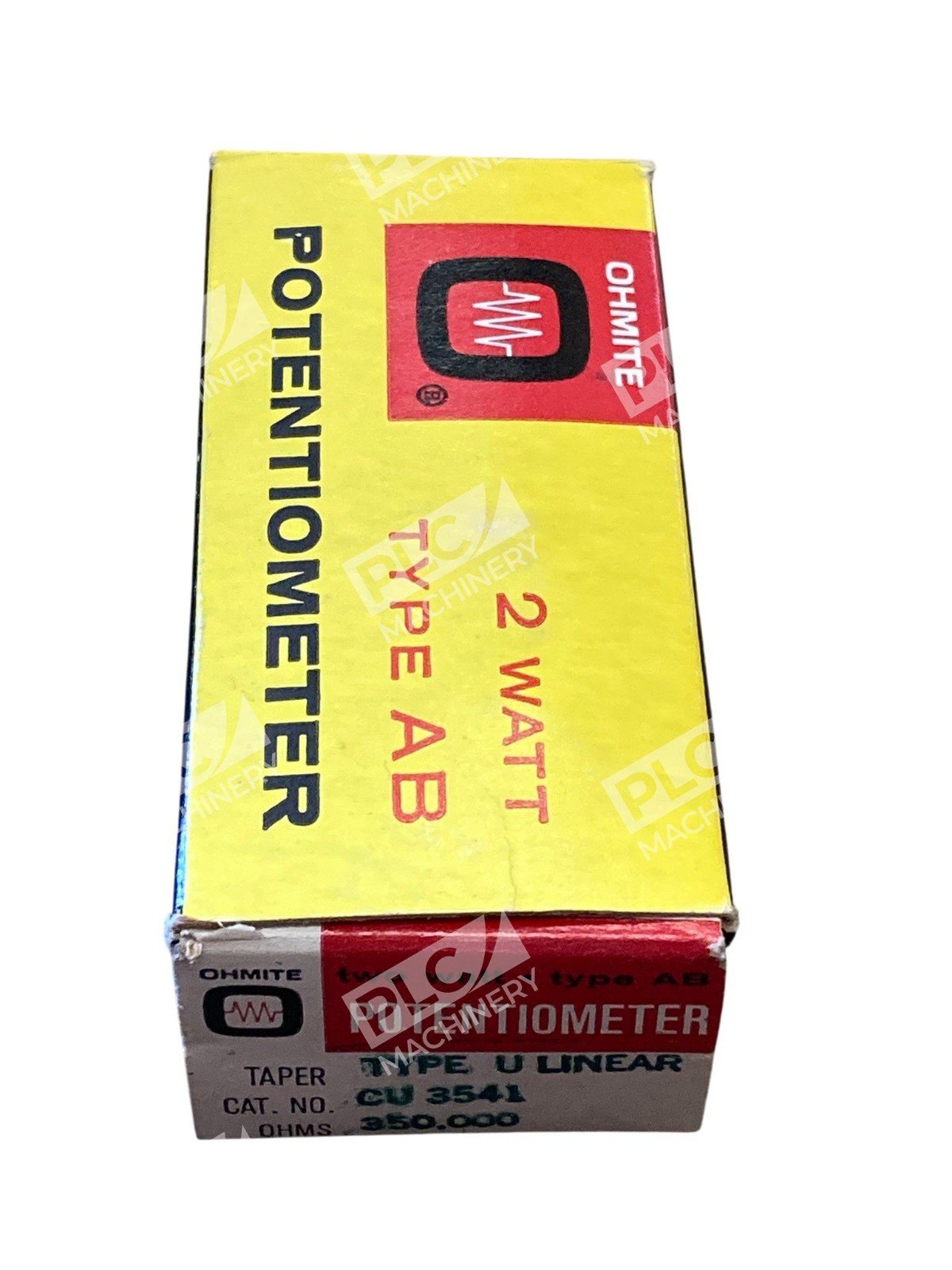

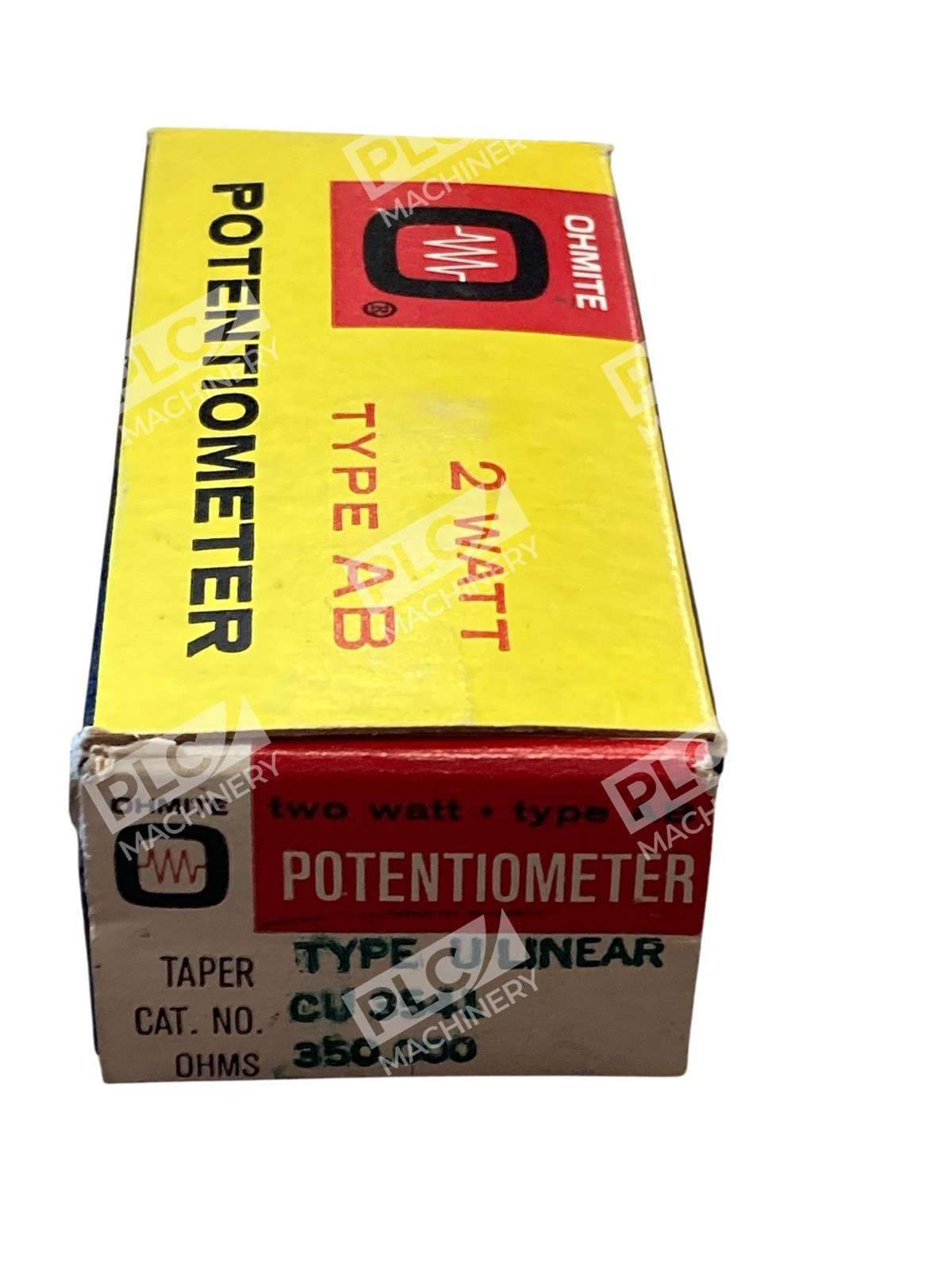

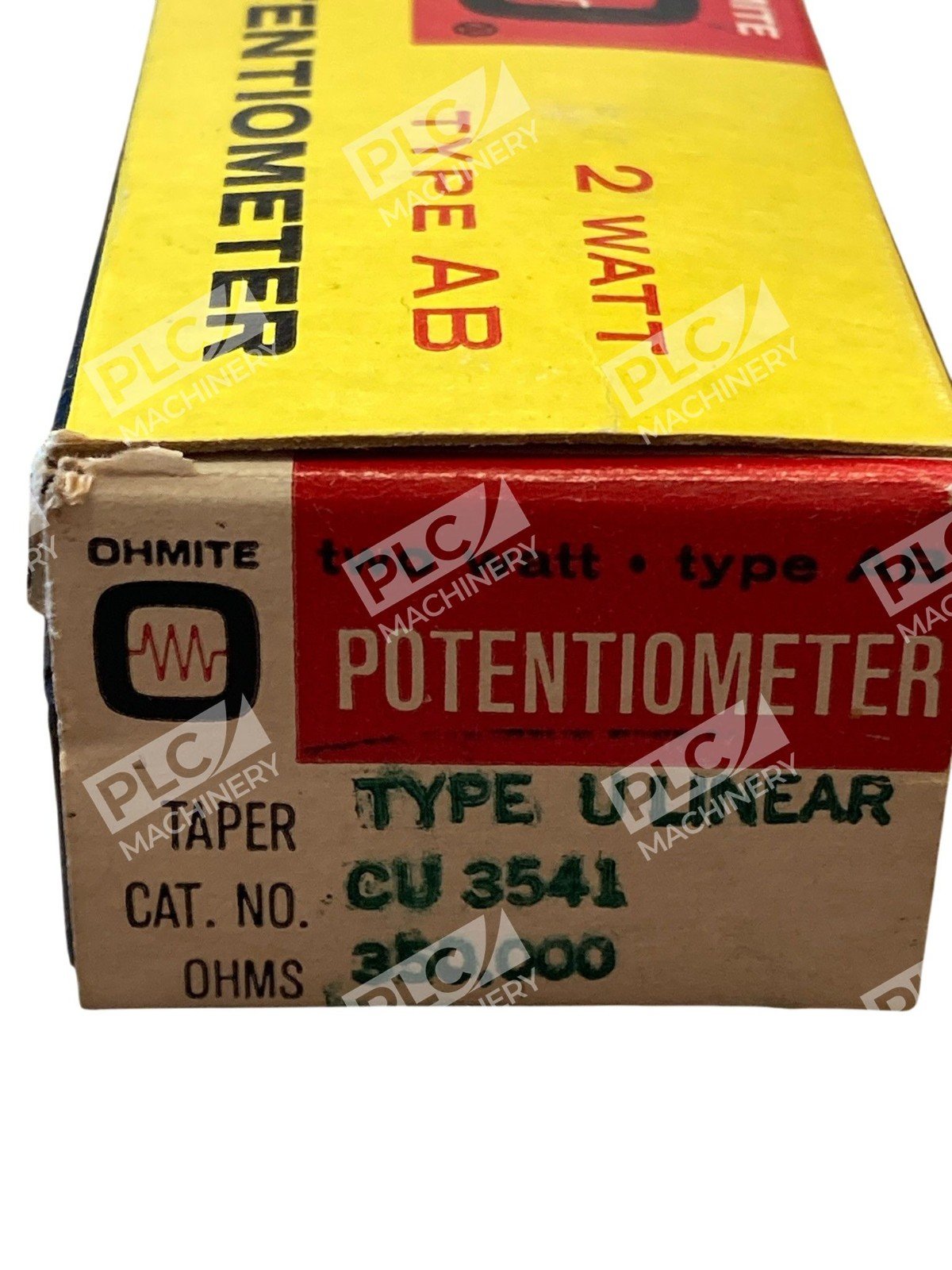

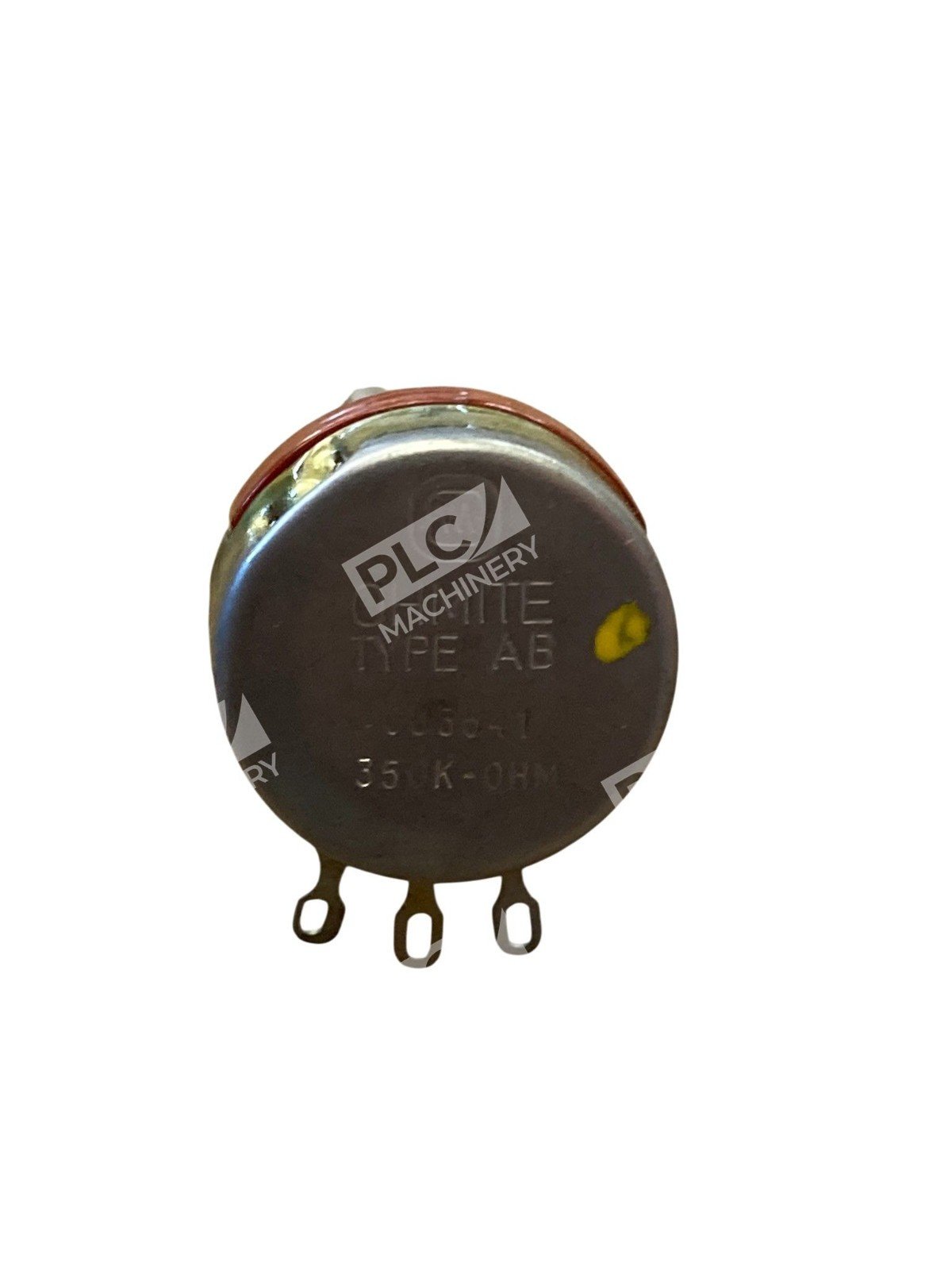

Ohmite CU-3541 350KΩ 2W Type AB U-Linear Wirewound Potentiometer Panel Mount
The Ohmite CU-3541 is a high-quality potentiometer designed for precise control in various electronic applications. With a resistance of 350,000 ohms (350KΩ) and a power rating of 2 watts, this component ensures reliable performance in demanding environments.
Key Features
- Resistance Value: 350KΩ
- Power Rating: 2 watts at 70°C, derated to 0 watts at 120°C
- Tolerance: ±10%
- Element Type: Carbon
- Taper: Linear
- Mounting Type: Panel mount
- Termination Style: Solder lug
- Rotation: 312°
- Actuator Type: Round shaft
- Actuator Diameter: 0.25 inches (6.35mm)
- Actuator Length: 2 inches (50.8mm)
- Bushing Thread: 3/8-32
Mechanical Specifications
- Body Diameter: 1.16 inches (29.4mm)
- Depth Behind Panel: 0.625 inches (15.9mm)
- Operating Torque: 1 oz/in to 6 oz/in
- Rotation Life: 25,000 cycles
Environmental Specifications
- Operating Temperature Range: -55°C to +120°C
- Insulation Resistance: 10K MegΩ (Dry), 100K MegΩ (Wet)
- Dielectric Strength: 900V RMS at sea level
The Ohmite CU-3541 potentiometer is suitable for applications requiring precise resistance adjustments, such as in audio equipment, instrumentation, and industrial controls. Its robust design and reliable performance make it a preferred choice for professionals seeking quality components.
