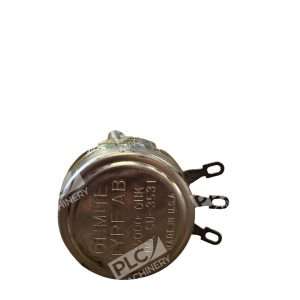

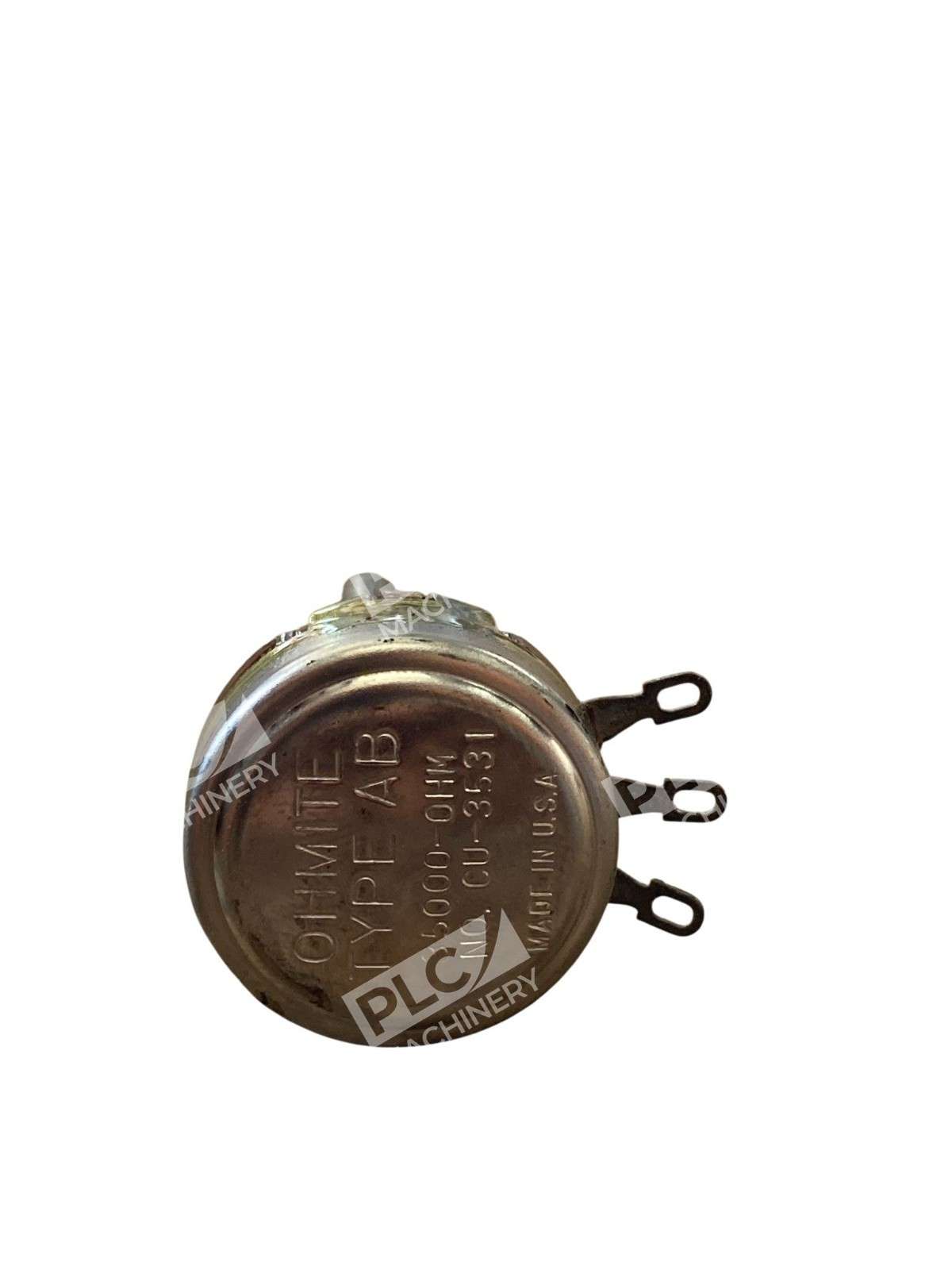

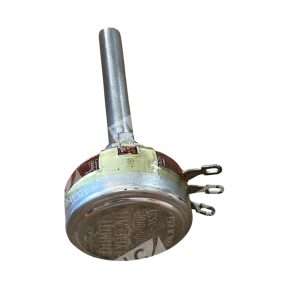

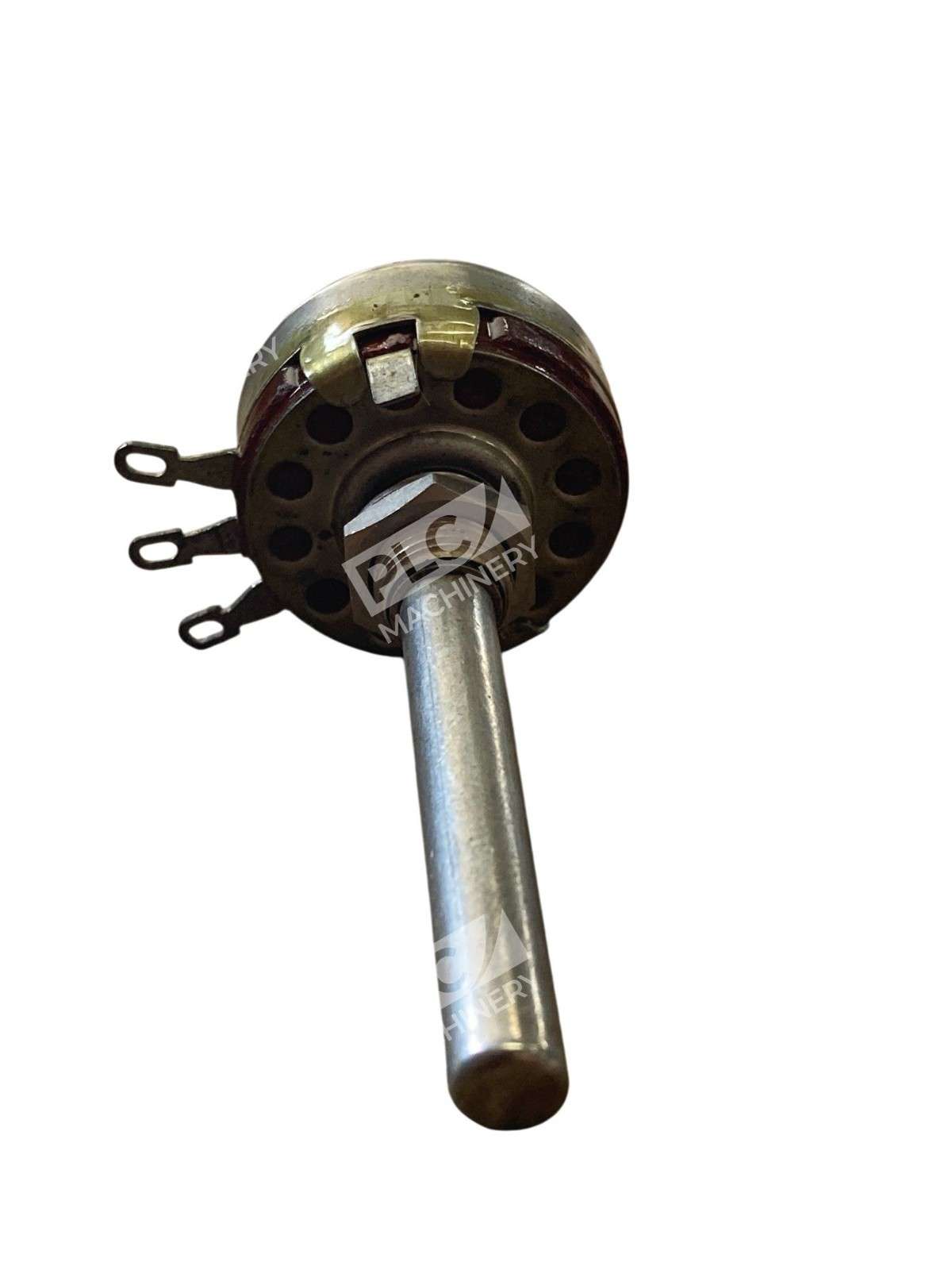

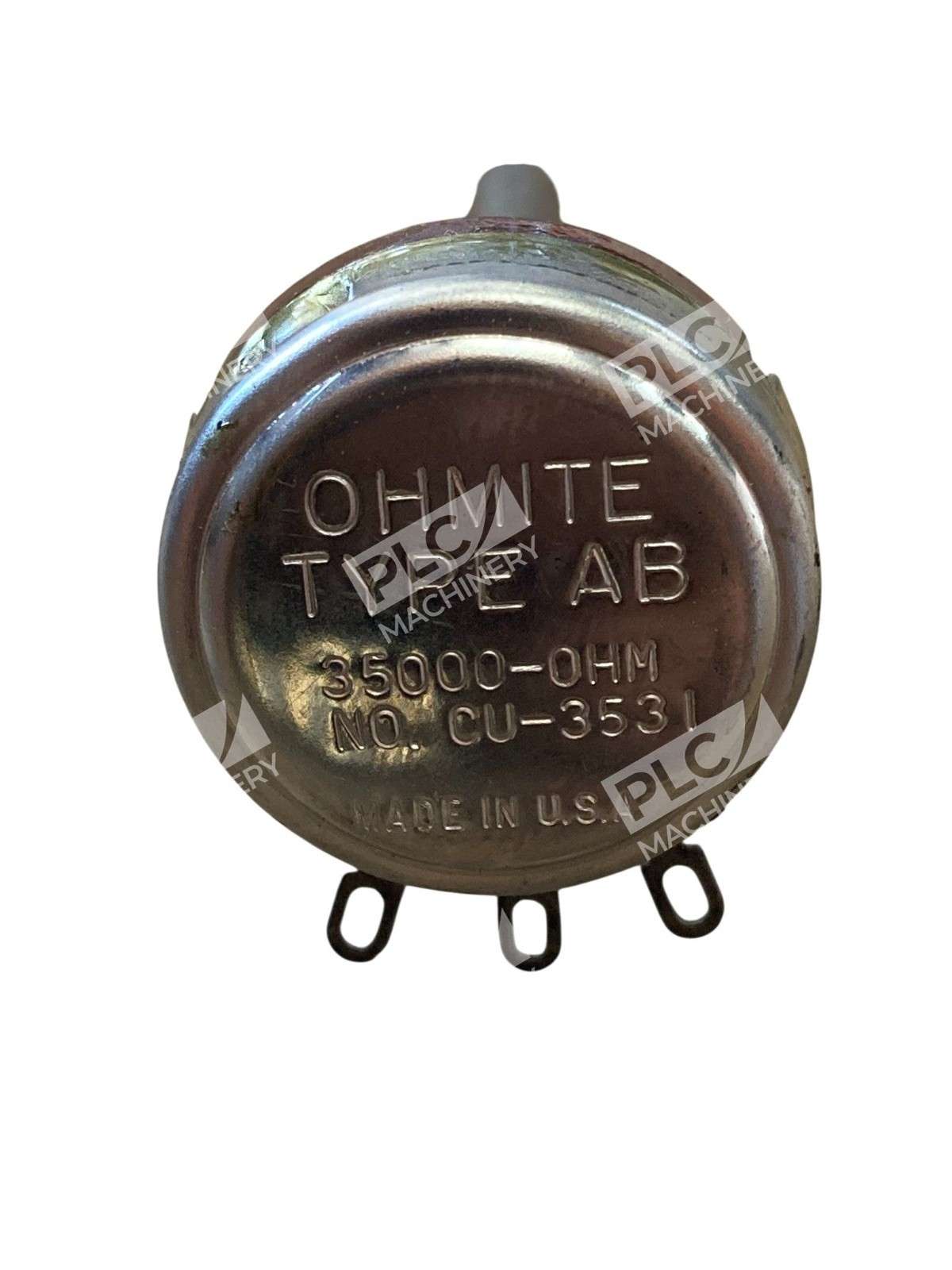

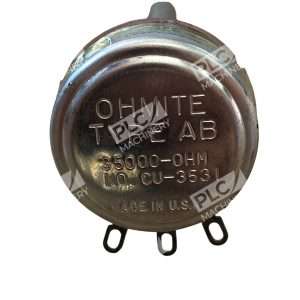

Ohmite CU-3531 Type AB Potentiometer 35K Ohm 2W U-Linear Wirewound Panel Mount
The Ohmite CU-3531 Type AB Potentiometer is a high-quality, panel-mount variable resistor designed for precise control in electronic circuits. With a resistance of 35,000 ohms and a power rating of 2 watts, this potentiometer is suitable for various applications requiring reliable performance.
Key Features
- Resistance: 35K Ohms
- Power Rating: 2 Watts
- Taper: Linear
- Mounting Type: Panel Mount
- Termination Style: Solder Lug
- Actuator Type: Round Shaft
- Actuator Diameter: 0.250 inches (6.35mm)
- Actuator Length: 2.000 inches (50.80mm)
- Bushing Thread: 3/8-32
- Rotation: 312°
- Resistive Material: Carbon
- Tolerance: ±10%
Design and Construction

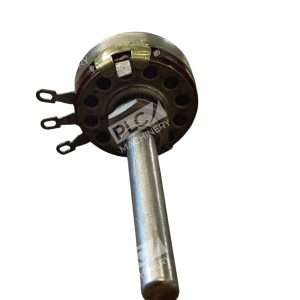

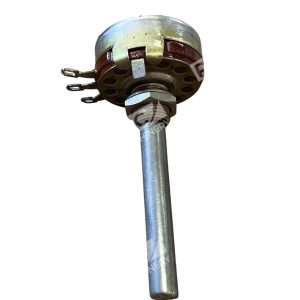

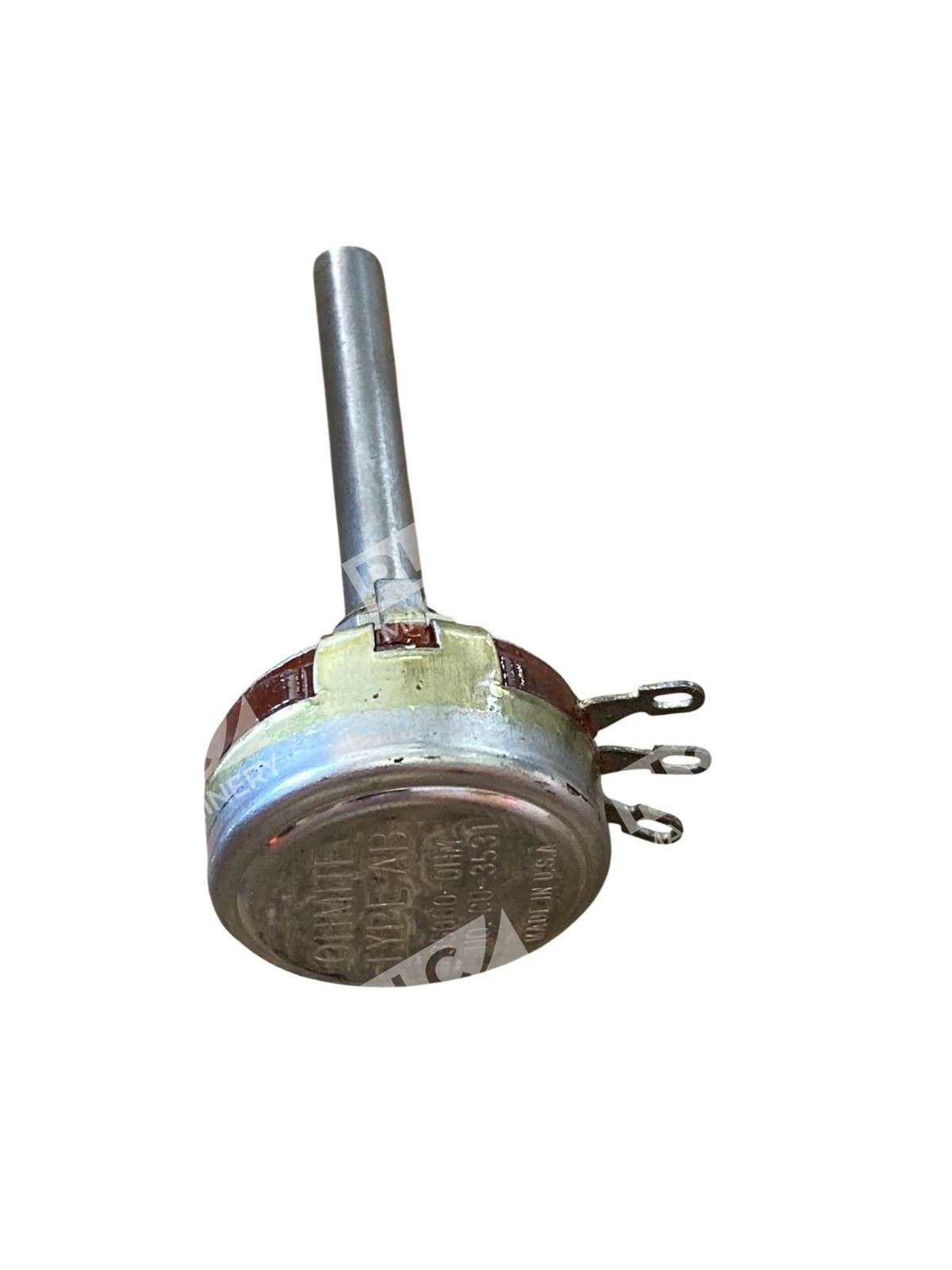

The CU-3531 features a robust design with a round shaft actuator measuring 0.250 inches in diameter and 2.000 inches in length, providing smooth and precise adjustments. The potentiometer’s carbon resistive element ensures consistent performance and durability. Its panel-mount configuration, combined with solder lug terminations, facilitates easy installation and secure connections in various electronic assemblies.
Applications
This potentiometer is ideal for applications such as volume control, signal attenuation, and other scenarios where precise resistance adjustment is required. Its linear taper ensures a uniform change in resistance, making it suitable for tasks demanding accurate and predictable control.
Dimensions
- Body Diameter: 1.157 inches (29.40mm)
- Body Height: 0.626 inches (15.90mm)
The Ohmite CU-3531 Type AB Potentiometer combines reliability, precision, and ease of use, making it a valuable component for engineers and designers seeking dependable variable resistance solutions.
