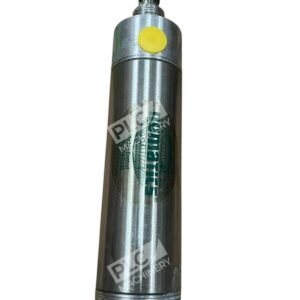

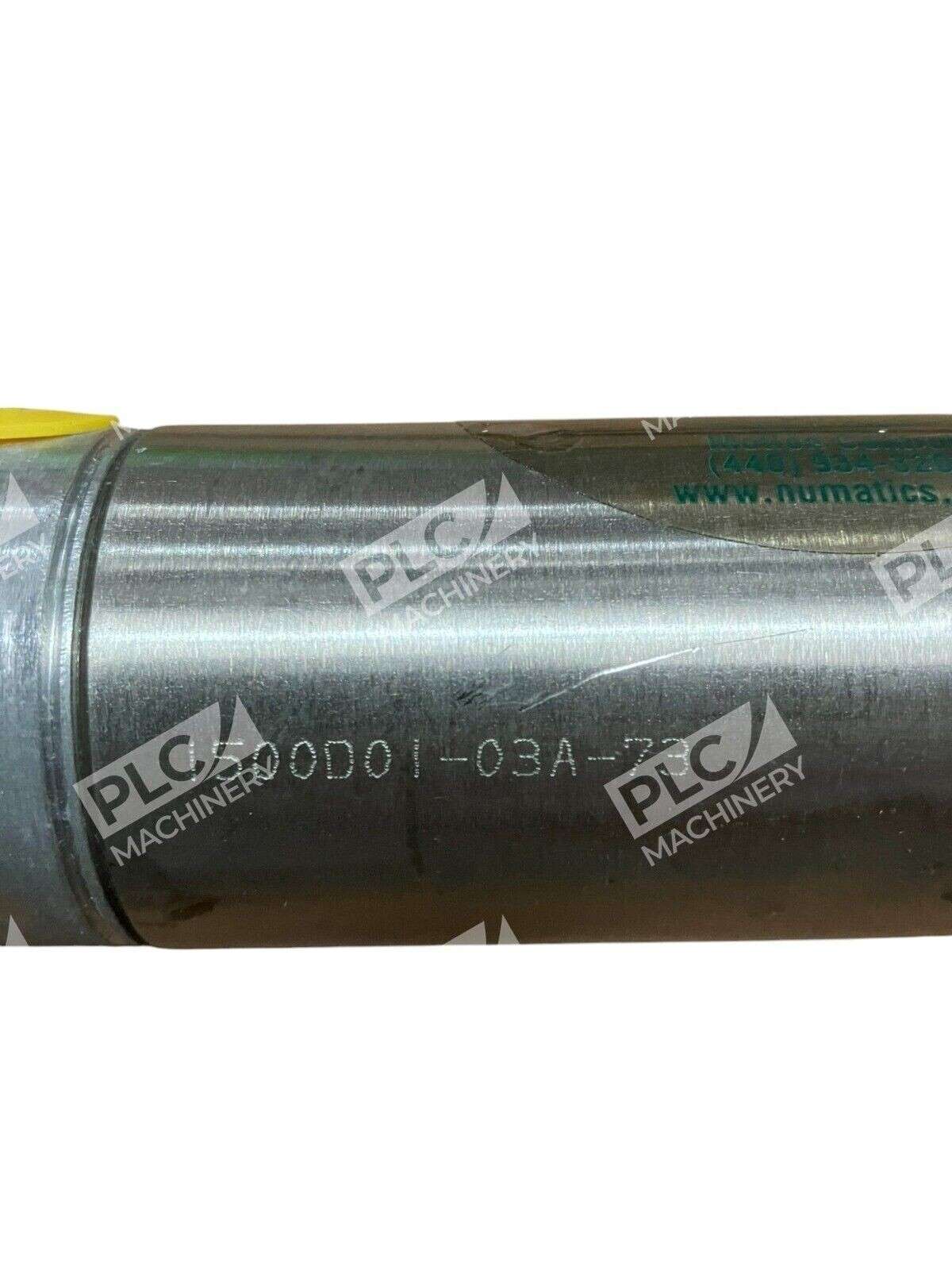

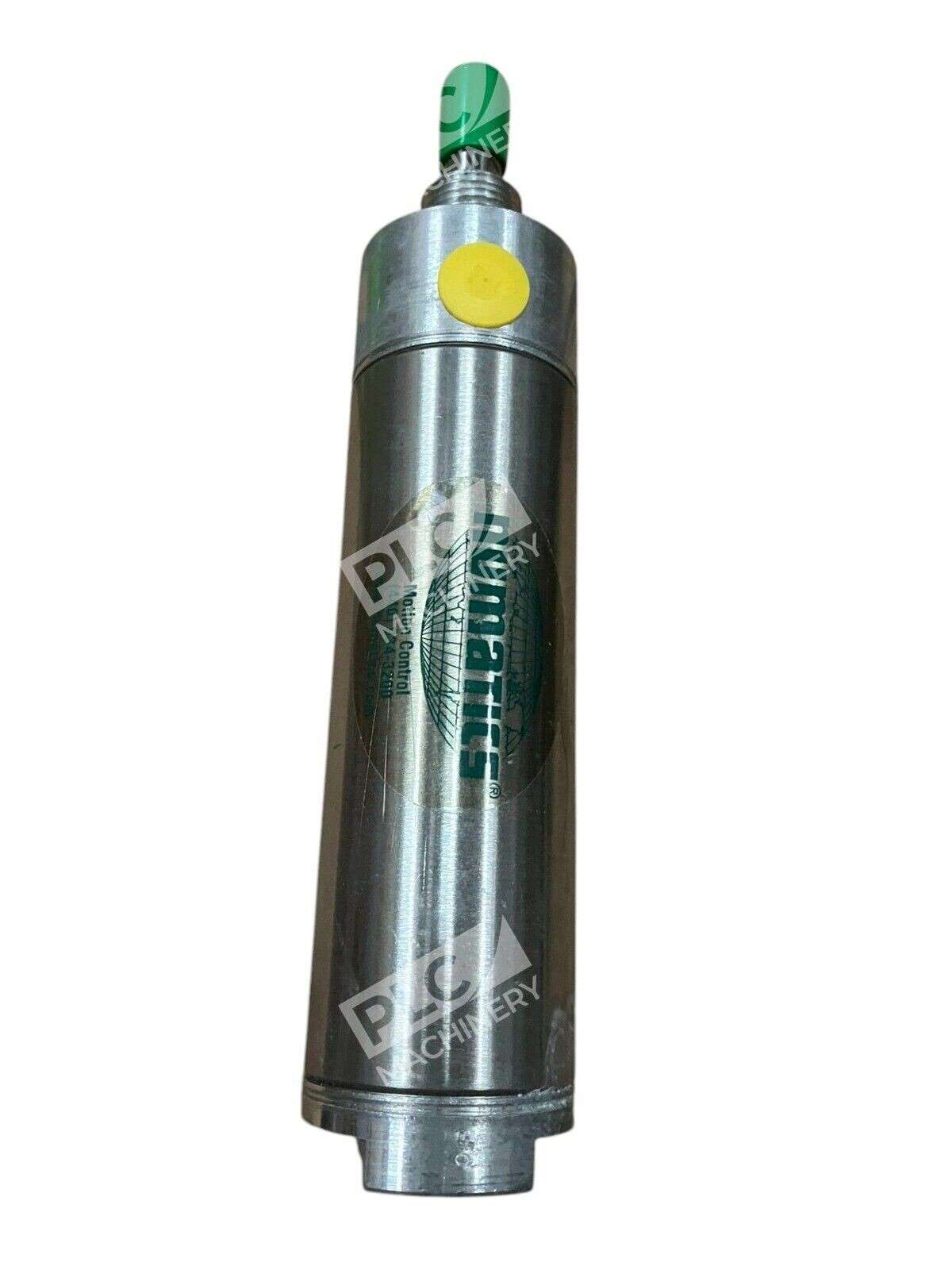

Numatics 1500D01-03A Pneumatic Air Cylinder
The Numatics 1500D01-03A is a robust and efficient pneumatic air cylinder, designed to meet the demands of various industrial applications. This double-acting cylinder offers precise linear motion control, making it an ideal choice for automation systems requiring reliable performance.
Key Features
- Bore Size: 1.5 inches (38.1 mm)
- Stroke Length: 3 inches (76.2 mm)
- Operation: Double-acting for controlled extension and retraction
- Mounting Style: Nose mount for straightforward installation
- Construction: Round body design with a 304 stainless steel cylinder tube and 303 stainless steel piston rod
- Operating Pressure: Up to 250 PSI (17.24 bar)
- Operating Temperature Range: -10°F to +165°F (-23°C to +74°C)
- Port Size: 1/8″ NPTF threaded pneumatic ports
- Rod End Thread: External Thread 7/16-20 UNF
Construction and Materials
The cylinder features a 304 stainless steel body and a 303 stainless steel piston rod, ensuring durability and resistance to corrosion. The aluminum piston contributes to the lightweight design without compromising strength. Standard Buna-N seals provide reliable sealing capabilities, enhancing the cylinder’s longevity and performance.
Performance and Applications
With a maximum operating pressure of 250 PSI, the Numatics 1500D01-03A is suitable for a wide range of pneumatic systems. Its double-acting operation allows for precise control over both extension and retraction movements, making it ideal for applications such as material handling, packaging, and assembly lines.
Optional Features
For enhanced functionality, optional features are available, including magnetic pistons for position sensing, adjustable cushions for controlled deceleration, and rod wipers for improved contamination resistance. These options allow customization to meet specific application requirements.
In summary, the Numatics 1500D01-03A Pneumatic Air Cylinder combines high-quality materials with a versatile design, offering reliable performance for various industrial automation needs.
