Norgren V415A11D-C313A

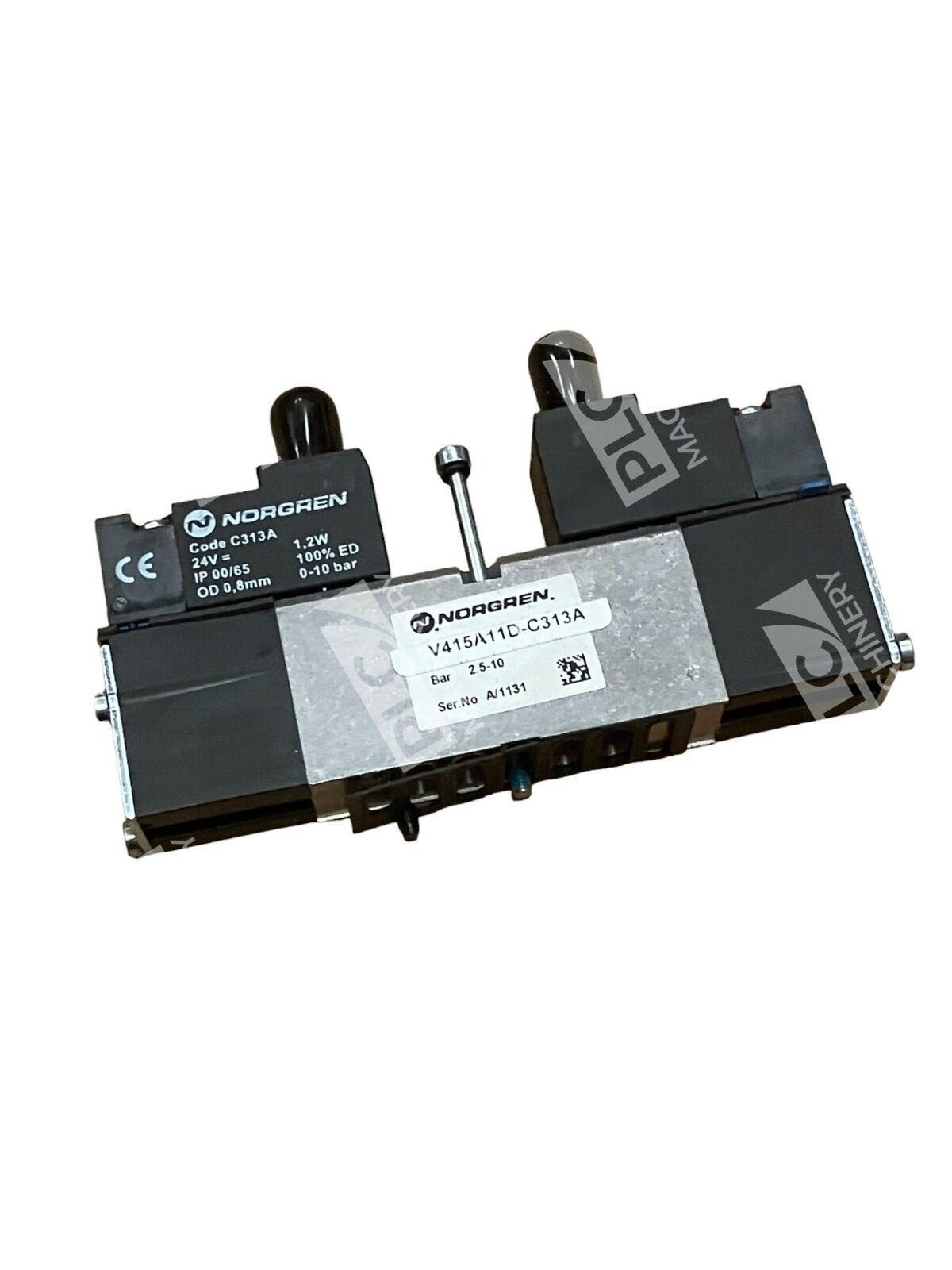

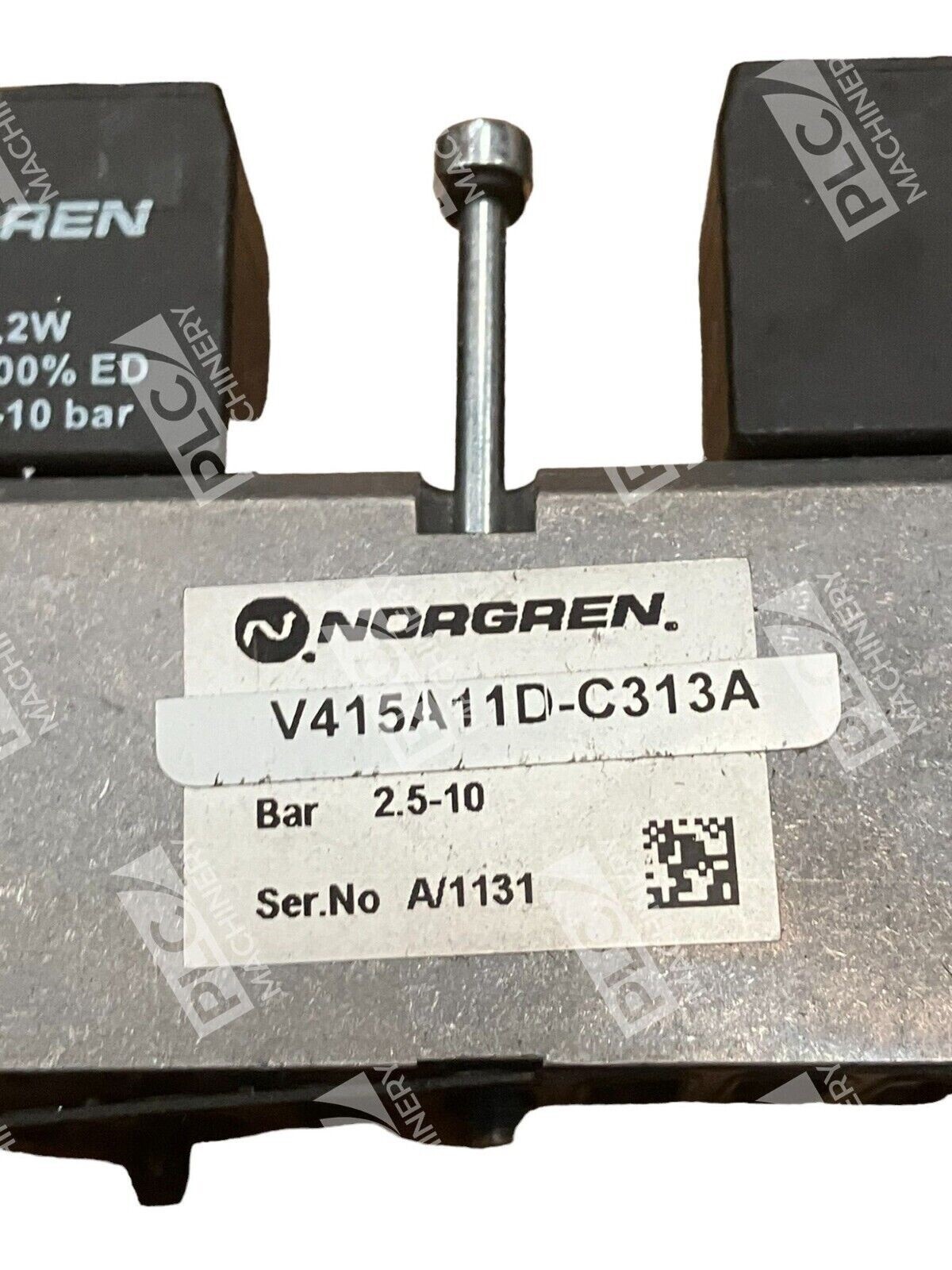

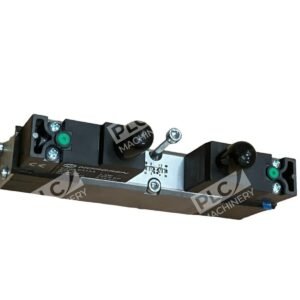

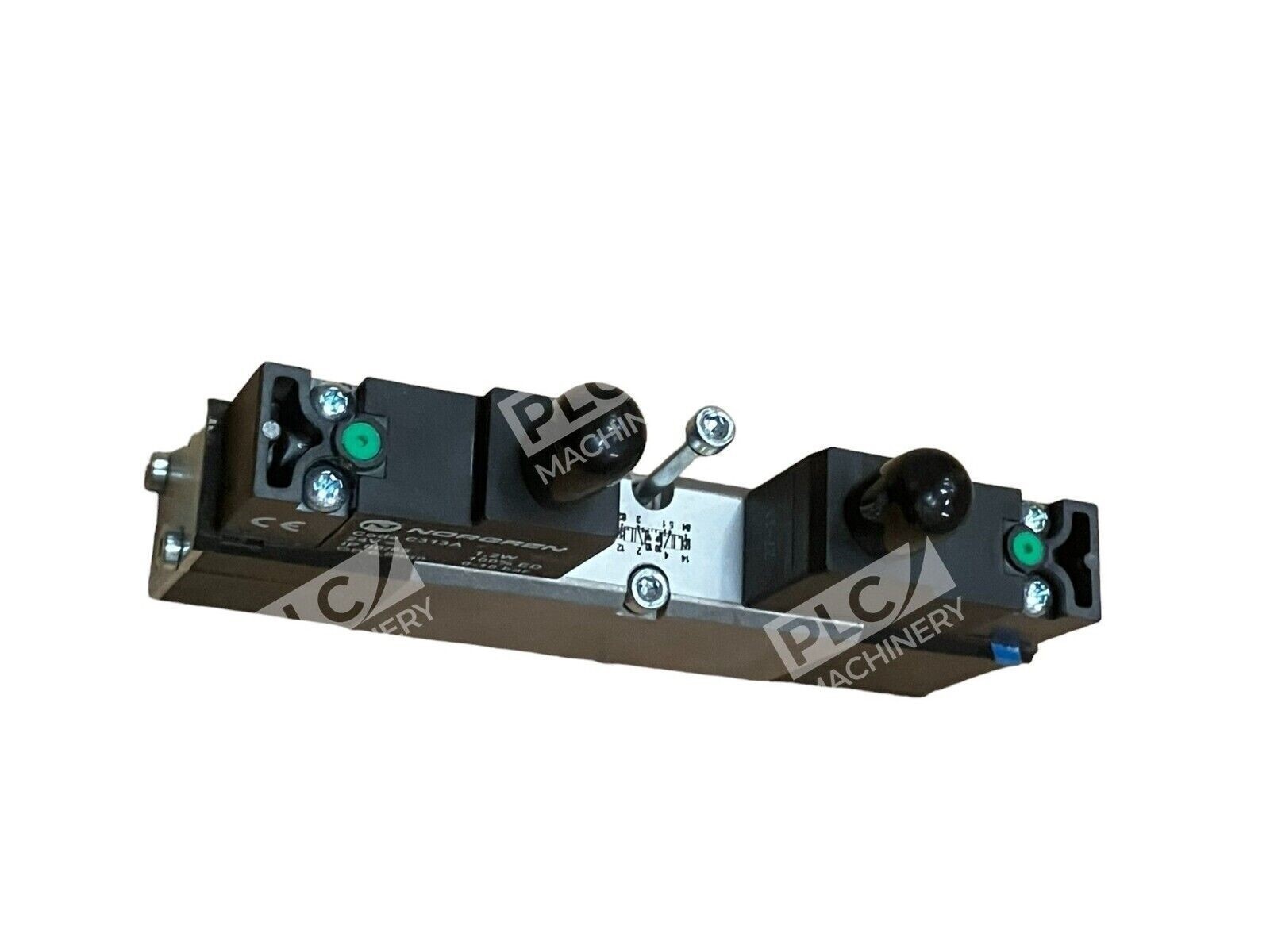

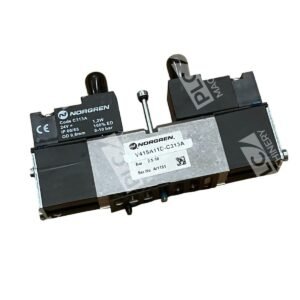

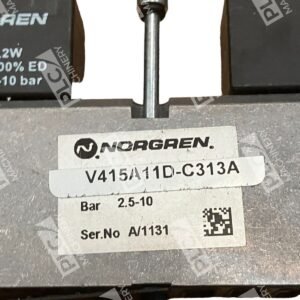

Norgren V415A11D-C313A Solenoid Valve

The Norgren V415A11D-C313A is a high-performance, compact solenoid valve designed for efficient control in pneumatic systems. Its robust construction and flexible sub-base system make it suitable for various industrial applications.

Key Features

• Operation: 2×3/2 way function
• Actuation: Solenoid/Spring
• Function: Normally Closed (NC)
• Voltage: 24V DC
• Flow Rate: 610 liters per minute
• Operating Pressure: 2.5 to 10 bar
• Operating Temperature: -15°C to 50°C
• Pilot: Internal
• Manual Override: Push only
• Protection Class: IP65; NEMA 4
• Standard Compliance: ISO 15407-1; VDMA 24 563
• Spool Technology: Softseal spool

Construction Materials

• Body: Aluminium alloy; Die-cast aluminium
• Nuts and Screws: Zinc-plated steel
• Seals: HNBR
• Spool and Sleeve: Anodised aluminium with special coating

Accessories

Compatible accessories include:

• Electrical Plugs: 15mm plugs according to DIN 43650 Form C (Item: V10027-D00)

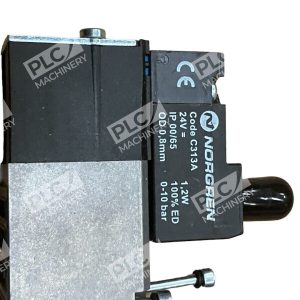

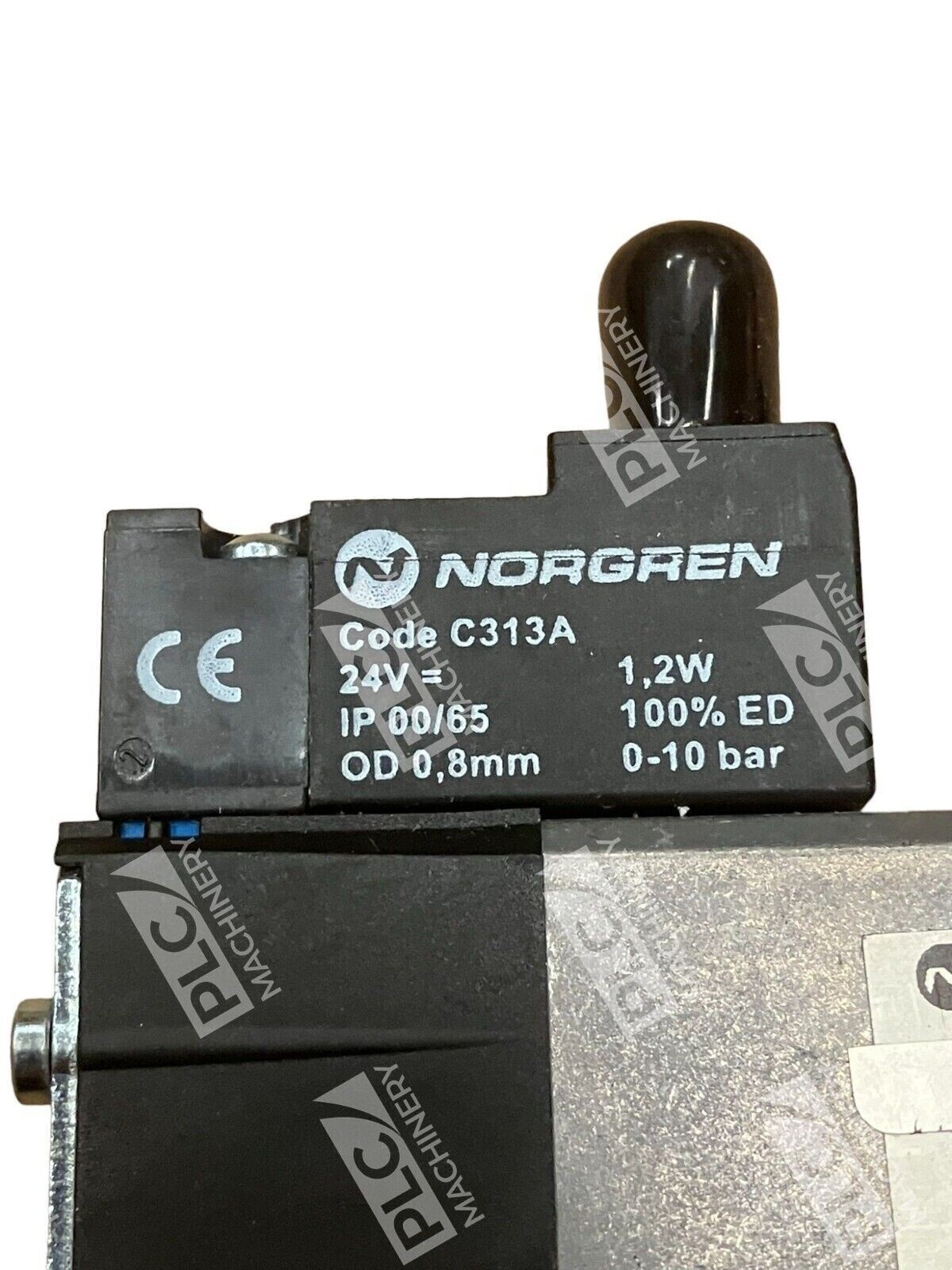

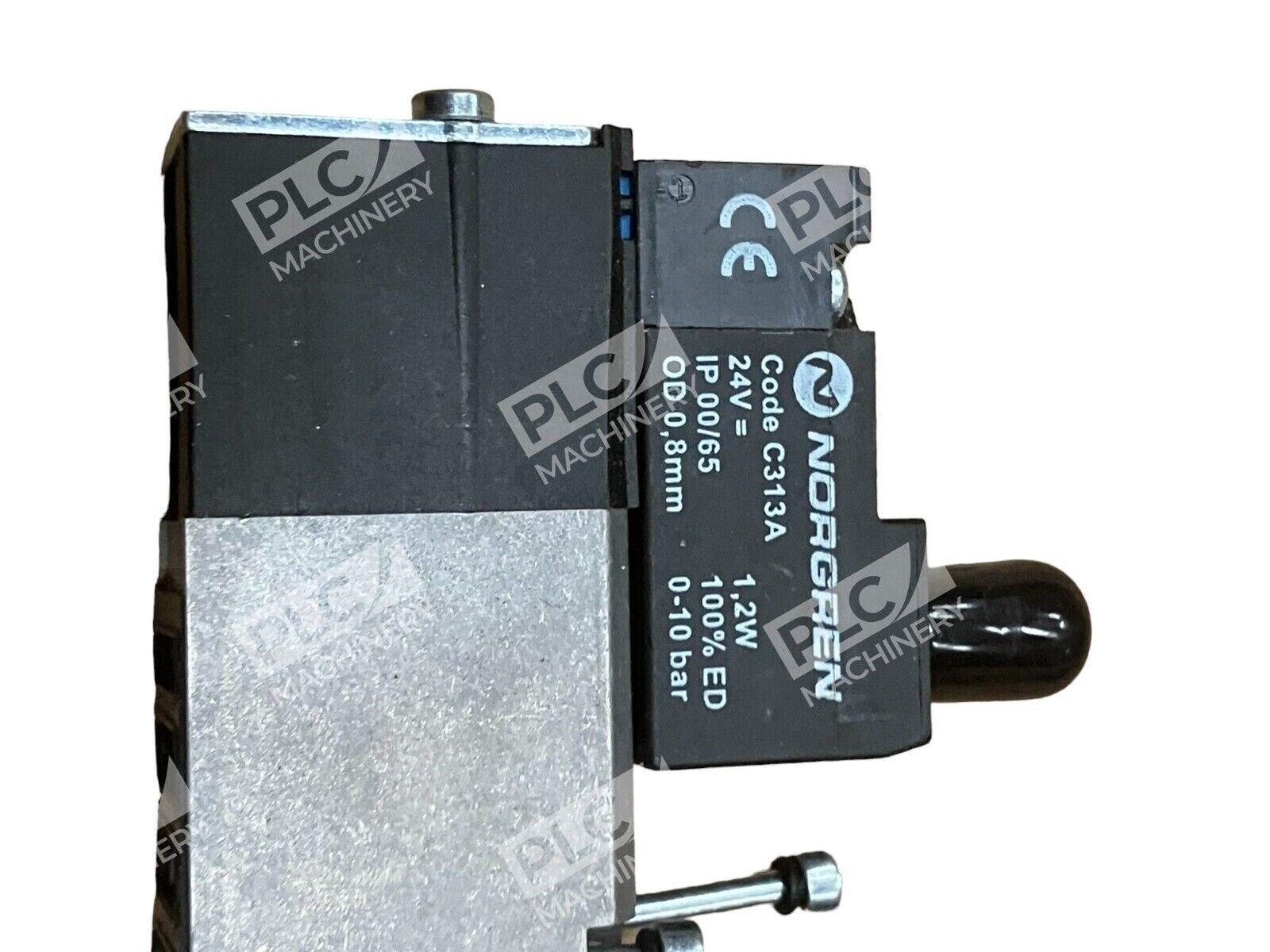

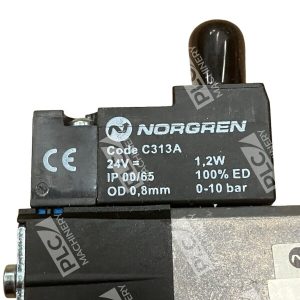

• Solenoid Coils: Mini ISO Valve – Solenoid (Item: VZC7L2C1-C313A)

The Norgren V415A11D-C313A solenoid valve offers a reliable and efficient solution for controlling compressed air in various pneumatic applications, ensuring optimal performance and durability.
