Norgren Excelon Pneumatic Filter F72G-3AS-001

Norgren Excelon Pneumatic Filter F72G-3AS-001

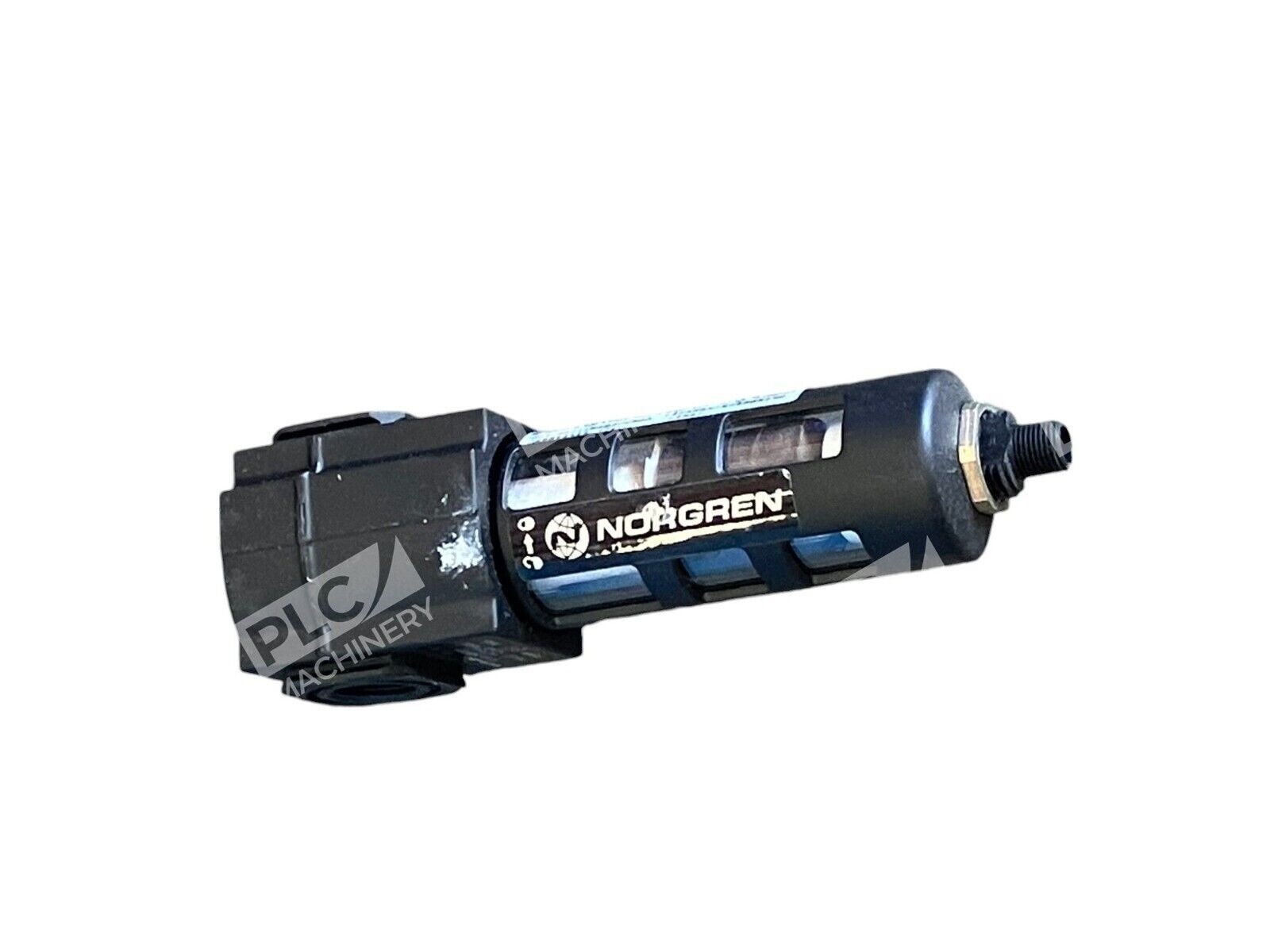

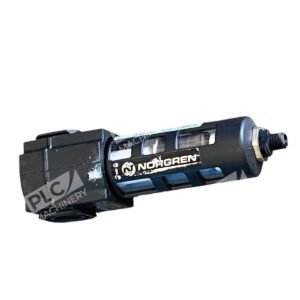

The Norgren Excelon F72G-3AS-001 is a general-purpose pneumatic filter designed to efficiently remove water and particulate contaminants from compressed air systems. This filter is part of Norgren’s Excelon® modular compressed air preparation supply system, allowing for both in-line and modular installations.

Key Features

• Port Size: 3/8″ NPT

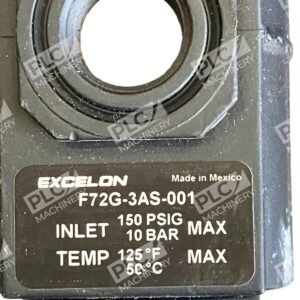

• Maximum Operating Pressure: 150 PSIG (10 bar)
• Maximum Operating Temperature: 125°F (50°C)
• Filter Element: 40 µm sintered polypropylene for effective particle removal
• Bowl Material: Polycarbonate with metal guard for enhanced durability
• Drain Type: Manual drain for easy maintenance

Design and Construction

The F72G-3AS-001 features a quick-release bayonet bowl, facilitating swift and straightforward maintenance. The polycarbonate bowl is equipped with a metal guard, providing additional protection in demanding environments. The filter’s body is constructed from zinc, ensuring robustness and longevity.

Modular Integration

As part of the Excelon® series, this filter can be seamlessly integrated with other components such as regulators, oilers, smooth start/exhaust valves, safety lockout valves, and pipe adapters. Utilizing Norgren’s Quickclamp® and wall bracket accessories, a comprehensive compressed air supply system can be assembled and mounted efficiently.

Applications

The F72G-3AS-001 is suitable for a wide range of pneumatic applications, providing high-efficiency water and particle removal to protect downstream equipment and ensure optimal performance of compressed air systems.
