Norgren 17BAR 80C 240V AC/DC 5A 2-10BAR Pressure Switch 4246-01

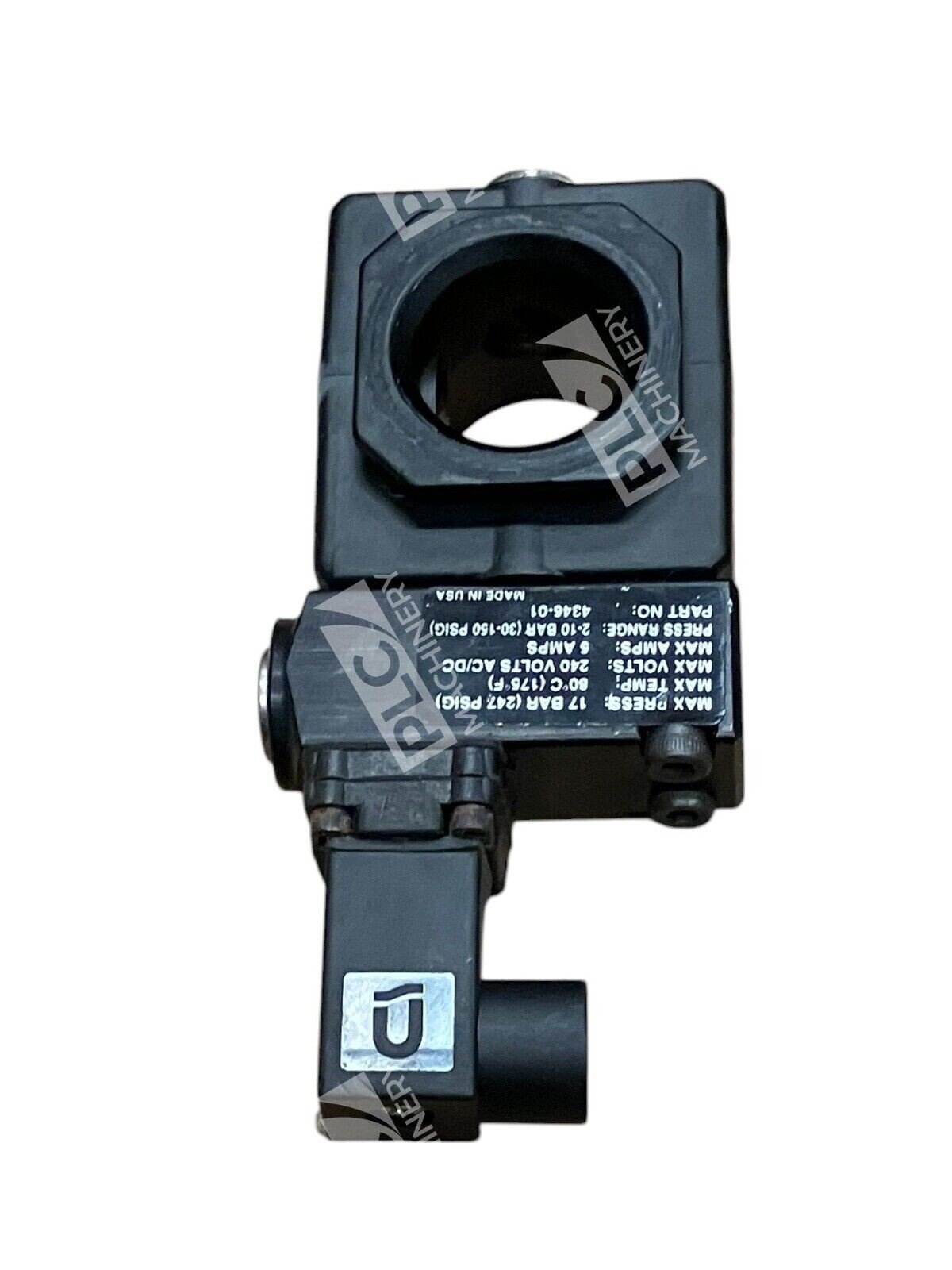

Norgren 4246-01 Pressure Switch

The Norgren 4246-01 Pressure Switch is a compact and reliable component designed for monitoring air pressure in industrial compressed air systems. It provides an electrical output when the pressure deviates from a preset adjustable range, ensuring optimal system performance.

Key Features

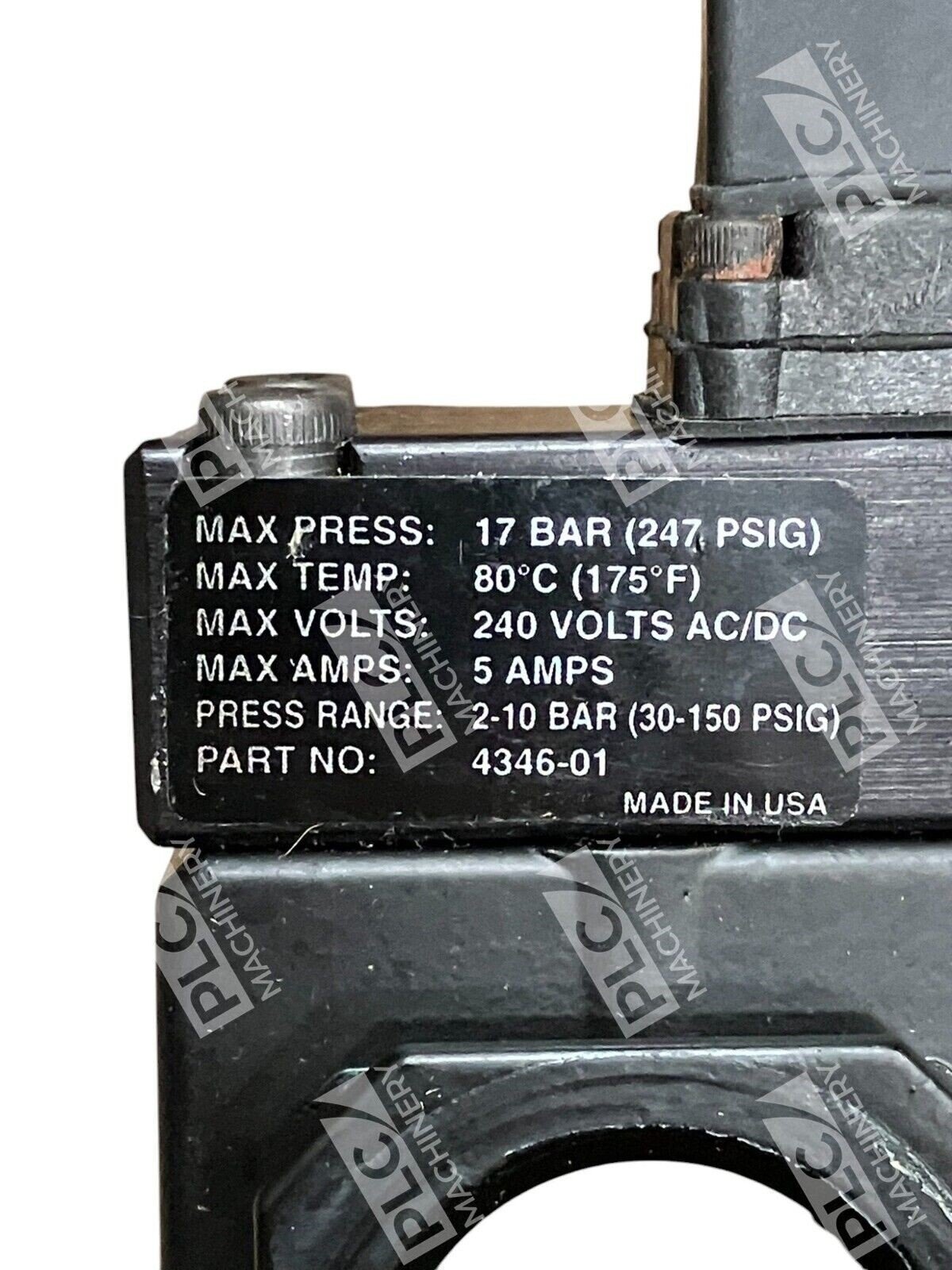

• Adjustable Pressure Range: 2 to 10 bar (30 to 150 psig), factory preset at 6.2 bar (90 psig).
• Maximum Pressure: 17 bar (250 psig).
• Operating Temperature: -10°C to +65°C (+14°F to +150°F).
• Electrical Specifications: Supports up to 240V AC/DC with a maximum current of 5 Amps.
• Design: Compact and suitable for integration with Excelon® 72 Series components.

Installation and Adjustment

The 4246-01 is designed for easy installation between two Quickclamps, providing three additional 1/4″ auxiliary outlets. To adjust the switching pressure:

1. Apply the desired air pressure to the switch.

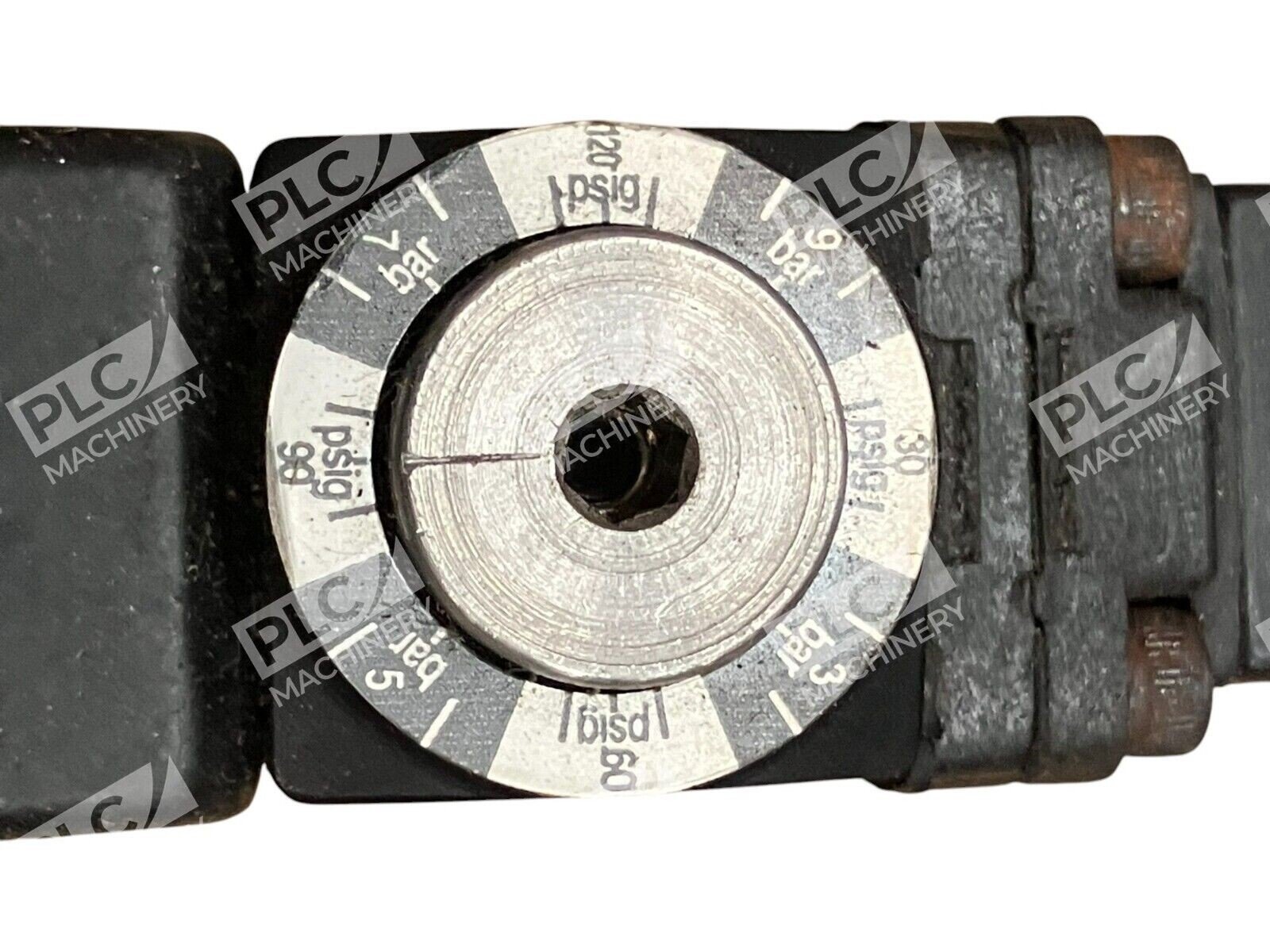

2. Turn the adjusting screw with a 3 mm hex wrench until the switch contacts close or open, depending on the electrical connections. One complete revolution of the adjusting screw covers the full adjustment range.

Applications

Ideal for industrial compressed air systems, the Norgren 4246-01 Pressure Switch ensures system safety and efficiency by monitoring and controlling air pressure within specified limits.
