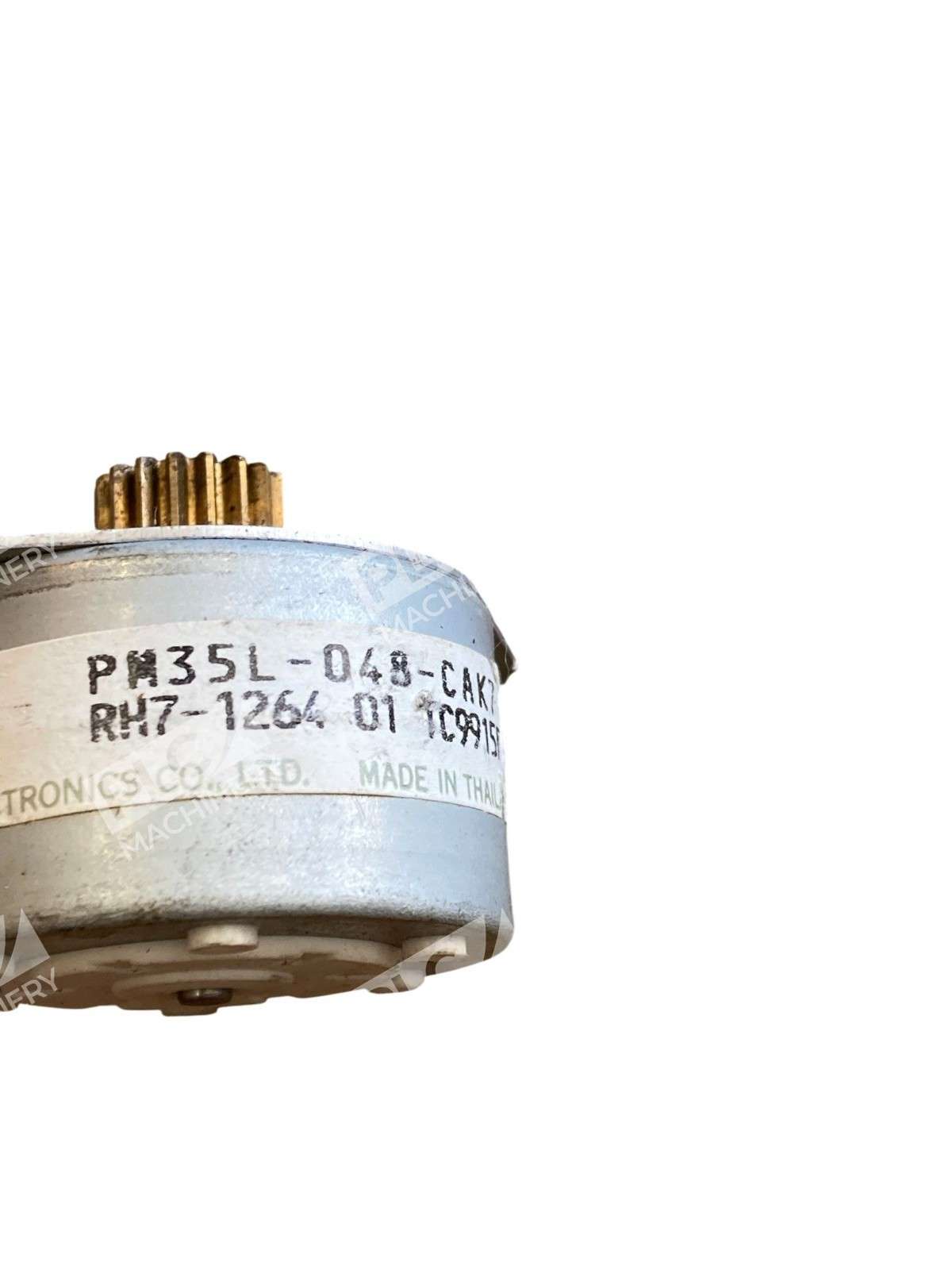

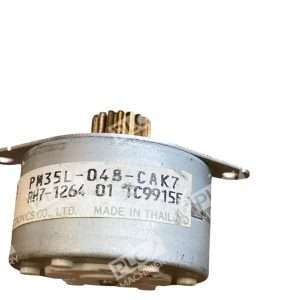

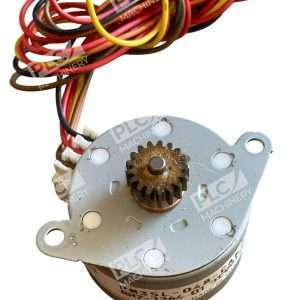

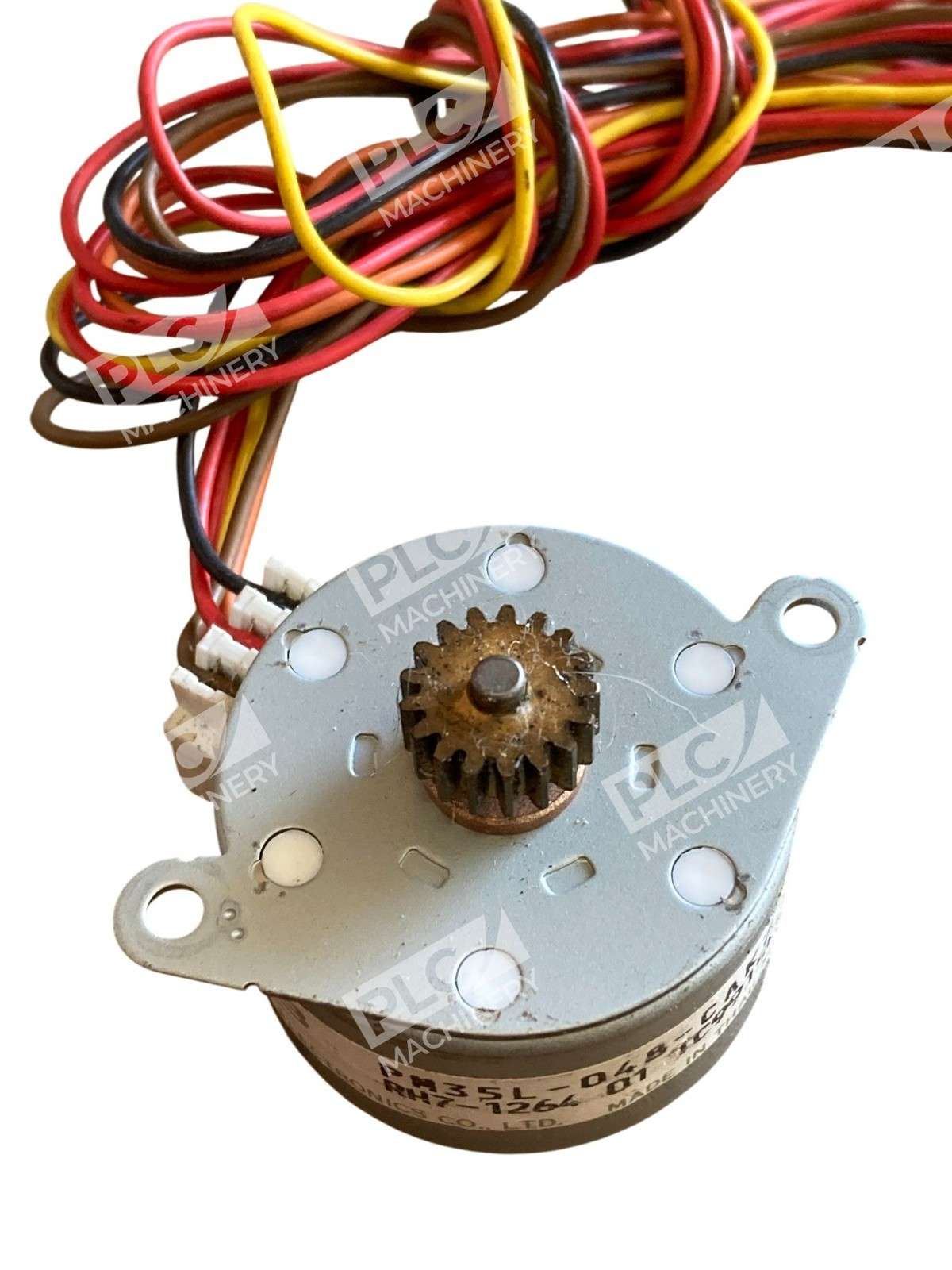

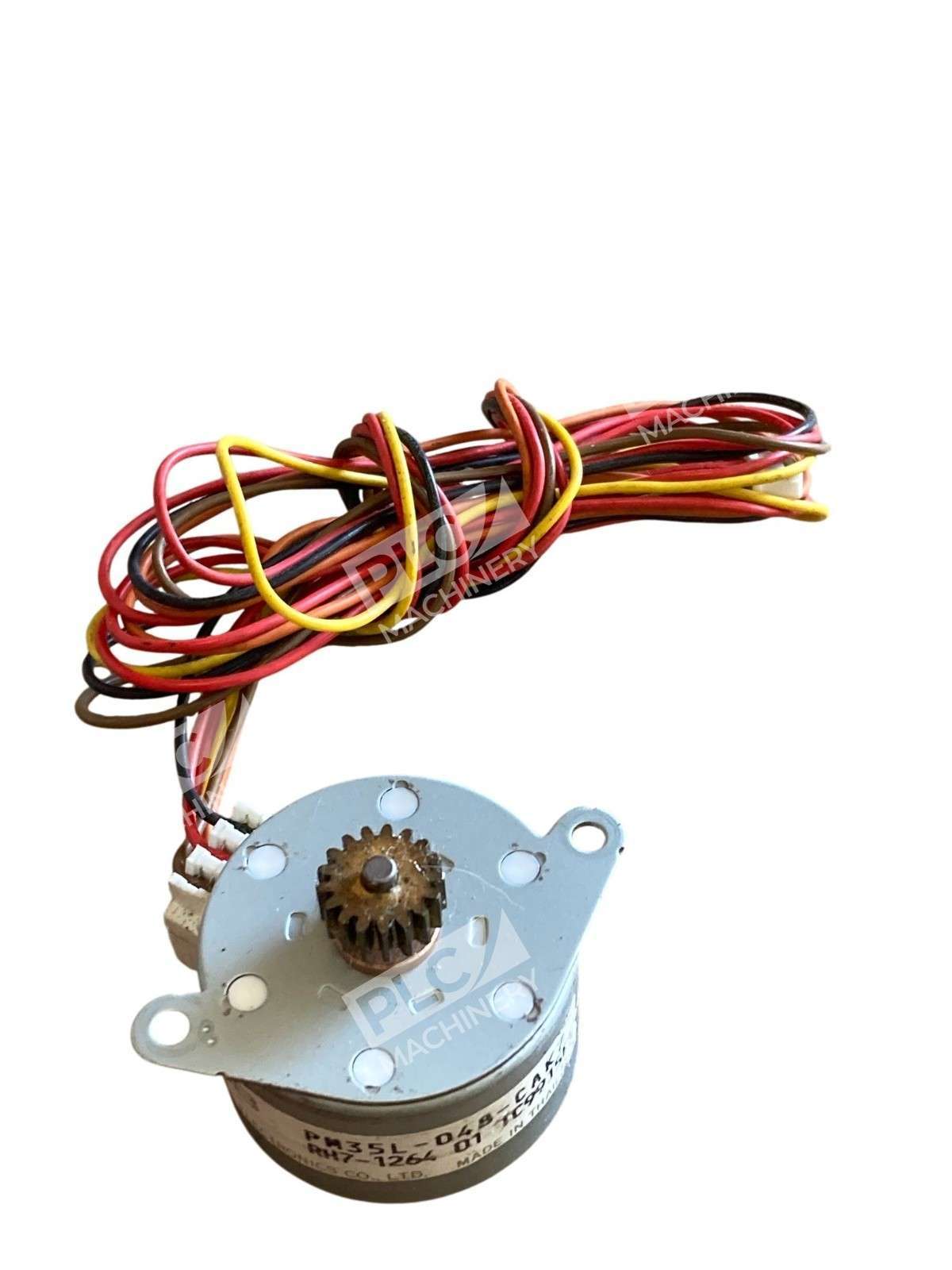

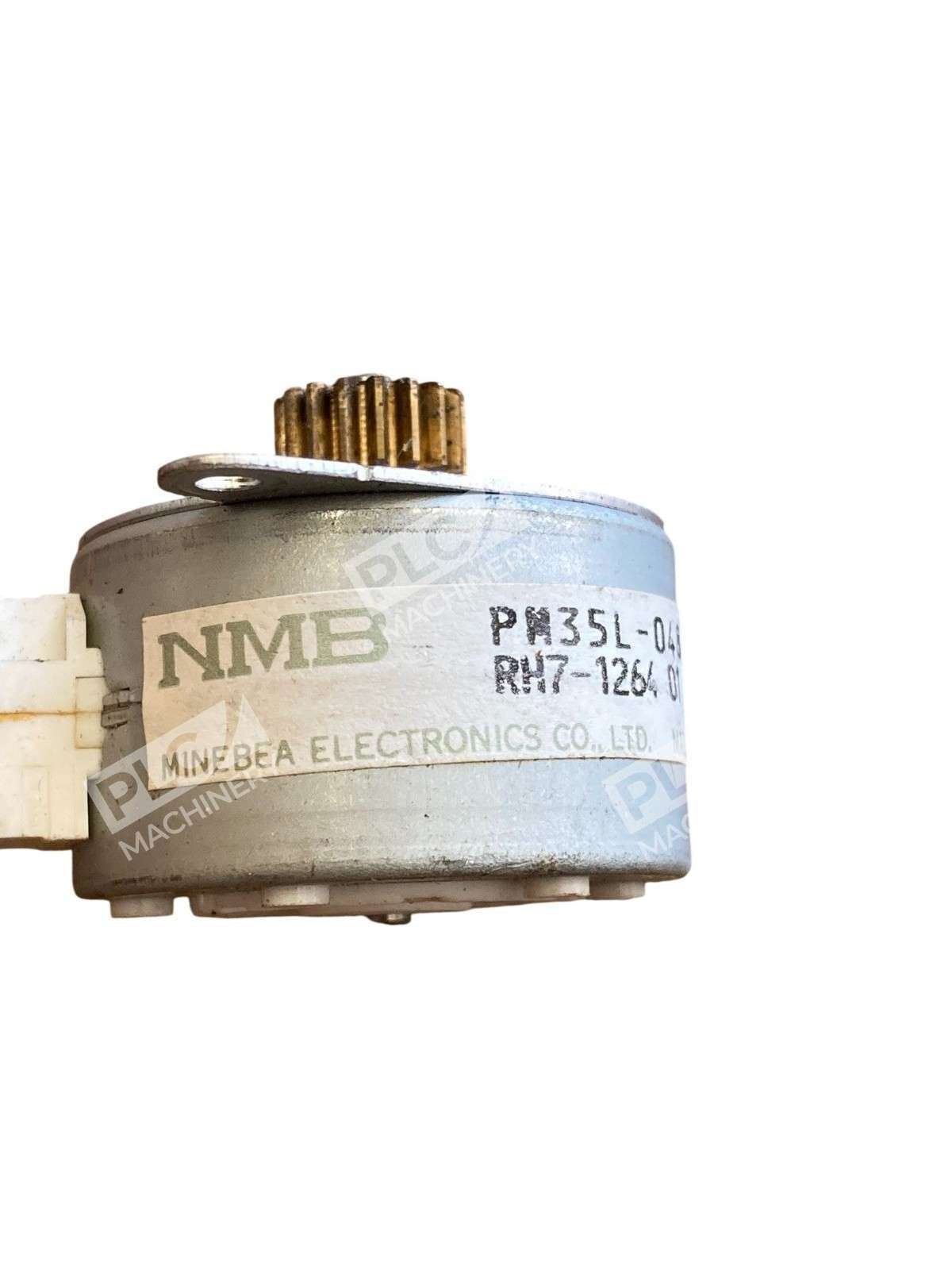

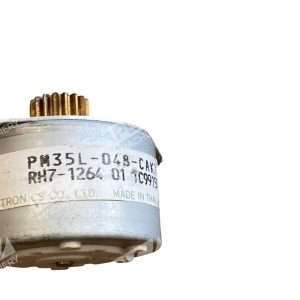

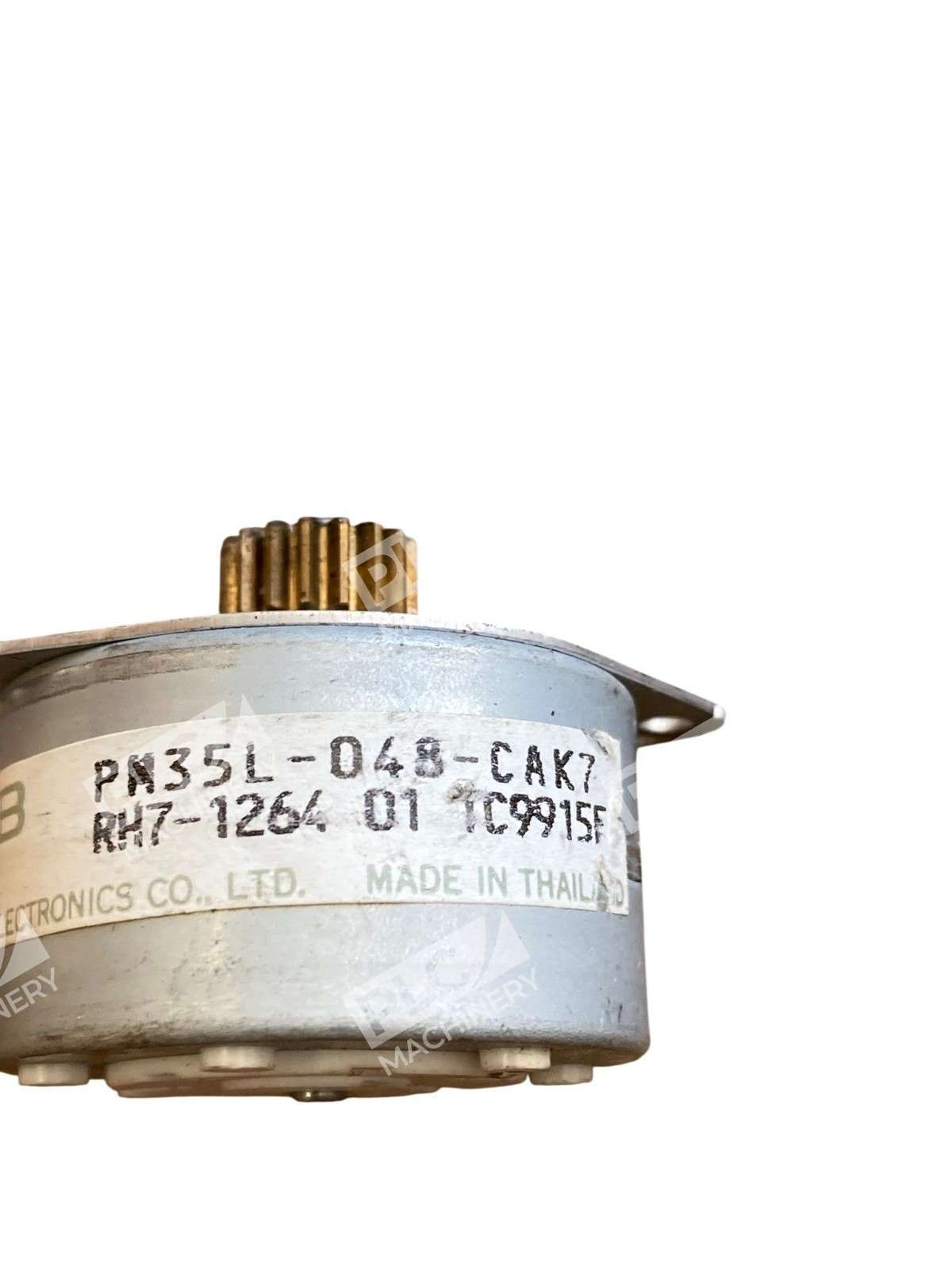

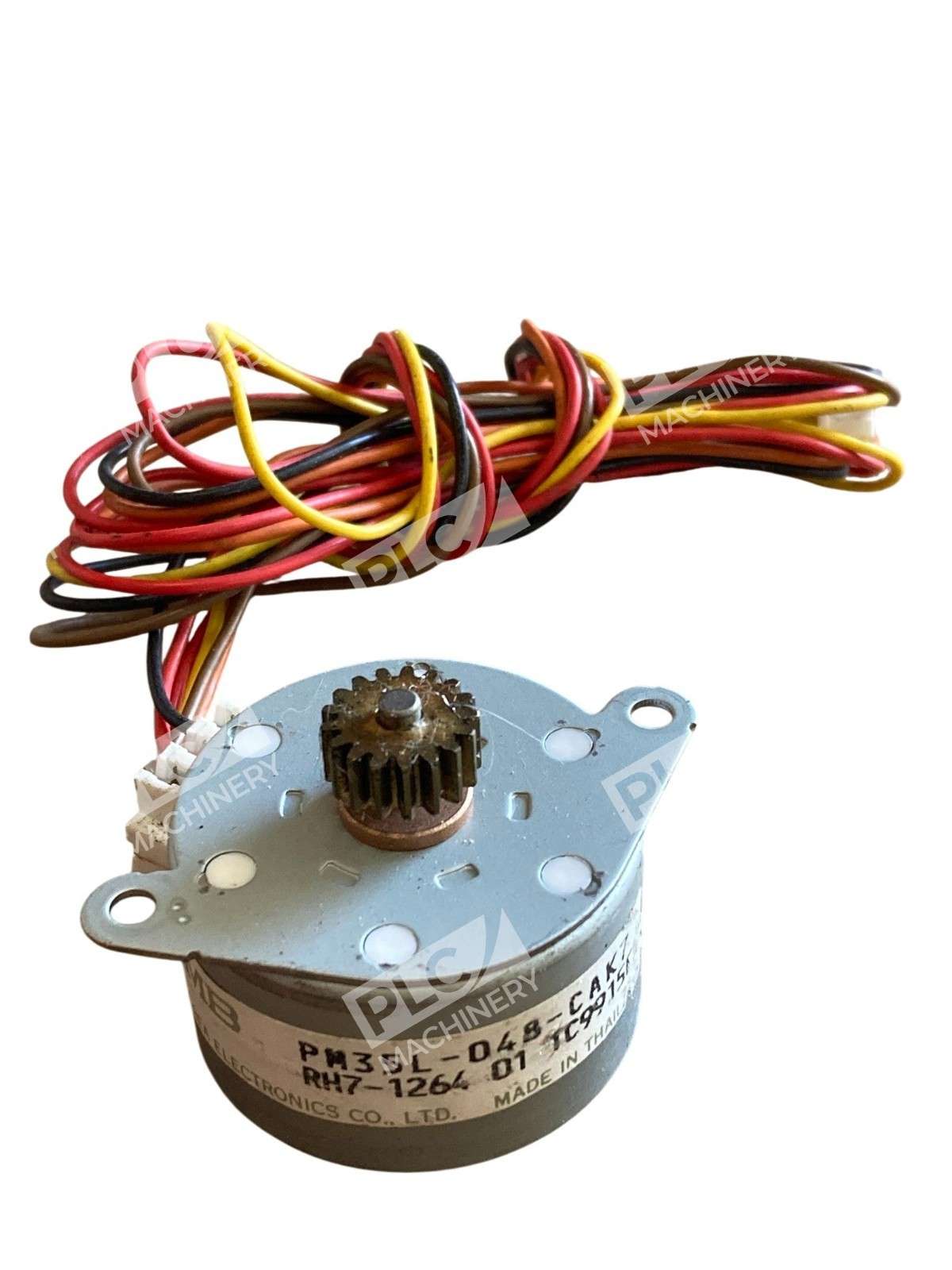

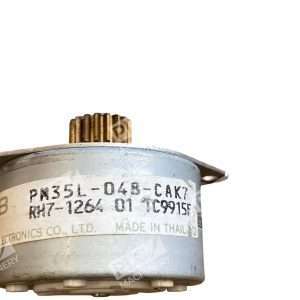

The NMB PM35L-048-CAK7 is a precision-engineered permanent magnet stepper motor, designed to deliver reliable and accurate performance across various applications.
Key Features
- Step Angle: 7.5 degrees per step, providing precise control over rotational movements.
- Voltage Rating: Operates efficiently at 24V DC, ensuring compatibility with standard power supplies.
- Current Rating: 600mA per phase, balancing power consumption with performance.
- Holding Torque: Delivers a holding torque of 80 mN·m, suitable for applications requiring stable positioning.
- Coil Type: Bipolar configuration, enhancing torque output and motor efficiency.
- Construction: Features a bonded Nd-Fe-B magnet, contributing to its robust and durable design.
Applications
The PM35L-048-CAK7 stepper motor is ideal for a range of applications, including:
- Office automation equipment such as printers and scanners.
- Industrial devices like flow control valves.
- Automotive instruments, including meters and optical axis control devices.
- Home automation appliances, such as sewing machines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Step Angle | 7.5° |
| Voltage Rating | 24V DC |
| Current Rating | 600mA per phase |
| Holding Torque | 80 mN·m |
| Coil Type | Bipolar |
| Magnet Material | Bonded Nd-Fe-B |
| Frame Size | 35mm diameter |
| Length | 22.2mm |
| Shaft Diameter | 3mm |
| Shaft Length | 10mm |
The NMB PM35L-048-CAK7 stepper motor combines precision, reliability, and versatility, making it a suitable choice for various demanding applications.
