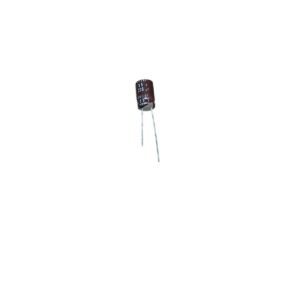

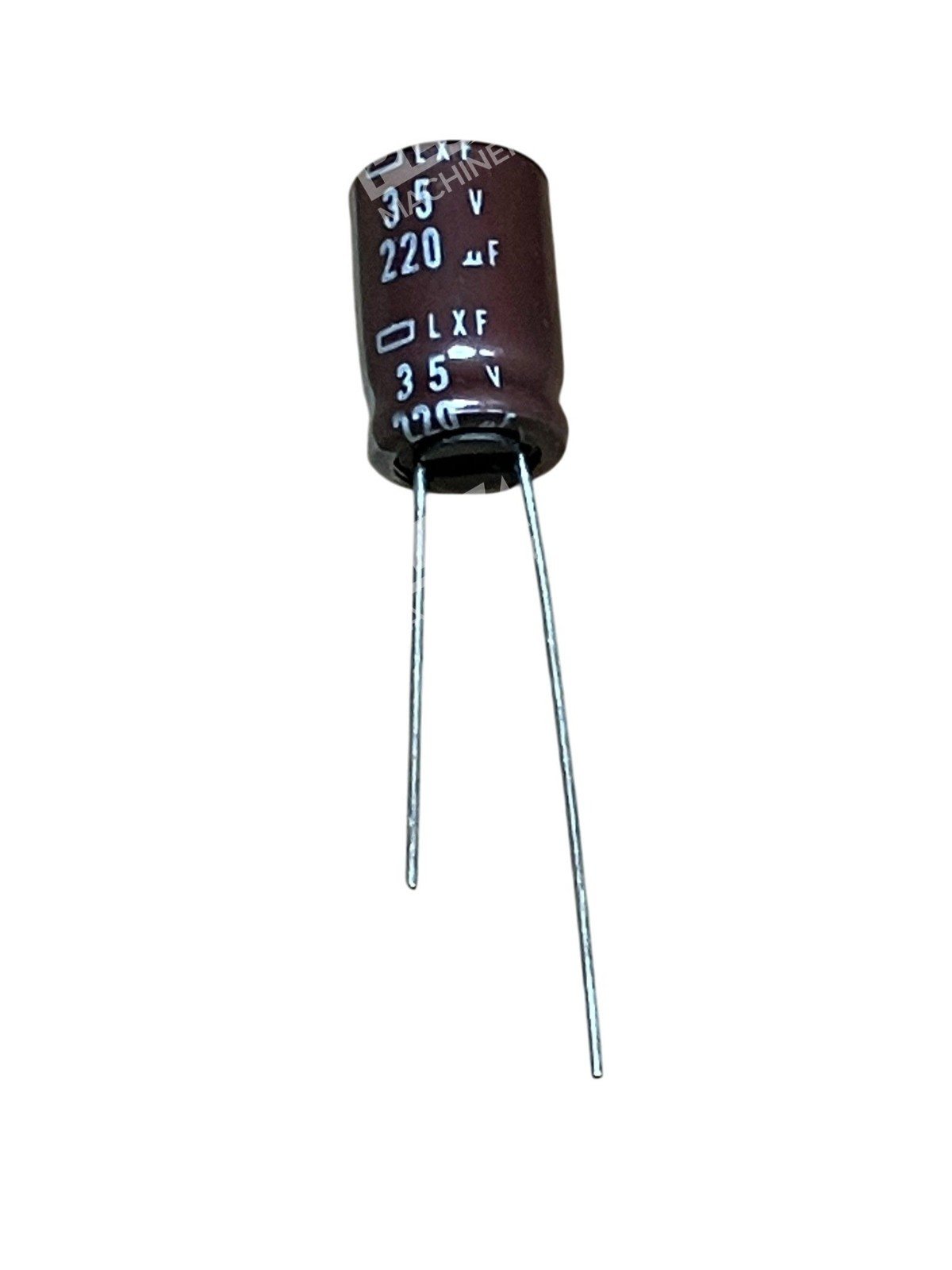

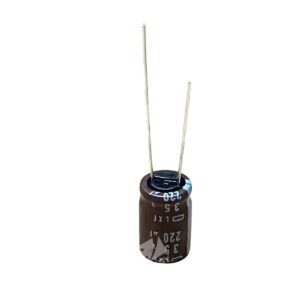

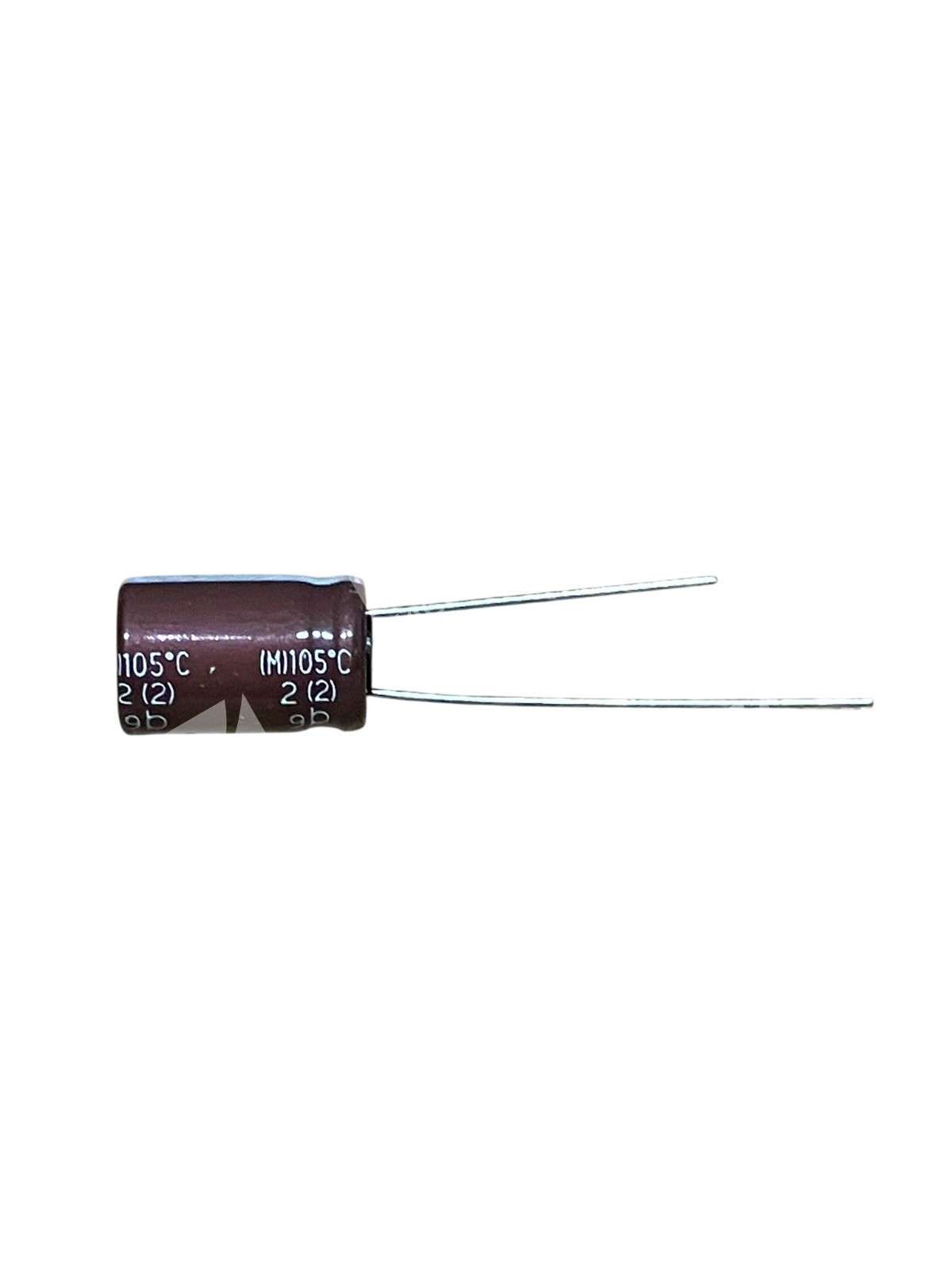

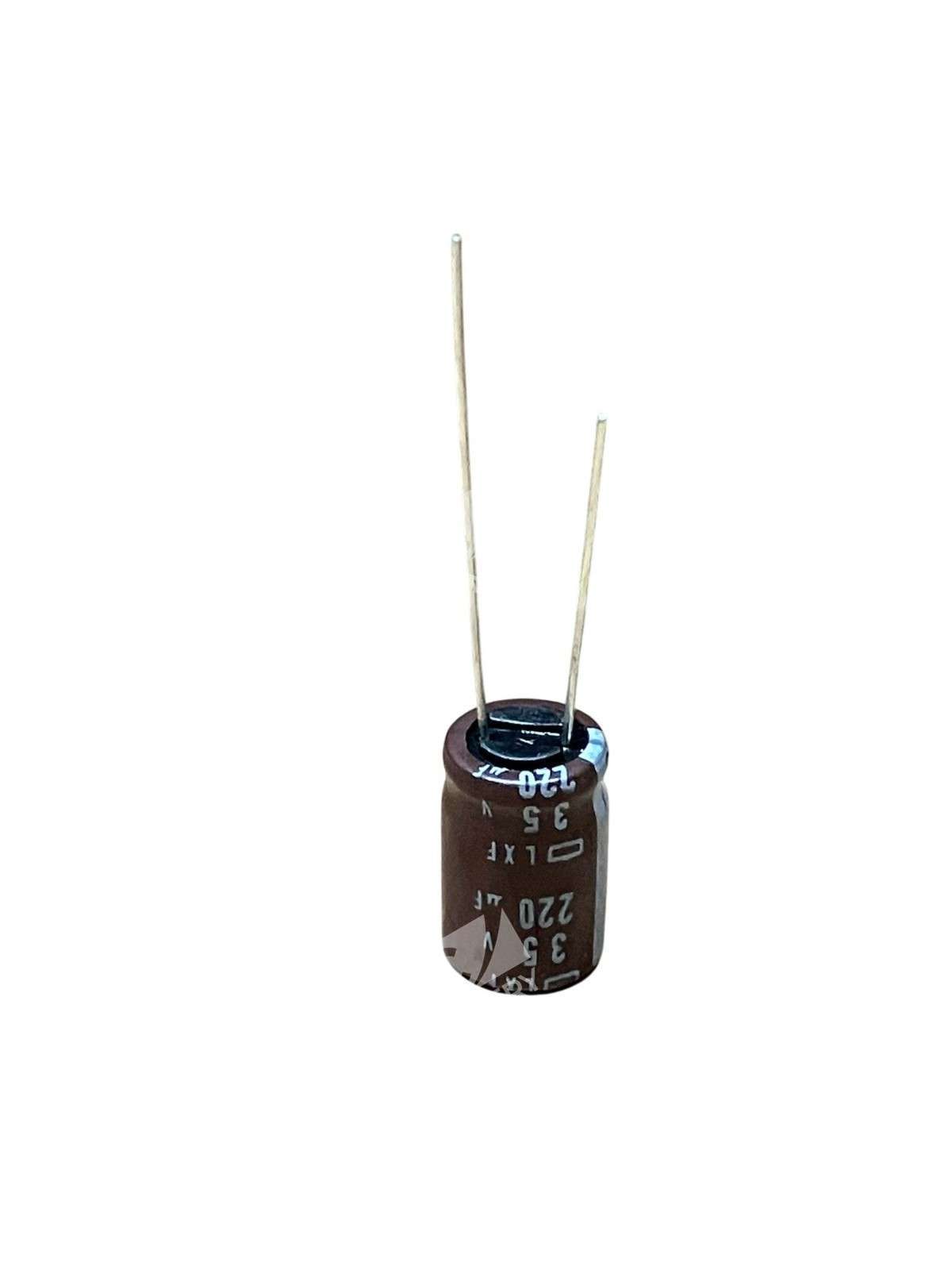

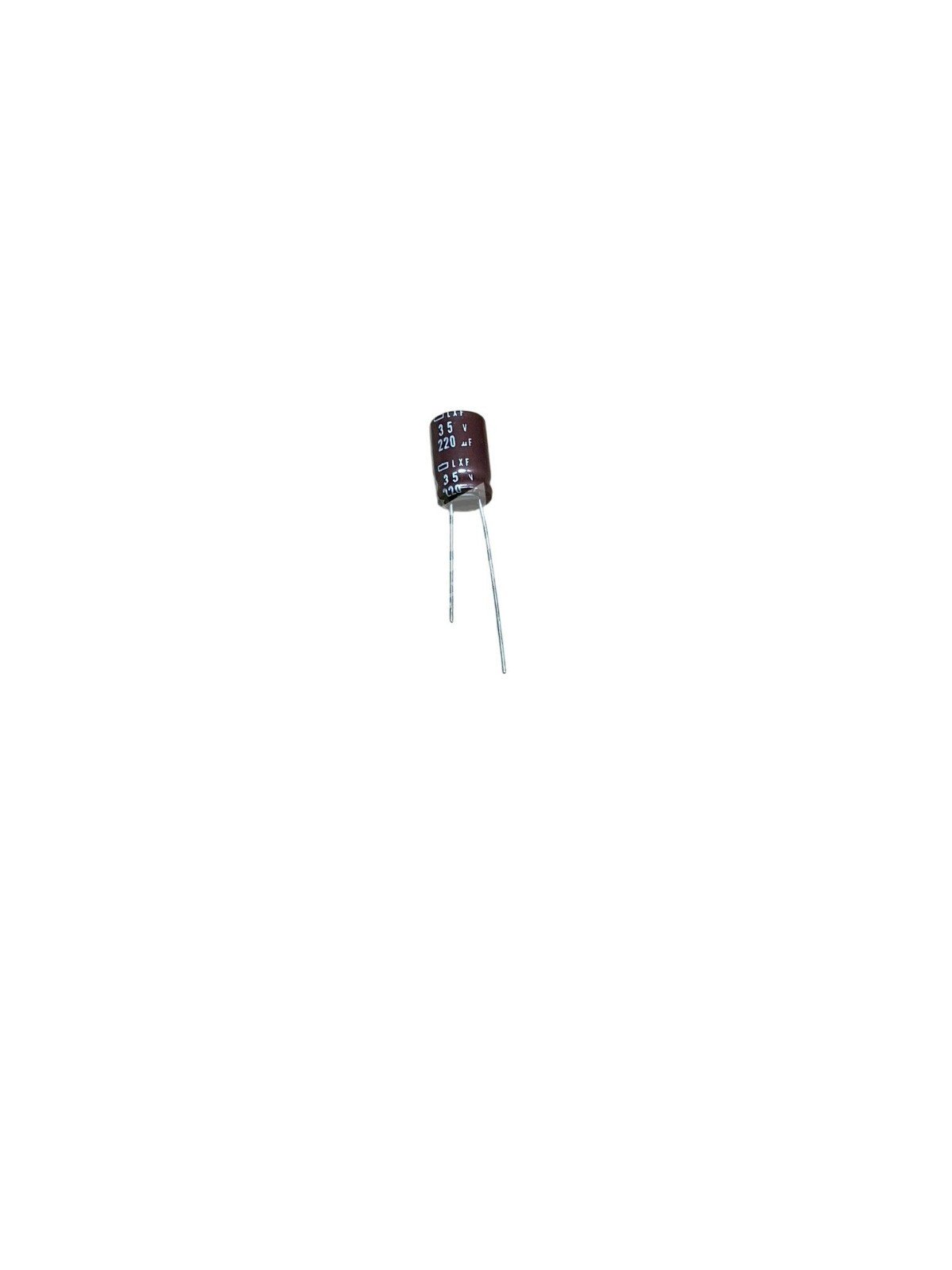

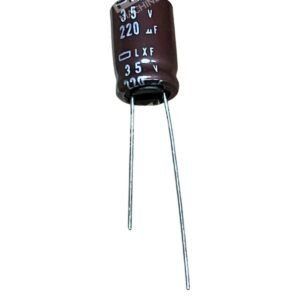

Nippon Chemi-Con LXF 220µF 35V 105°C Radial Aluminum Electrolytic Capacitor

Nippon Chemi-Con LXF 220µF 35V 105°C Radial Aluminum Electrolytic Capacitor

The Nippon Chemi-Con LXF Series 220µF 35V 105°C Radial Aluminum Electrolytic Capacitor is engineered for high-performance applications requiring reliable and efficient energy storage solutions. This capacitor is designed to meet the demands of modern electronic circuits, offering a balance of compact size and robust electrical characteristics.

Key Features

• Capacitance: 220 microfarads (µF)
• Rated Voltage: 35 volts (V)
• Operating Temperature Range: -55°C to +105°C
• Tolerance: ±20%
• Mounting Type: Radial, Through-Hole
• Dimensions: 10 mm diameter x 12.5 mm height
• Lead Spacing: 5 mm
• Equivalent Series Resistance (ESR): 180 milliohms (mΩ)
• Ripple Current: 760 milliamps root mean square (mArms)
• Leakage Current: 0.01 CV μA or 3 μA at 20°C (after 2 minutes)
• Endurance: 5,000 hours at 105°C

Applications

This capacitor is suitable for a wide range of applications, including:

• Power supply filtering
• Decoupling and bypass applications
• Audio and signal processing circuits
• Industrial control systems
• Automotive electronics

Advantages

The LXF Series capacitors are known for their low impedance at high frequencies, which enhances performance in high-speed and high-frequency circuits. Their extended endurance at elevated temperatures ensures reliability in demanding environments. The compact radial design facilitates easy integration into various PCB layouts, making them a versatile choice for designers seeking efficient and durable capacitors.
