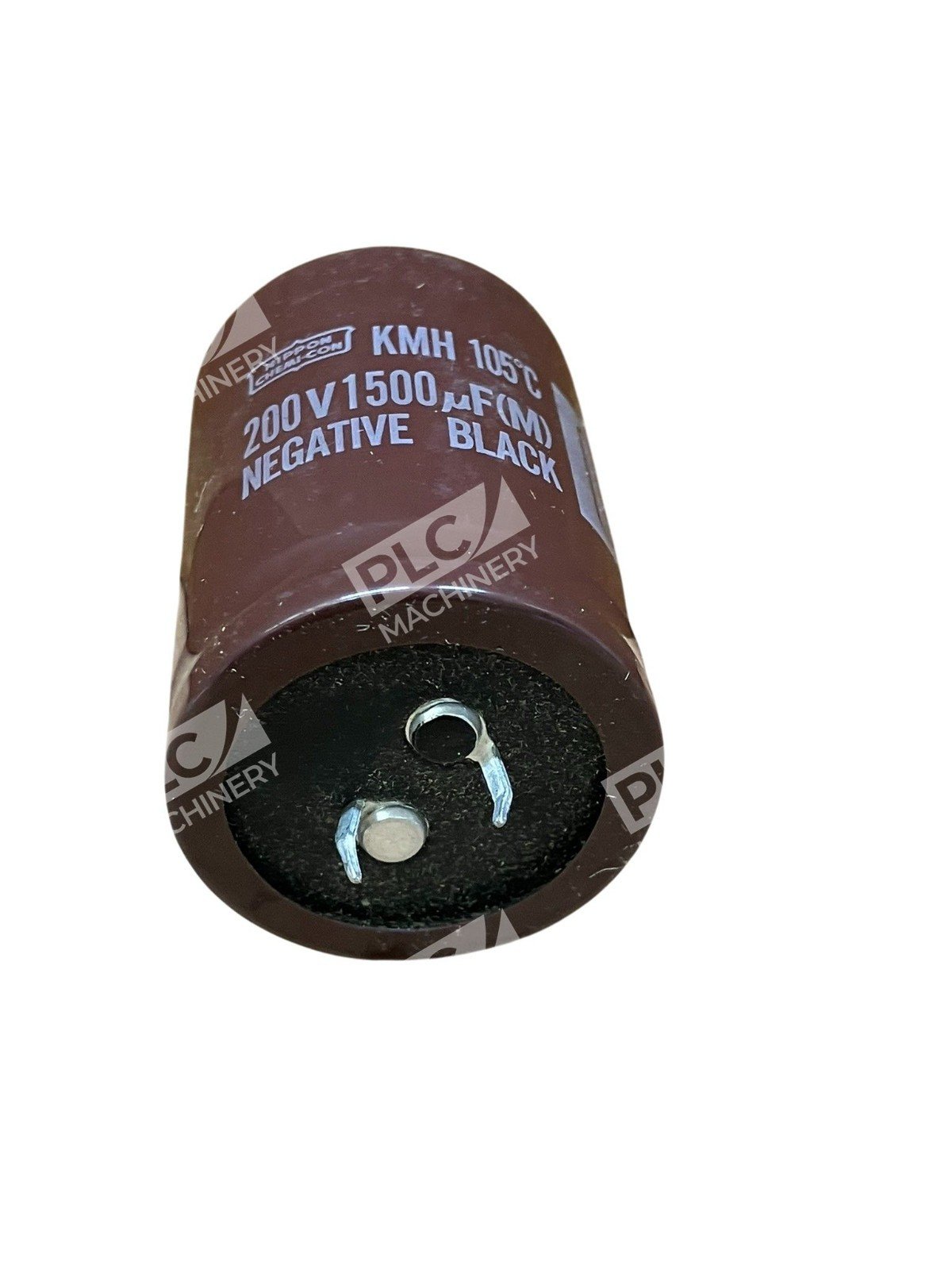

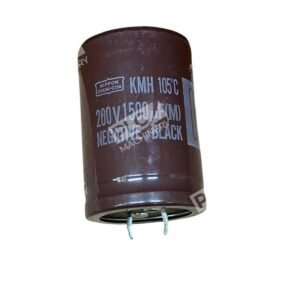

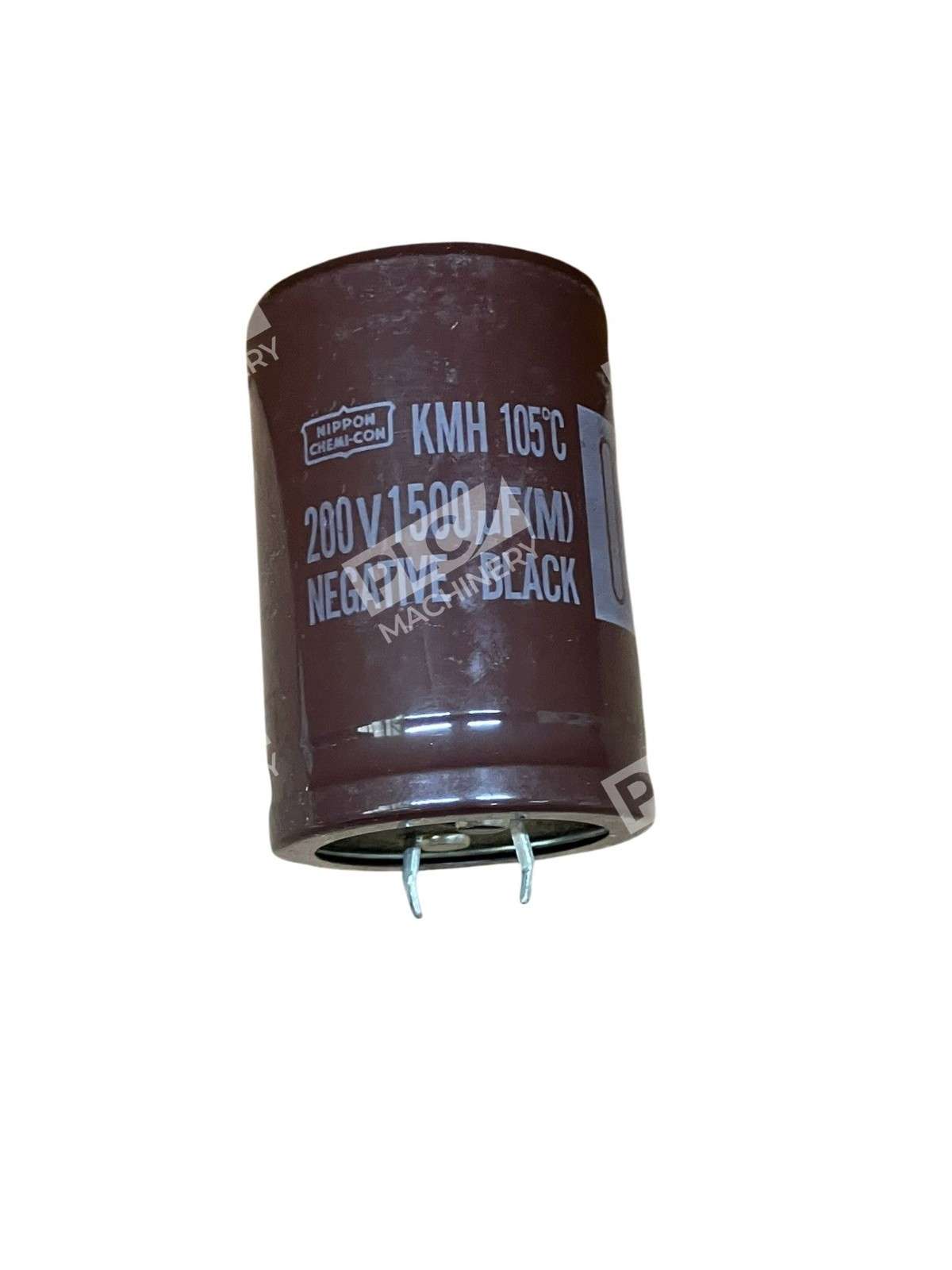

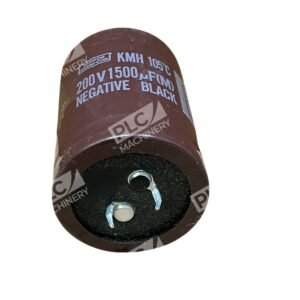

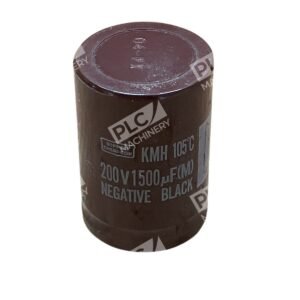

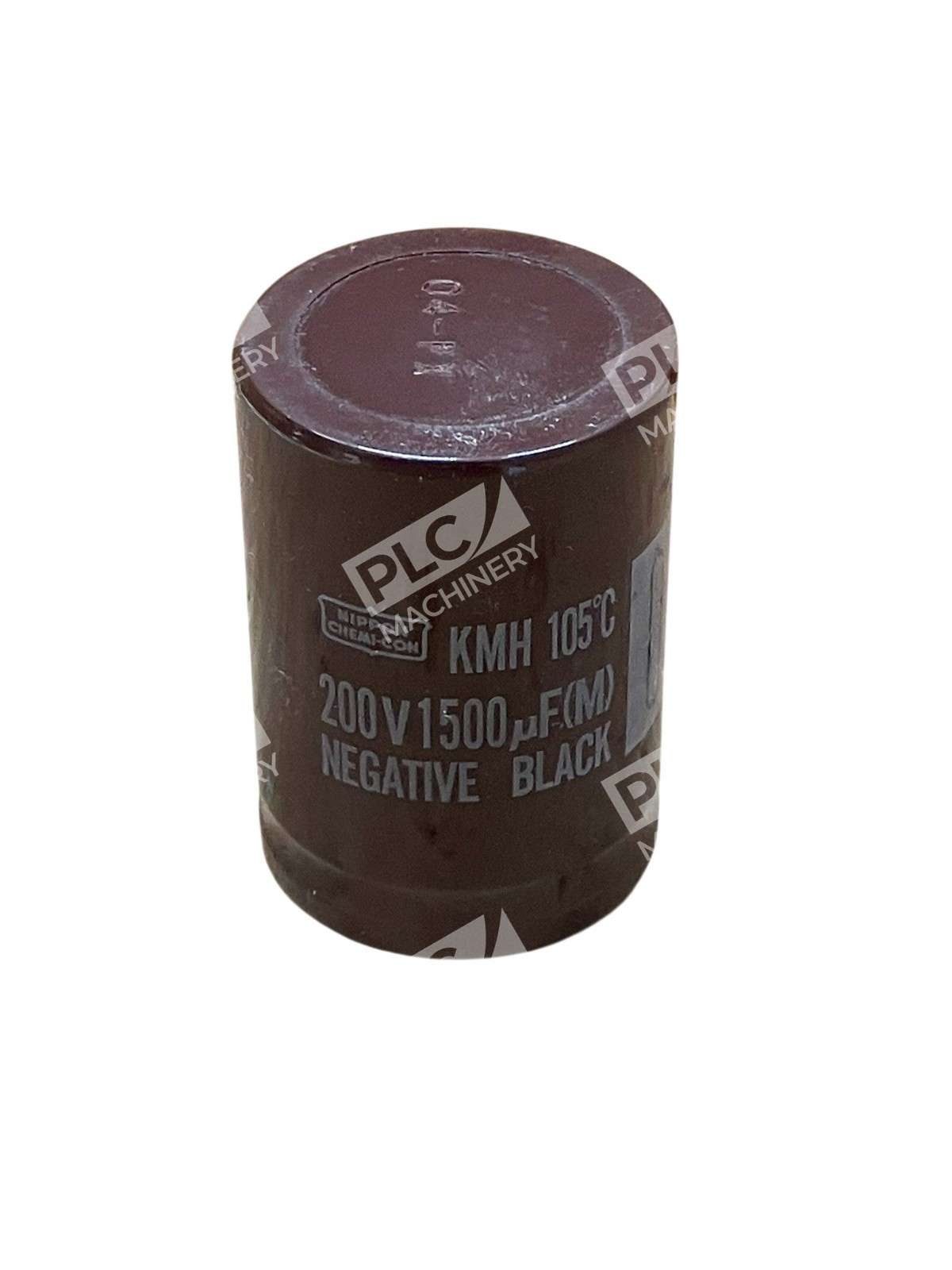

Nippon Chemi-Con KMH Series 1500µF 200V Snap-In Electrolytic Capacitor
The Nippon Chemi-Con KMH Series 1500µF 200V Snap-In Electrolytic Capacitor is engineered for high-performance applications requiring substantial capacitance and voltage handling. This capacitor is ideal for power supply filtering and energy storage in various electronic devices.
Key Features
- Capacitance: 1500µF
- Rated Voltage: 200V DC
- Tolerance: ±20%
- Operating Temperature Range: -25°C to +105°C
- Endurance: 2,000 hours at 105°C with rated ripple current applied
- Package Type: Radial, Can – Snap-In
- Dimensions: 35mm diameter x 45mm height
- Lead Spacing: 10mm
- Ripple Current: 2.81A at 120Hz; 4.215A at 100kHz
- Polarization: Polar
- Mounting Type: Through Hole
- Moisture Sensitivity Level (MSL): 1 (Unlimited)
Applications
This capacitor is suitable for general-purpose applications, including:
- Power supply filtering
- Energy storage
- Inverter circuits
- Industrial equipment
Compliance and Standards
The Nippon Chemi-Con KMH Series capacitors are lead-free and RoHS compliant, ensuring adherence to environmental and safety standards.
Additional Information
For detailed specifications and performance characteristics, refer to the manufacturer’s datasheet.
