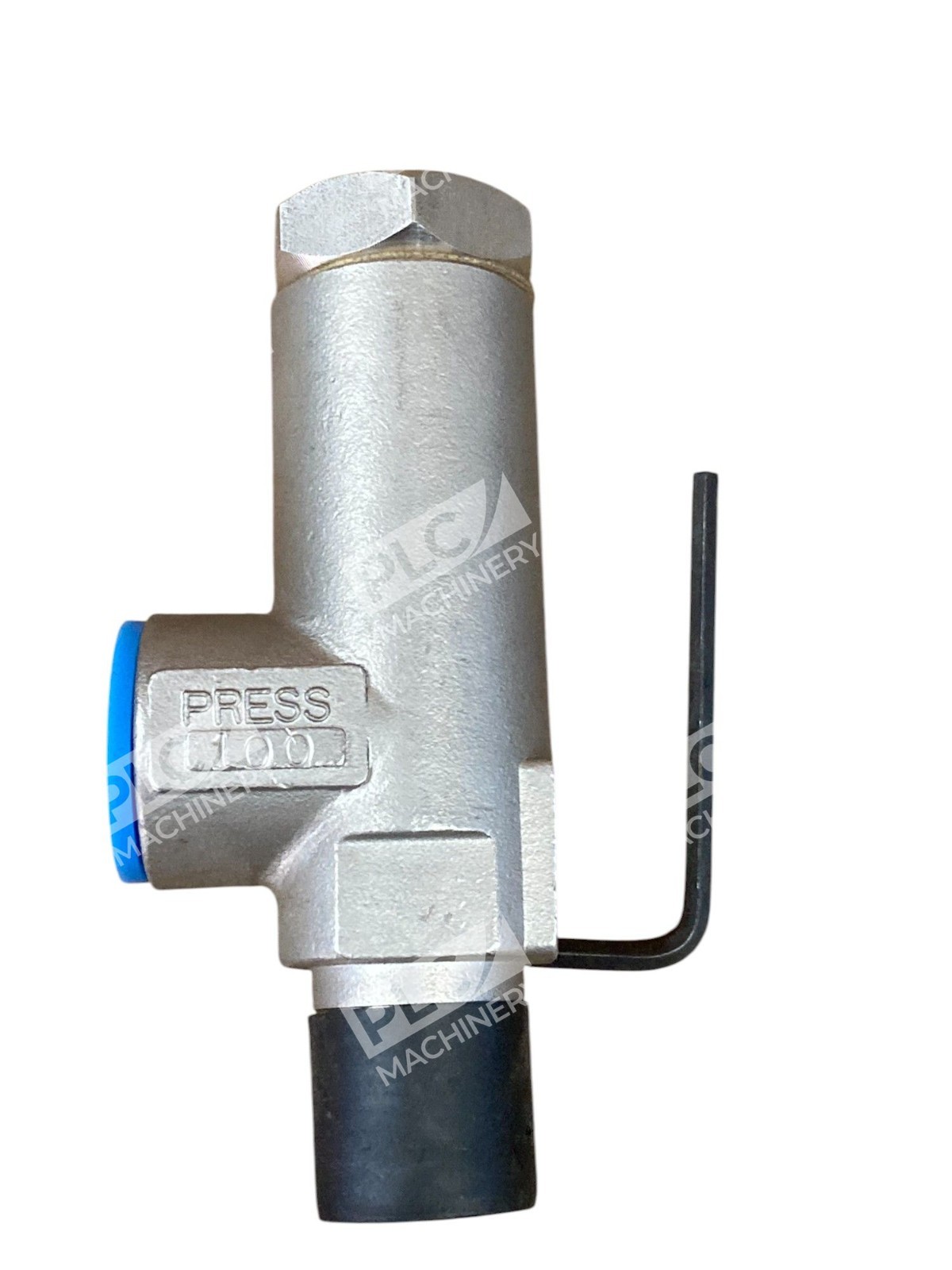

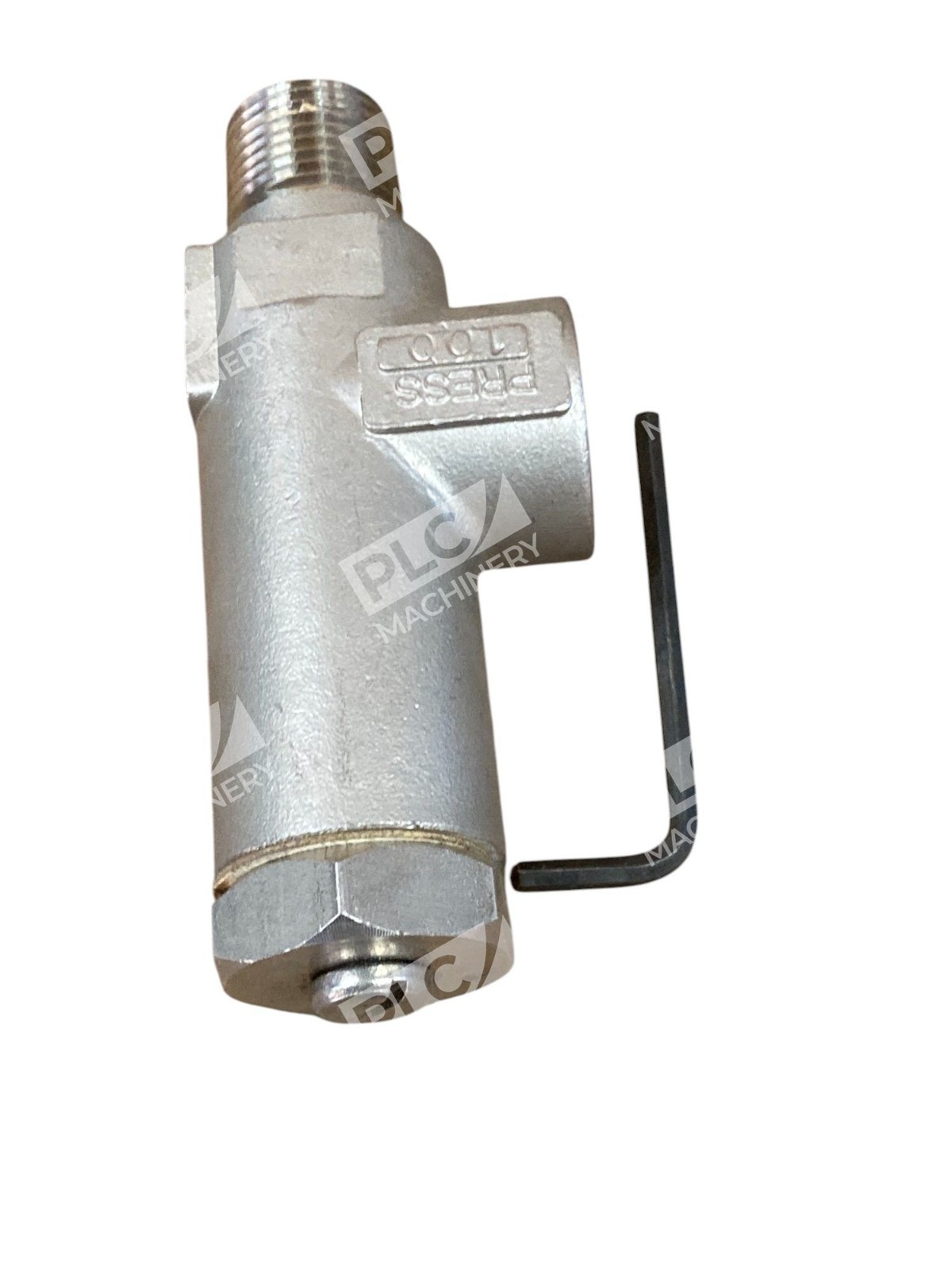

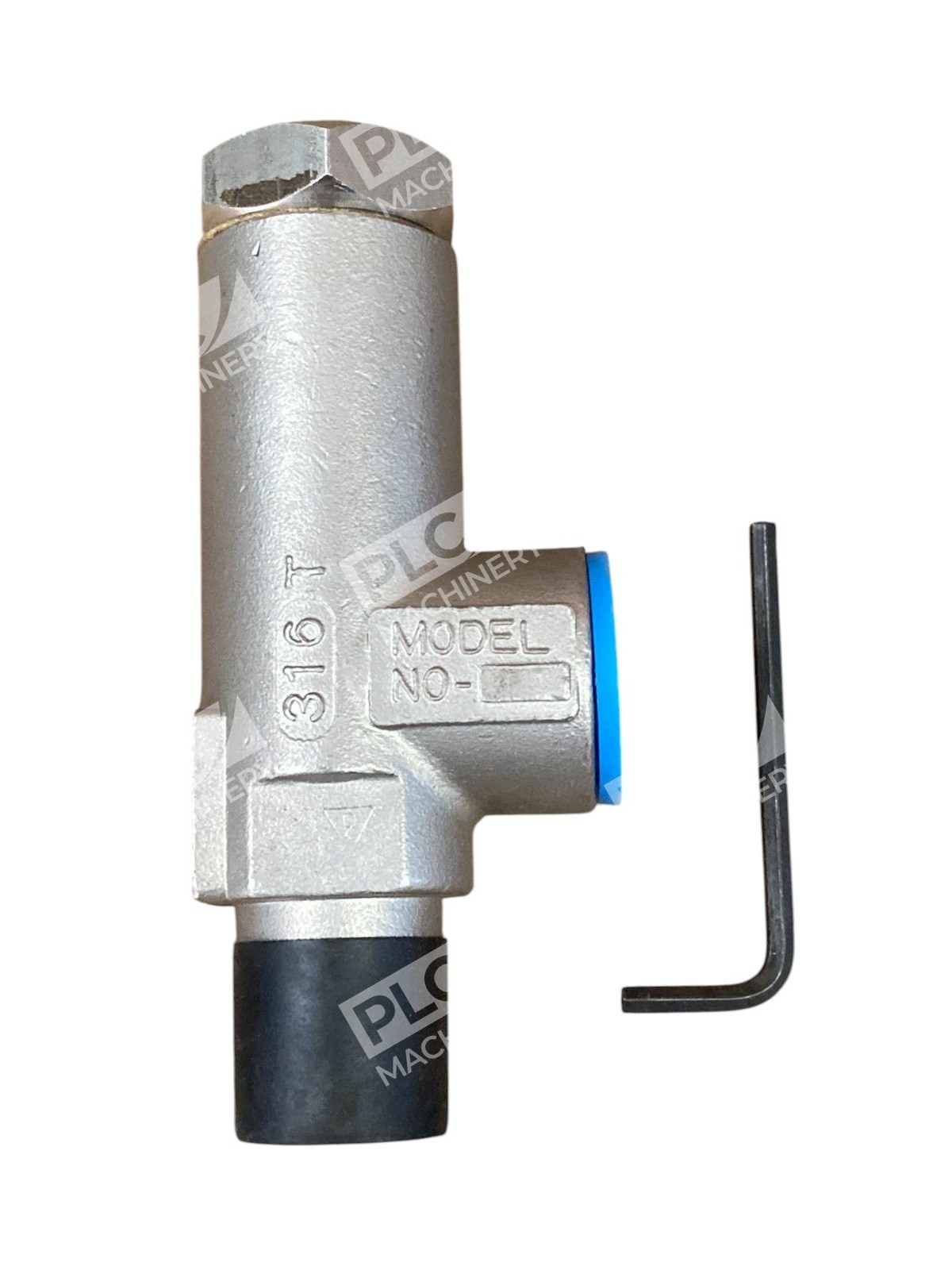

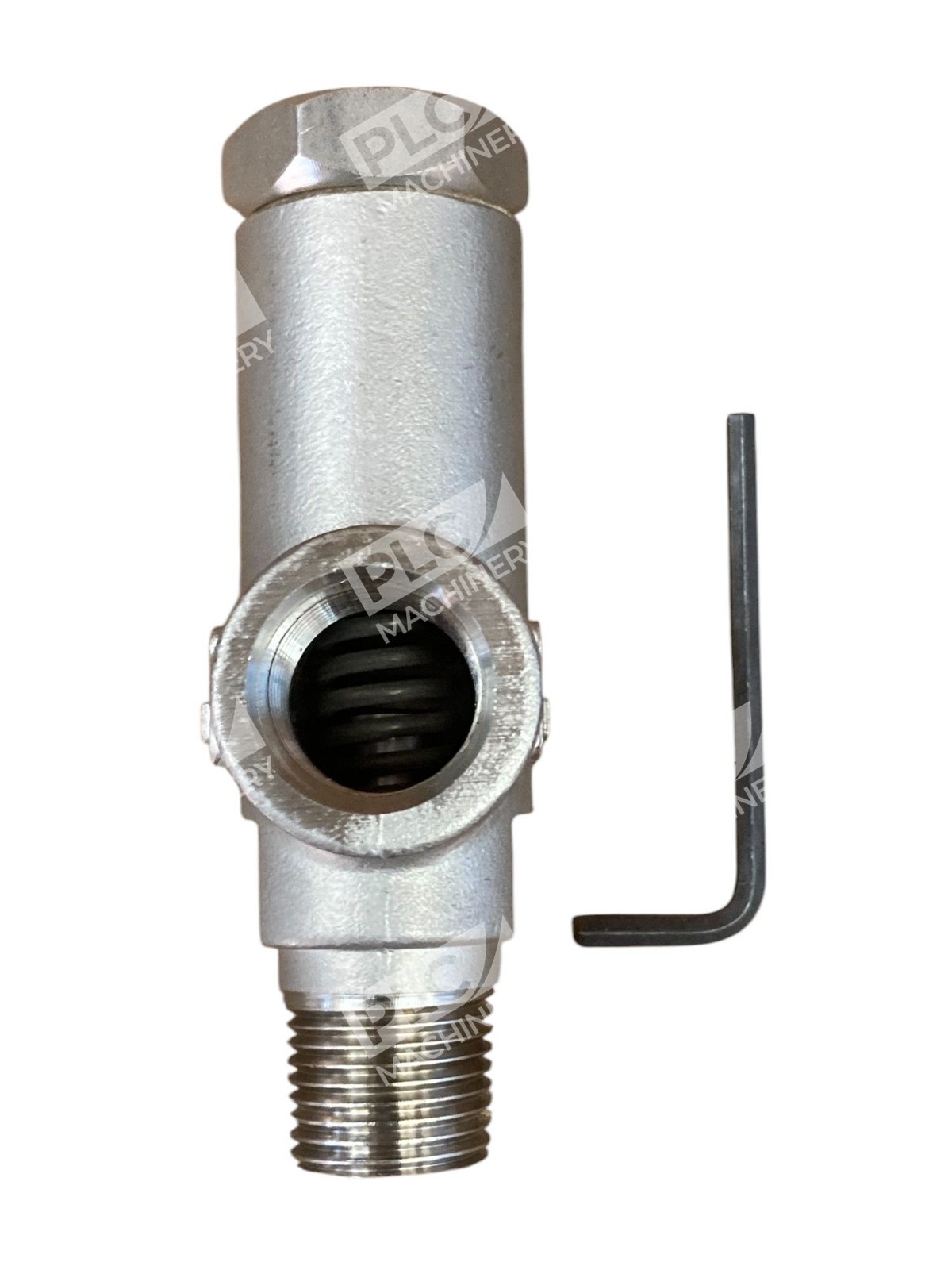

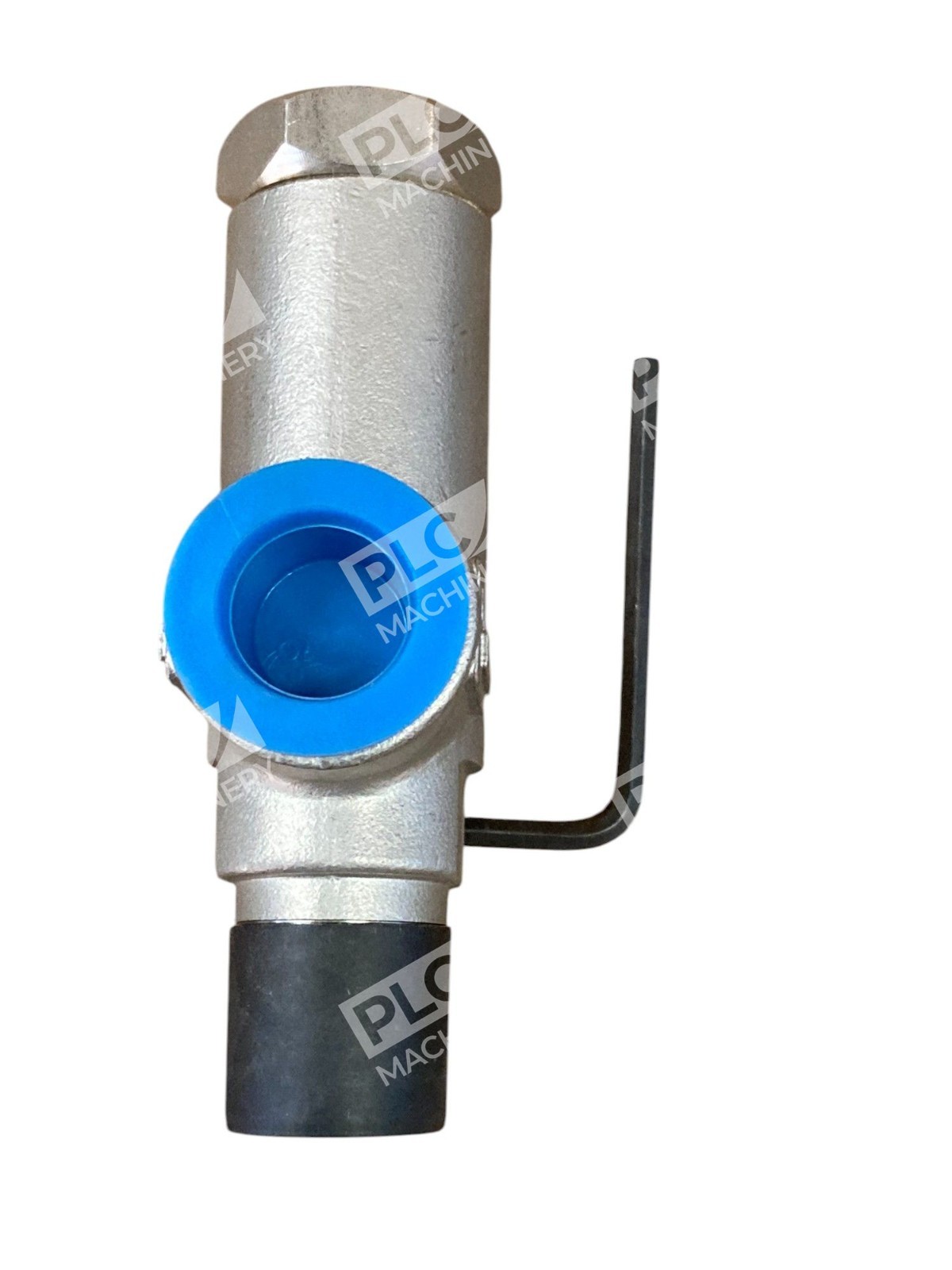

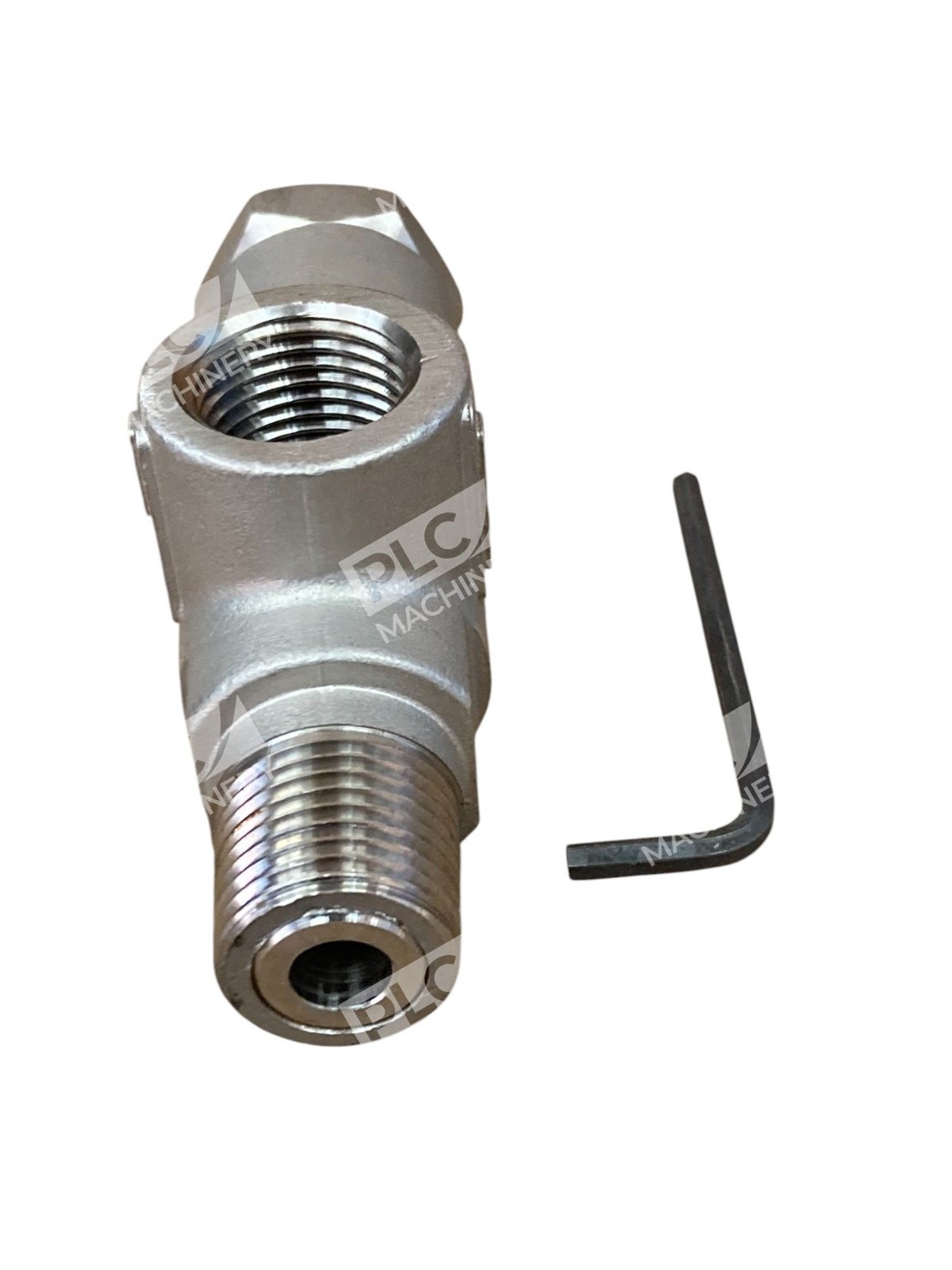

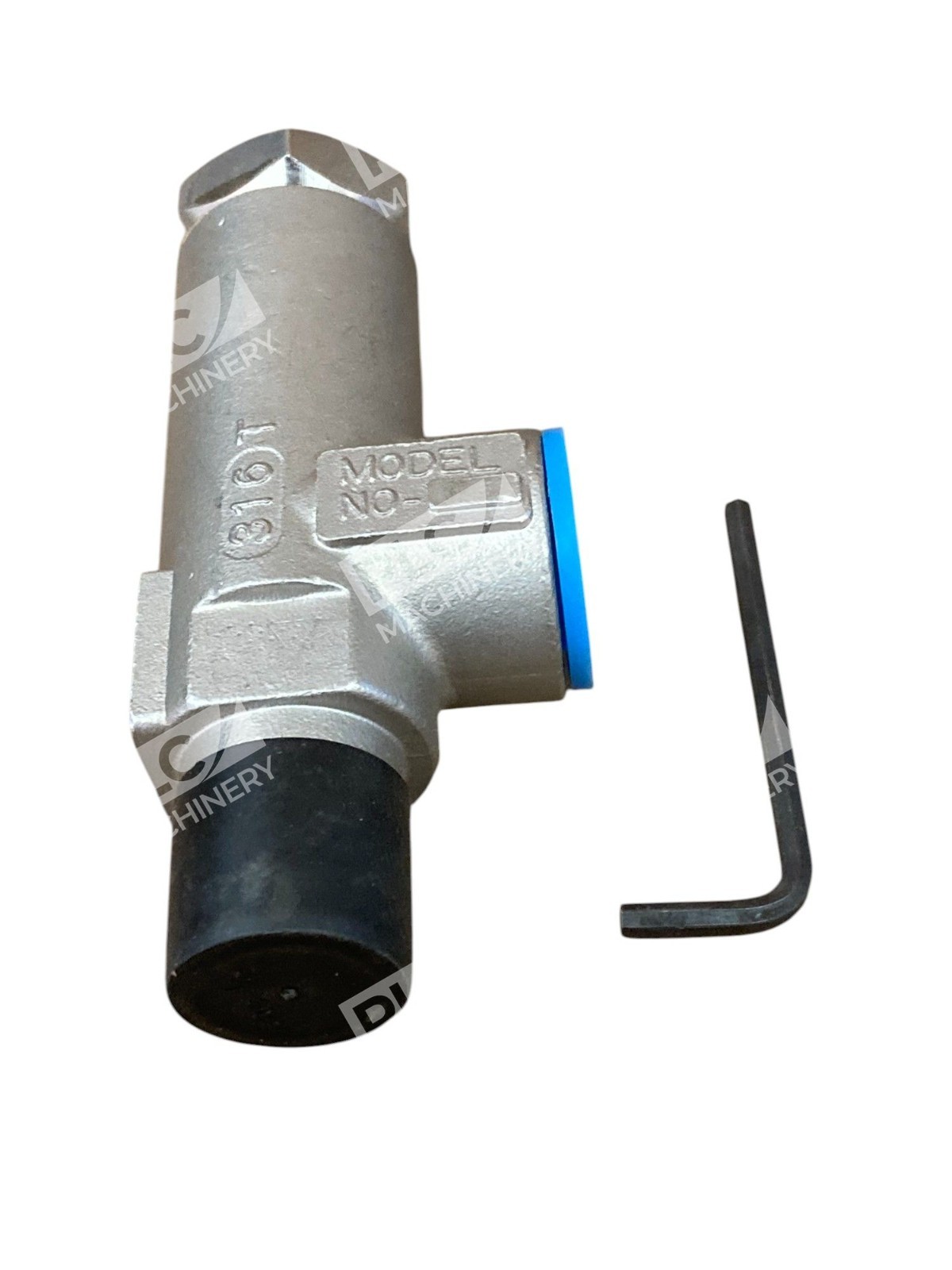

Neptune RV-C20 316T RV-316 100PSI Pressure Relief Valve
The Neptune RV-C20 316T RV-316 100PSI Pressure Relief Valve is engineered to safeguard piping systems by preventing overpressure conditions. Designed for liquid service applications, this valve ensures system integrity and operational safety.
Key Features
- Material Construction: All wetted parts are made from 316 Stainless Steel (316SS) or Carpenter 20, offering excellent corrosion resistance and durability.
- Pressure Range: Capable of handling pressures from 30 to 2,000 psi (2.1 to 137.9 bar), providing versatility across various applications.
- Consistent Relief Capacity: Incorporates a unique spring guide that ensures proper spring loading, delivering consistent relief performance.

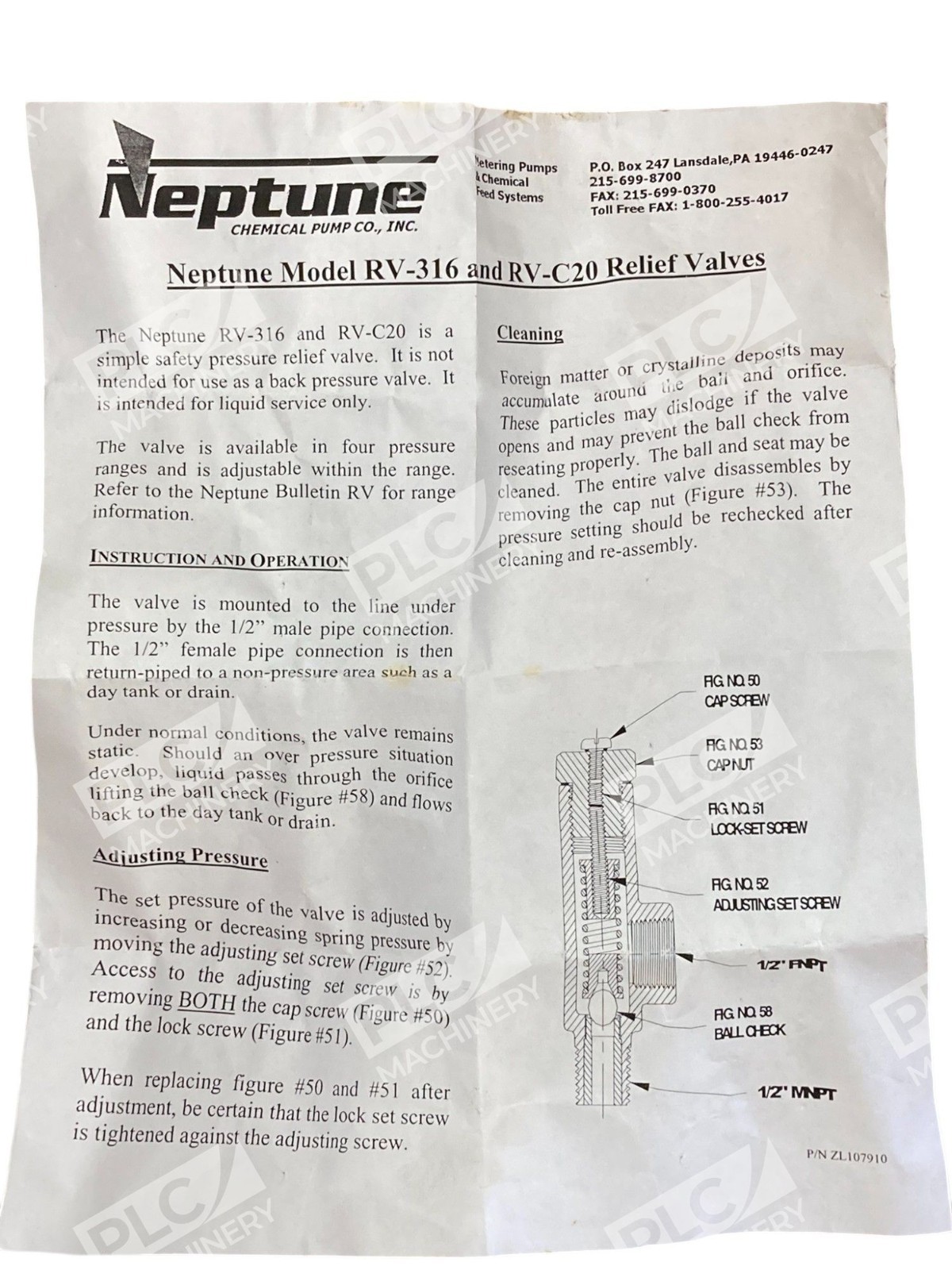

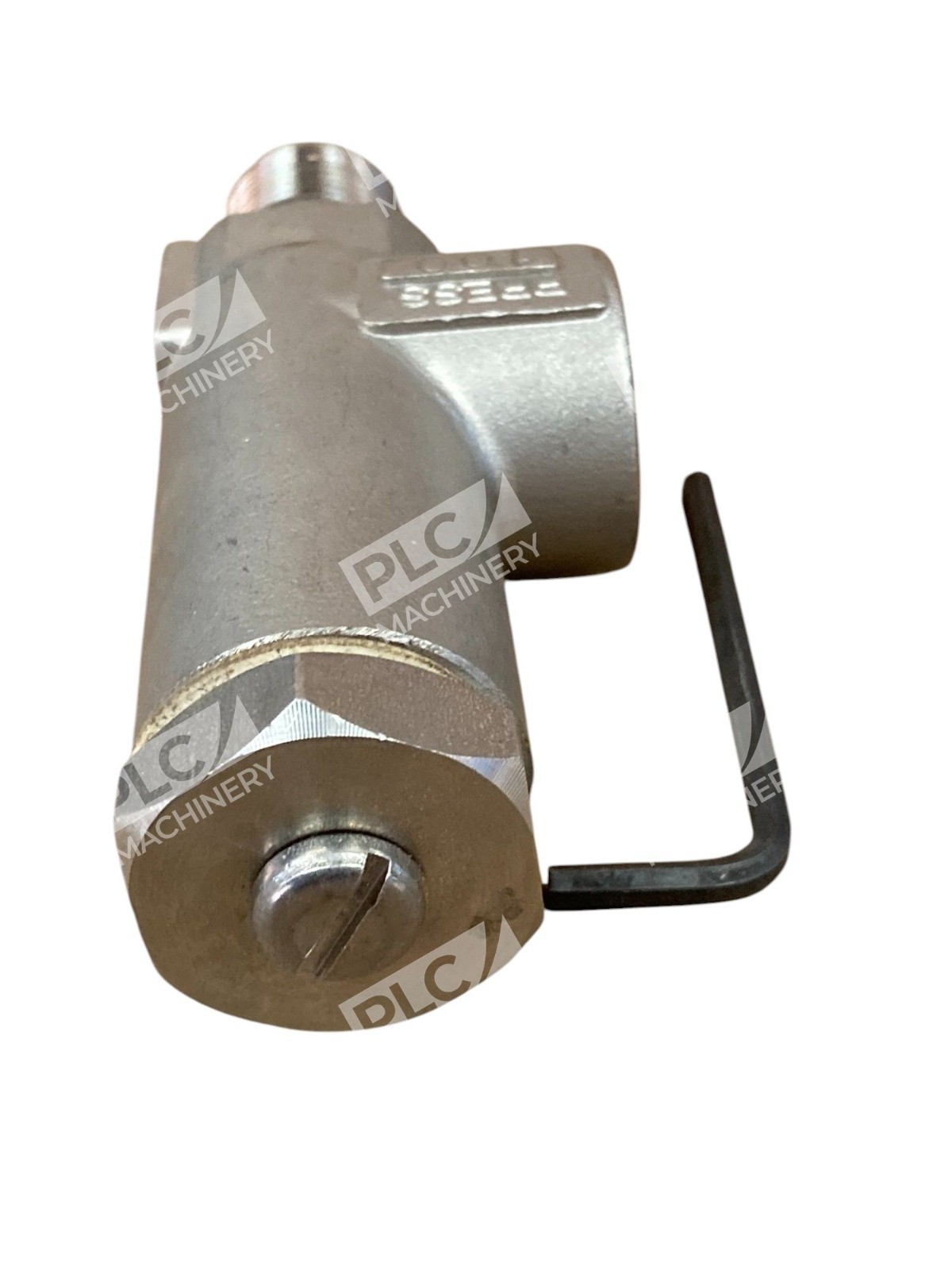

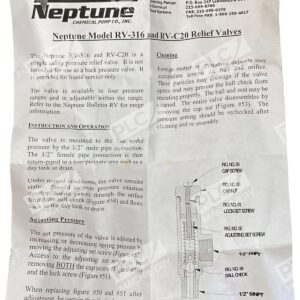

- Adjustable Relief Setting: The relief pressure setting can be easily modified by removing the top cap screw and locking set screw, inserting an appropriate Allen wrench into the opening, and adjusting the spring to the desired pressure.
- Self-Cleaning Mechanism: Features a self-cleaning ball check and seat design, reducing maintenance requirements and enhancing reliability.
Operational Benefits
The Neptune RV-C20 316T RV-316 100PSI Pressure Relief Valve offers two primary advantages:
- Economy: Models with all 316SS wetted parts are cost-competitive with other 304SS designs, providing superior material quality without additional expense.
- Simplicity: The exclusive design facilitates straightforward pressure adjustments and maintenance, ensuring ease of use and long-term performance.
Recommended Settings
For optimal performance, it is recommended to set the relief pressure at the operating pressure plus 10% or 50 psi, whichever is greater. This setting ensures adequate protection against overpressure scenarios.
By integrating the Neptune RV-C20 316T RV-316 100PSI Pressure Relief Valve into your system, you enhance safety, reliability, and operational efficiency, effectively mitigating the risks associated with overpressure conditions.
