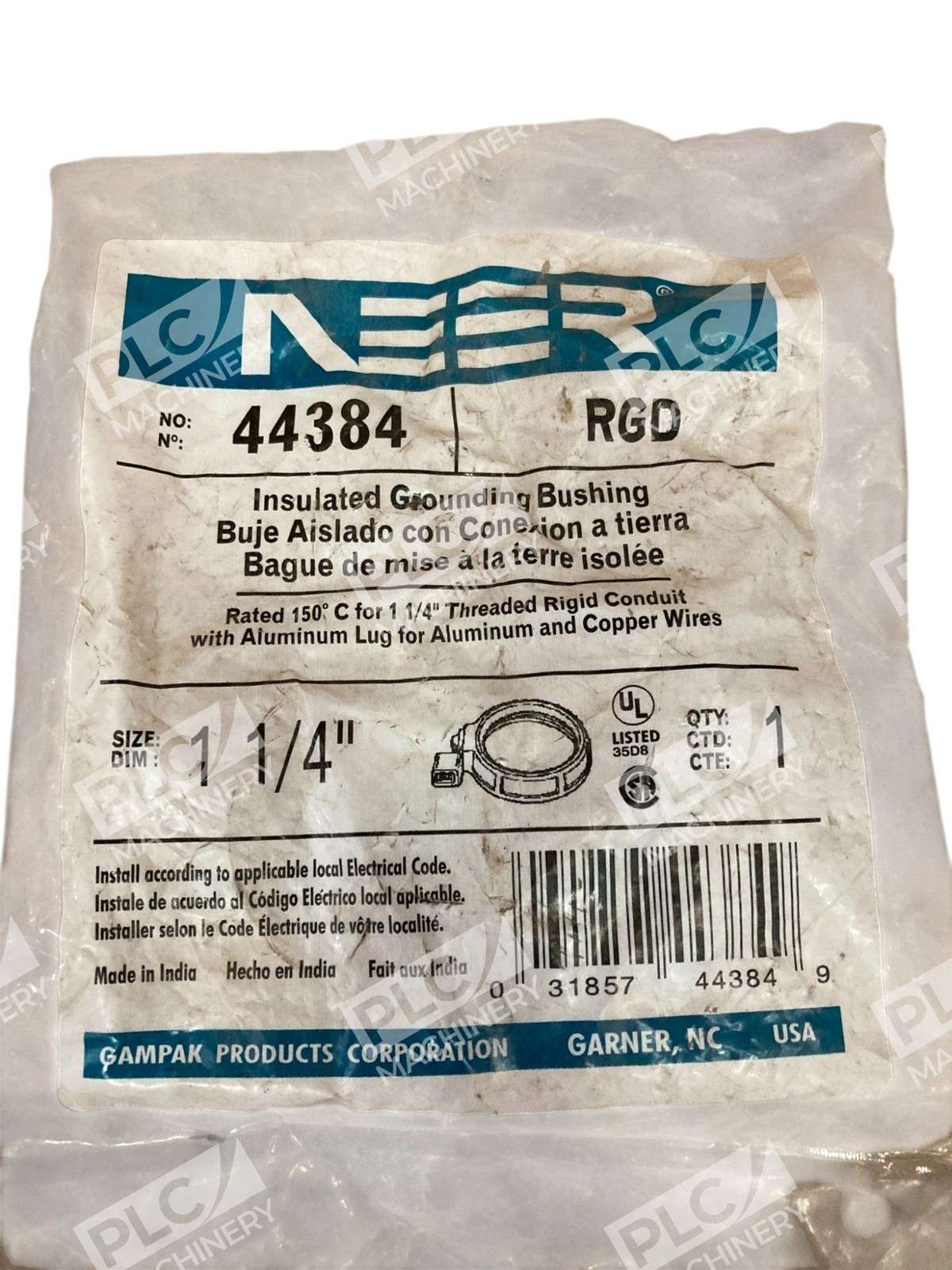

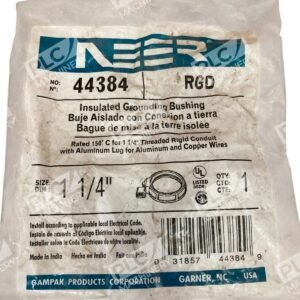

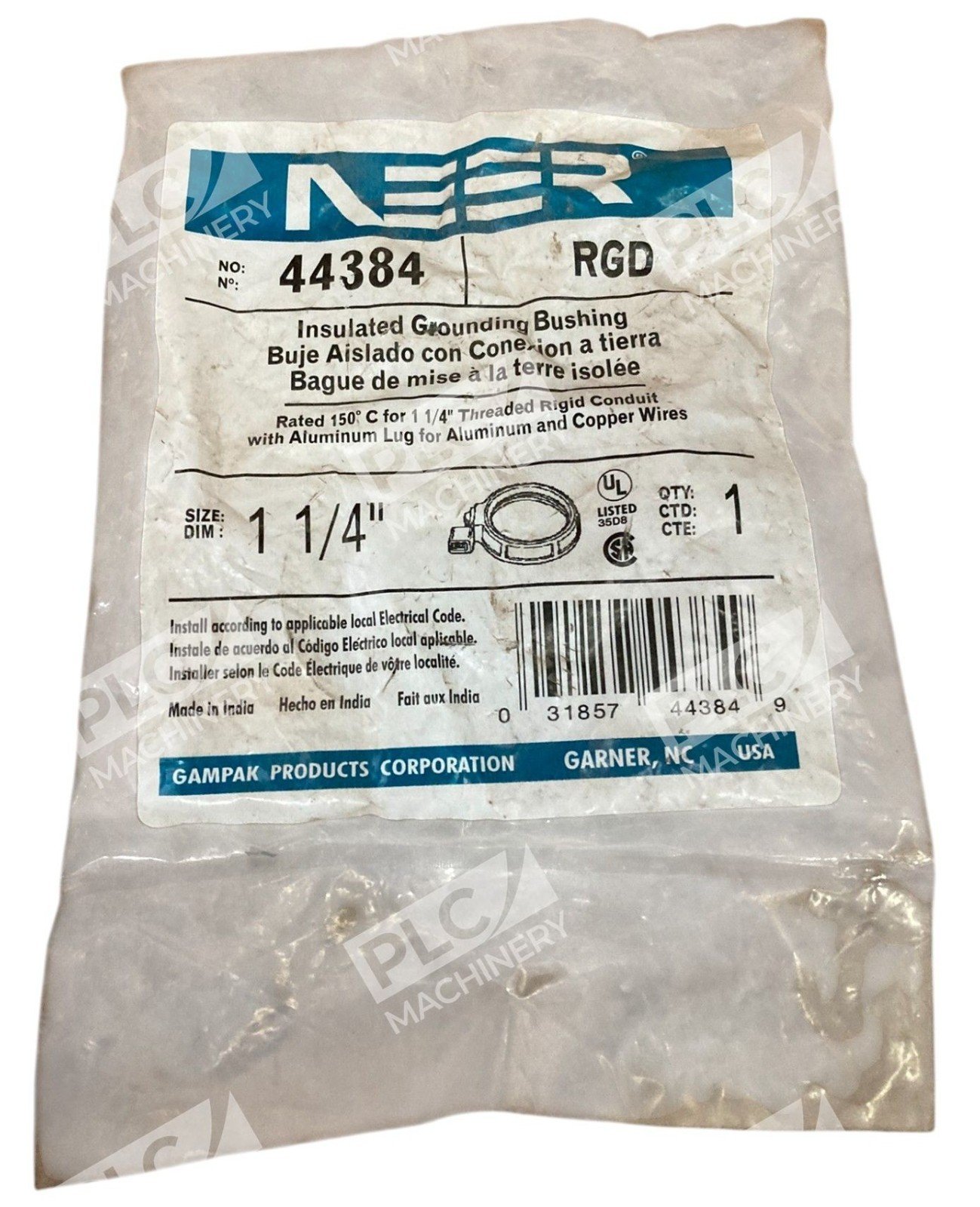

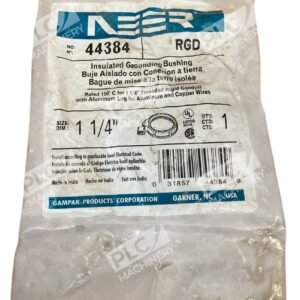

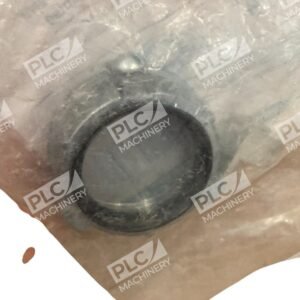

Neer RGD 1-1/4″ Insulated Grounding Bushing 44384

Neer RGD 1-1/4″ Insulated Grounding Bushing 44384

The Neer RGD 1-1/4″ Insulated Grounding Bushing, model number 44384, is designed to provide a smooth, well-rounded bearing surface at the end of rigid conduits, IMC, and other threaded connectors. This ensures the protection of wires or cables during installation and operation.

Key Features

• Material: Constructed from durable zinc die-cast, offering robust performance and longevity.
• Insulation: Equipped with a nylon insulator rated up to 150°C, safeguarding wire insulation from potential damage.
• Grounding Lug: Features an aluminum feed-through lug, facilitating easy attachment of grounding conductors.
• Trade Size: Designed for 1-1/4″ conduit applications, ensuring compatibility with standard conduit sizes.
• Compliance: Meets UL 467 and 486A-486B standards, as well as CSA C22.2 No. 41-13 and CSA C22.2 No. 65-13, ensuring adherence to industry safety and performance requirements.

Applications

This insulated grounding bushing is ideal for terminating service conduits to cabinets, providing a secure and insulated connection point. The inclusion of a grounding lug allows for the bonding of a jumper to a neutral busbar, enhancing the safety and reliability of electrical installations.

Specifications

• Model Number: 44384
• Material: Zinc Die-Cast
• Insulator Material: Nylon
• Insulator Temperature Rating: 150°C
• Grounding Lug Material: Aluminum
• Trade Size: 1-1/4″
• Standards Compliance: UL 467, UL 486A-486B, CSA C22.2 No. 41-13, CSA C22.2 No. 65-13

Incorporating the Neer RGD 1-1/4″ Insulated Grounding Bushing into your electrical system ensures a secure, insulated, and compliant connection, safeguarding both the wiring and the overall system integrity.
