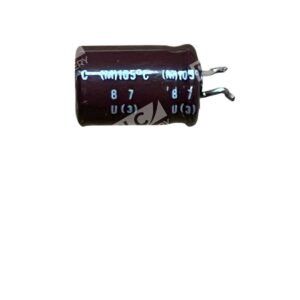

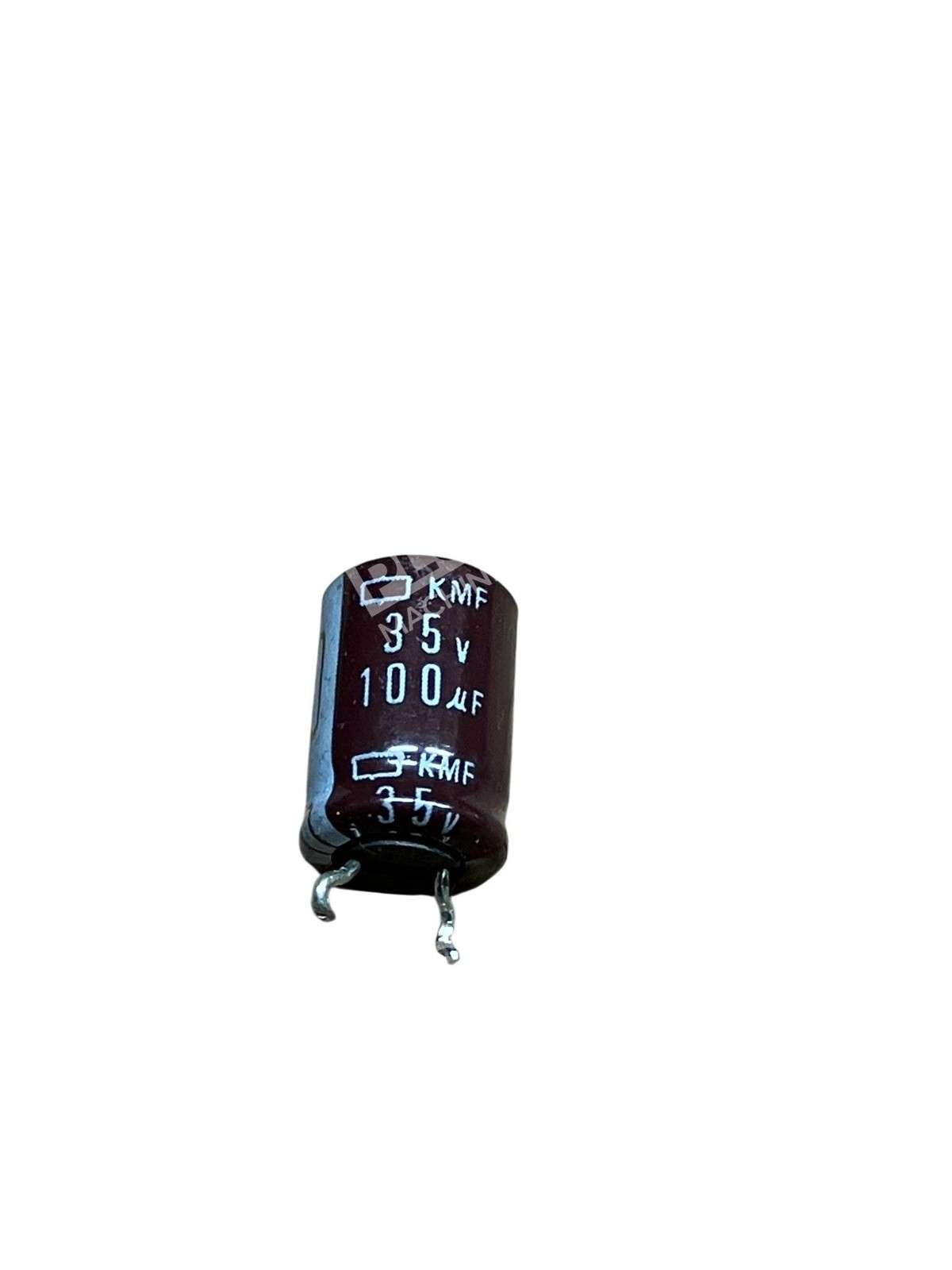

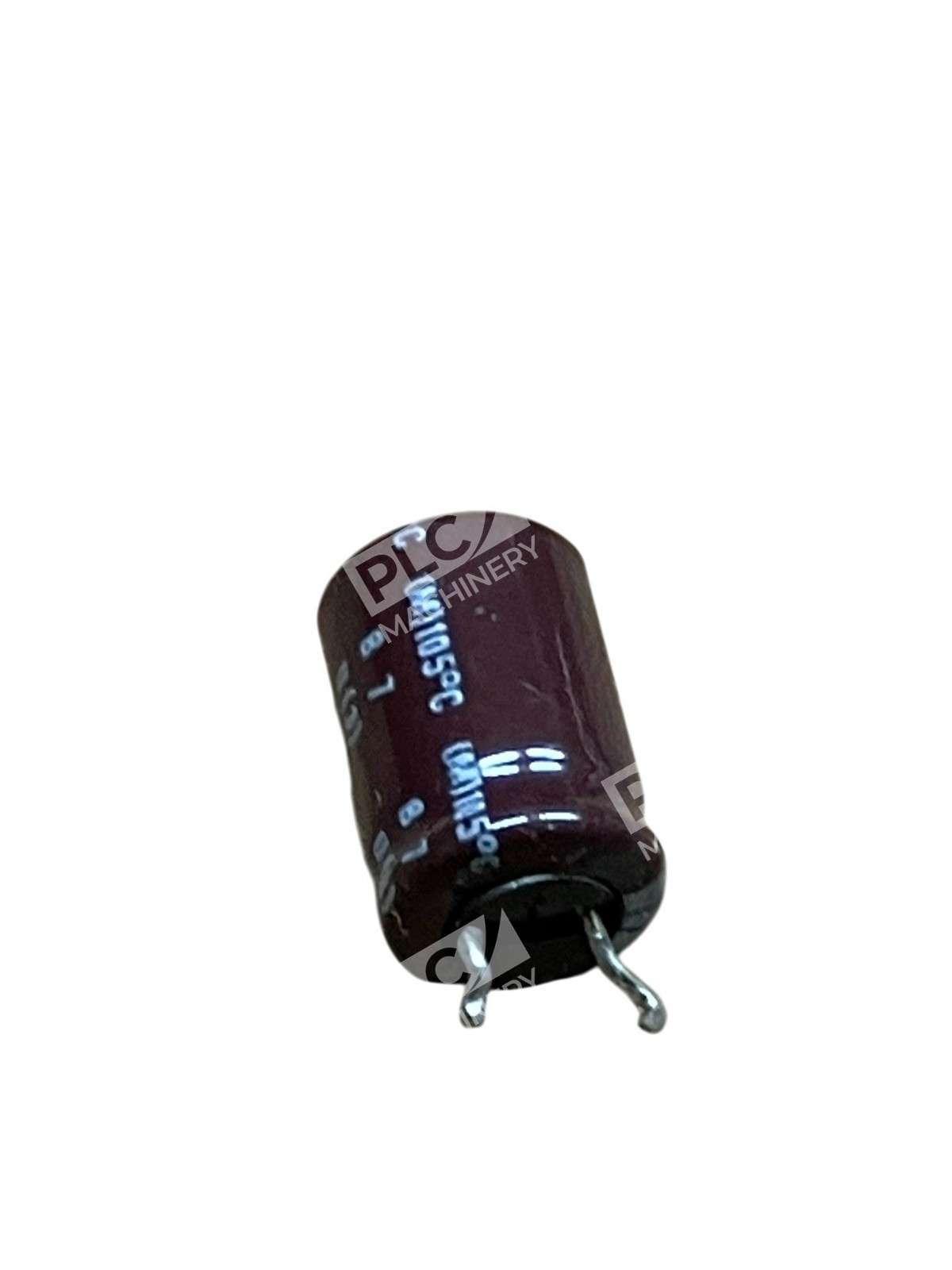

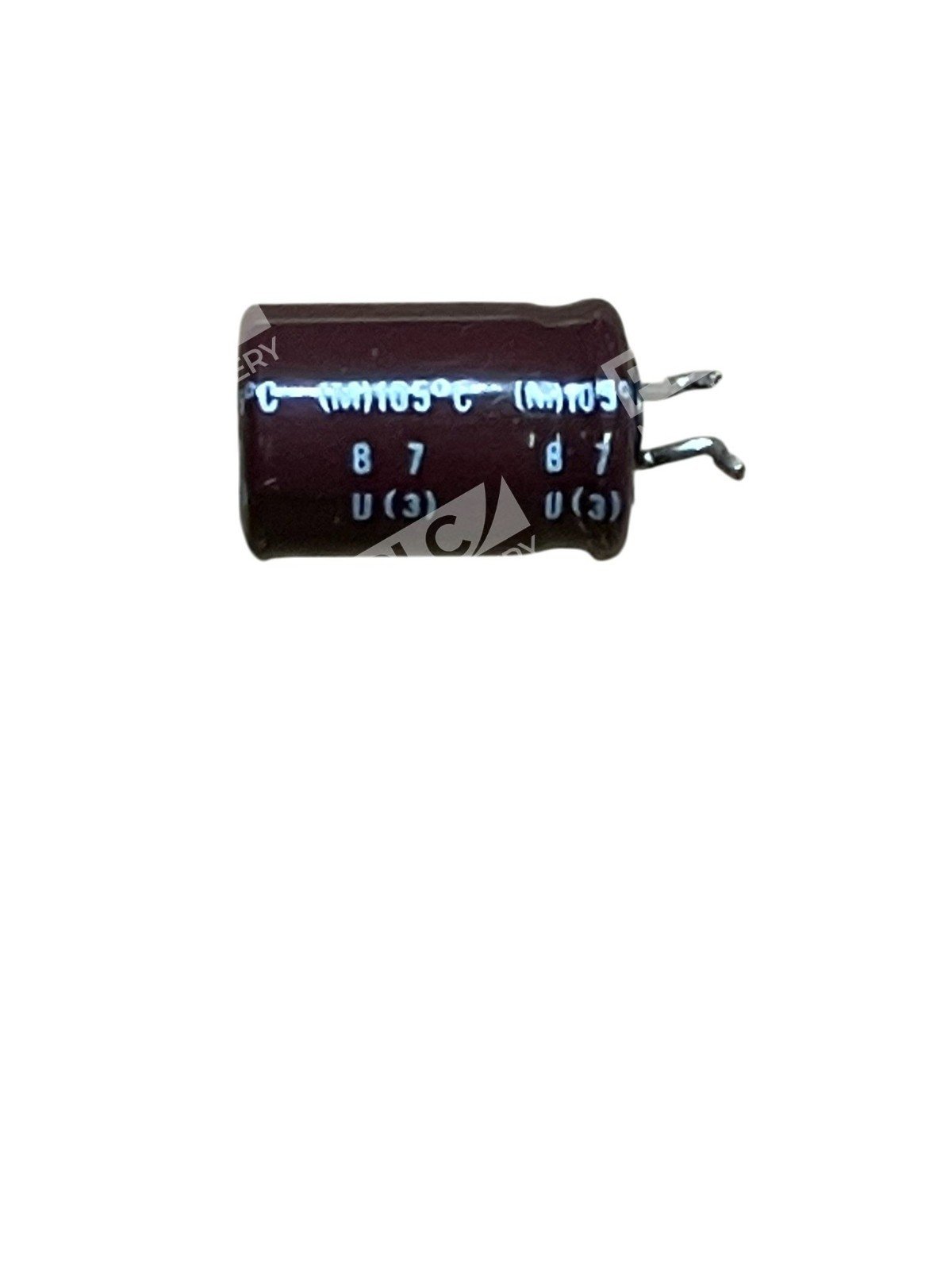

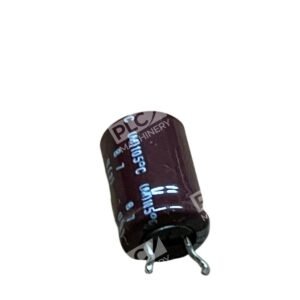

NCC KMF 100µF 35V Aluminum Electrolytic Capacitor
The NCC KMF series 100µF 35V aluminum electrolytic capacitor is engineered for high performance in demanding electronic applications. Its low Equivalent Series Resistance (ESR) and high ripple current capabilities make it ideal for circuits requiring efficient energy storage and delivery.
Key Features
- Low Impedance: Ensures minimal voltage drop and efficient performance in high-frequency applications.
- High Ripple Current Handling: Capable of managing substantial ripple currents, enhancing reliability in power supply circuits.
- Extended Endurance: Designed to operate at 105°C for up to 2,000 hours, ensuring longevity in challenging environments.
- Compact Radial Design: Facilitates easy integration into various PCB layouts, optimizing space utilization.
Specifications
- Capacitance: 100µF
- Rated Voltage: 35V
- Operating Temperature Range: -40°C to +105°C
- Capacitance Tolerance: ±20% at 120Hz, 20°C
- Dissipation Factor (tan δ): 10% at 120Hz, 20°C
- Leakage Current: ≤0.01 × C × V or 3µA after 2 minutes
- Dimensions: Diameter: 6.3mm; Length: 11mm
- Lead Spacing: 2.5mm
With its robust construction and superior electrical characteristics, the NCC KMF 100µF 35V capacitor is an excellent choice for applications requiring reliable performance under high-temperature conditions.
