Nason MM-1C-60F/HH

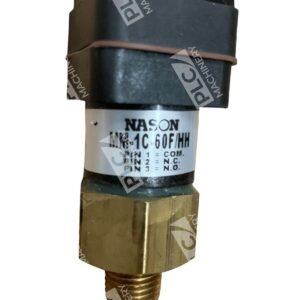

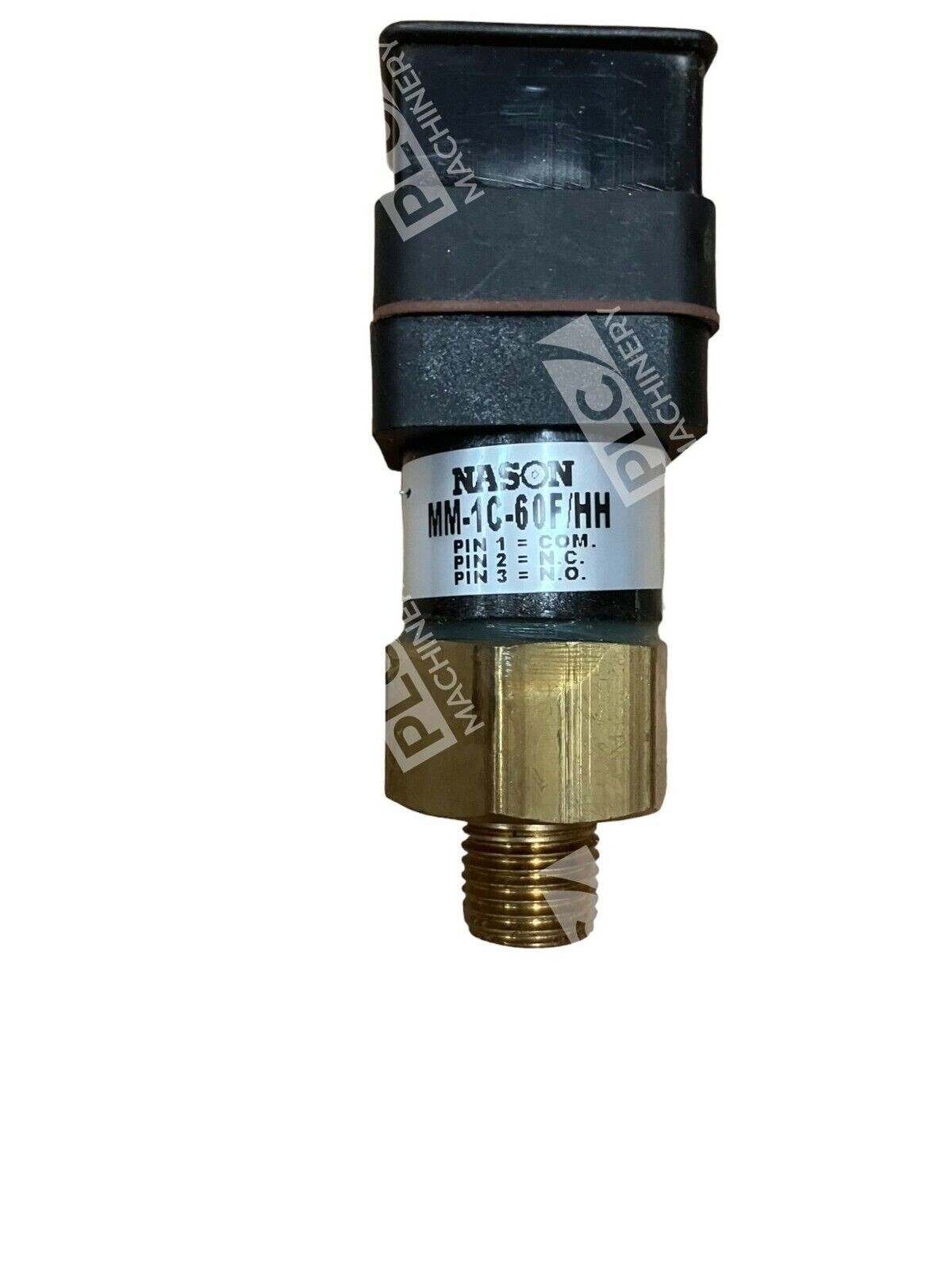

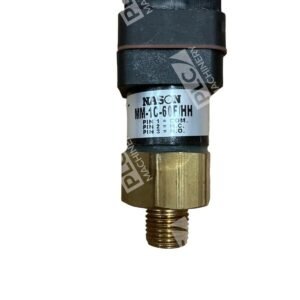

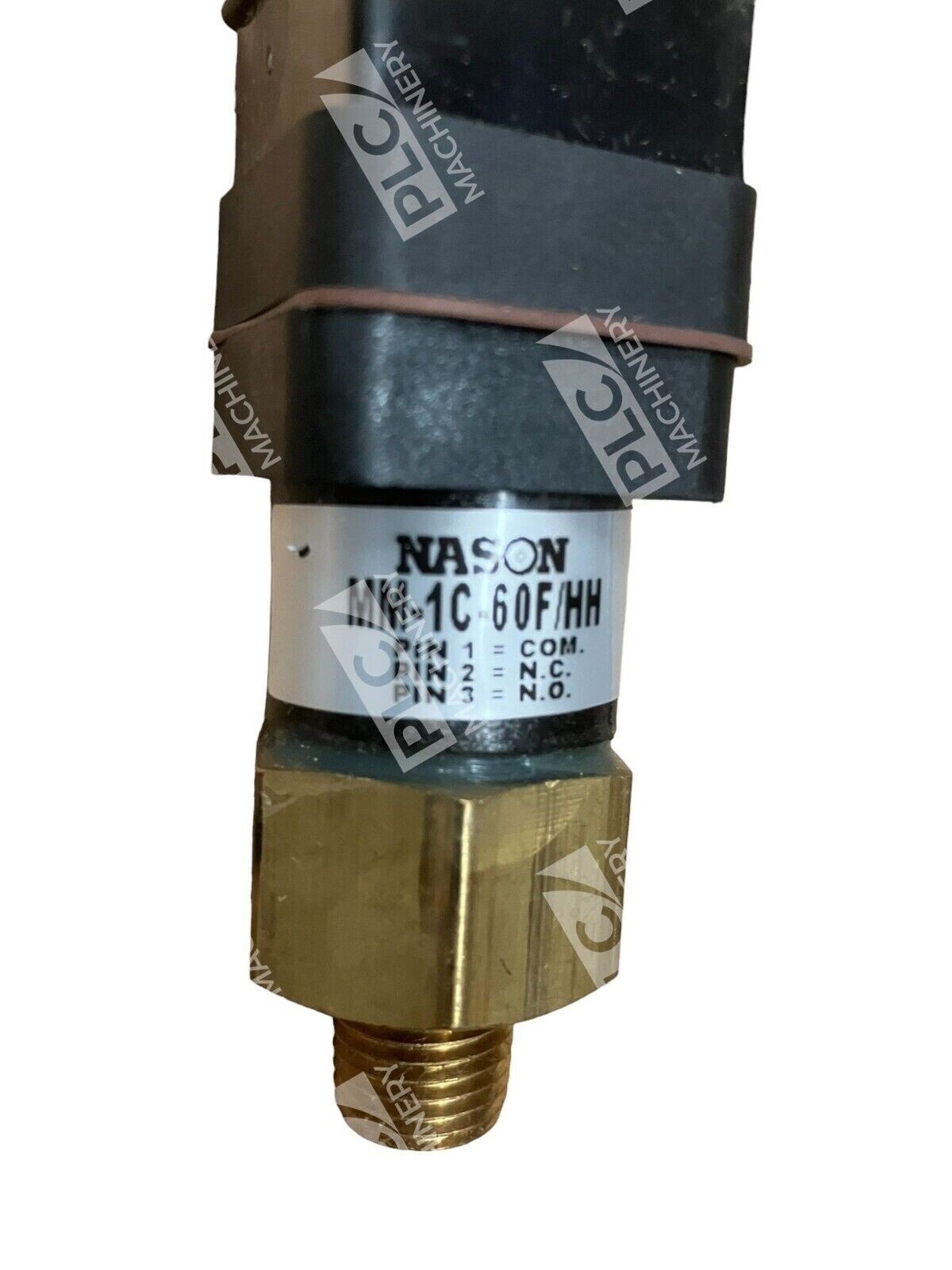

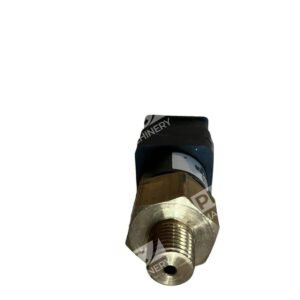

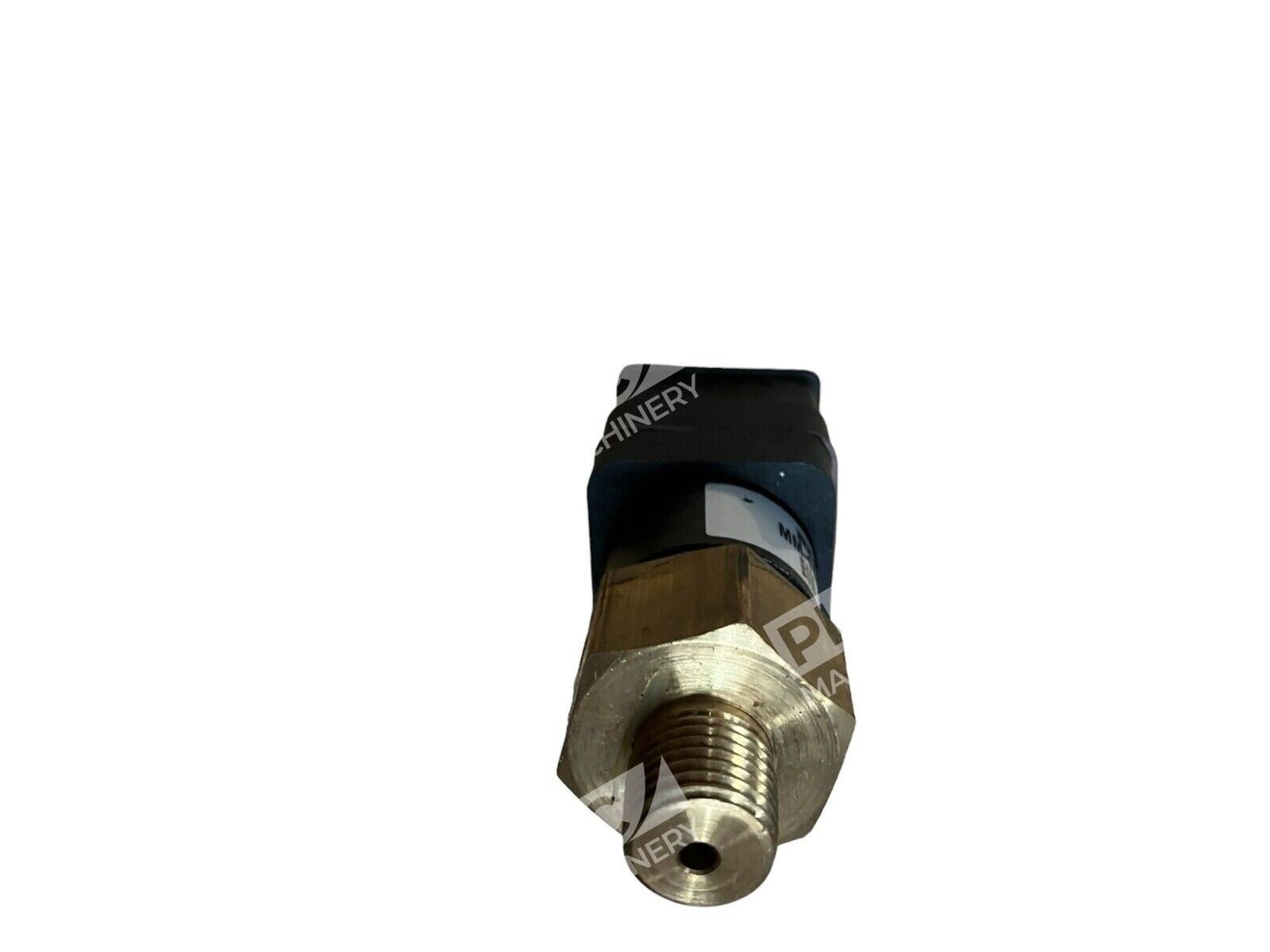

Nason MM-1C-60F/HH Low-Pressure Switch

The Nason MM-1C-60F/HH is a factory-set low-pressure switch designed to deliver reliable performance in both pneumatic and hydraulic applications. Engineered to meet NEMA 4 and 13 standards, this switch ensures durability and precision in demanding environments.

Key Features

• Factory Preset Set Point: Configured with a falling set point of 60 PSI, providing consistent and accurate pressure monitoring.
• High-Quality Snap-Action Switch: Incorporates a snap-action mechanism for immediate response and long-term reliability.
• Long-Life Elastomer Diaphragm: Utilizes a durable elastomer diaphragm to ensure extended operational life.
• Compact and Economical Design: Offers a space-efficient solution without compromising performance, making it suitable for various industrial applications.
• Versatile Material Options: Available in multiple base materials, including brass, aluminum, nickel-plated steel, 303 stainless steel, and 316 stainless steel, to accommodate different environmental conditions.

Technical Specifications

• Set Point Range: 2–120 PSI
• Maximum Operating Pressure: 600 PSI
• Proof Pressure: 1,800 PSI
• Current Rating: 5 A at 250 VAC; 5 A at 30 VDC (Resistive)
• Operating Temperature: -20°F to +220°F
• Cycle Life: Rated for 1 million cycles

The Nason MM-1C-60F/HH low-pressure switch is an ideal choice for applications requiring precise pressure monitoring and control, offering a blend of durability, accuracy, and adaptability to meet diverse industrial needs.
