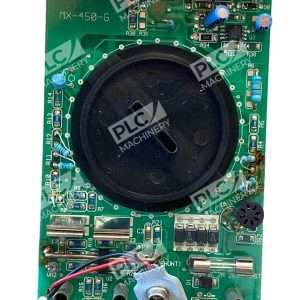

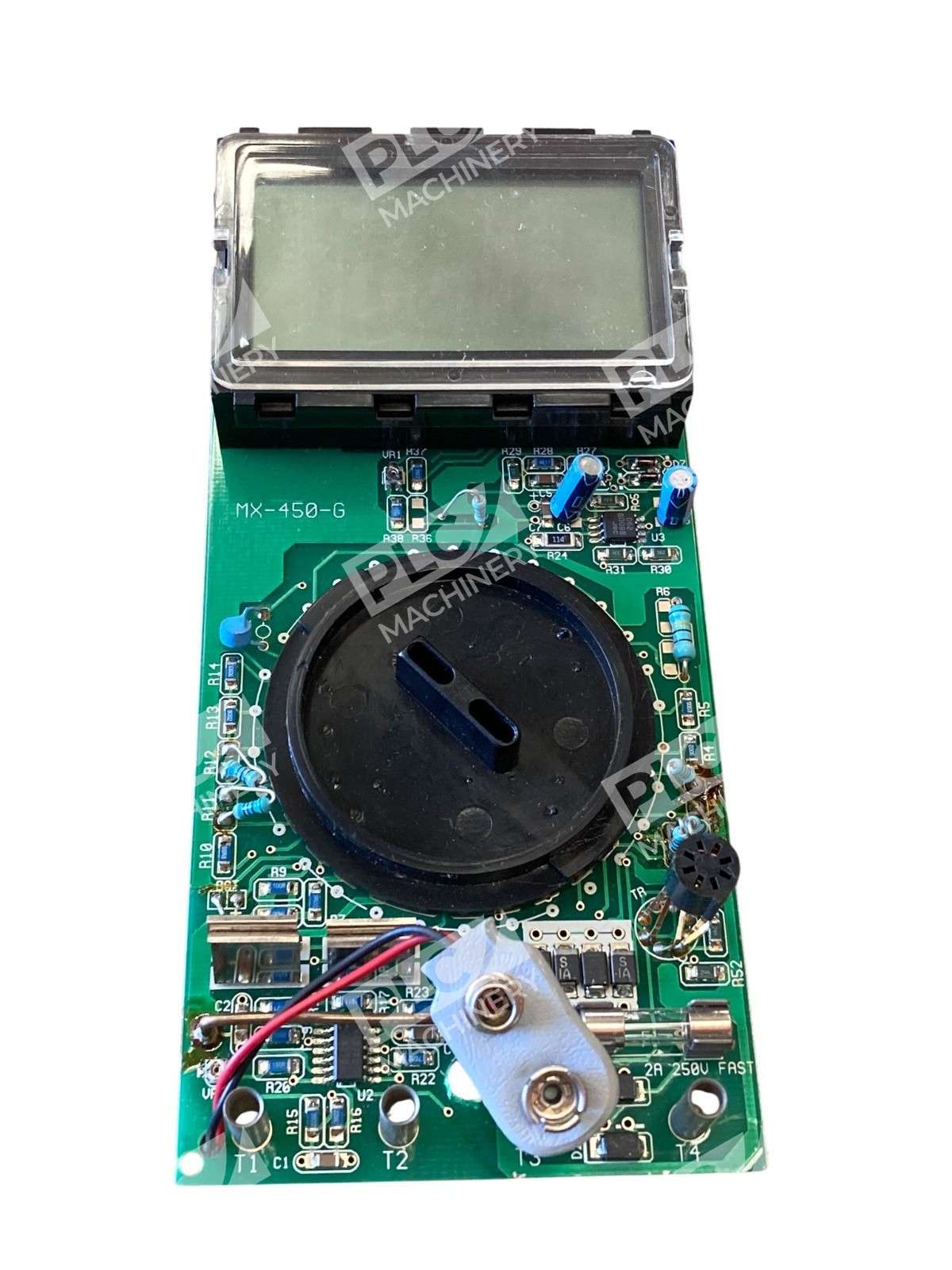

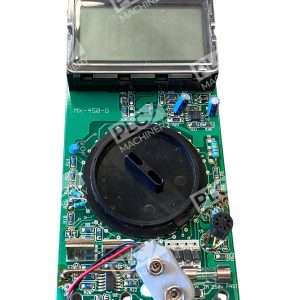

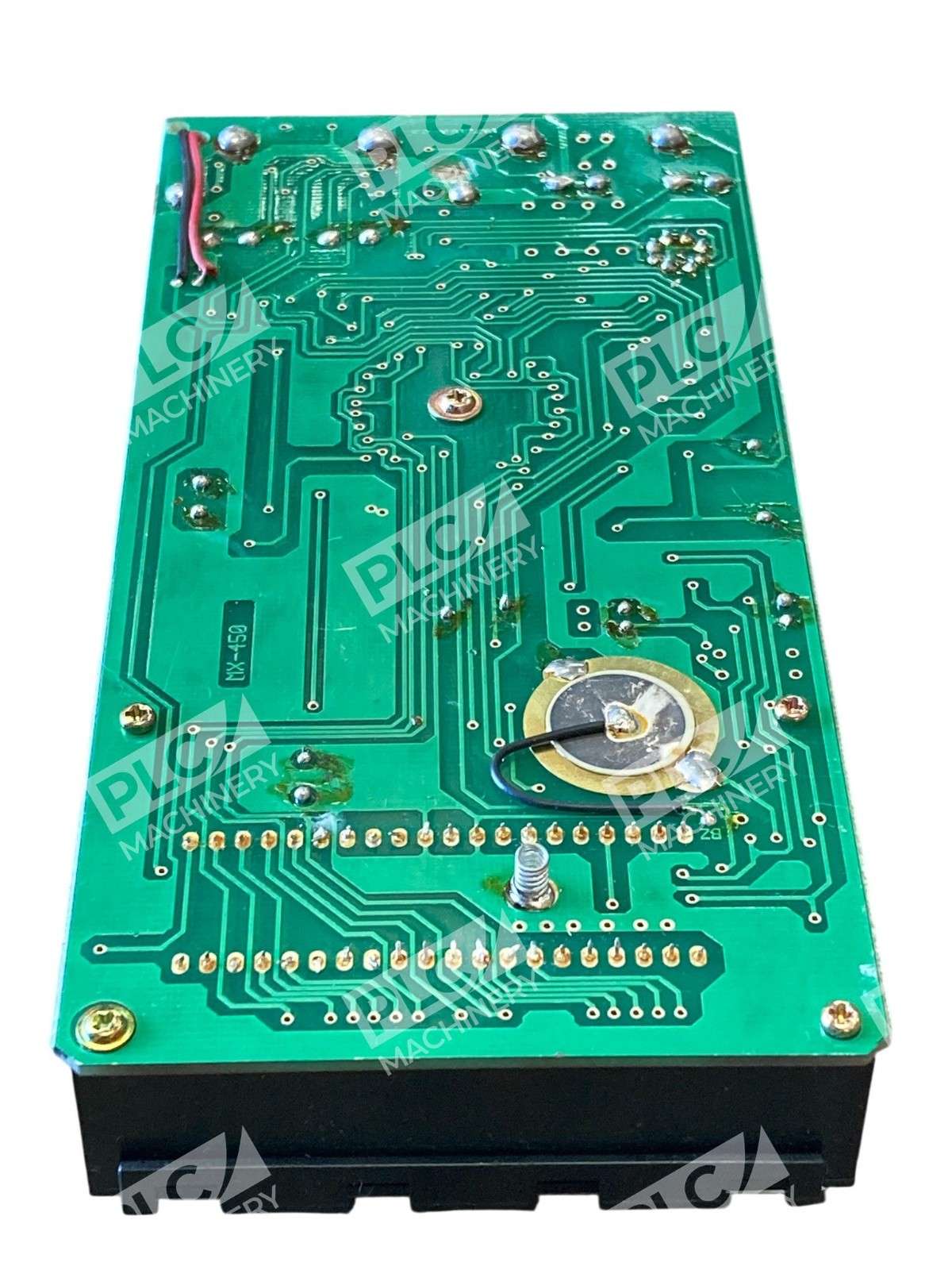

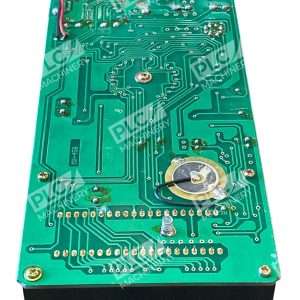

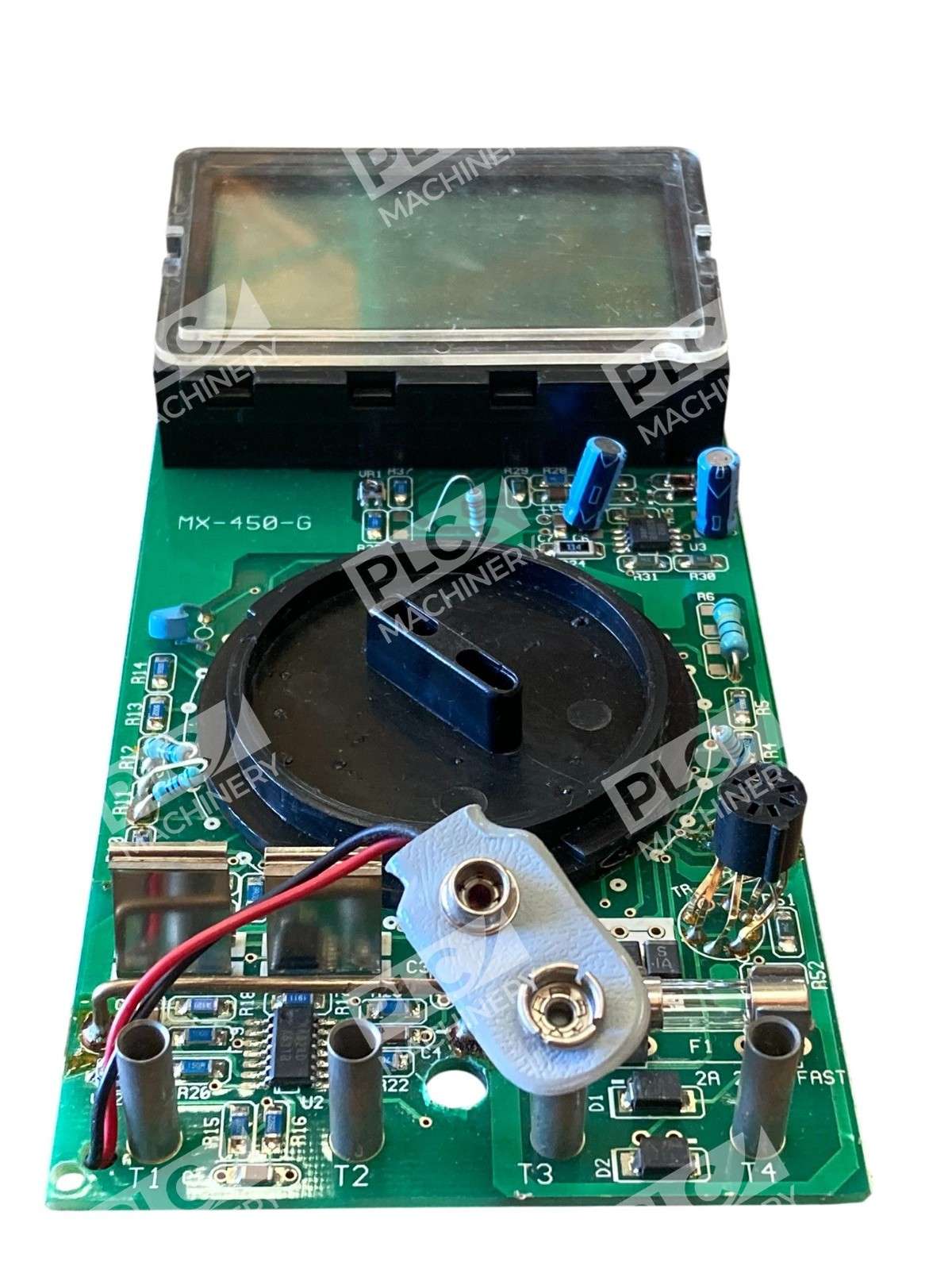

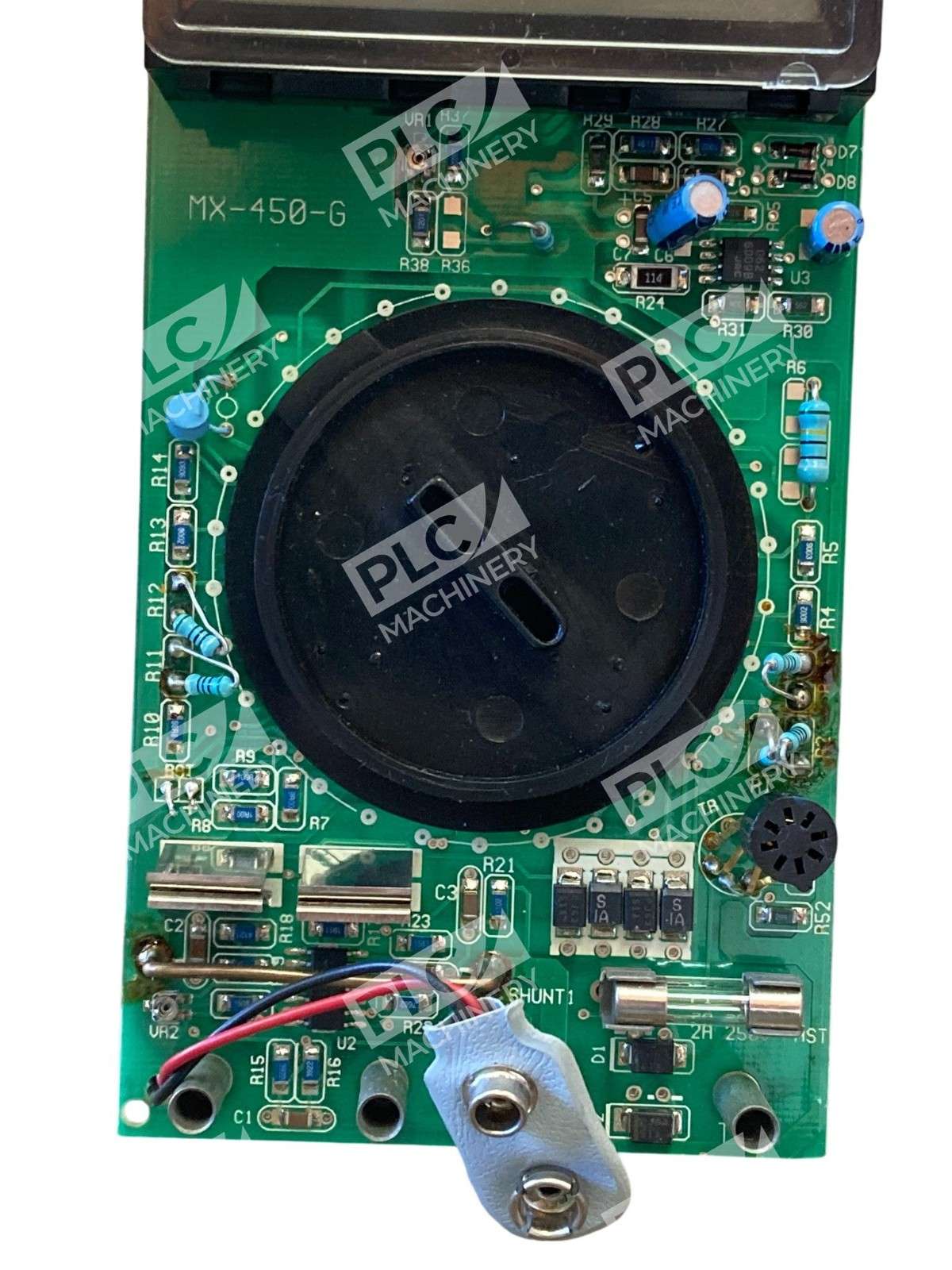

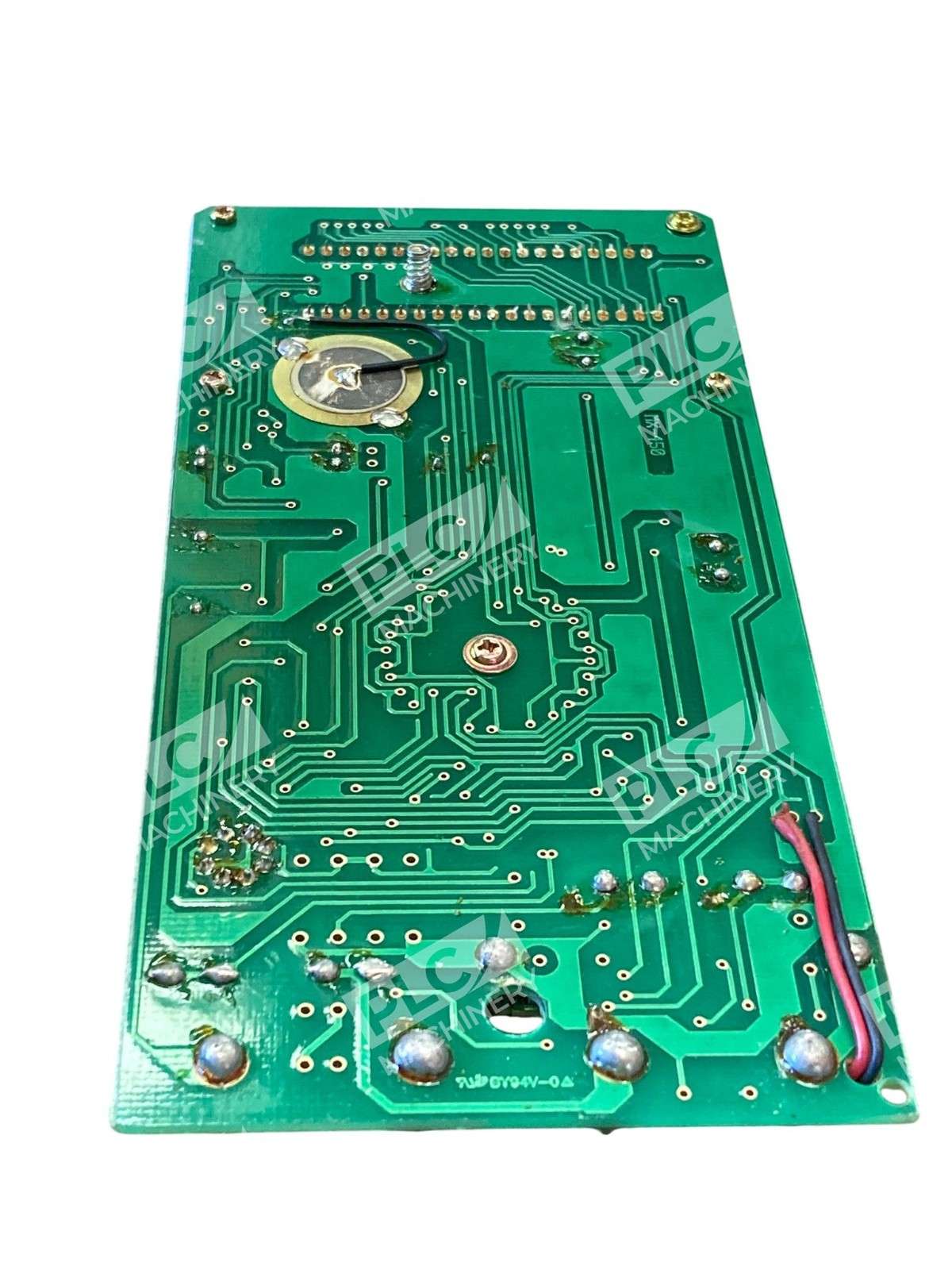

The MX-450-G Internal Circuit Board Digital Multimeter is a versatile and precise instrument designed for comprehensive electrical measurements. Its compact design and advanced features make it an essential tool for professionals and enthusiasts alike.

Key Features

• Comprehensive Measurement Capabilities: Accurately measures DC and AC voltage, DC and AC current, resistance, capacitance, and frequency, catering to a wide range of diagnostic needs.
• High-Resolution Display: Equipped with a 4½-digit LCD, providing clear and precise readings up to 20,000 counts.
• True RMS Measurement: Ensures accurate readings of both sinusoidal and non-sinusoidal waveforms, enhancing reliability in diverse applications.
• Auto-Ranging Functionality: Automatically selects the appropriate measurement range, simplifying operation and reducing manual adjustments.
• Data Hold Feature: Allows users to freeze the current reading on the display, facilitating easy recording and analysis.
• Overload Protection: Incorporates robust protection mechanisms to safeguard the device against accidental overloads, ensuring longevity and safety.
• Durable Construction: Built with high-quality materials, the MX-450-G is designed to withstand the rigors of daily use in various environments.

Applications

The MX-450-G is ideal for a multitude of applications, including:

• Troubleshooting and repairing electronic circuits.
• Testing and maintaining electrical equipment.
• Educational purposes in laboratories and technical training.
• Field service operations requiring portable and reliable measurement tools.

Specifications

• DC Voltage Range: 200mV to 1000V with an accuracy of ±0.5%.
• AC Voltage Range: 2V to 750V with an accuracy of ±0.8%.
• DC Current Range: 20mA to 20A with an accuracy of ±0.5%.
• AC Current Range: 200mA to 20A with an accuracy of ±1%.
• Resistance Measurement: 200Ω to 20MΩ with an accuracy of ±0.8%.
• Capacitance Measurement: 40nF to 200μF.
• Frequency Measurement: Up to 100kHz.
• Display: 4½-digit LCD with 20,000 counts.
• Power Supply: 9V battery (NEDA1604/6F22 or 006P).
• Dimensions: 195mm (L) x 92mm (W) x 55mm (H).
• Weight: Approximately 600g (including battery).

The MX-450-G Internal Circuit Board Digital Multimeter combines precision, versatility, and durability, making it an indispensable tool for accurate electrical measurements in various settings.
