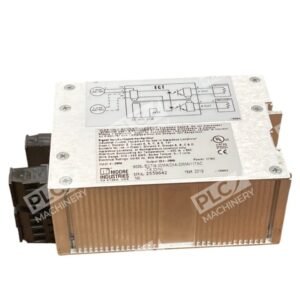

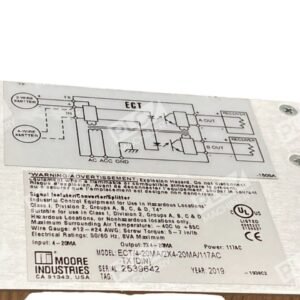

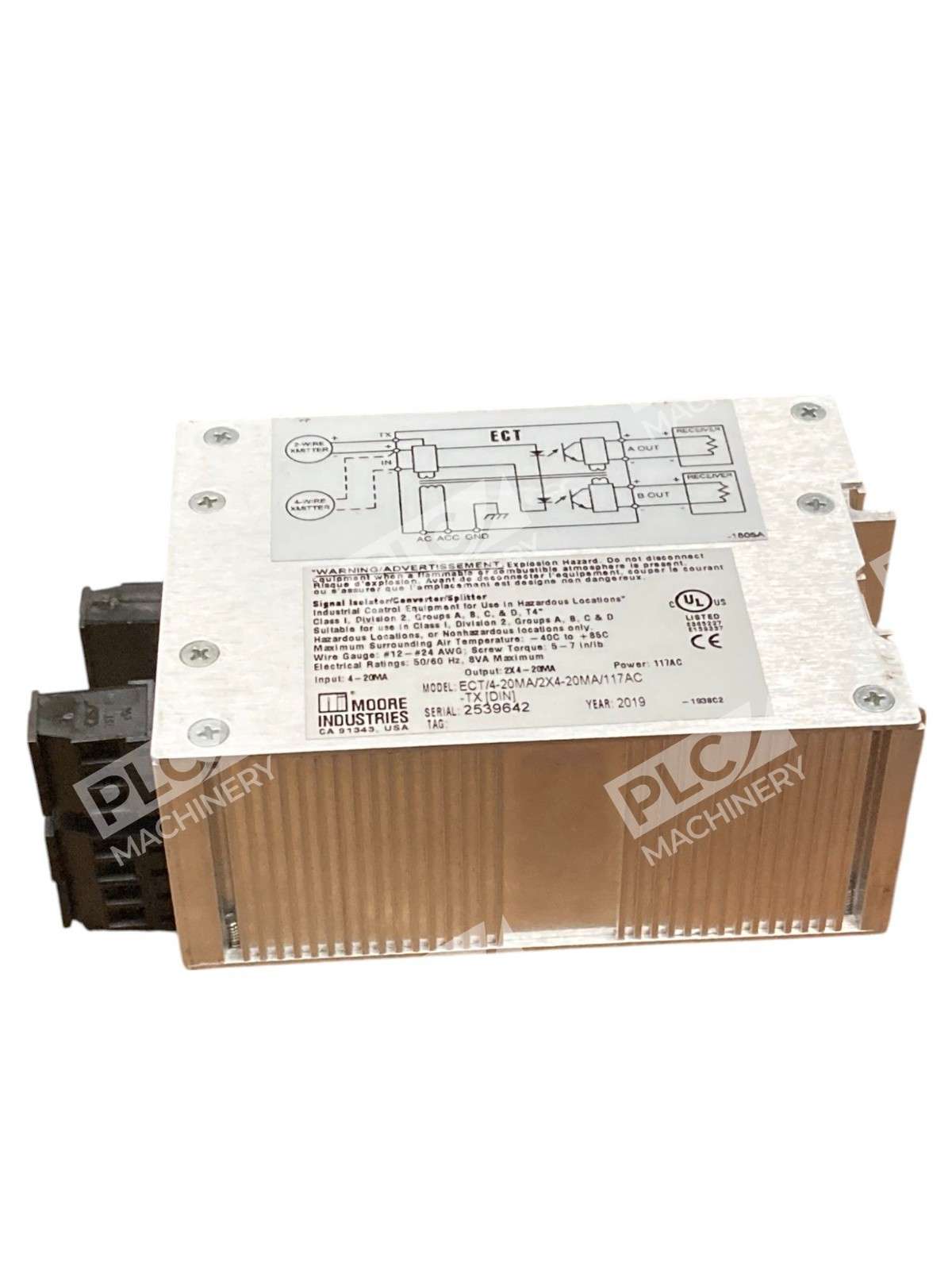

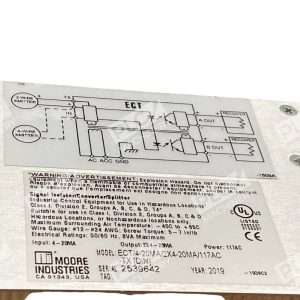

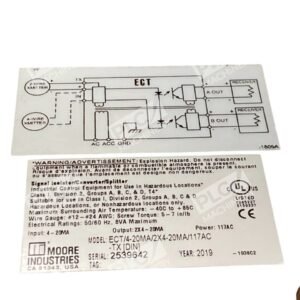

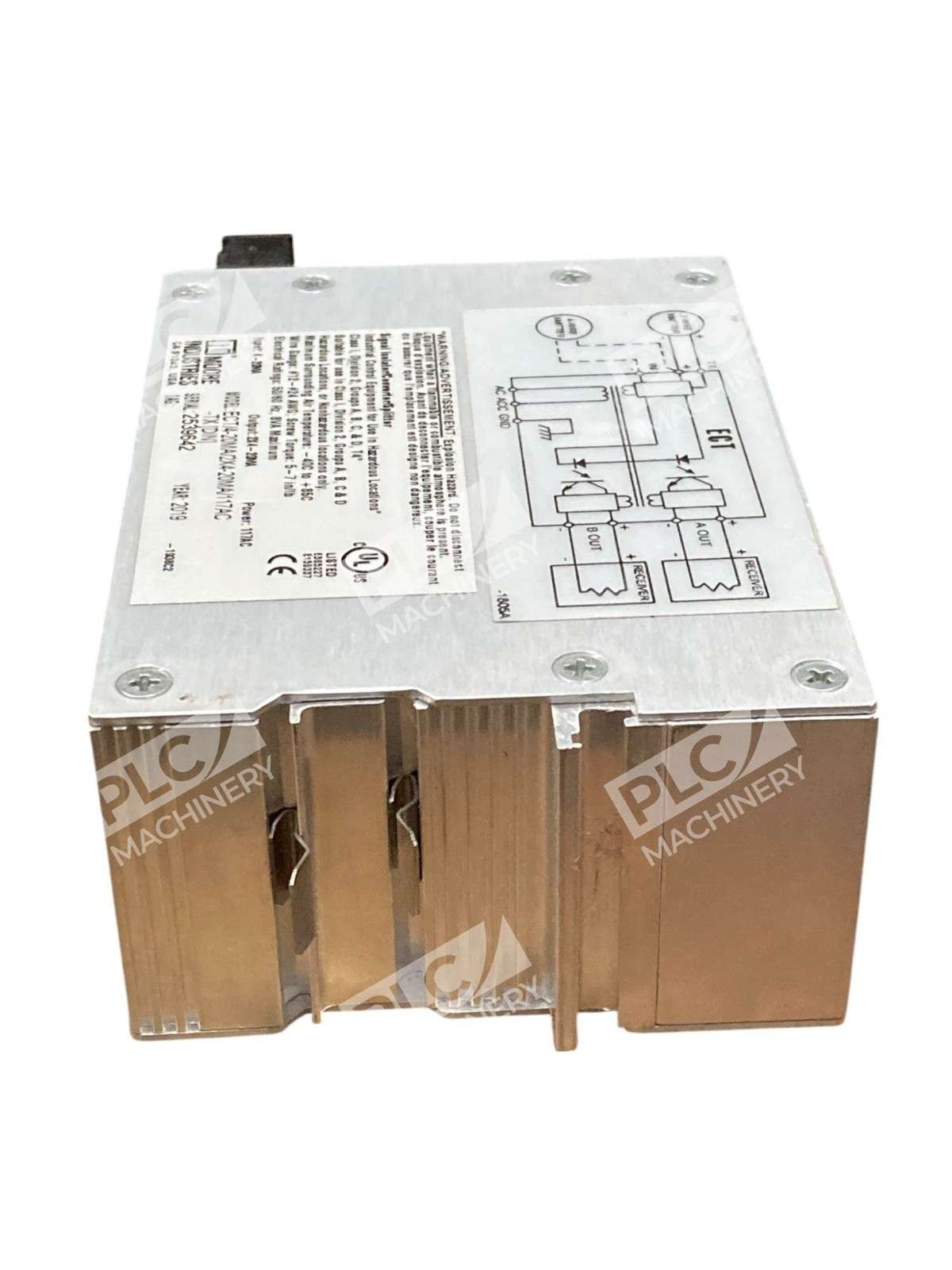

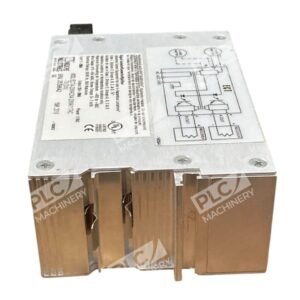

Moore Industries ECT/4-20MA/2X4-20MA/117AC-TX [DIN] Signal Isolator/Converter

The Moore Industries ECT/4-20MA/2X4-20MA/117AC-TX [DIN] is a robust signal isolator and converter designed to enhance the integrity and reliability of process control signals. This device effectively isolates, converts, and splits analog signals, ensuring accurate data transmission in industrial environments.

Key Features

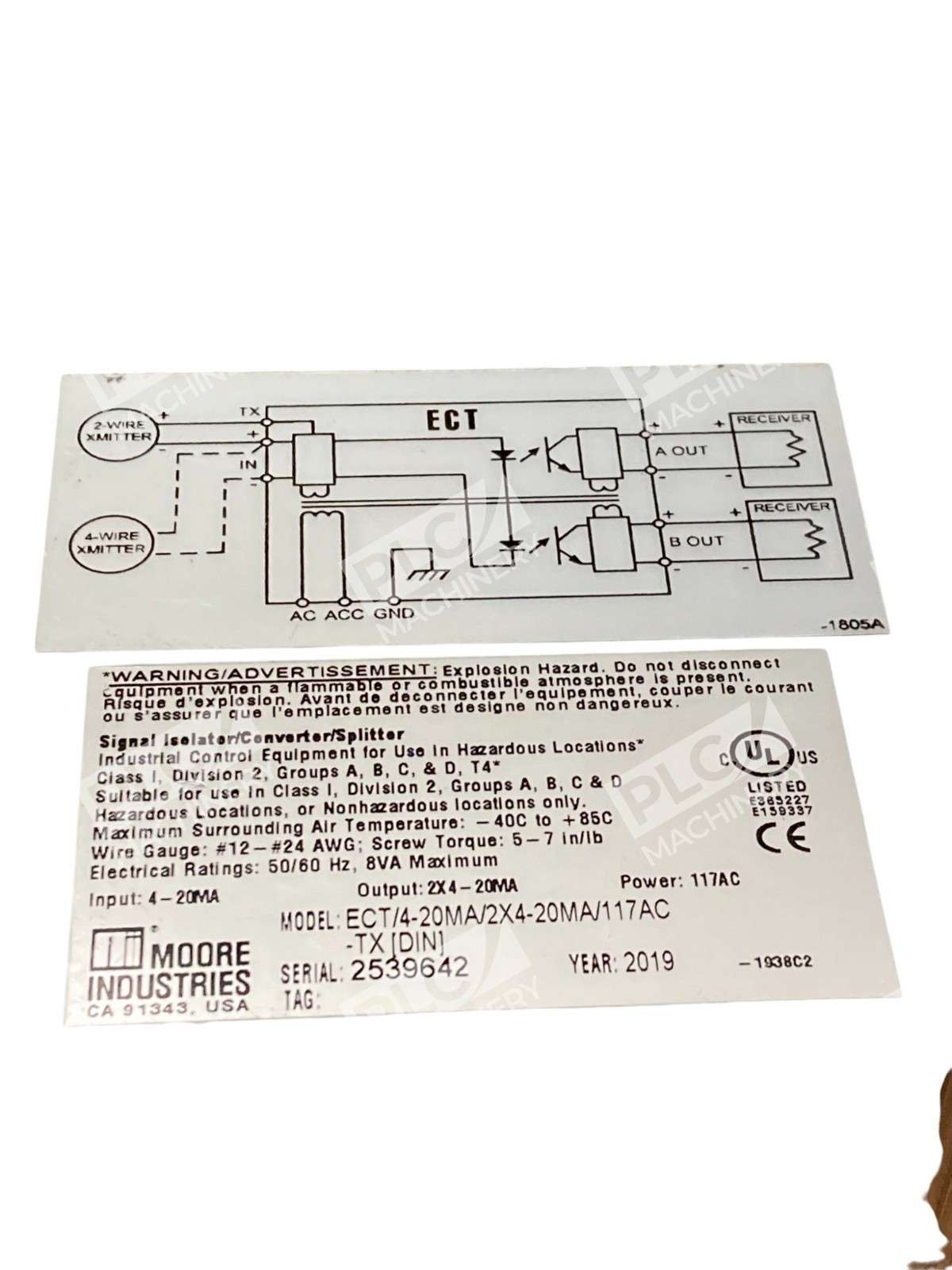

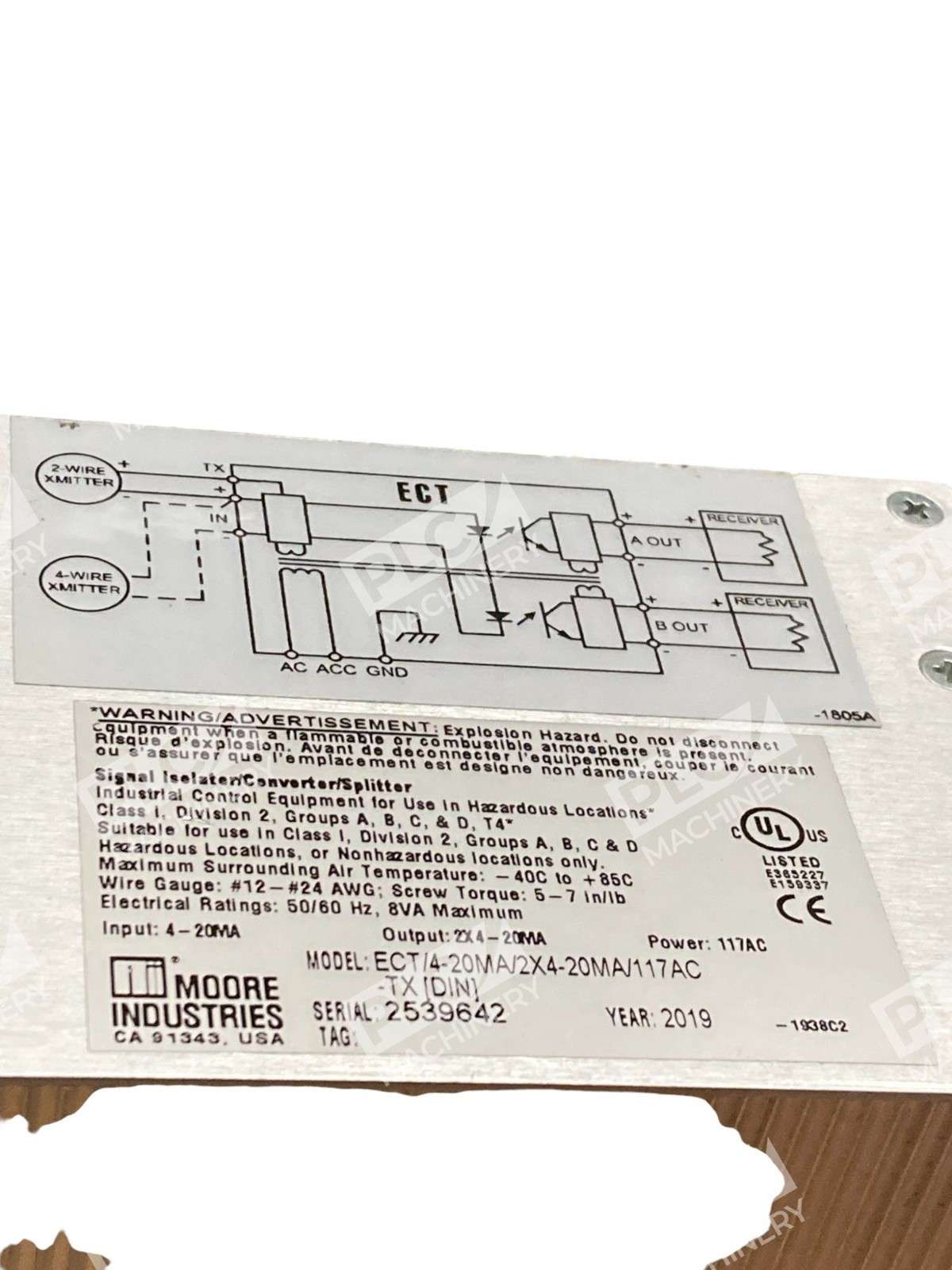

• Signal Isolation and Conversion: Accepts a 4-20mA input signal and provides dual 4-20mA outputs, facilitating signal splitting and distribution without degradation.
• Power Supply: Operates on a 117 VAC power source at 50/60 Hz, suitable for standard industrial power systems.
• Transmitter Excitation: Includes a 24V transmitter excitation feature, allowing it to power connected 2-wire transmitters directly.

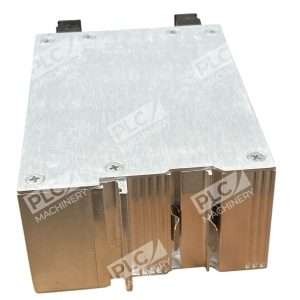

• Housing and Mounting: Encased in a DIN-style housing with a 36mm width, it is designed for easy installation on standard DIN rails, optimizing space within control panels.
• Durability: Engineered to withstand harsh industrial conditions, ensuring long-term reliability and performance.

Applications

This signal isolator/converter is ideal for various industrial applications, including:

• Process control systems requiring signal isolation to prevent ground loops and electrical interference.
• Situations necessitating signal splitting to transmit identical signals to multiple devices.
• Environments where powering 2-wire transmitters is essential.

Specifications

• Input Signal: 4-20mA
• Output Signals: Dual 4-20mA
• Power Supply: 117 VAC, 50/60 Hz
• Transmitter Excitation: 24V
• Housing: DIN-style, 36mm width

The Moore Industries ECT/4-20MA/2X4-20MA/117AC-TX [DIN] is a reliable solution for maintaining signal integrity and ensuring accurate process control in demanding industrial settings.
