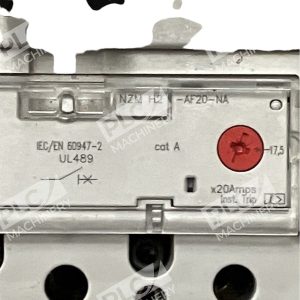

Moeller Eaton H2-AF20-NA NZM 2 Circuit Breaker 20A A Amp 600VAC

Moeller Eaton H2-AF20-NA NZM 2 Circuit Breaker 20A 600VAC

The Moeller Eaton H2-AF20-NA NZM 2 Circuit Breaker is a robust and reliable solution for electrical circuit protection, designed to meet the demands of both industrial and commercial applications.

Key Features

• Amperage Rating: 20 Amps
• Voltage Rating: 690 VAC, 750 VDC
• Number of Poles: Three-pole configuration
• Trip Type: Adjustable thermal and magnetic trip settings
• Interrupt Rating: Up to 150 kAIC
• Frame Type: NZM2
• Certifications: UL Listed, CSA Certified, IEC Compliant

Design and Construction

Constructed with precision, the NZM 2 Circuit Breaker features a compact design with dimensions of approximately 4.05 inches in length, 7.24 inches in height, and 4.13 inches in width, weighing around 4.1 pounds. It includes a rocker lever for manual operation and offers optional motor drive capabilities for automated control.

Performance and Protection

Engineered for high performance, this circuit breaker provides adjustable thermal and magnetic trip settings, allowing for customization based on specific application requirements. It boasts a short-circuit breaking capacity of up to 150 kAIC, ensuring reliable protection against electrical faults.

Applications

Ideal for use in unearthed supply systems up to 690 V, the Moeller Eaton H2-AF20-NA NZM 2 Circuit Breaker is suitable for branch circuits and feeder circuits, offering dependable protection and operational efficiency in various electrical systems.

Certifications and Compliance

This circuit breaker meets multiple international standards, including UL 489, CSA-C22.2 No. 5-09, and IEC/EN 60947, ensuring compliance with safety and performance regulations across different regions.

For detailed specifications and installation guidelines, please refer to the manufacturer’s datasheet.
