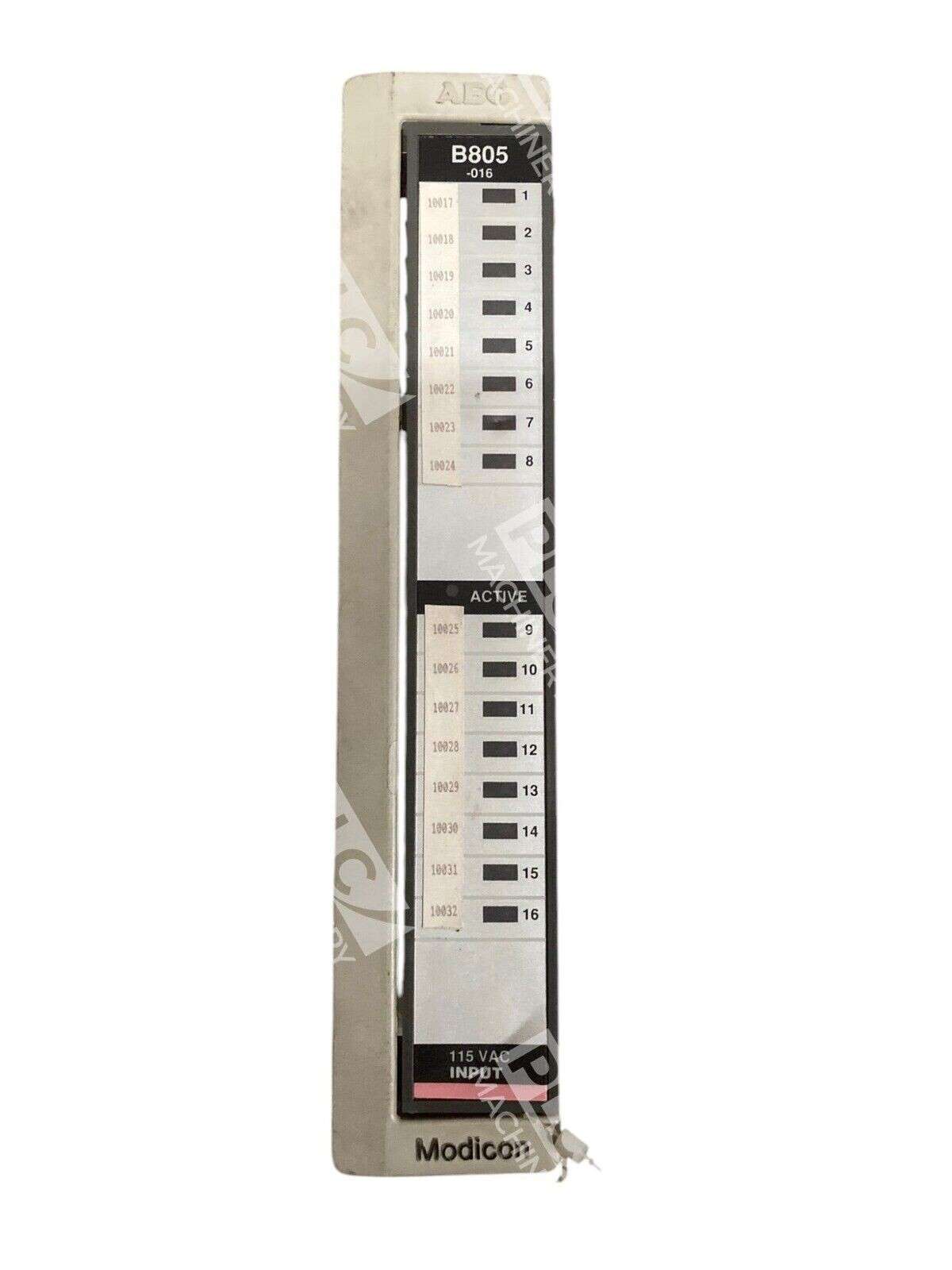

Modicon AEG B805-016 115VAC Input Module AS-B805-016

Modicon AEG B805-016 115VAC Input Module AS-B805-016

The Modicon AEG B805-016 is a 115VAC input module designed for seamless integration into industrial automation systems. This module efficiently converts switched input signals into logic voltage levels compatible with Programmable Logic Controllers (PLCs), ensuring reliable performance in various control applications.

Key Features

• Input Capacity: Equipped with 16 input points, organized into two groups of eight, facilitating structured and efficient signal processing.
• Operating Voltage Range: Functions effectively within an 80 to 130VAC range at 47-63 Hz, accommodating standard industrial power supplies.
• Input Compatibility: Capable of receiving signals from various 115VAC sources, including push buttons, limit switches, and proximity sensors.
• Electrical Isolation: Each input point is electrically isolated from the logic circuitry, enhancing system safety and reliability.
• Response Time: Features an OFF-to-ON response time of 6 ms (4 ms typical) and an ON-to-OFF response time of 18 ms (11 ms typical), ensuring prompt signal processing.
• Power Consumption: Consumes minimal power, drawing 40 mA at +5V, 1 mA at +4.3V, and 14 mA at -5V, promoting energy efficiency.
• Compact Design: Occupies a single slot within the control panel, optimizing space utilization.
• Durability: Built to withstand industrial environments, with a maximum continuous input voltage of 130VAC and surge protection up to 220VAC for one cycle.

Installation and Maintenance

The B805-016 module features a standard screw terminal strip for user connections, allowing for straightforward wiring. Its design permits module insertion or removal without disturbing existing wiring, facilitating easy maintenance and system upgrades.

Applications

This input module is ideal for various industrial applications, including manufacturing processes, material handling systems, and packaging machinery, where reliable 115VAC signal processing is essential.

Specifications

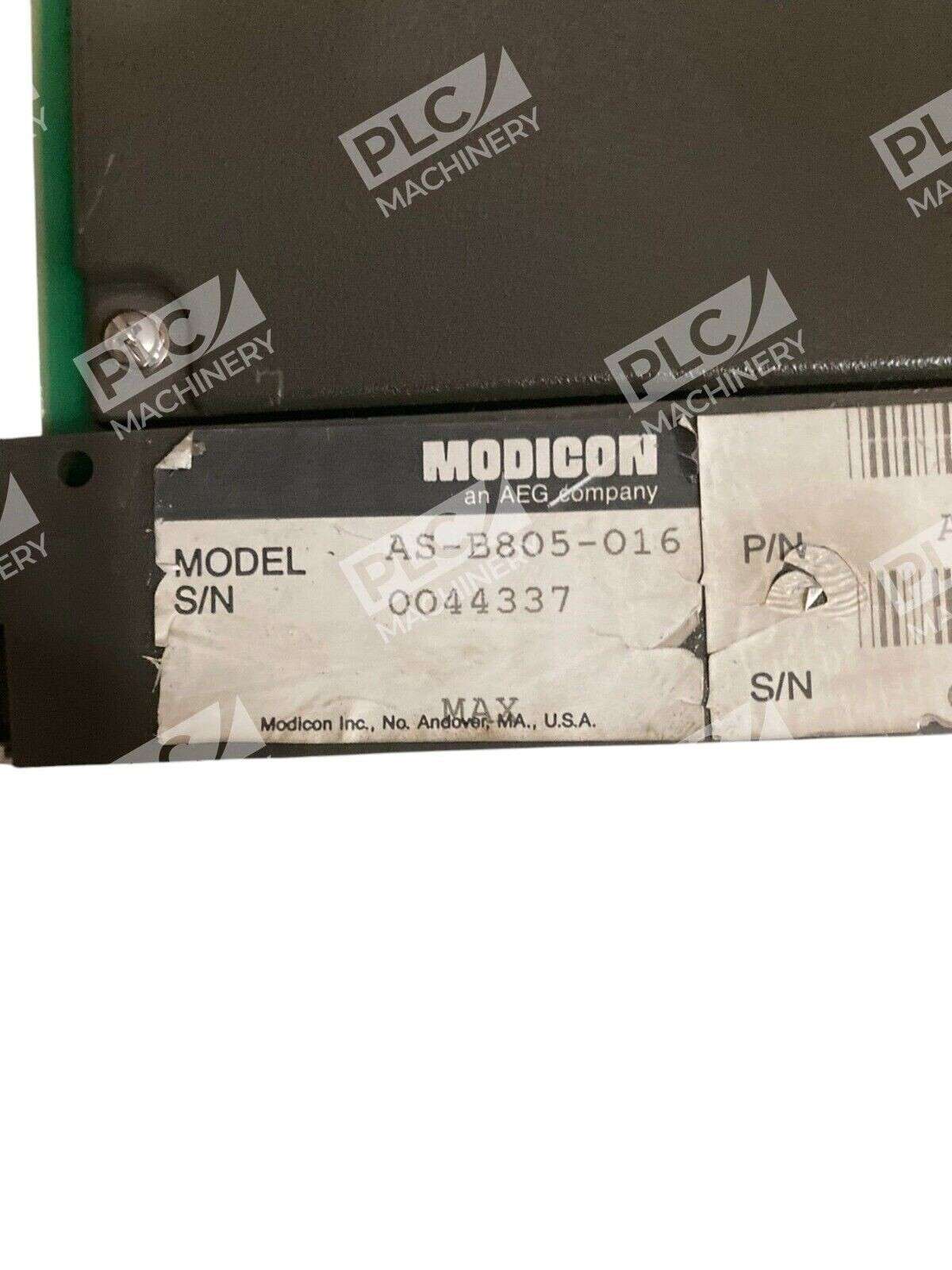

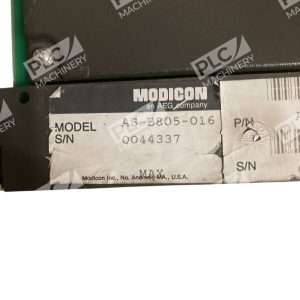

• Model Number: AS-B805-016
• Input Voltage: 115VAC
• Number of Inputs: 16 (2 groups of 8)
• Operating Frequency: 47-63 Hz
• Maximum Input Voltage: 130VAC continuous, 220VAC for one cycle
• Response Time: OFF-to-ON: 6 ms (4 ms typical); ON-to-OFF: 18 ms (11 ms typical)
• Power Requirements: +5V at 40 mA; +4.3V at 1 mA; -5V at 14 mA
• Slot Requirement: 1 slot
• Weight: Approximately 2.2 lbs (1.01 kg)

The Modicon AEG B805-016 115VAC Input Module AS-B805-016 stands as a reliable and efficient solution for industrial automation needs, offering robust performance and ease of integration into existing systems.
