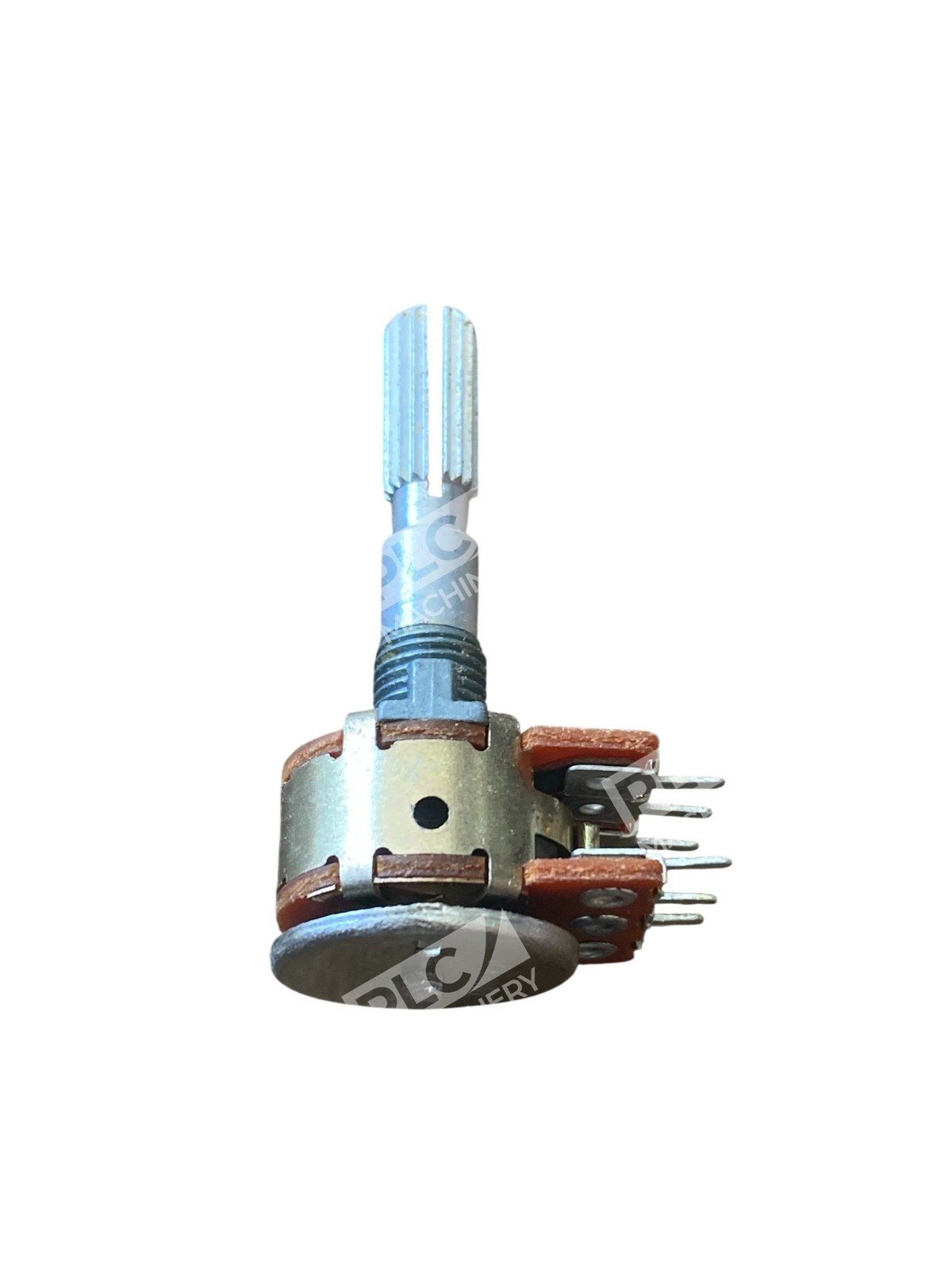

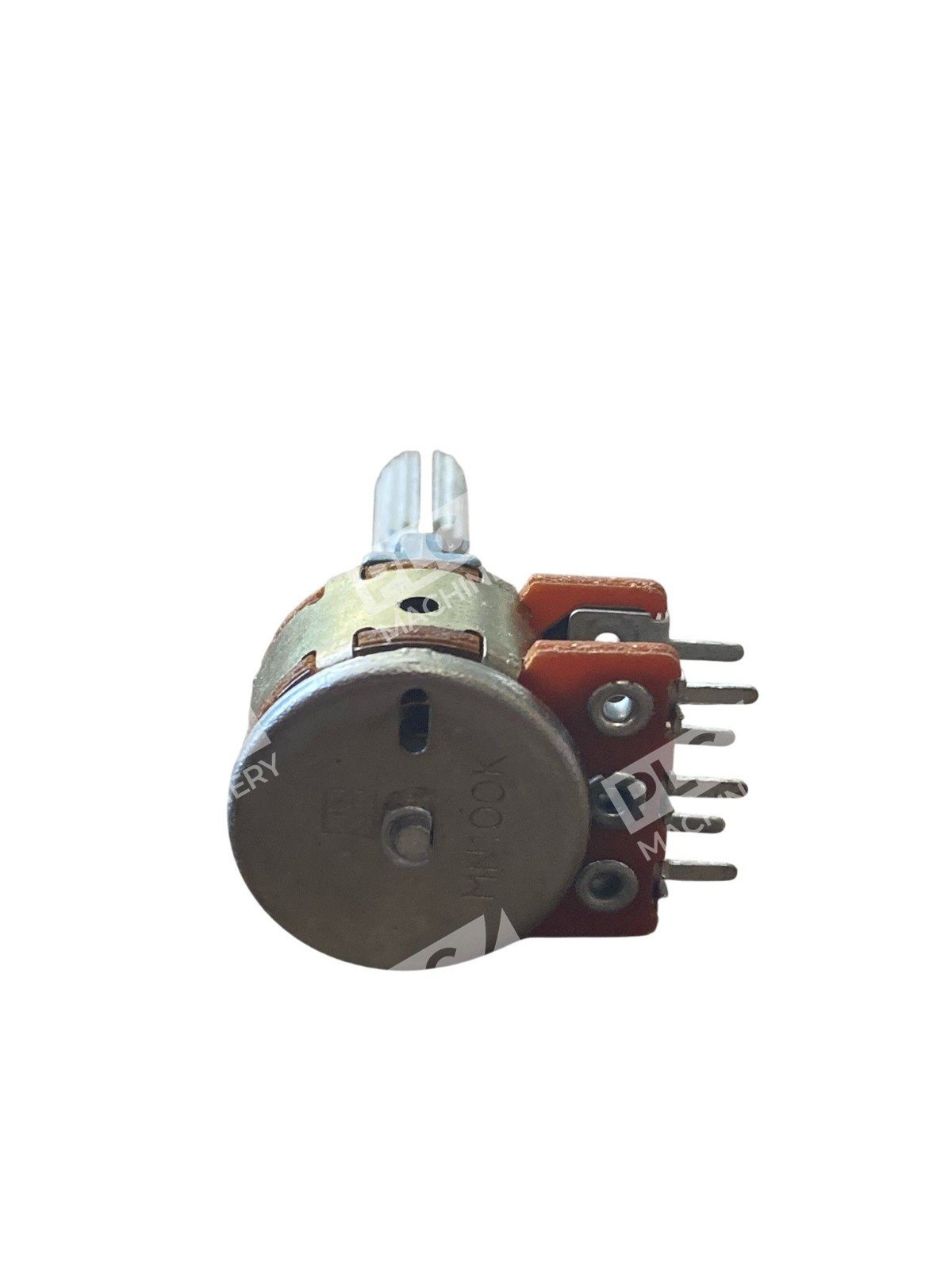

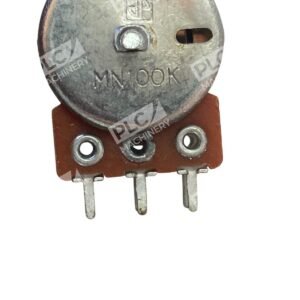

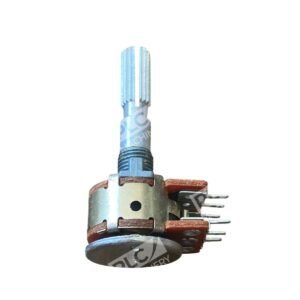

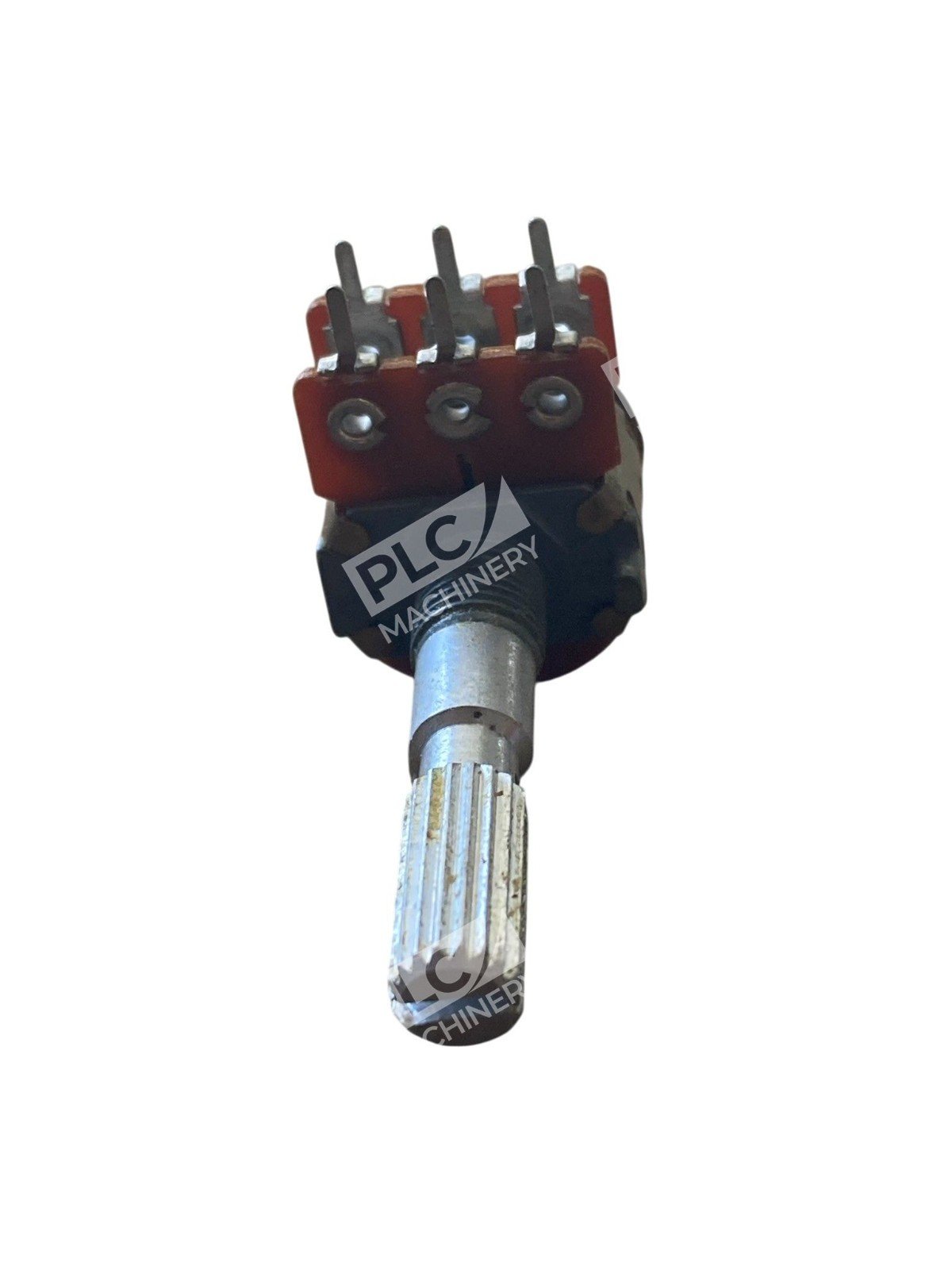

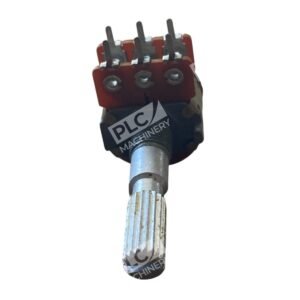

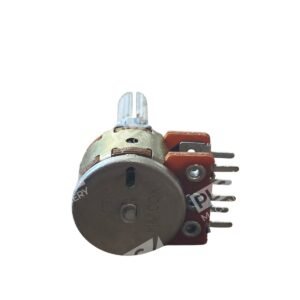

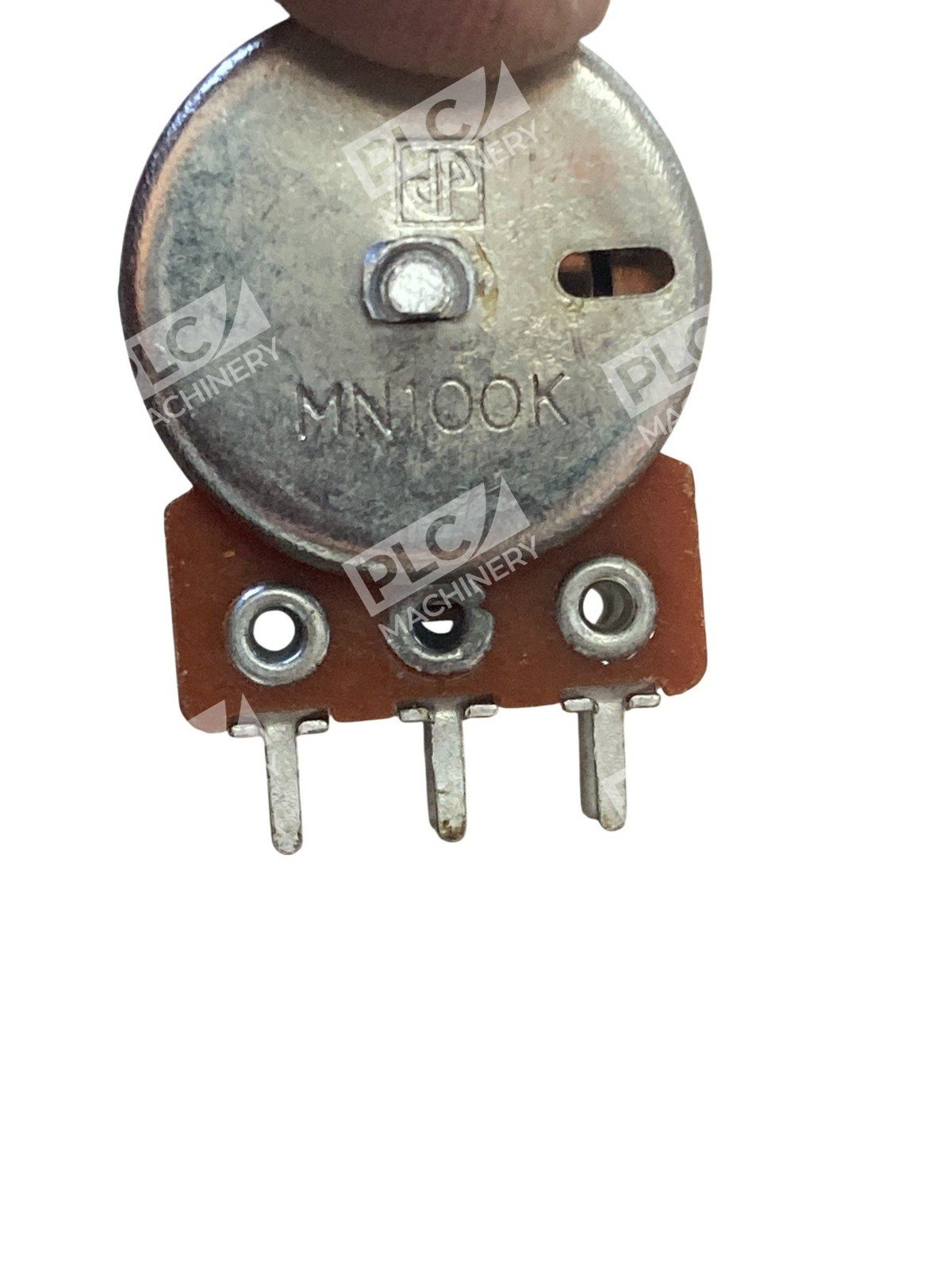

The MN100K Linear Taper Dual-Layer Rotary Potentiometer is a high-precision component designed for applications requiring accurate and consistent resistance control.
Key Features
- Dual-Layer Design: Incorporates two potentiometer elements within a single unit, enabling simultaneous control of dual channels or stereo applications.
- Linear Taper (Type B): Provides a uniform change in resistance relative to the rotation angle, ensuring precise and predictable adjustments.
- Standard Knurled Shaft: Features a knurled shaft compatible with most push-on knobs, facilitating easy installation and secure attachment.
- Versatile Applications: Ideal for use in stereo amplifiers, dual power supplies, and other electronic devices requiring synchronized dual-channel control.
- RoHS Compliant: Manufactured in compliance with the Restriction of Hazardous Substances directive, ensuring environmental safety.
Specifications
- Resistance Value: 100k Ohms ±20%
- Power Rating: 0.5W
- Operating Voltage: 500V
- Insulation Resistance: 100M Ohms minimum at 500V DC
- Withstanding Voltage: 500V AC for 1 minute
- Total Rotational Angle: 300° ±5°
- Rotational Torque: 20 to 200 gf/cm
- Rotational Stop Strength: 7 kgf/cm
- Life Cycle: 10,000 cycles
Dimensions
- Length (L): 18mm
- Pin Spacing (P): 11.5mm
The MN100K Linear Taper Dual-Layer Rotary Potentiometer is engineered to deliver reliable performance and durability, making it a suitable choice for various electronic applications requiring precise dual-channel resistance control.
