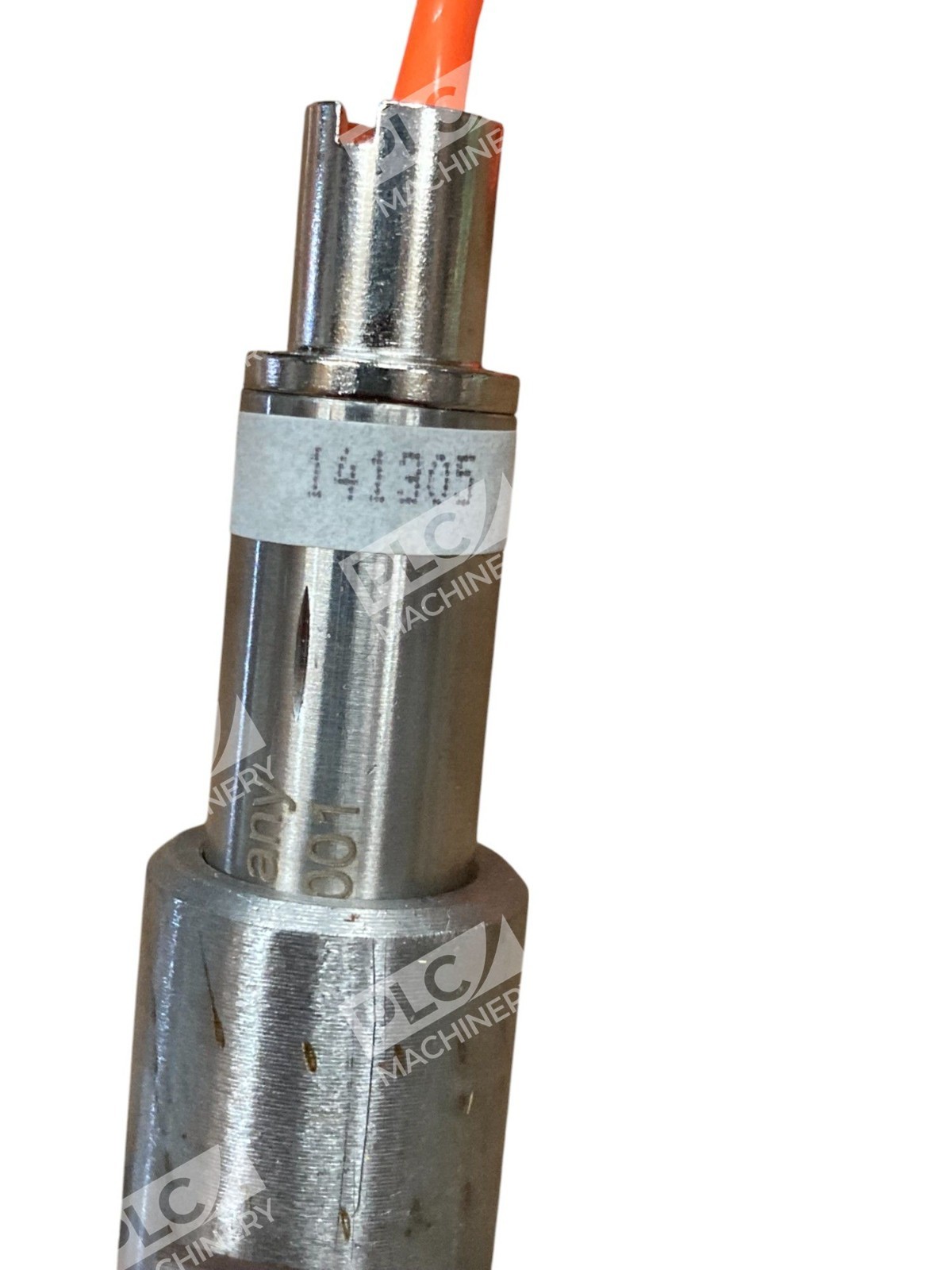

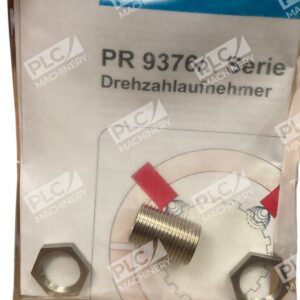

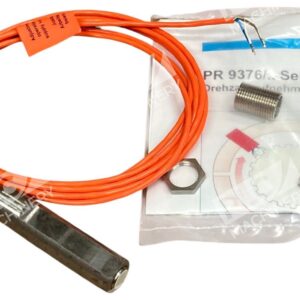

MMS Machine Monitoring Systems 12kHz 141305 Sensor PR 9376

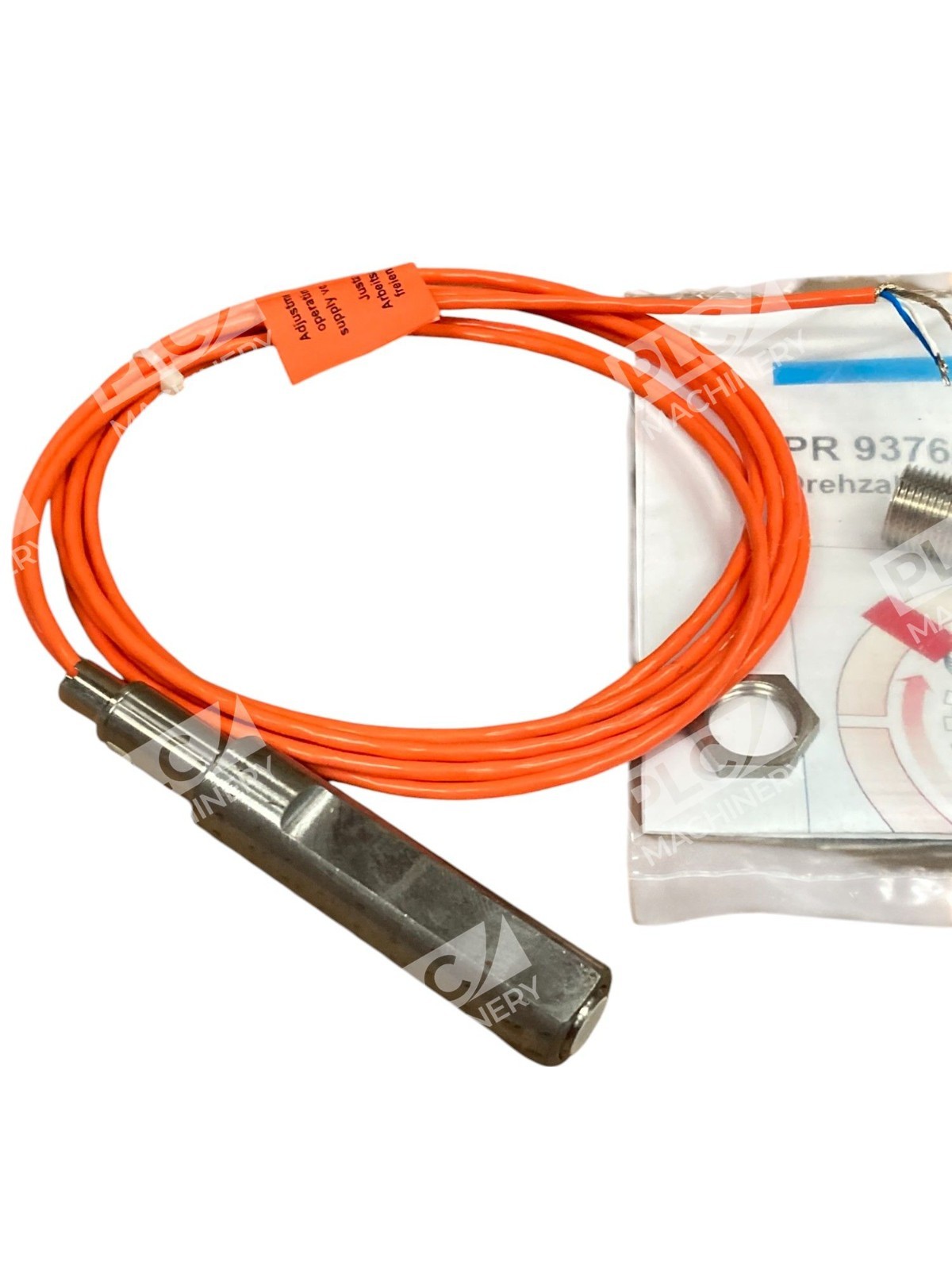

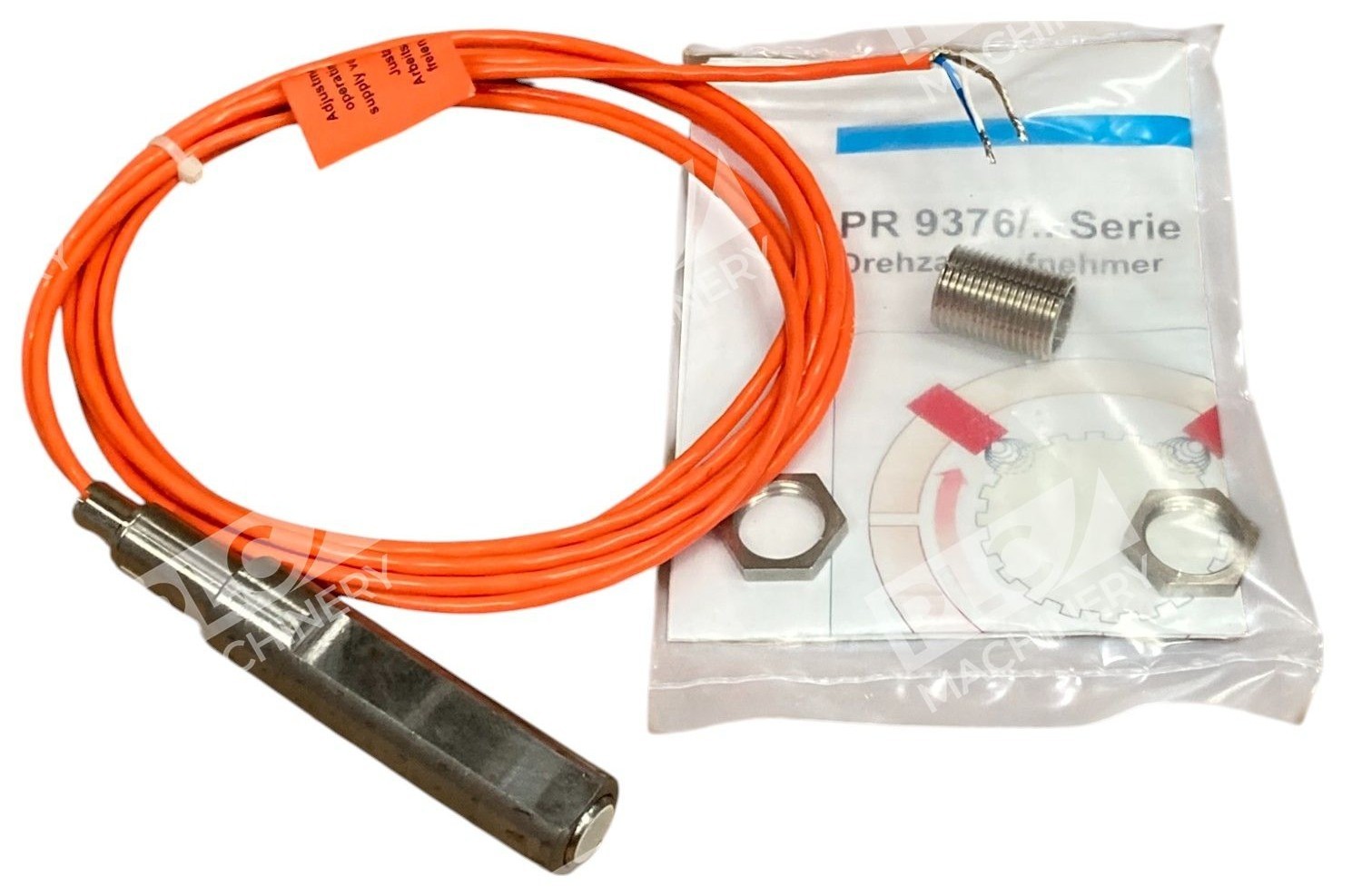

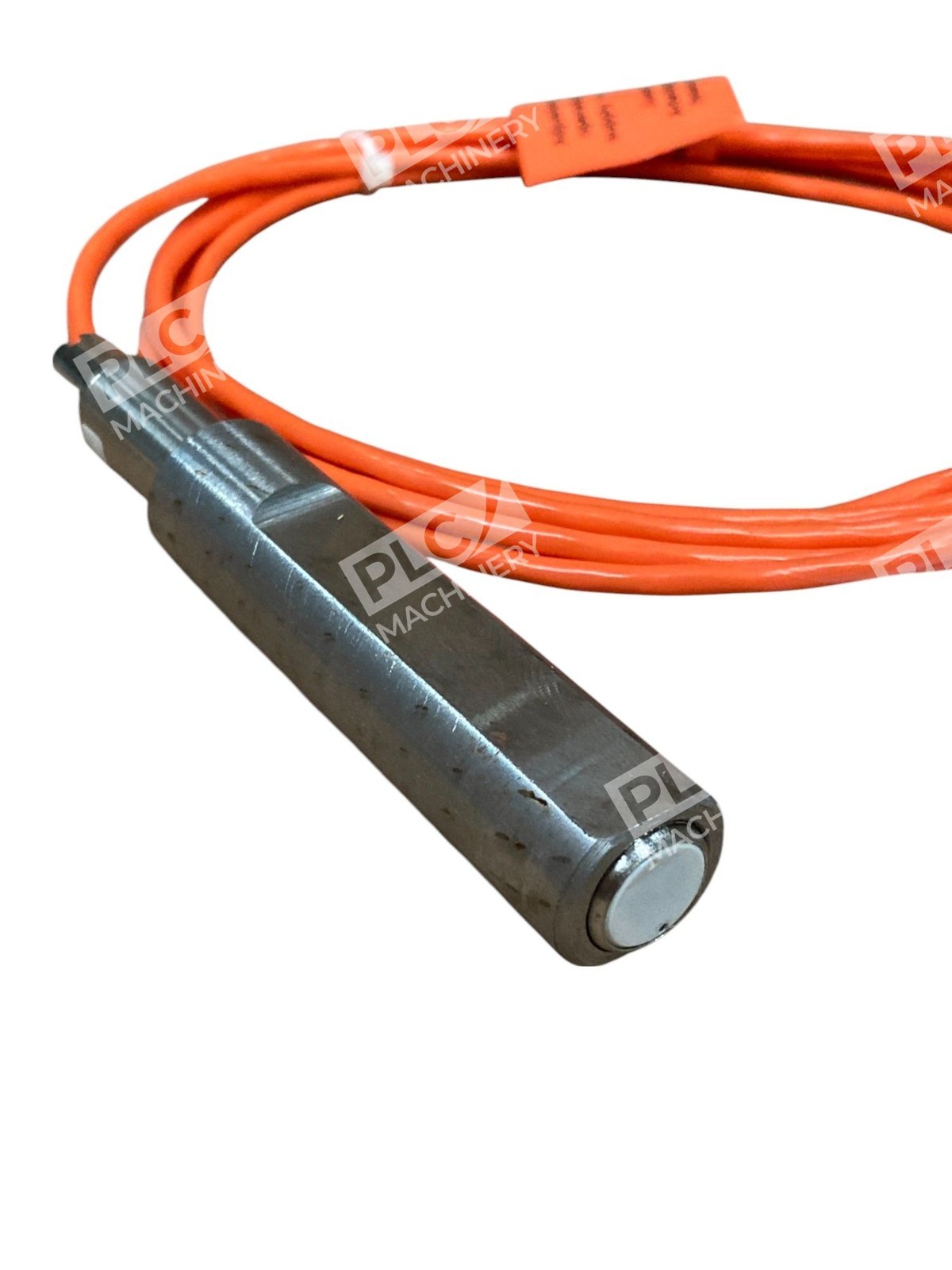

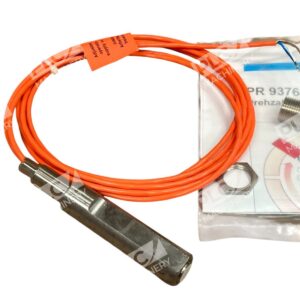

PR 9376 Hall Effect Tachometer

The PR 9376 Hall Effect Tachometer is a precision sensor designed for seamless integration into machinery protection systems, offering accurate rotational speed measurements essential for monitoring and safeguarding industrial equipment.

Key Features

• Versatile Applications: Suitable for both machinery protection and predictive monitoring systems.
• Compact Design: Ideal for installations with limited space, ensuring flexibility in various setups.
• Magnetic Mounting: Facilitates easy and secure attachment to machinery components.
• Laser Detection Capability: Operates effectively up to 30 feet without the need for reflective tape, accommodating both clean and dirty shafts.

Technical Specifications

• Output: 1 AC cycle per revolution or gear tooth.
• Rise/Fall Time: 1 microsecond.
• Output Voltage (at 12 VDC, 100 kΩ load): High > 10 V; Low < 1 V.
• Air Gap: Module 1: 1 mm; Module ≥ 2: 1.5 mm.
• Maximum Operating Frequency: 12 kHz (720,000 cycles per minute).
• Weight: 210 grams (7.4 ounces).
• Operating Temperature Range: -30°C to 100°C (-22°F to 212°F).
• Storage Temperature Range: -40°C to 100°C (-40°F to 212°F).

The PR 9376 Hall Effect Tachometer stands as a reliable solution for precise rotational speed monitoring, contributing to the enhanced safety and efficiency of industrial machinery.
