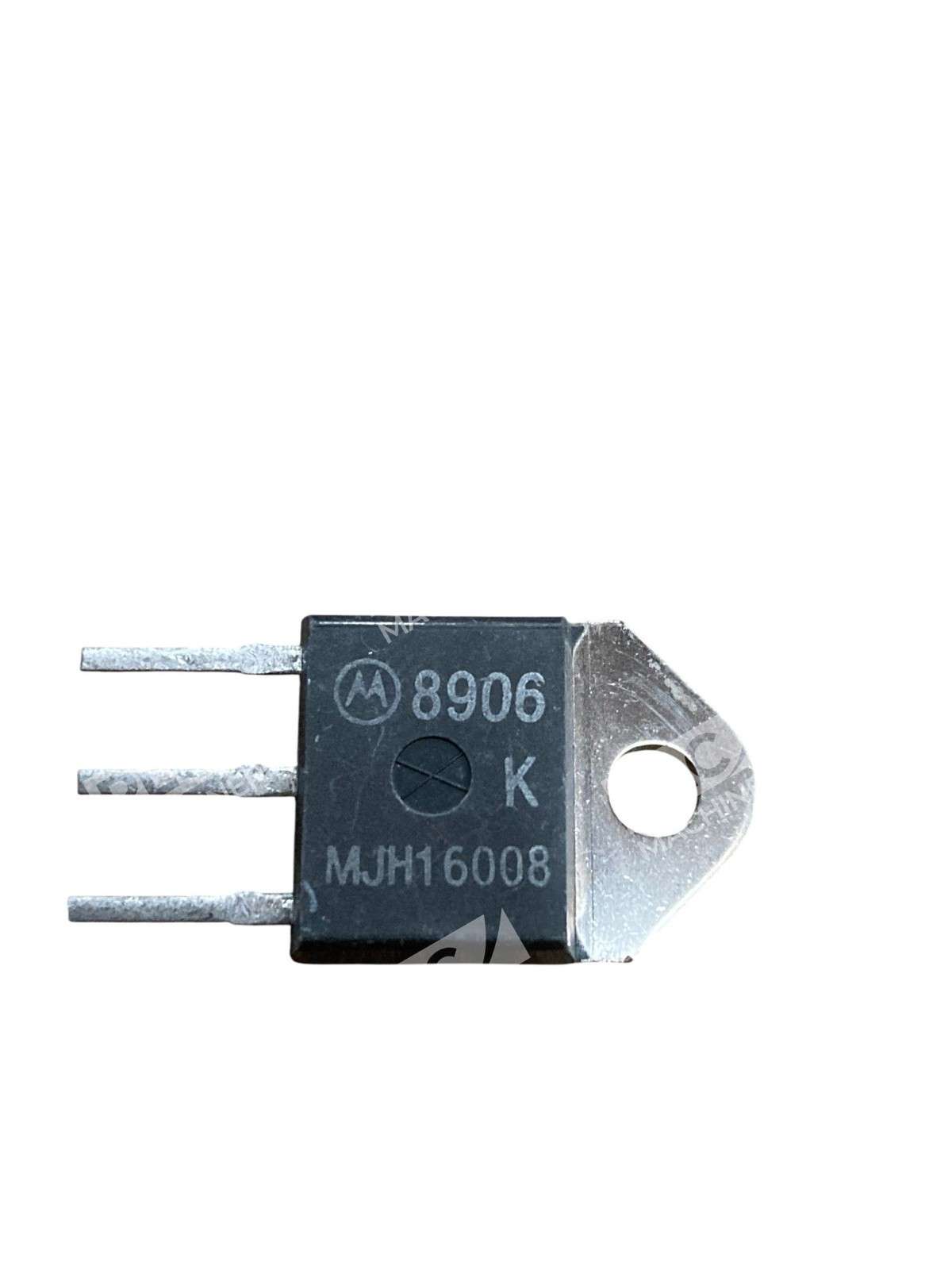

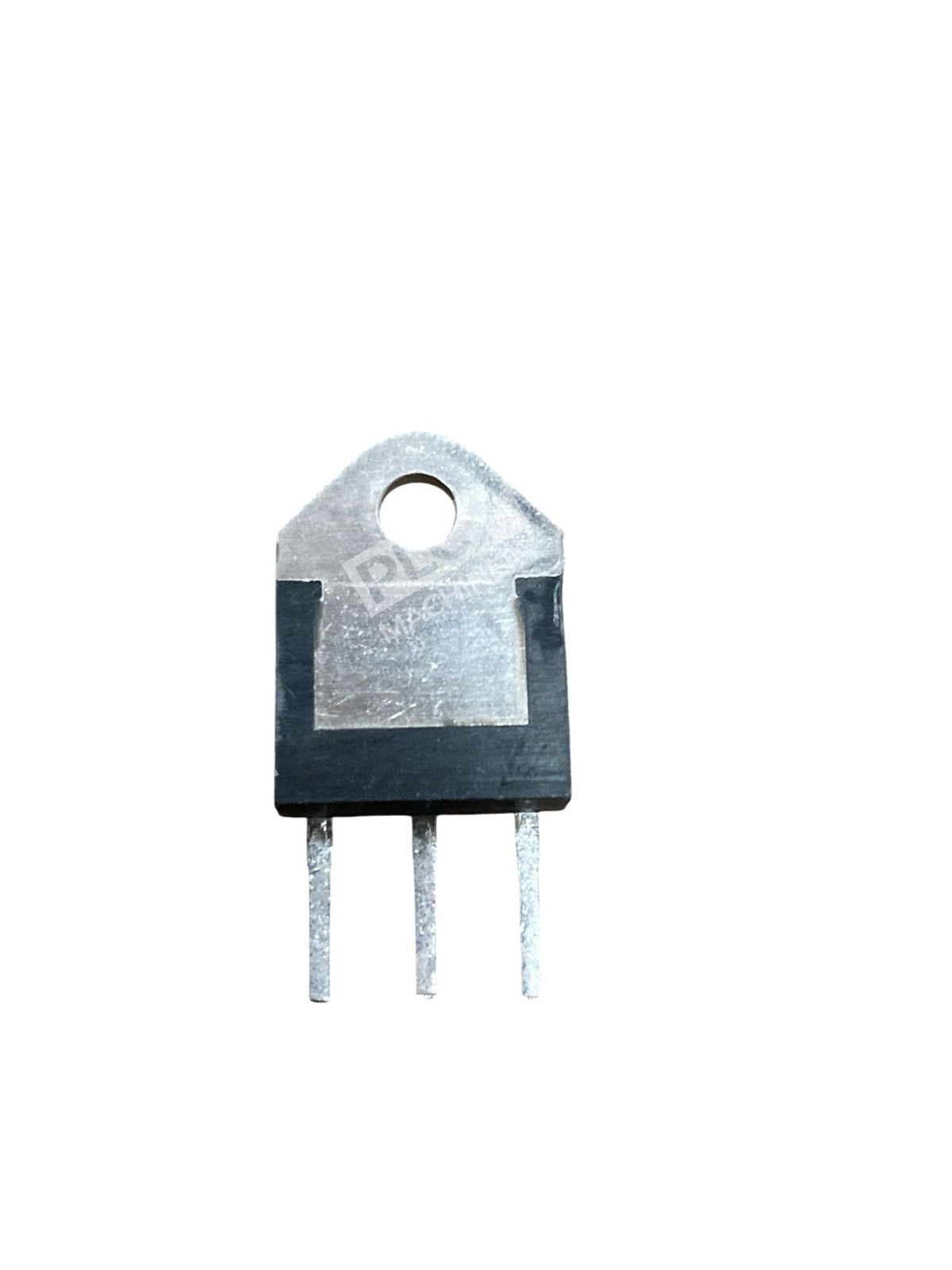

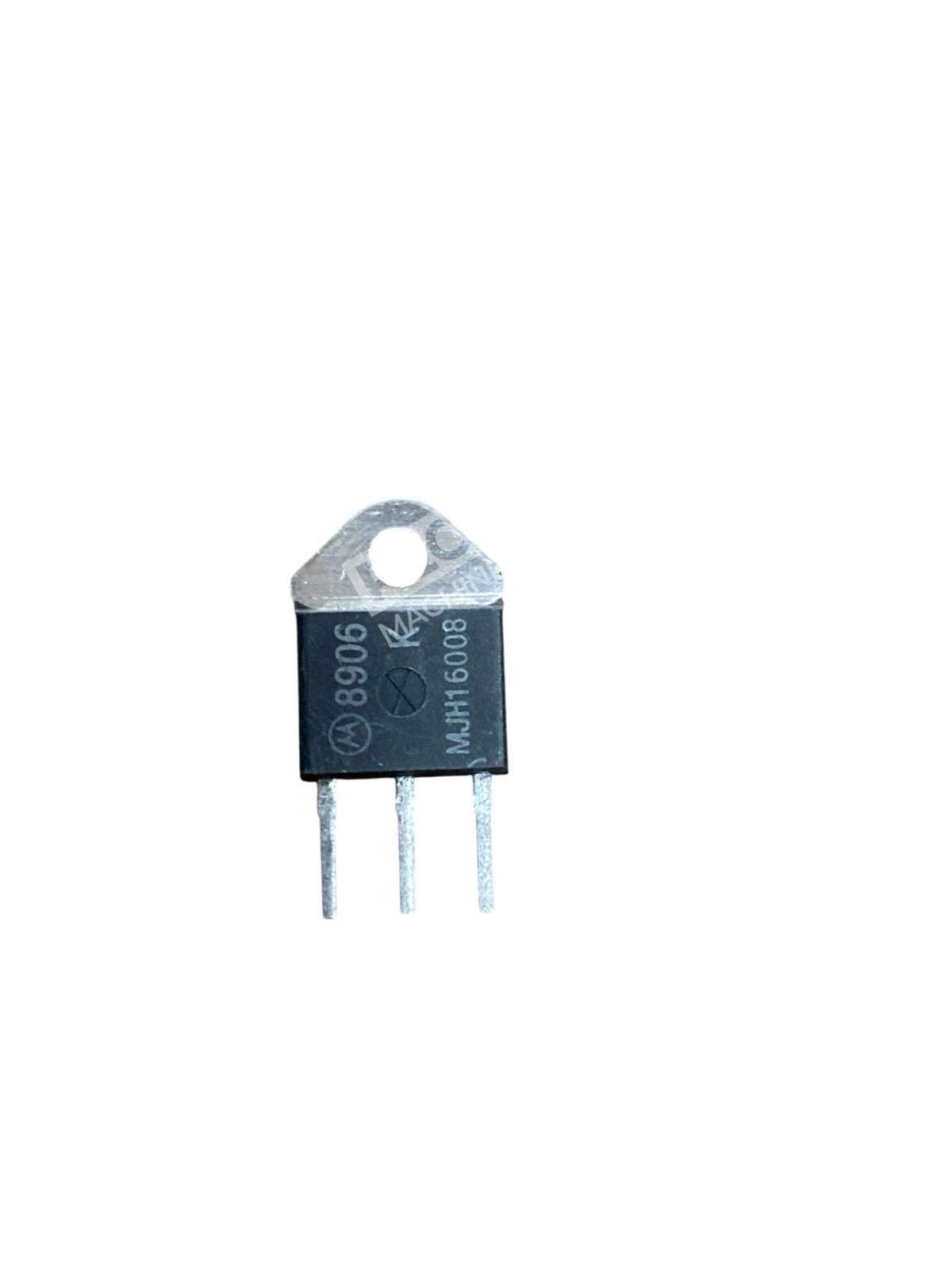

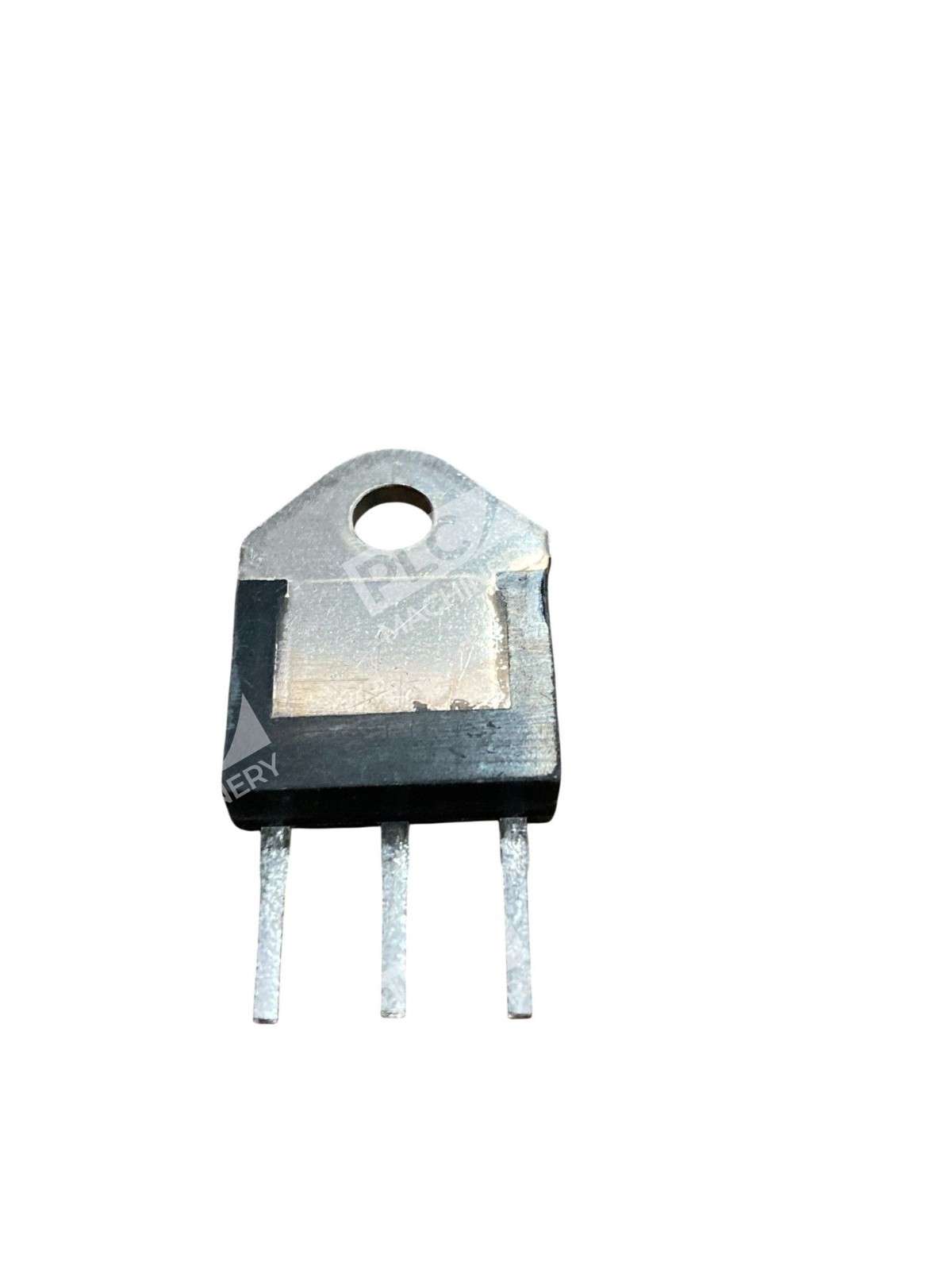

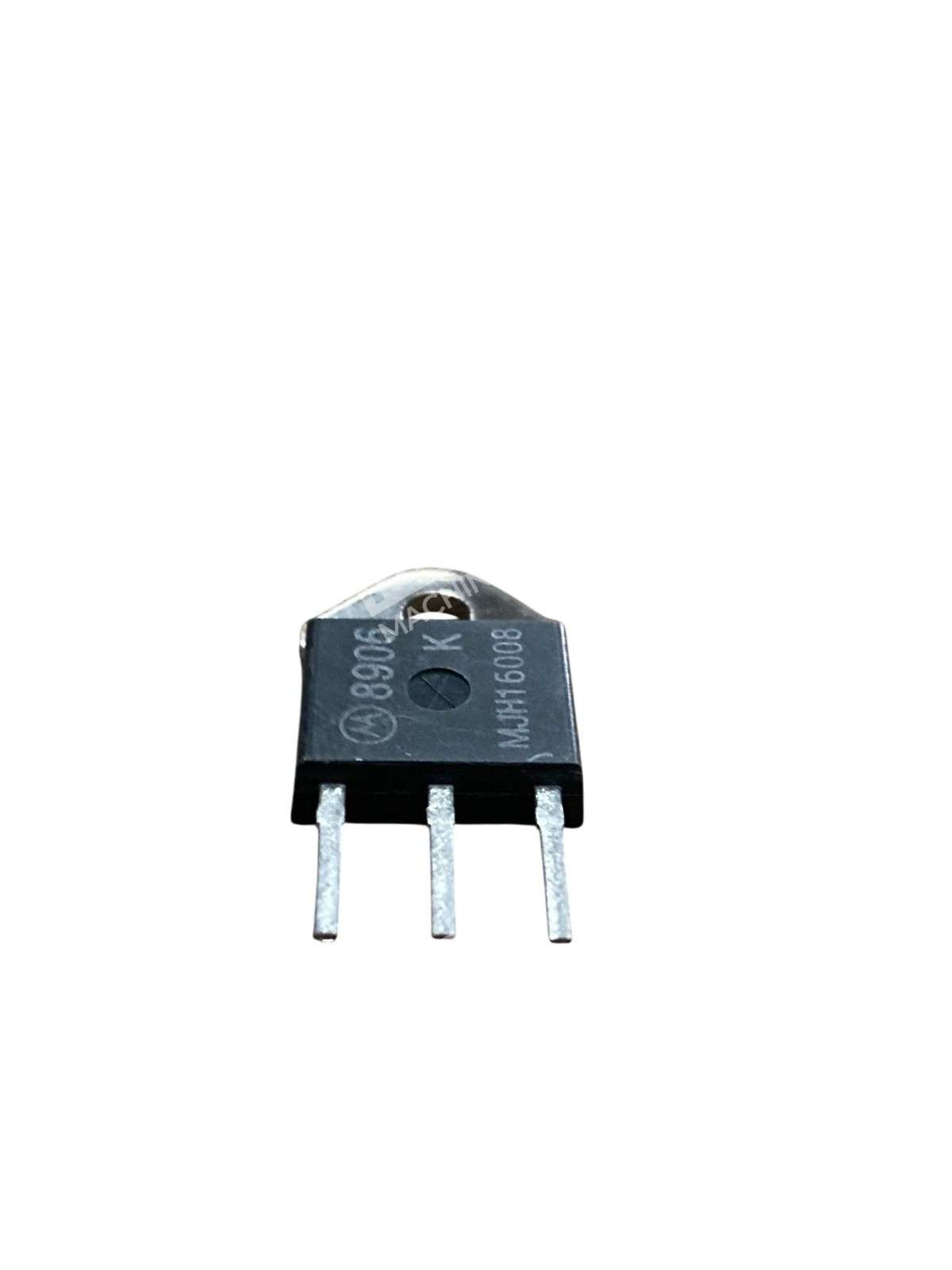

Motorola MJH16008 NPN Power Transistor The Motorola MJH16008 is a high-voltage, high-speed NPN power transistor designed for efficient power switching in inductive circuits. Encased in a TO-218 package, it offers robust performance for various industrial applications. Key Features High Voltage Capability: With a collector-emitter sustaining voltage (V CEO(SUS) ) of 450V, the MJH16008 is suitable for applications requiring substantial voltage handling. High-Speed Switching: Engineered for rapid switching, it ensures minimal fall times, making it ideal for time-sensitive operations. Significant Current Handling: Supports a continuous collector current (I C ) of up to 8A, accommodating demanding power requirements. Thermal Efficiency: Designed to dissipate up to 125W of power, it maintains performance under high-power conditions. Applications The MJH16008 is particularly suited for: Switching regulators Inverters Solenoid and relay drivers Motor controls Deflection circuits Absolute Maximum Ratings Parameter Symbol Value Unit Collector-Emitter Voltage V CEV 850 V Collector-Emitter Sustaining Voltage V CEO(SUS) 450 V Emitter-Base Voltage V EBO 6 V Collector Current – Continuous I C 8 A Collector Current – Peak I CM 16 A Base Current – Continuous I B 6 A Base Current – Peak I BM 12 A Collector Power Dissipation at T C = 25°C P C 125 W Junction Temperature T J 150 °C Storage Temperature T stg -65 to 150 °C Thermal Characteristics Parameter Symbol Max Unit Thermal Resistance, Junction to Case R th j-c 1.0 °C/W For detailed specifications and application guidelines, please refer to the manufacturer’s datasheet.
