Mitsubishi N40AB6 30A 600V Transistor Module QM30DY-H

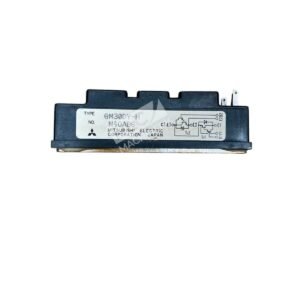

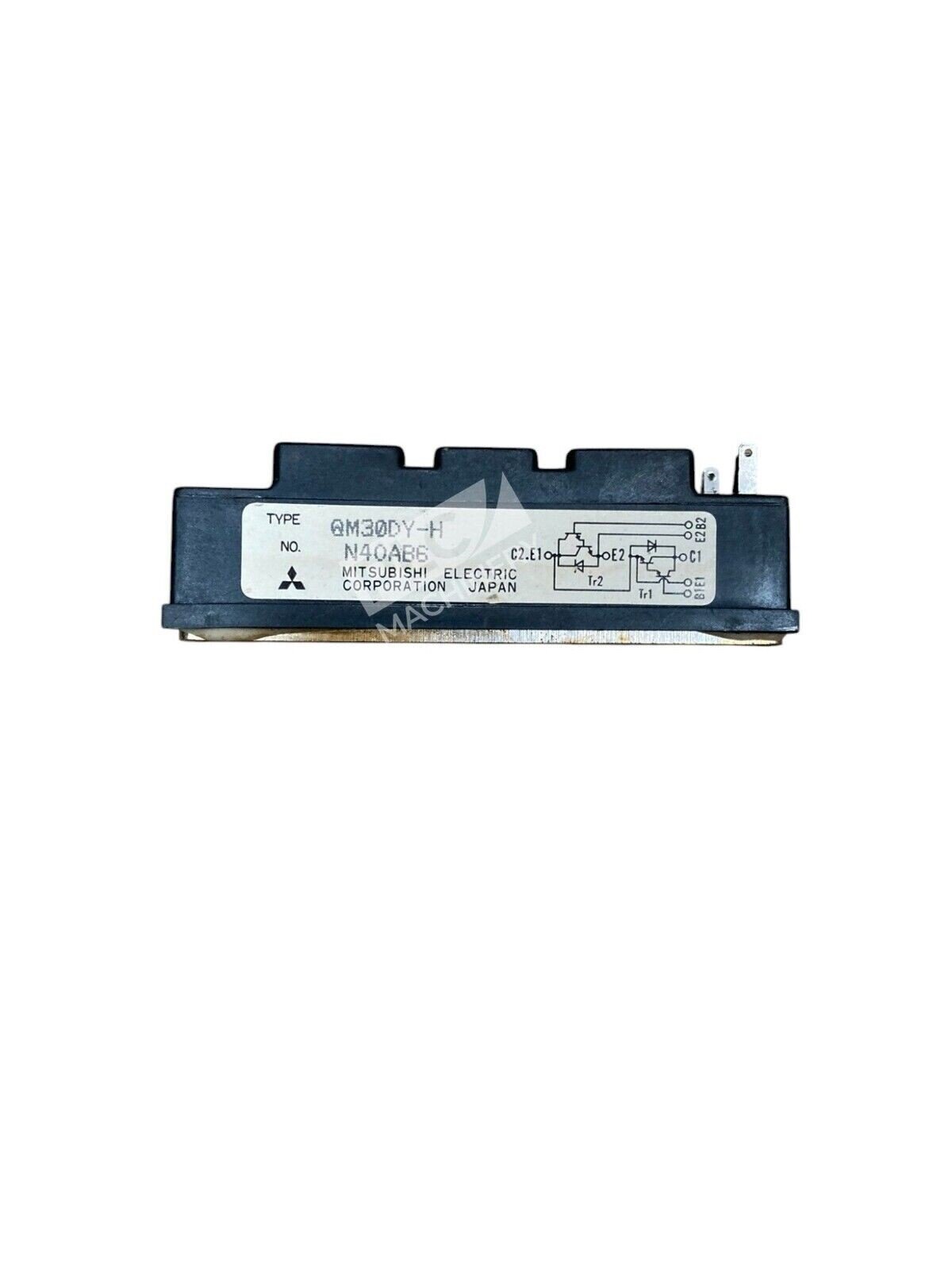

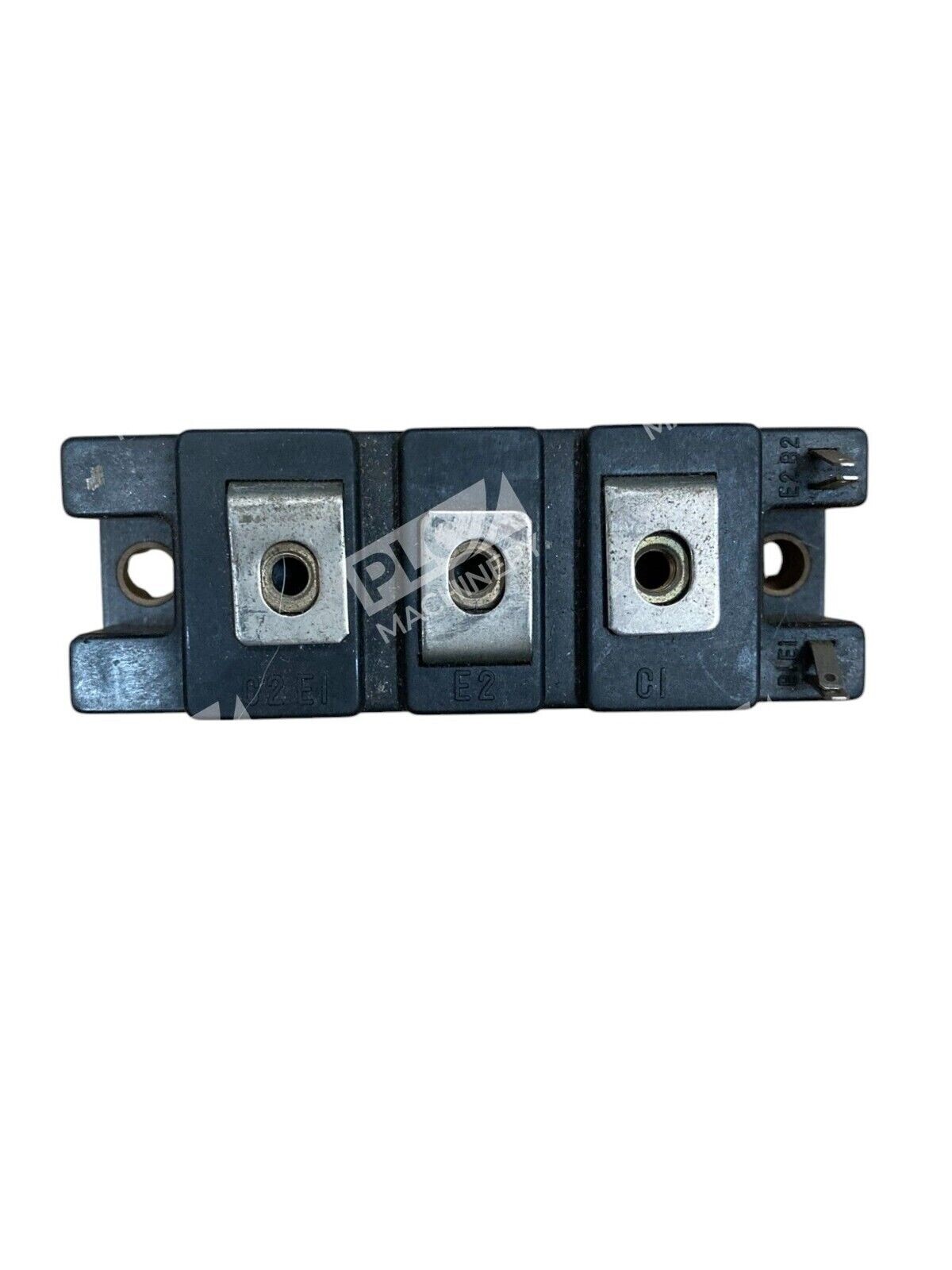

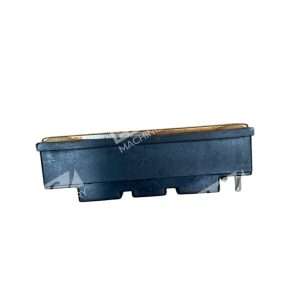

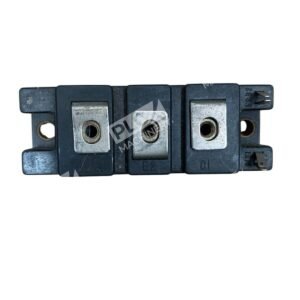

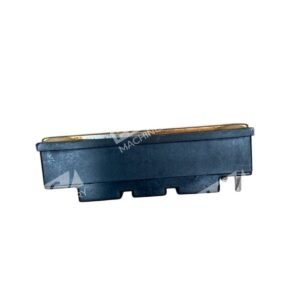

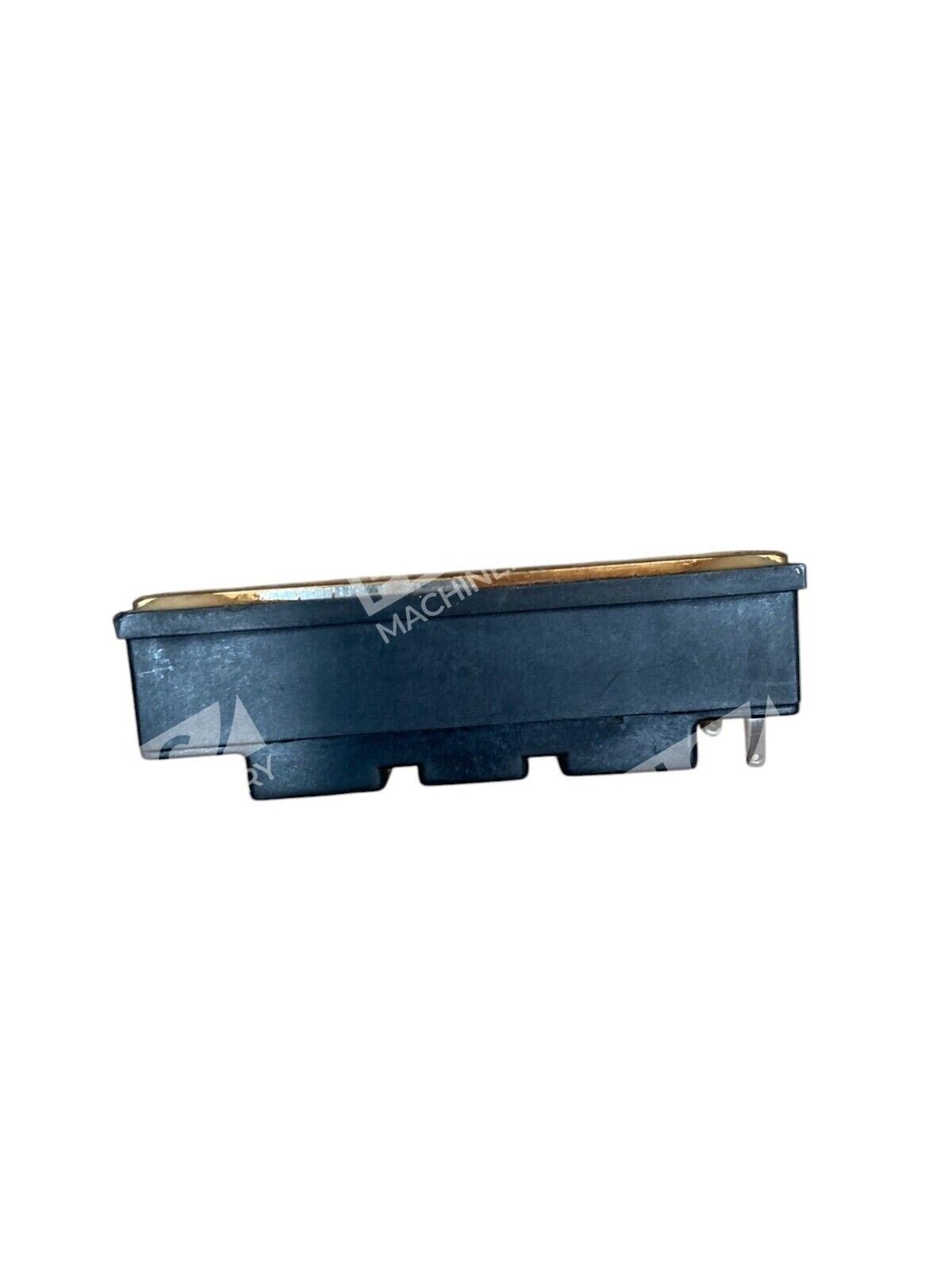

Mitsubishi QM30DY-H 30A 600V Transistor Module

The Mitsubishi QM30DY-H is a medium-power transistor module engineered for efficient and reliable performance in various industrial applications. This insulated module is designed to handle high current and voltage, making it suitable for demanding environments.

Key Features

• Collector-Emitter Voltage (V_CE): 600V
• Collector Current (I_C): 30A
• DC Current Gain (h_FE): 75
• Insulated Type: Provides electrical isolation, enhancing safety and simplifying installation
• UL Recognized: Certified under Yellow Card No. E80276 (N), File No. E80271

Applications

The QM30DY-H is versatile and can be utilized in various applications, including:

• AC motor controllers
• Uninterruptible Power Supplies (UPS)
• Constant Voltage Constant Frequency (CVCF) systems
• DC motor controllers
• Numerical Control (NC) equipment
• Welding machines

Technical Specifications

• Collector-Emitter Saturation Voltage (V_CE(sat)): 2.0V max
• Base-Emitter Saturation Voltage (V_BE(sat)): 2.5V max
• Collector Dissipation (P_C): 250W
• Operating Junction Temperature (T_j): -40°C to +150°C
• Storage Temperature (T_stg): -40°C to +125°C
• Isolation Voltage (V_iso): 2500V AC for 1 minute

Design and Construction

The QM30DY-H features an insulated design, which simplifies mounting and enhances safety by providing electrical isolation between the semiconductor elements and the heat sink. This design is particularly beneficial in applications where electrical isolation is critical.

Benefits

• High Efficiency: Low saturation voltage reduces power loss during operation.
• Reliable Performance: Designed to operate effectively under varying thermal and electrical conditions.
• Compact and Robust: The module’s design allows for easy integration into existing systems while ensuring durability.

In summary, the Mitsubishi QM30DY-H transistor module offers a combination of high voltage and current handling capabilities, insulation for safety, and reliability, making it a suitable choice for a wide range of industrial applications.
