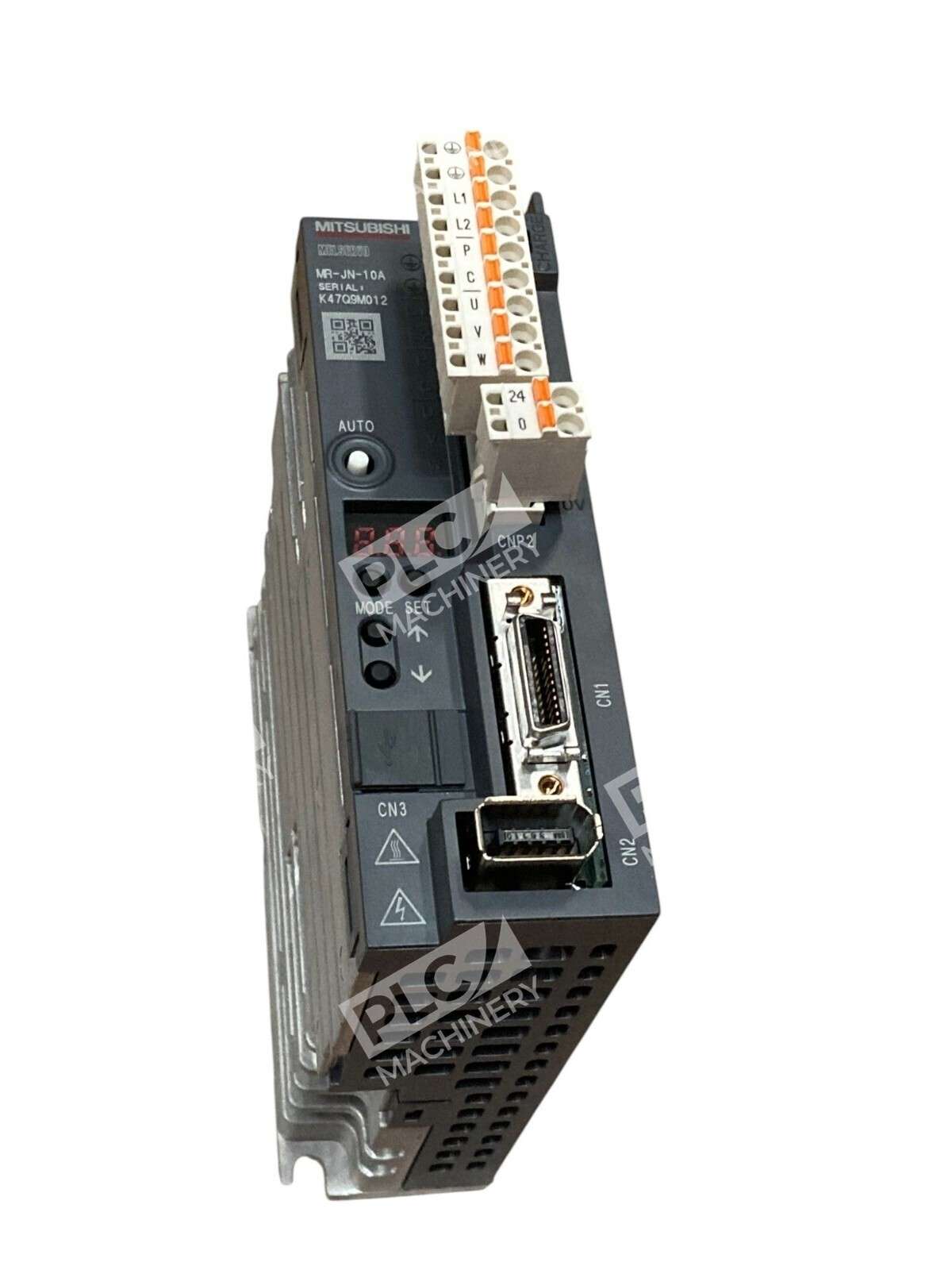

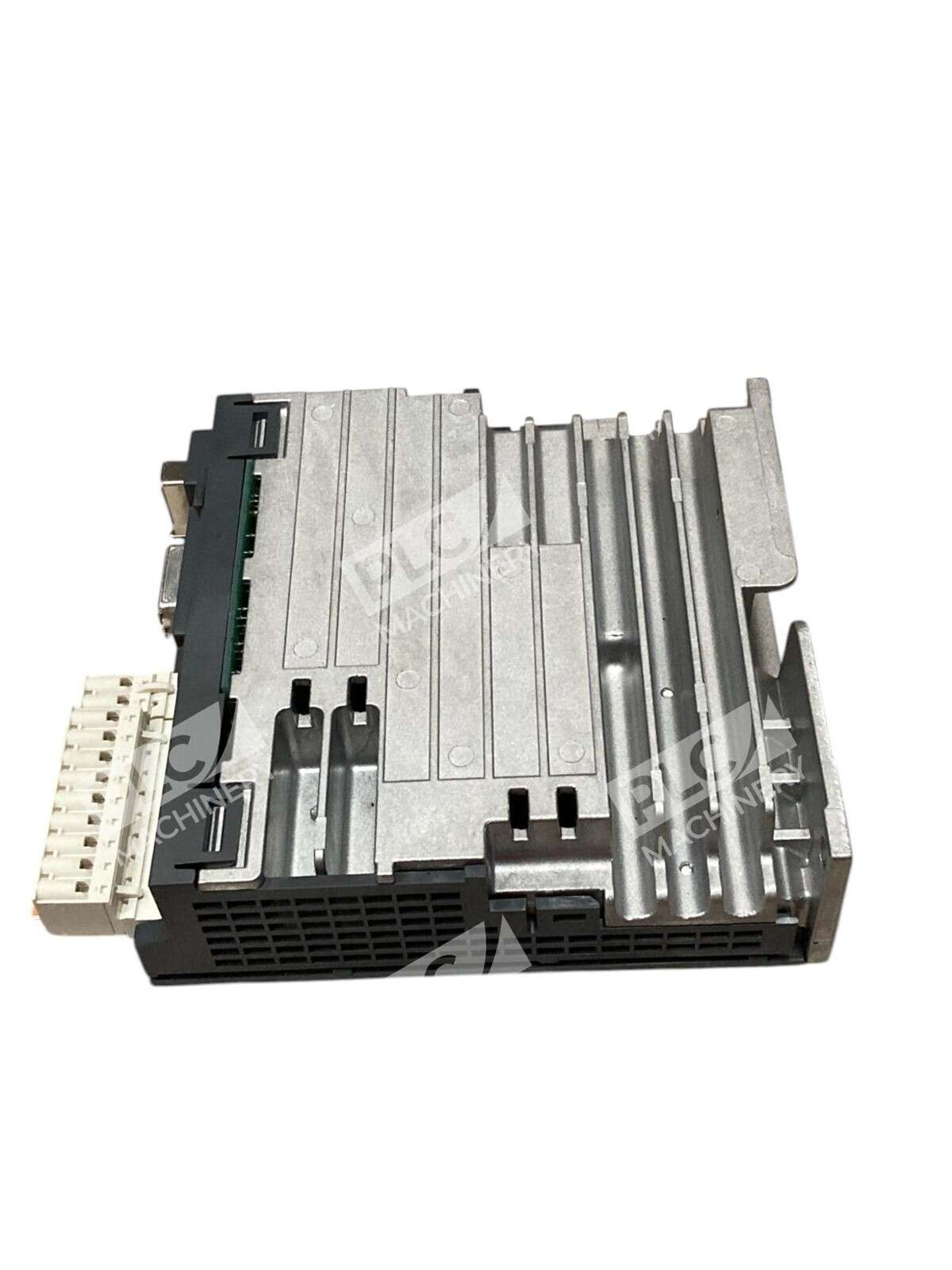

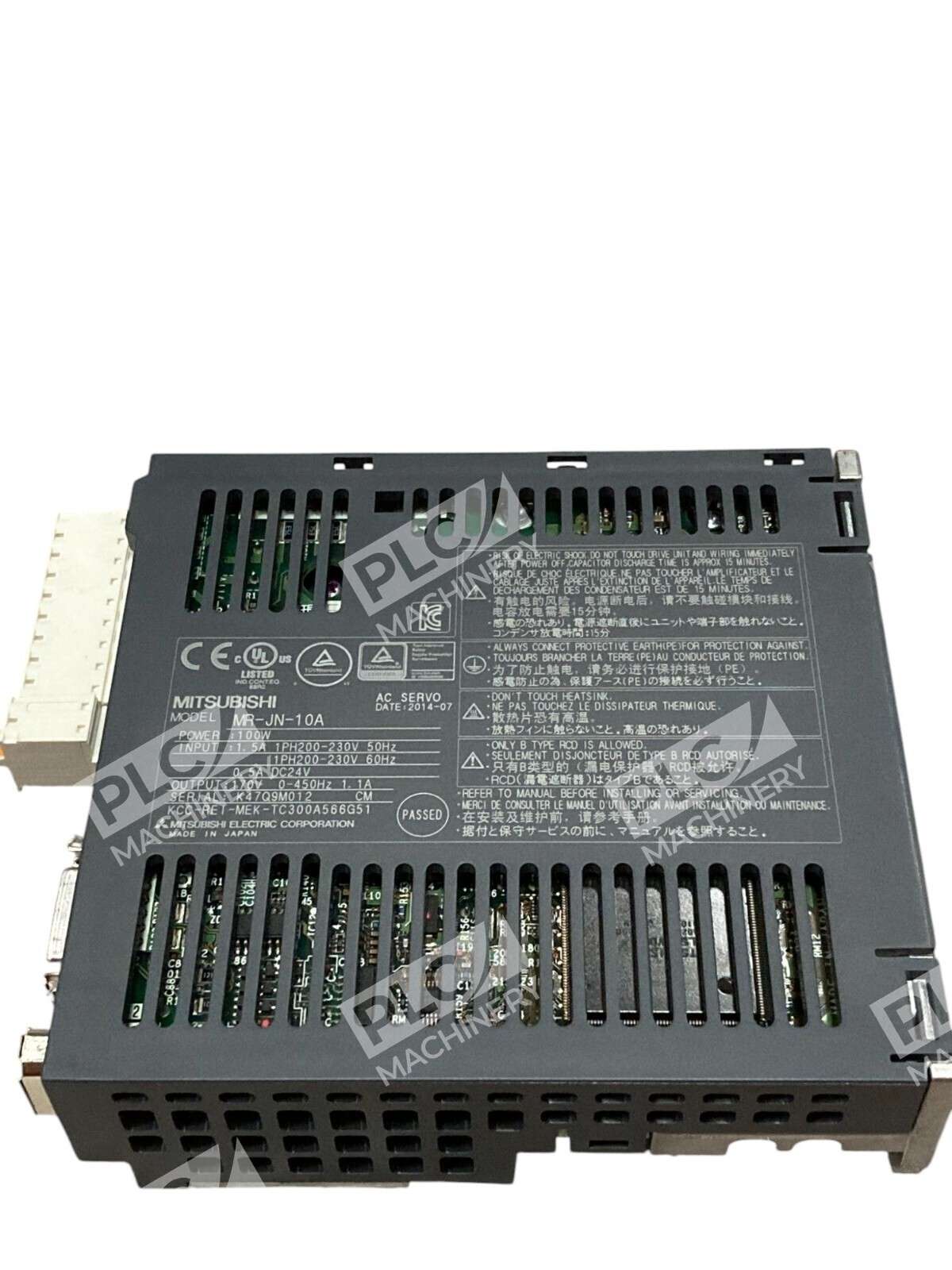

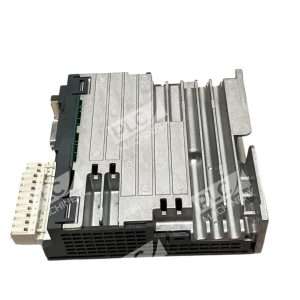

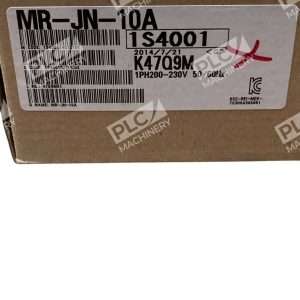

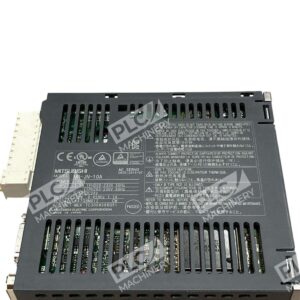

Mitsubishi MR-JN-10A 100W AC Servo Amplifier
The Mitsubishi MR-JN-10A is a compact and cost-effective AC servo amplifier from Mitsubishi Electric’s MELSERVO-JN series, designed for industrial automation applications requiring precise motion control in space-constrained environments.
Key Features
- Output Power: 100W, suitable for driving small servo motors in light-duty applications.
- Power Supply: Operates on a standard 200V class power supply (AC 200-230V), accommodating both single-phase and three-phase inputs.
- Control Interface: Accepts Pulse Train and Analog Voltage Inputs, ensuring compatibility with various PLCs and microcontrollers.
- Encoder Resolution: Equipped with a 17-bit absolute/incremental encoder (131,072 pulses/rev) for accurate positioning and smooth motion.
- Compact Design: Its ultra-compact size allows for easy integration into machinery where space is at a premium.
- Easy Setup: Features one-touch quick tuning, automatically adjusting parameters such as load to motor inertia ratio, gain, and machine resonance suppression to optimize servo performance.
- Built-in Dynamic Brake: Includes a built-in dynamic brake for enhanced safety and performance.
Specifications
- Input Voltage: Single-phase 200-230V AC, 50/60Hz
- Output Voltage: 3-phase 170V AC
- Rated Current: 1.1A
- Control Method: Sine-wave PWM control/current control method
- Communication Function: USB interface for connection to a personal computer (compatible with MR Configurator2)
The MR-JN-10A is an excellent choice for integrating precise, basic motion control into space-constrained or cost-sensitive machinery, offering a balance of performance, simplicity, and affordability.
