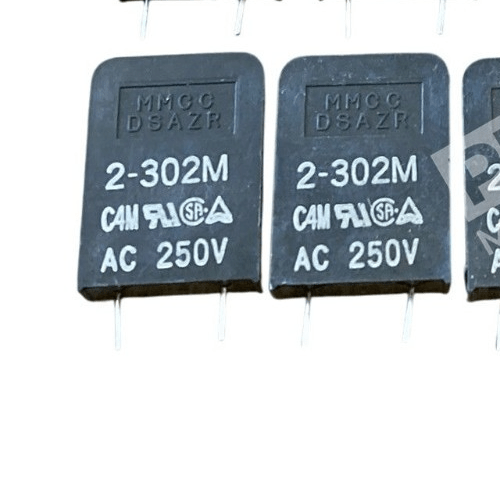

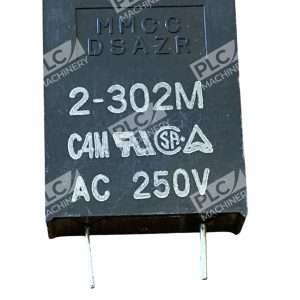

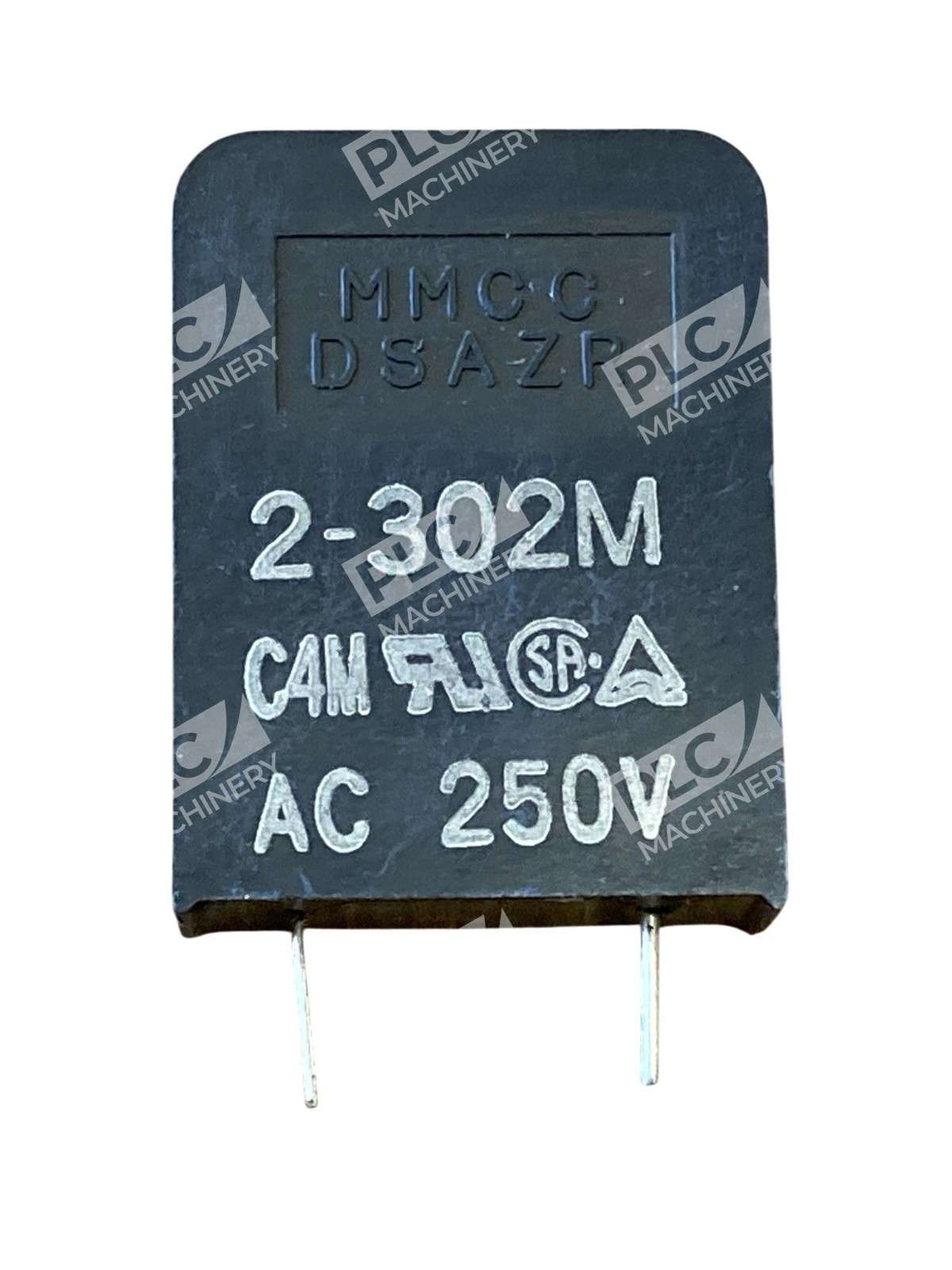

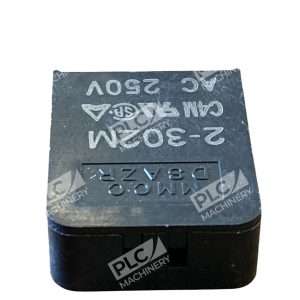

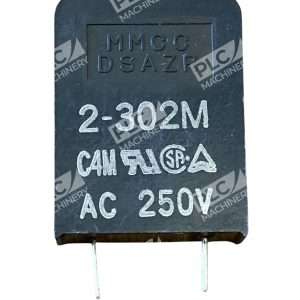

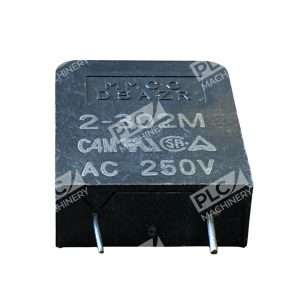

Mitsubishi Materials DSAZR2-302M Surge Absorber 250V (Lot of 2)

The Mitsubishi Materials DSAZR2-302M Surge Absorber is a high-performance component engineered to protect electronic circuits from abnormal voltages, such as lightning surges, particularly in power supply circuits operating at 250V AC.

Key Features

• High Surge Protection: Designed to safeguard power supply circuits from unexpected voltage spikes, ensuring the longevity and reliability of electronic equipment.
• Quick Response Time: Utilizes micro-gap technology for rapid response to surge events, effectively limiting voltage and preventing potential damage.
• Low Capacitance: Maintains a low capacitance of ≤2pF, minimizing signal distortion and ensuring optimal performance in high-frequency applications.
• Excellent Insulation Resistance: Offers an insulation resistance of ≥100MΩ, providing robust protection against leakage currents and enhancing circuit safety.
• Stable Performance: Demonstrates consistent performance under repeated surge conditions and varying environmental factors, ensuring reliable operation over time.
• Non-Polarity Design: Features a non-polarity configuration, simplifying installation and reducing the risk of incorrect connections.
• Compact and Lightweight: With a weight of approximately 5.45g, it is suitable for applications where space and weight are critical considerations.

Technical Specifications

• DC Spark-Over Voltage (Vs): 3,000V (with a tolerance range of 2,400 to 3,600V)
• Surge Current Capacity: Capable of handling surge currents up to 1,000A (8/20μs waveform)
• AC Withstanding Voltage: Successfully withstands AC 1,500V for 1 minute, ensuring durability under high-voltage conditions
• Operating Temperature Range: -25°C to 85°C, suitable for various environmental conditions
• Storage Temperature Range: -40°C to 125°C, allowing for flexible storage options

Applications

The DSAZR2-302M is ideal for protecting power supply circuits in a wide range of electronic devices, including:

• Office and measuring equipment
• Inverters and CNC machinery
• Factory automation systems
• Solar inverters and power conditioners
• Outdoor LED lighting systems

By integrating the DSAZR2-302M Surge Absorber into your electronic designs, you can enhance the resilience of your equipment against voltage surges, ensuring reliable and uninterrupted operation.
